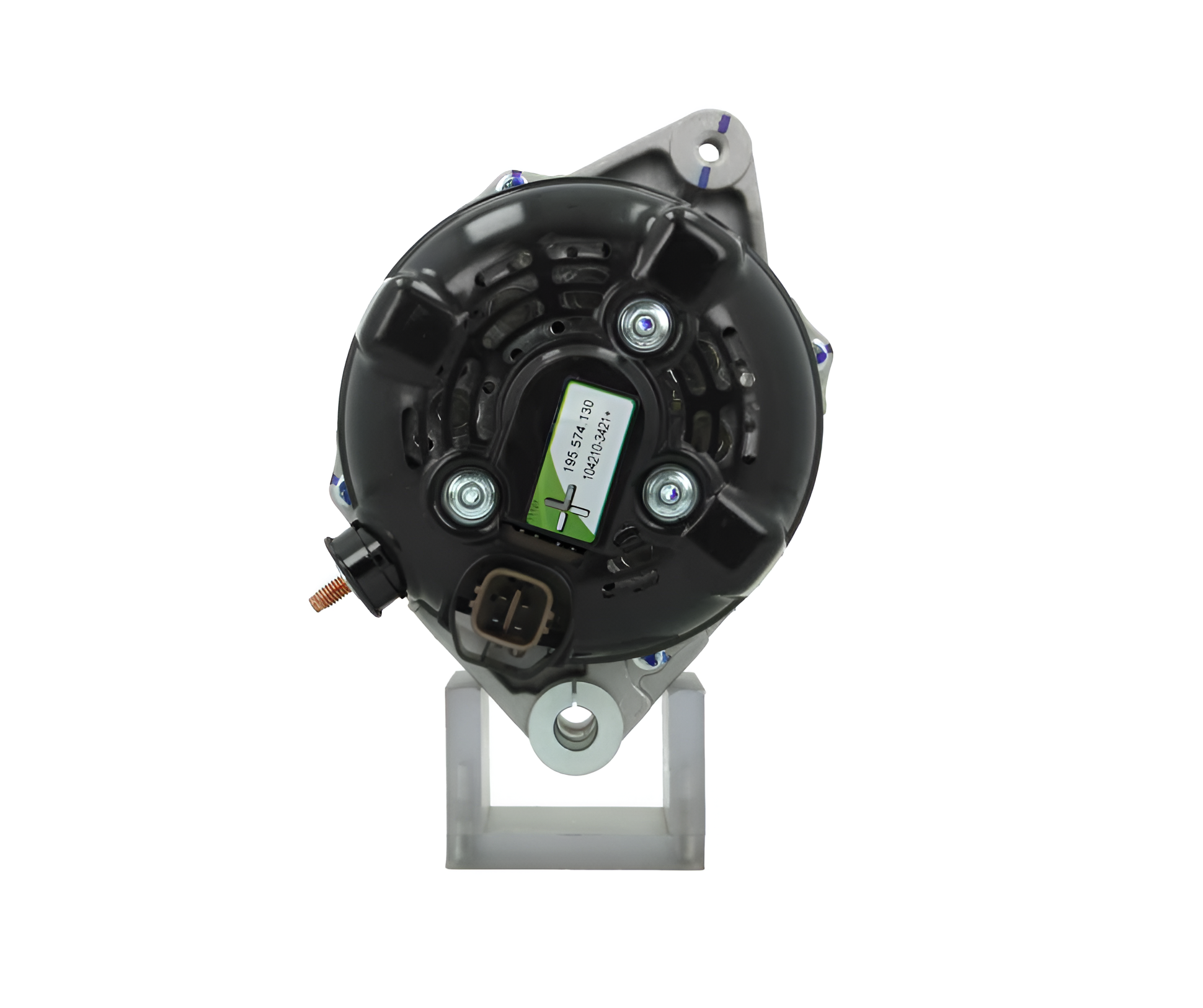

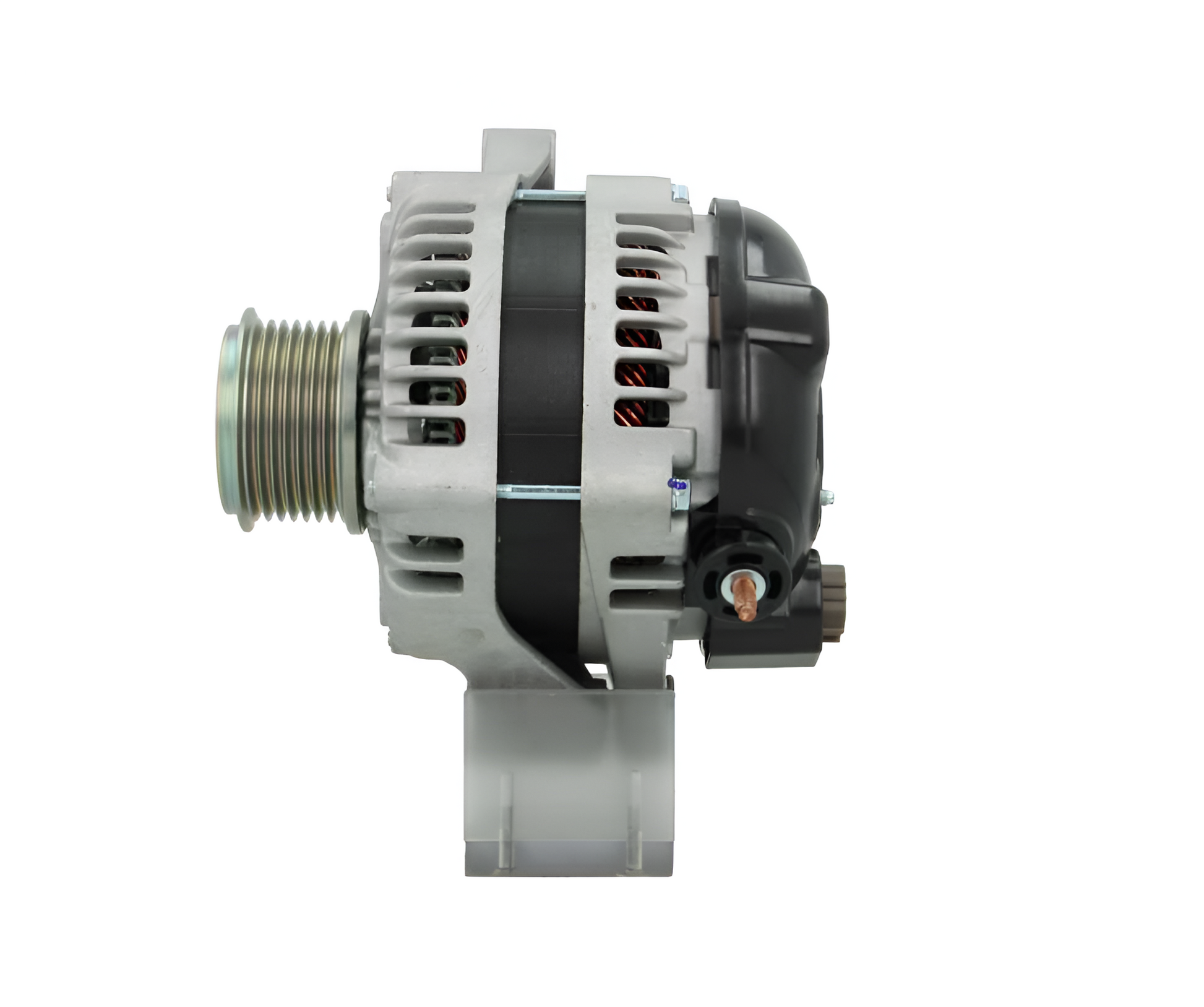

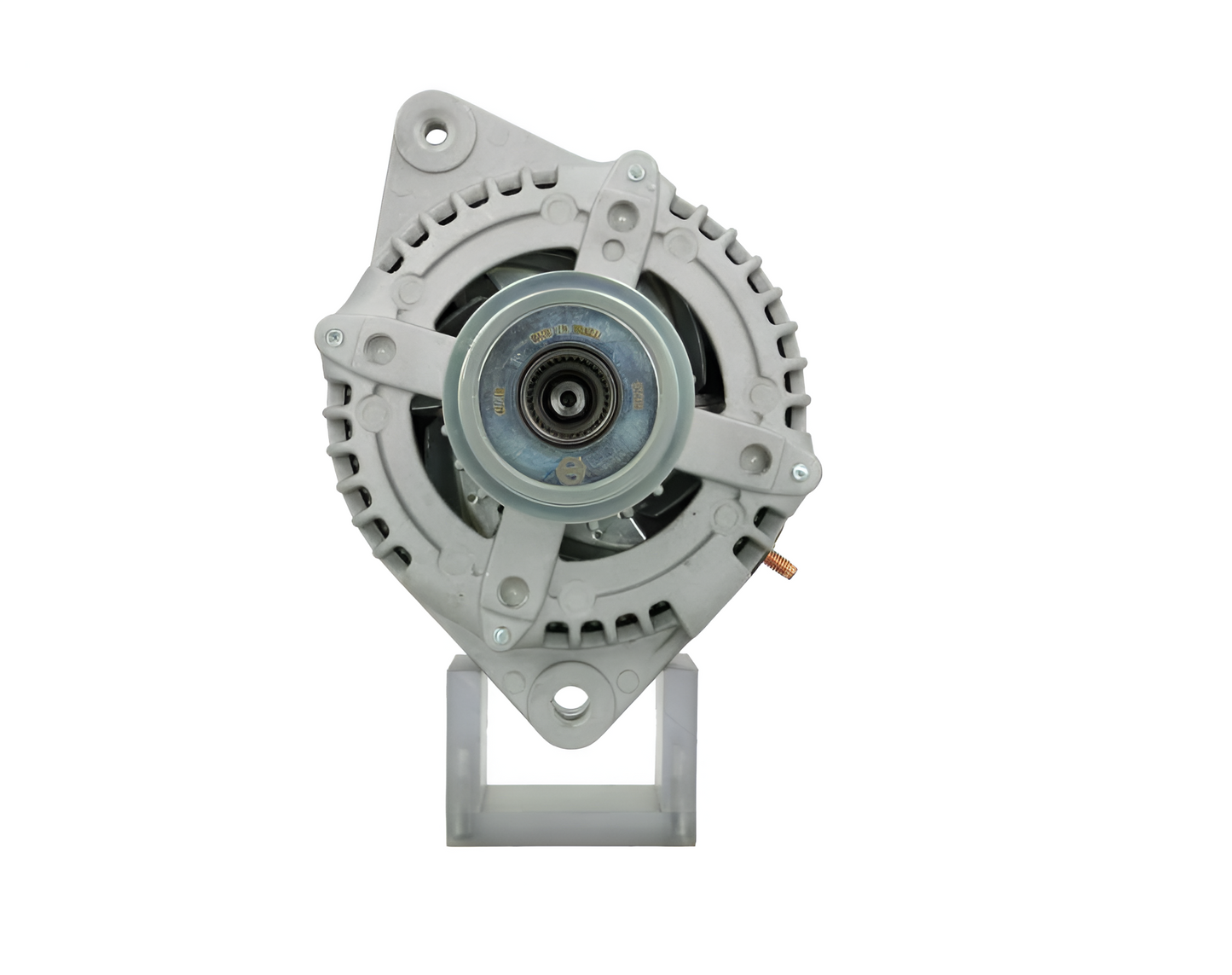

New Alternator 12v 130AMP Fits: Toyota Landcruiser 116637 / ALT30539
116637
ALT30539
Electrical specifications
Voltage12
Amp 130

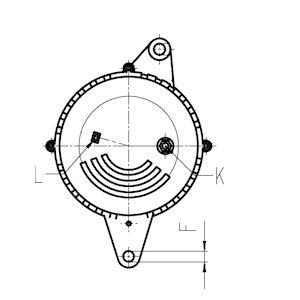

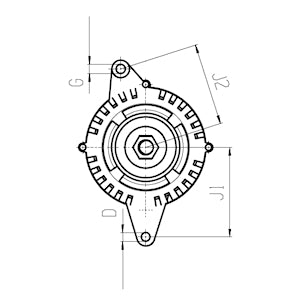

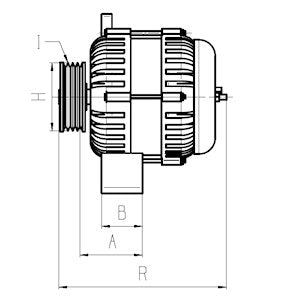

Physical specifications
A Pulley dist. 97.50
B Width/holder arm 60.00
D Bracket hole 10.50
E Belt. adj. brackethole pos. 56
G Belt. adj. bracket hole 1 M8
H Pulley dia. 58.00
I Grooves/pulley 7
J Radius 83.00
J Radius 2 86.00
K B+ M6
L D+ Size Plug
N Rotation CW

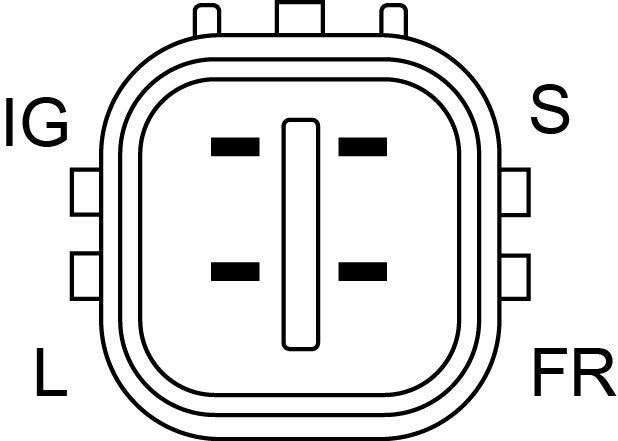

O Plug no. PL92
R Total length mm 175.00
Additional information

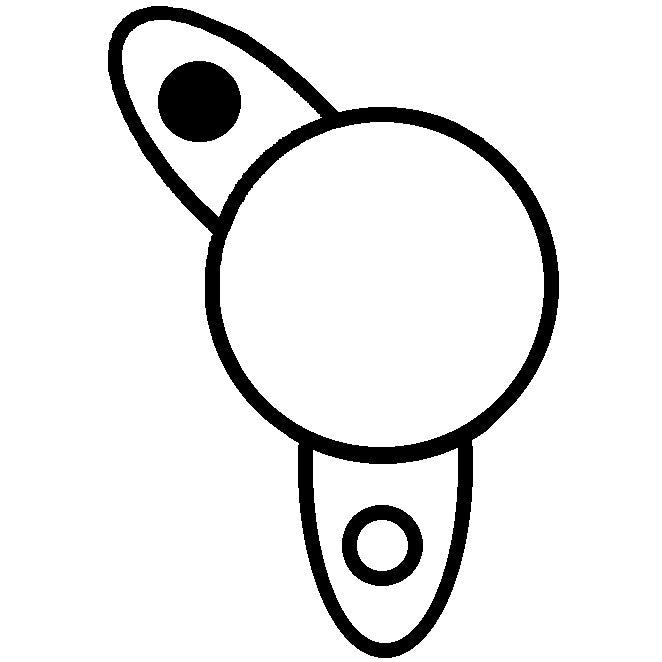

Pulley - SP/FW
Replacing
0986JR1270 Bosch Exchange
1042101440 Denso
1042101790 Denso
1042103420 Denso
1042103421 Denso
1042103422 Denso
1042103423 Denso
1042104501 Denso
1042104502 Denso
1042104503 Denso
195574130 PSH
20779N WAI
2706030110 Toyota
2706030111 Toyota
2706030180 Toyota
2706030181 Toyota
ALT30539 Wood Auto
ATA647 ATK
DAN1481 Denso
TNA100 TWA
TRA298 TWA
WOOALT30539 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
