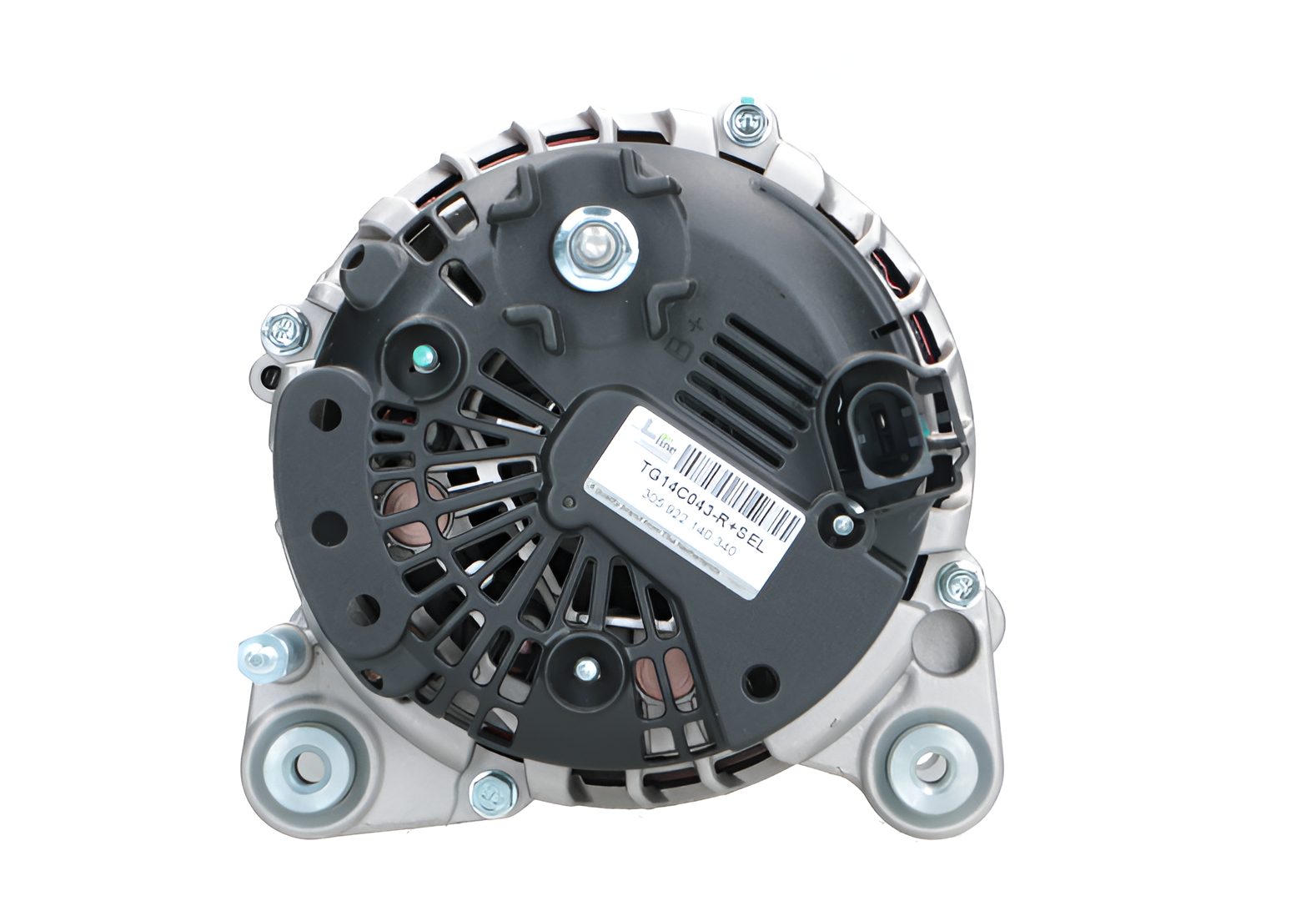

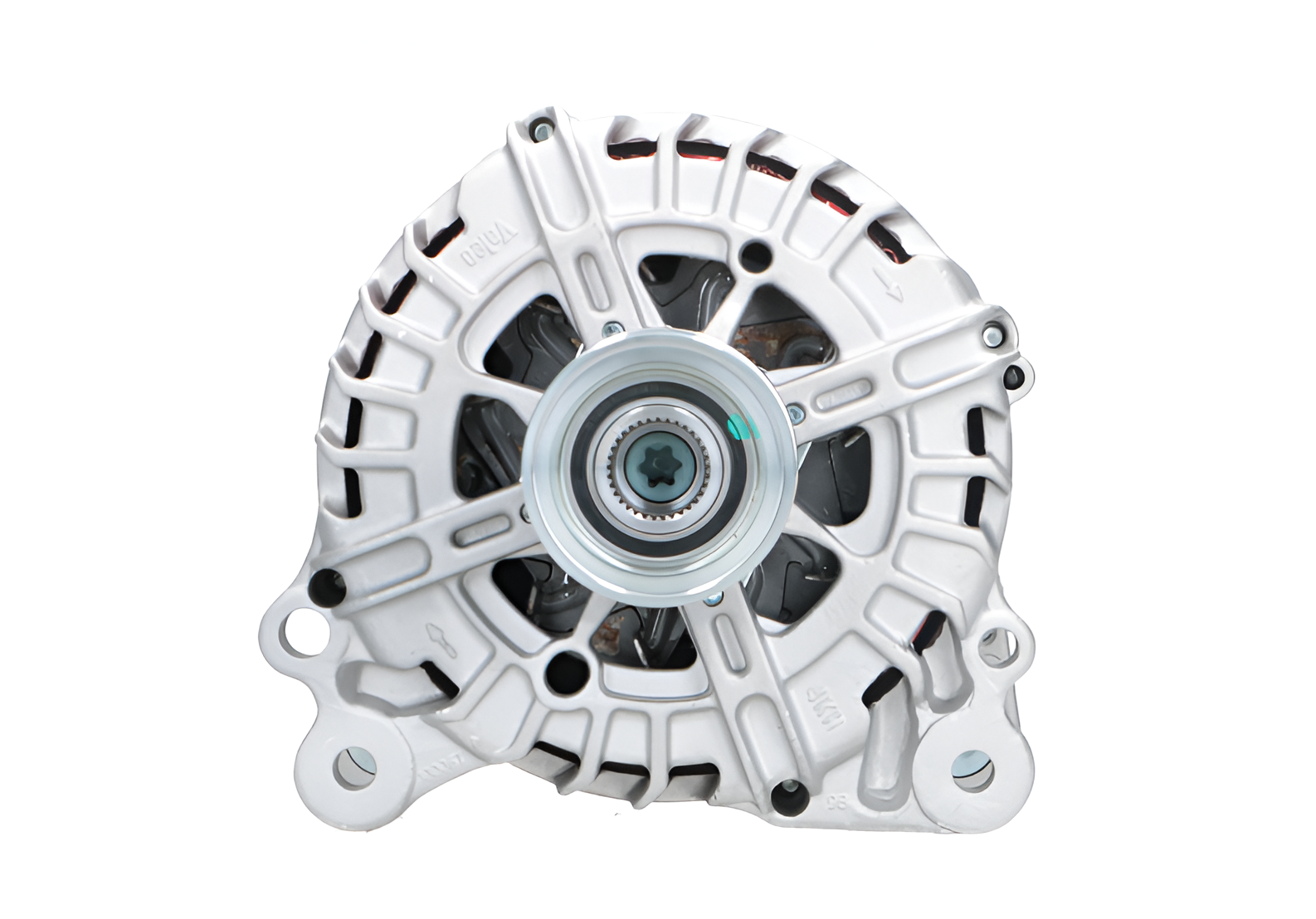

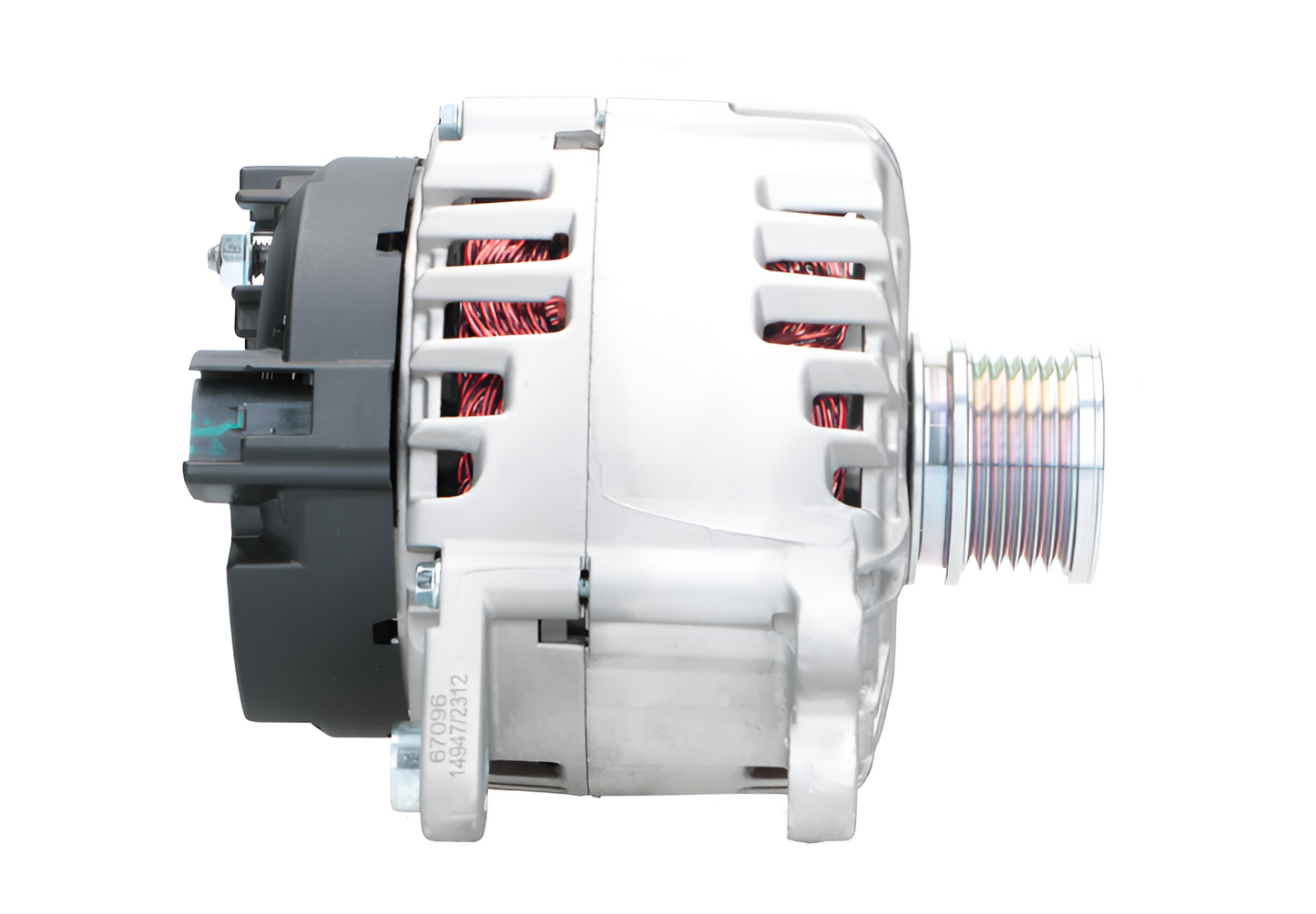

New Alternator 12v 140AMP Fits: Audi, VW, Seat, Skoda 116359 / ALT14537

New Alternator 12v 140AMP Fits: Audi, VW, Seat, Skoda 116359 / ALT14537

116359

ALT14537

Electrical specifications

• Voltage 12
• Amp 140

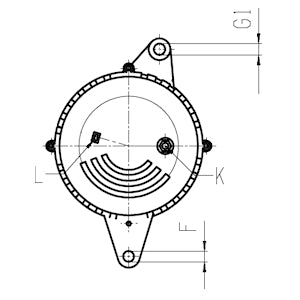

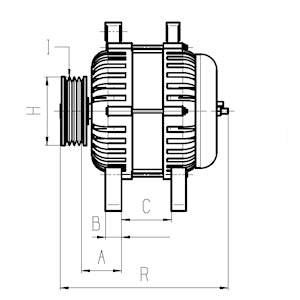

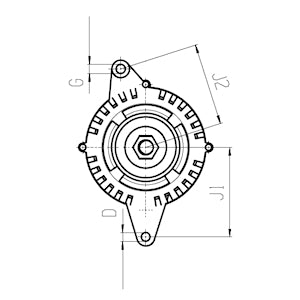

Physical specifications

• A    Pulley dist.    39.00

• B    Width/holder arm    14.00

• C    Mount. bracket dist.    61.00

• D    Bracket hole    8.50

• E    Belt. adj. brackethole pos.    15

• G    Belt. adj. bracket hole 1    8.50

• H    Pulley dia.    50.00

• I    Grooves/pulley    6

• J    Radius    90.00

• J    Radius 2    90.00

• K    B+    M8

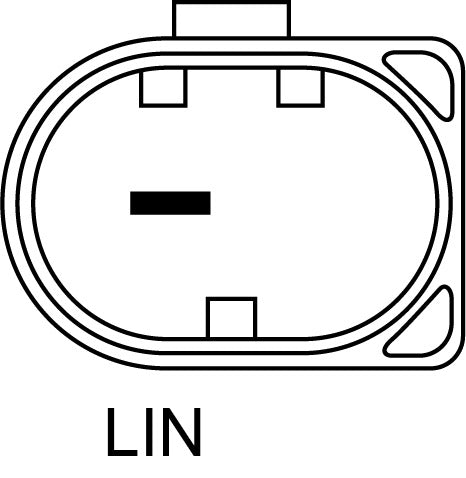

• O    Plug no.    PL181

• R    Total length mm    191.00

• Terminal type    COM

Additional information

• Pulley - SP/FW

• Fan - IF

• Regulator type - IR

• Remarks - This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering

Replacing

• 03L903023KX    Volkswagen AG

• 03L903023L    Volkswagen AG

• 03L903023LX    Volkswagen AG

• 03L903024D    Volkswagen AG

• 04L903021A    Volkswagen AG

• 04L903024D    Volkswagen AG

• 0986083130    Bosch Exchange

• 0986UR6374    Bosch Exchange

• 115826    HC-Cargo

• 116359    HC-Cargo

• 200238    Valeo

• 20305N    WAI

• 2612004E    Valeo

• 305922140    PSH

• 439791    Valeo

• 440428    Valeo

• 612004    Valeo

• 747137    Valeo

• ALT14537    Wood Auto

• DRA1212    Delco Remy

• F032116359    HC-Cargo

• HVW0009060900    Mercedes-Benz

• LEA0987    Lucas

• LRA03185    Lucas

• LRA3185    Lucas

• TG14C043    Valeo

• TG14C051    Valeo

• TG14C095    Valeo

• VAL439791    Wood Auto

• VALTG14C043    Wood Auto

• WOOALT14537    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
