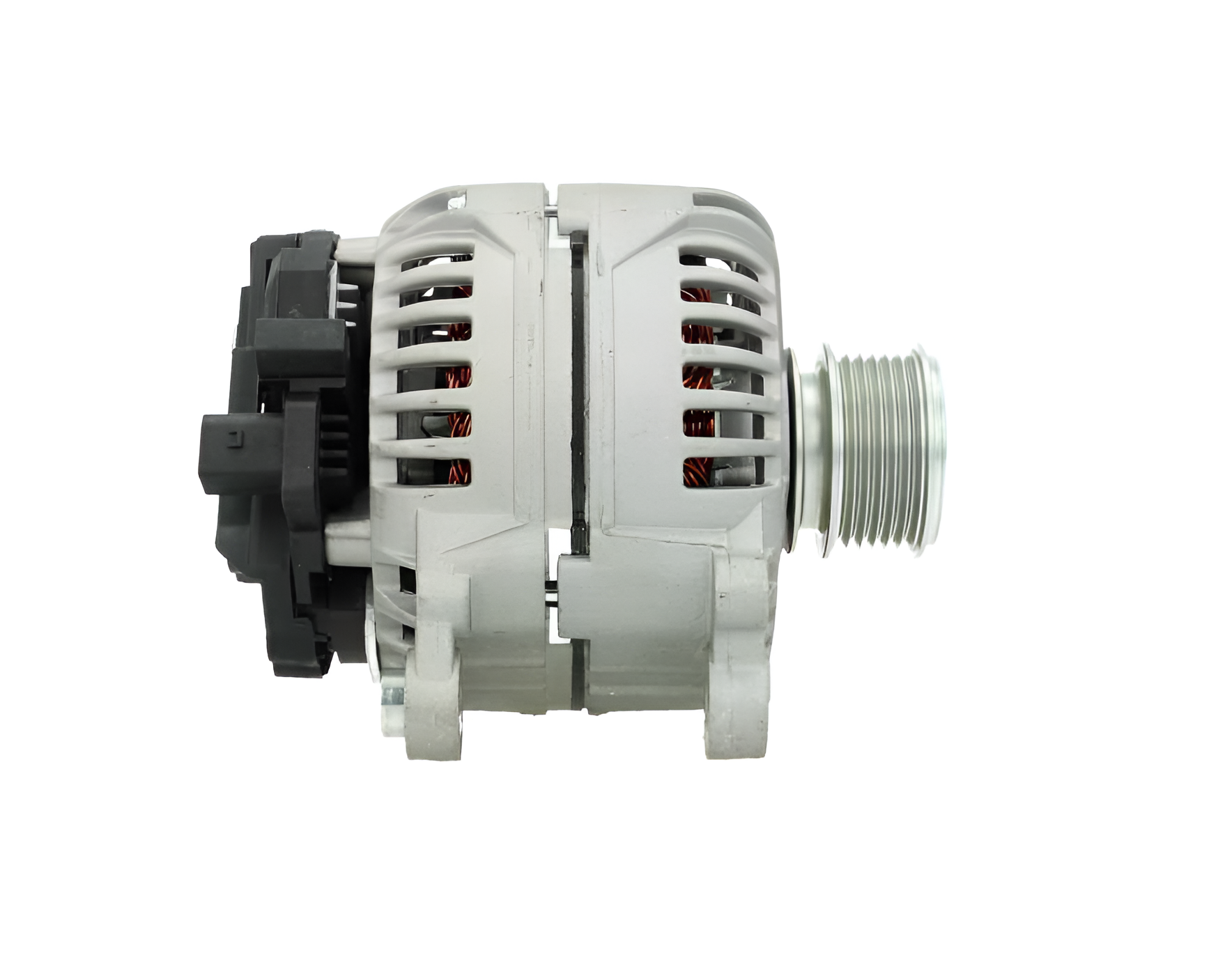

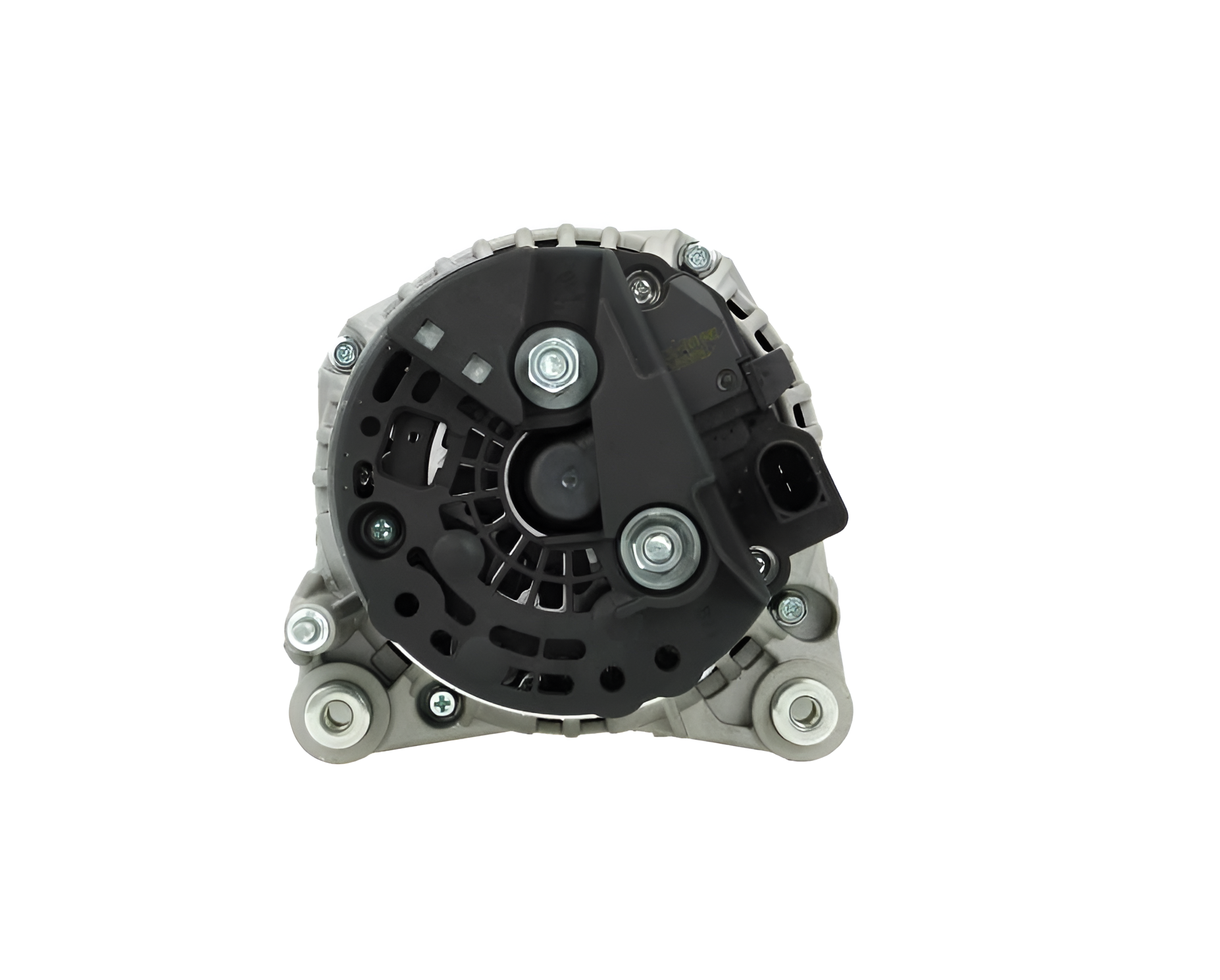

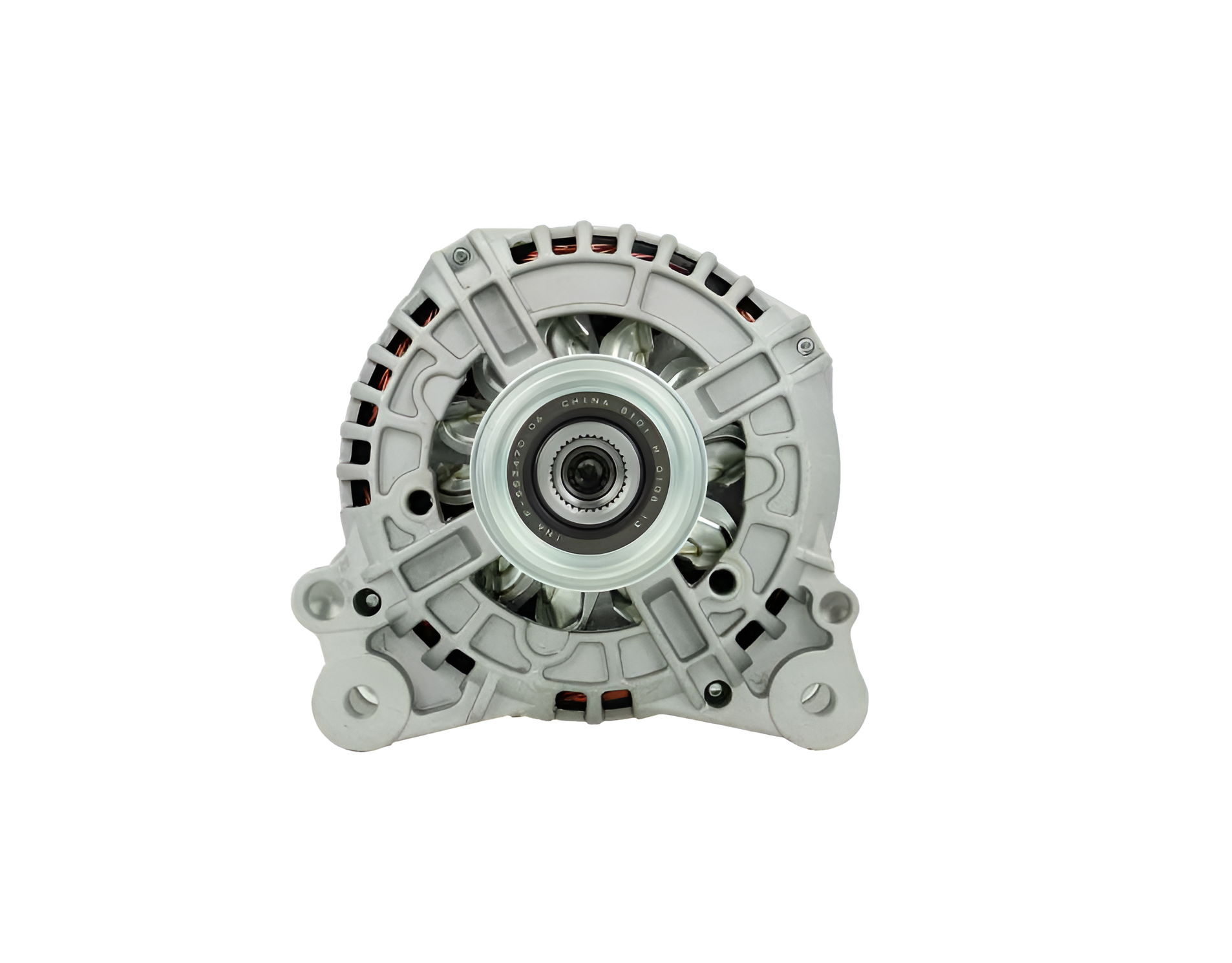

New Alternator 12v 140AMP Fits: Audi, VW, Skoda, Seat etc. 115433 / ALT10784

New Alternator 12v 140AMP Fits: Audi, VW, Skoda, Seat etc. 115433 / ALT10784

115433

ALT10784

Electrical specifications

• Voltage 12
• Amp 120

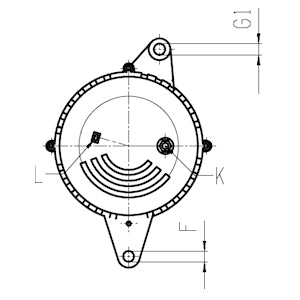

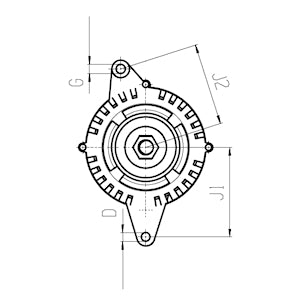

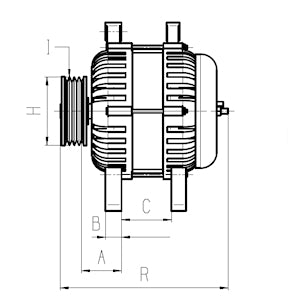

Physical specifications

• A    Pulley dist.    40.20

• B    Width/holder arm    14.30

• C    Mount. bracket dist.    61.50

• D    Bracket hole    9.50

• E    Belt. adj. brackethole pos.    45

• G    Belt. adj. bracket hole 1    9.50

• G    Belt. adj. bracket hole 2    M8

• H    Pulley dia.    60.00

• I    Grooves/pulley    6

• J    Radius    90.00

• J    Radius 2    90.00

• K    B+    M8

• N    Rotation    CW

• O    Plug no.    PL86

• R    Total length mm    200.00

• Terminal type    COM

Additional information

• Pulley - SP/FW

• Regulator type - IR

• Remarks - This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Replacing

• 0124525187    Bosch

• 0124525542    Bosch

• 0124525617    SEG

• 03L903023X    Volkswagen AG

• 03L906023    Volkswagen AG

• 0986081160    Bosch Exchange

• 11721N    WAI

• 12201290    AES

• 12201421    AES

• 305573140    PSH

• ALT10784    Wood Auto

• ALT2401    Unipoint

• BOS0124525542    Wood Auto

• CA2011IR    HC-Parts

• DRA0353    Delco Remy

• F042A01220    Bosch

• HCA2011IR    HC-Parts

• LEA0780    Lucas

• OAN12694    Optimum

• RNL8116    RNL

• SEG0124525542    Wood Auto

• WOOALT10784    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
