New Alternator 12v 150AMP Fits: Citroen, Peugeot, Fiat, Opel 115364 / ALT14369

New Alternator 12v 150AMP Fits: Citroen, Peugeot, Fiat, Opel 115364 / ALT14369

115364

ALT14369

Electrical specifications

• Voltage 12
• Amp 150

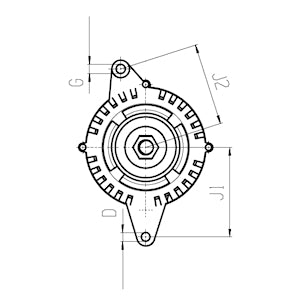

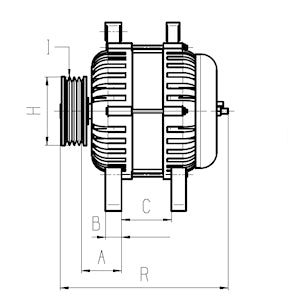

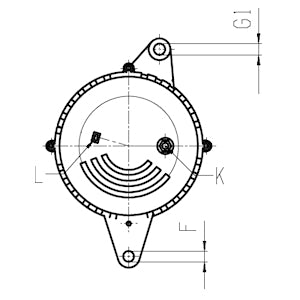

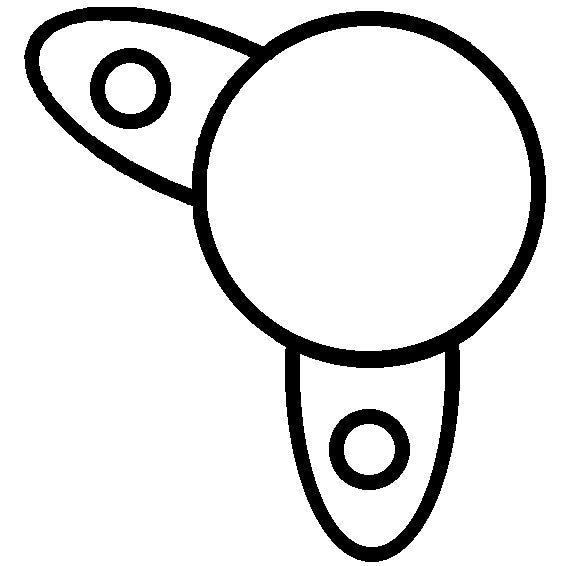

Physical specifications

• A    Pulley dist.    42.50

• B    Width/holder arm    21.00

• C    Mount. bracket dist.    45.50

• D    Bracket hole    10.00

• E    Belt. adj. brackethole pos.    47

• G    Belt. adj. bracket hole 1    10.50

• G    Belt. adj. bracket hole 2    M10

• H    Pulley dia.    54.50

• I    Grooves/pulley    6

• J    Radius    90.00

• J    Radius 2    90.00

• K    B+    M8

• N    Rotation    CW

• O    Plug no.    PL132

• R    Total length mm    180.00

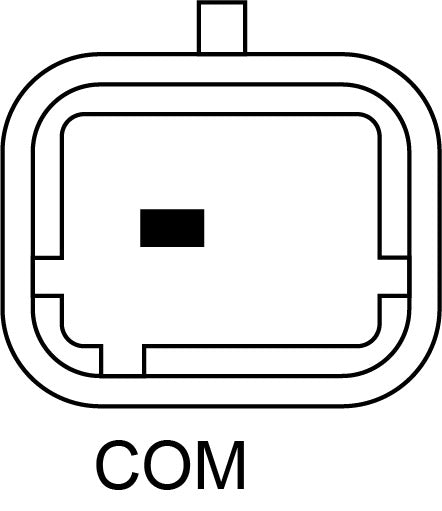

• Terminal type    COM

Additional information

• Pulley - SP/FW

• Fan - IF

• Regulator type - IR

• Remarks - This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Replacing

• 0124525278    SEG

• 0986082240    Bosch Exchange

• 0986084640    Bosch Exchange

• 115364    HC-Cargo

• 14201229    AES

• 14201476    AES

• 1606859180    PSA

• 1609957280    PSA

• 1611285580    PSA

• 1612458880    PSA

• 1638094380    PSA

• 1800A350    Mitsubishi

• 1986A00572    Bosch

• 1986A00600    Bosch

• 200195    Valeo

• 20256N    WAI

• 20256NOE    WAI

• 20256R    WAI

• 225549150    PSH

• 2605547    Valeo

• 2605547A    Valeo

• 2605547B    Valeo

• 26140016A    Valeo

• 26140016B    Valeo

• 2614016    Valeo

• 2614016A    Valeo

• 2614016B    Valeo

• 2618013A    Valeo

• 2621087A    Valeo

• 2624310A    Valeo

• 2624310C    Valeo

• 2624327A    Valeo

• 439701    Valeo

• 439804    Valeo

• 439933    Valeo

• 440286    Valeo

• 440458    Valeo

• 440677    Valeo

• 5702J9    PSA

• 5705KV    PSA

• 614016    Valeo

• 618013    Valeo

• 621087    Valeo

• 944390906100    Magneti Marelli

• 9664779680    PSA

• 9678048880    PSA

• 9678058680    PSA

• 9803049980    PSA

• 9803050280    PSA

• 9810525380    PSA

• ALT14369    Wood Auto

• CA2033IR    HC-Parts

• DA2005    Delco Remy

• DRA0895    Delco Remy

• F032115364    HC-Cargo

• FG15T195    Valeo

• HCA2033IR    HC-Parts

• K9678048880    Fiat Group

• LEA1043    Lucas

• LRA03457    Lucas

• LRA3457    Lucas

• OAN12728    Optimum

• RAA11906    Delco Remy

• RNLTG15C135    RNL

• RNLTG15C135INA    RNL

• RNLTG15S205    RNL

• T000A10008    SEG

• TG15C135    Valeo

• TG15C189    Valeo

• TG15C194    Valeo

• TG15C195    Valeo

• TG15C211    Valeo

• TG15S205    Valeo

• TG15S218    Valeo

• VAL439701    Wood Auto

• VAL439804    Wood Auto

• VAL439933    Wood Auto

• VALTG15C189    Wood Auto

• VALTG15C194    Wood Auto

• VALTG15S205    Wood Auto

• WOOALT14369    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
