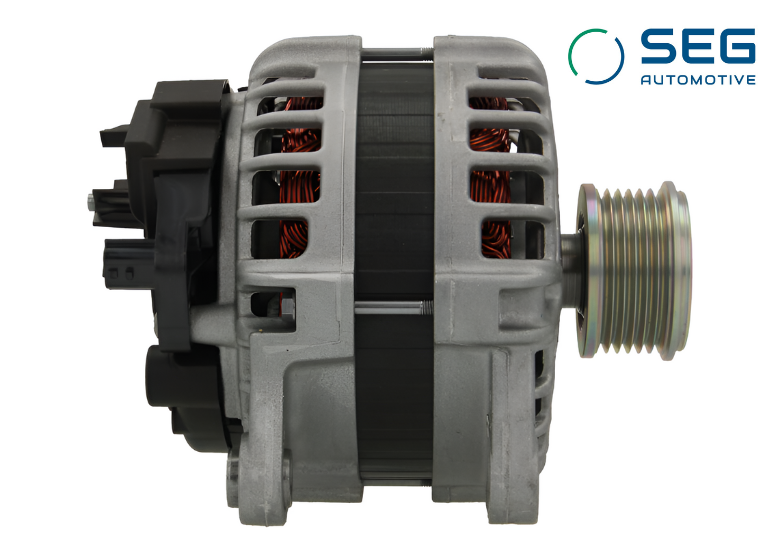

• SEG automotive alternator with silver casing grooved pulley and copper coils available from MURE
  • SEG F000 BL0 8E0 alternator with a grey metallic finish and integrated pulley 12V 150AMP

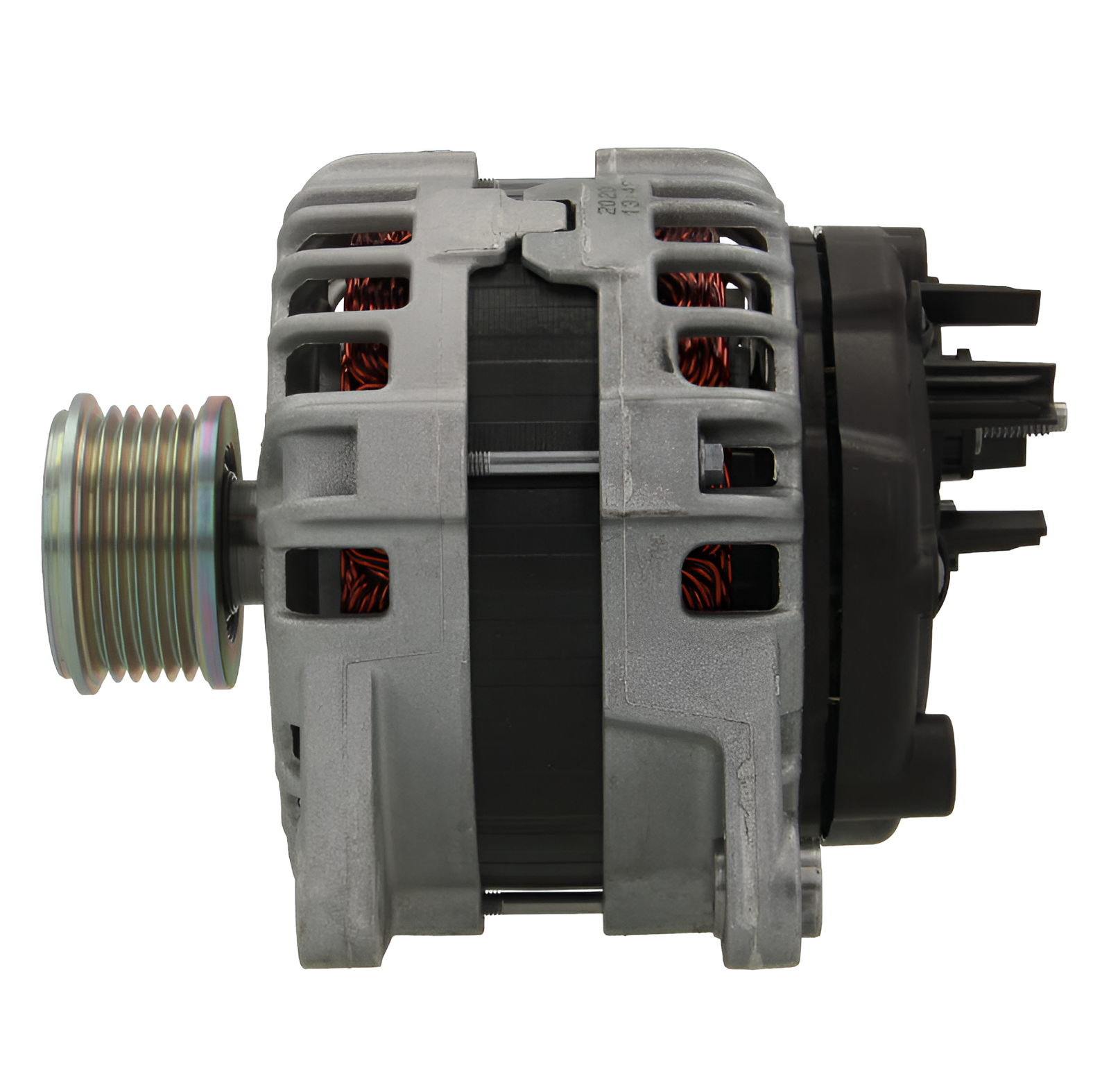

  • Silver and black automotive alternator with grooved pulley and copper internal coils

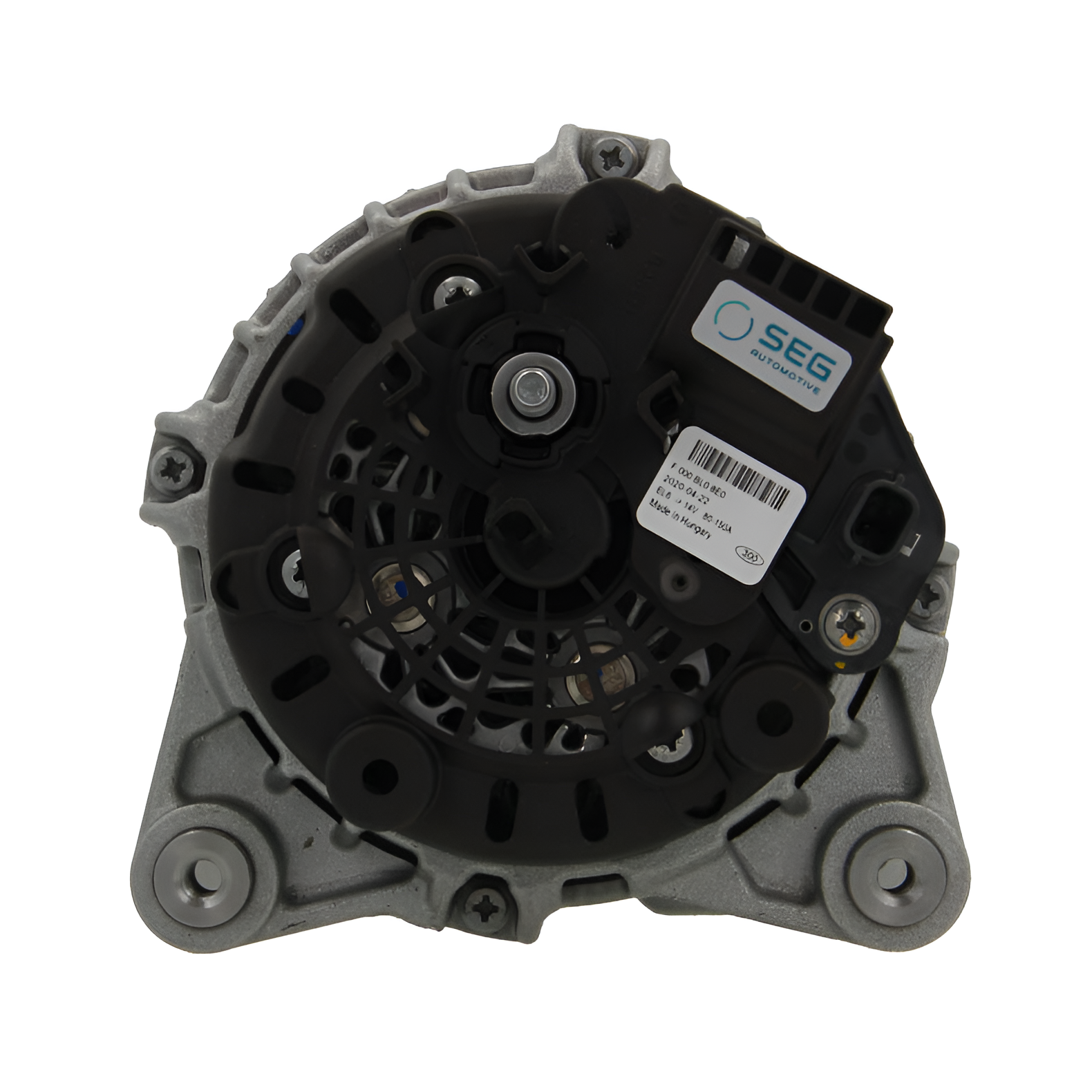

  • SEG Automotive alternator with metallic casing and black rear cover by Mid Ulster Rotating Electrics

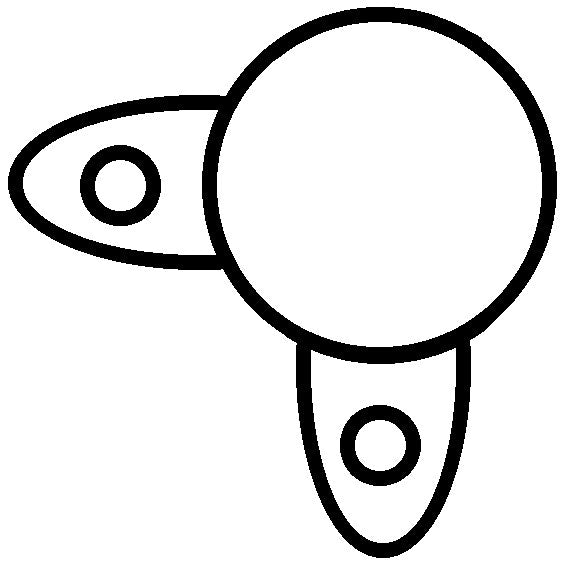

  • Black and white line outline of an OPH15 component mounting bracket with two holed ears from MURE
  • F000 BL0 8E0 SEG Alternator 12V 150AMP for Nissan and Renault vehicles

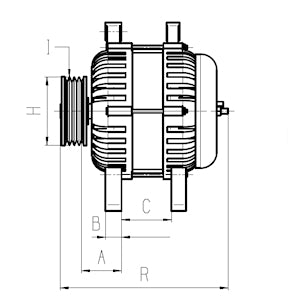

  • Technical drawing of the F000 BL0 8E0 12V 150AMP SEG Alternator showing dimensions for fit and installation

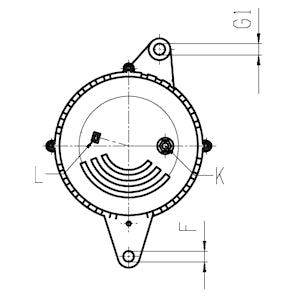

  • Technical drawing of an F000 BL0 8E0 alternator showing front view with dimensions and mounting points

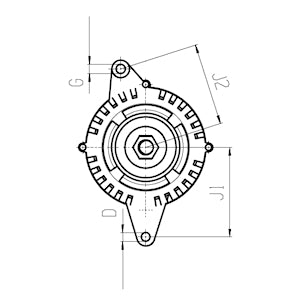

  • Technical dimensional blueprint of an alternator front face showing mounting holes and measurement markings
1 9

New Alternator 12V 150AMP Fits: Nissan, Renault etc. 116381 / F000.BL0.8E0

Vendor:SEG

Availability: Low stock: 1 left

Product Type:F000.BL0.8E0

Product Indentifier:7426994754898

£228.20 inc VAT £190.17 ex VAT
£228.20 inc VAT £190.17 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

New Alternator 12V 150AMP Fits: Nissan, Renault etc. 116381 / F000.BL0.8E0

116381

F000.BL0.8E0

Electrical specifications

  • Voltage - 12
  • AMP - 150

Physical specifications

  • A    Pulley dist.    39.30
  • B    Width/holder arm    14.50
  • C    Mount. bracket dist.    61.00
  • D    Bracket hole    8.50
  • E    Belt. adj. brackethole pos.    45
  • G    Belt. adj. bracket hole 1    8.50
  • H    Pulley dia.    55.00
  • I    Grooves/pulley    6
  • J    Radius    90.00
  • J    Radius 2    90.00
  • K    B+    M8
  • N    Rotation    CW
  • O    Plug no.    PL131
  • R    Total length mm    201.00
  • Terminal type    COM

Additional information

  • Pulley - SP/FW
  • Regulator type - IR
  • Remarks - This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Replacing

  • 0986084070    Bosch Exchange
  • 116381    HC-Cargo
  • 12201419    AES
  • 12201440    AES
  • 165916150    PSH
  • 231004EA0A    Nissan
  • 231004EA0AE    Nissan
  • 231004EA0AF    Nissan
  • 24170N    WAI
  • 24170OS    WAI
  • 443302    Valeo
  • 444243    Valeo
  • 680891    Gebe (IKA)
  • AL442    FAI
  • ALT10794    Wood Auto
  • DA2645    Delco Remy
  • DRA1535    Delco Remy
  • F000BL0825    Bosch
  • F000BL08E0    Bosch
  • F000BLO825    Bosch
  • F032116381    HC-Cargo
  • LEA1189    Lucas
  • LRA03975    Lucas
  • LRA3975    Lucas
  • RAA12646    Delco Remy
  • RNLF000BL0825    RNL
  • SEGF000BL08E0    Wood Auto
  • WOOALT10794    Wood Auto
  • WURT5B801492    Würtemberg

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **

Nissan Pulsar 1.5 dCi K9K
Nissan Qashqai 1.5 dCi K9k 636
