New Alternator 12v 150AMP Fits: Renault, Nissan, Vauxhall, Hyundai 114509 / ALT14335

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:ALT14335

Product Indentifier:7426994754690

£171.59 inc VAT £142.99 ex VAT
£191.99 £171.59 inc VAT £142.99 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

New Alternator 12v 150AMP Fits: Renault, Nissan, Vauxhall, Hyundai 114509 / ALT14335

114509

ALT14335

Electrical specifications

  • Voltage 12
  • Amp 150

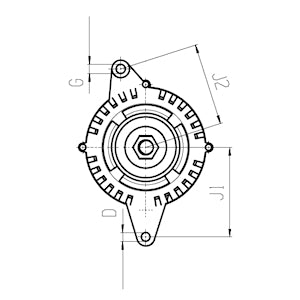

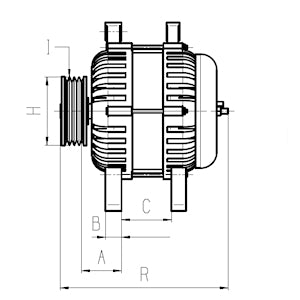

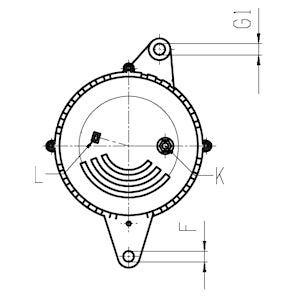

Physical specifications

  • A    Pulley dist.    32.70
  • B    Width/holder arm    14.00
  • C    Mount. bracket dist.    61.00
  • D    Bracket hole    8.50
  • E    Belt. adj. brackethole pos.    45
  • G    Belt. adj. bracket hole 1    8.50
  • H    Pulley dia.    48.50
  • I    Grooves/pulley    7
  • J    Radius    90.00
  • J    Radius 2    90.00
  • K    B+    M8
  • N    Rotation    CW
  • O    Plug no.    PL72
  • Terminal type    L-DFM

Additional information

  • Pulley    SP/FW
  • Regulator type    IR
  • Prod. info    BN

Replacing

  • 0986080420    Bosch Exchange
  • 114509    HC-Cargo
  • 1204193    Opel
  • 14201133    AES
  • 14201297    AES
  • 1986A01339    Bosch
  • 2310000Q0J    Nissan
  • 231009513R    Renault
  • 23370N    WAI
  • 23370NWB    WAI
  • 23370R    WAI
  • 241624    HC-Cargo
  • 2542966    Valeo
  • 2542966B    Valeo
  • 2542966D    Valeo
  • 2542966E    Valeo
  • 2542966F    Valeo
  • 2542966G    Valeo
  • 439576    Valeo
  • 440034    Valeo
  • 4431340    Opel
  • 542966    Valeo
  • 575909150    PSH
  • 63731959    Magneti Marelli
  • 7711368437    Renault
  • 8200404459    Renault
  • 8200404459E    Renault
  • 93161735    Opel
  • 93169475    Opel
  • A2025V    Prestolite
  • ALT14335    Wood Auto
  • CA1959IR    HC-Parts
  • DRA0339    Delco Remy
  • F000BL08YH    SEG
  • F032114509    HC-Cargo
  • HCA1959IR    HC-Parts
  • LEA0954    Lucas
  • LRA03036    Lucas
  • LRA3036    Lucas
  • OAN12365    Optimum
  • R1530120    General Motors
  • RAA11440    Delco Remy
  • RNLTG15C058    RNL
  • RNLTG15C058INA    RNL
  • RNLTG15C058NF    RNL
  • RNLTG15C058NP    RNL
  • T000A10007    SEG
  • TG15C058    Valeo
  • TG15C058T    RNL
  • VAL439576    Wood Auto
  • VALTG15C058    Wood Auto
  • WOOALT14335    Wood Auto

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **

Renault Espace
Renault Laguna
Renault Trafic
Renault Vel Satis
