New Alternator 12v 40Amp Daihatsu, Kubota, John Deere, JCB etc. 111048 / ALT30094
111048
ALT30094
Electrical specifications
Voltage12
Amp40
Physical specifications

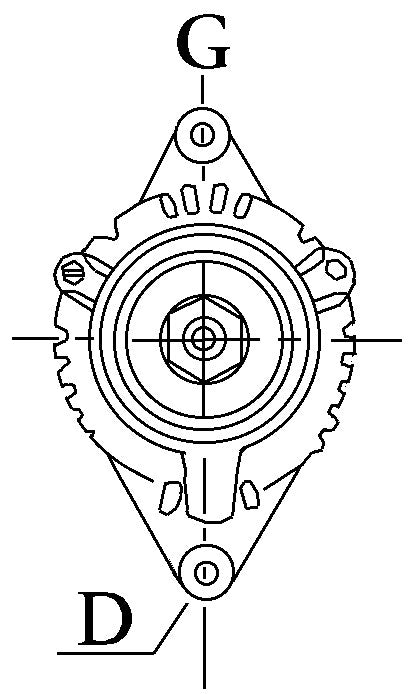

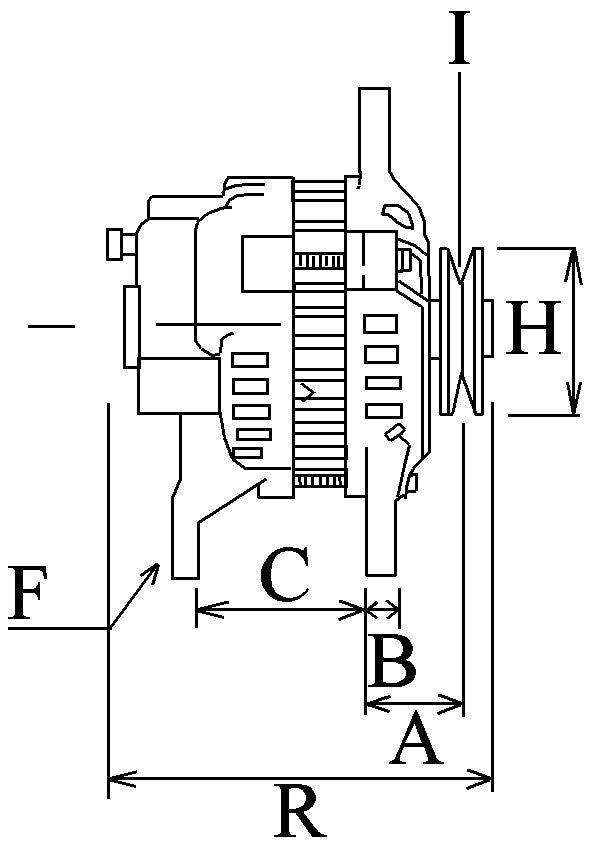

DBracket hole10.50
GBelt. adj. bracket holeM8
BWidth/holder arm24.00
EBelt. adj. brackethole pos.60
HPulley dia.63.00
APulley dist.43.00
iGrooves/pulley1

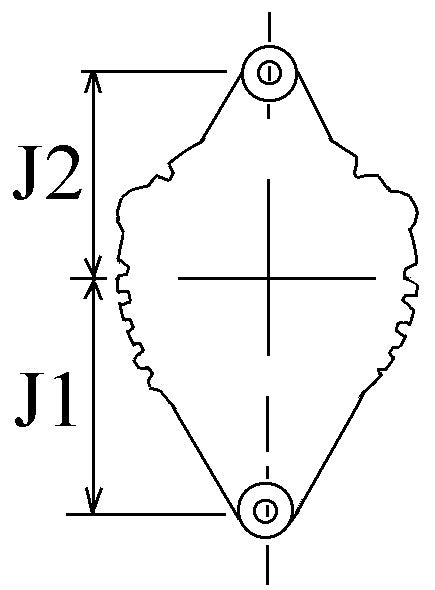

jRadius69.60
jRadius67.50
kB+ positionM6
nRotationCR

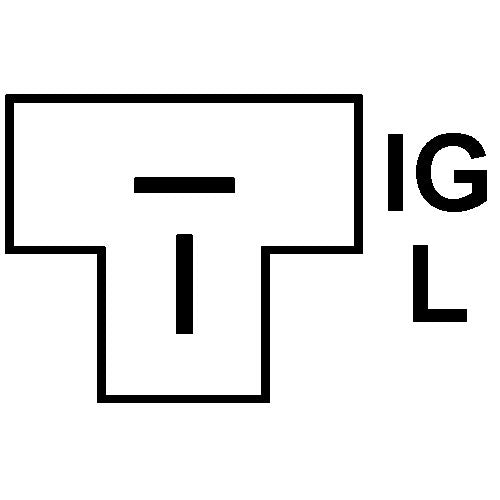

oRegulator plugPL10
RTotal length mm143.00
Further information
BlowerIF
PulleyP
Replacing
1002111630 Denso
1002111690 Denso
1002114690 Denso
1012112480 Denso
115521040 PSH
12189N WAI
12189R WAI
12270N WAI
1624164010 Kubota
185046430 Ishikawajima
20201189 AES
93019 Delco Remy
ALT30094 Wood Auto
ALT5302 Unipoint
DAN2026 Denso
DENDAN2026 Wood Auto
F042302108 Bosch
F042302111 Bosch
F042302114 Bosch
F042302115 Bosch
F042302118 Bosch
F042302119 Bosch
LRA02616 Lucas
LRA2616 Lucas
RNL551JA RNL
WOOALT30094 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
