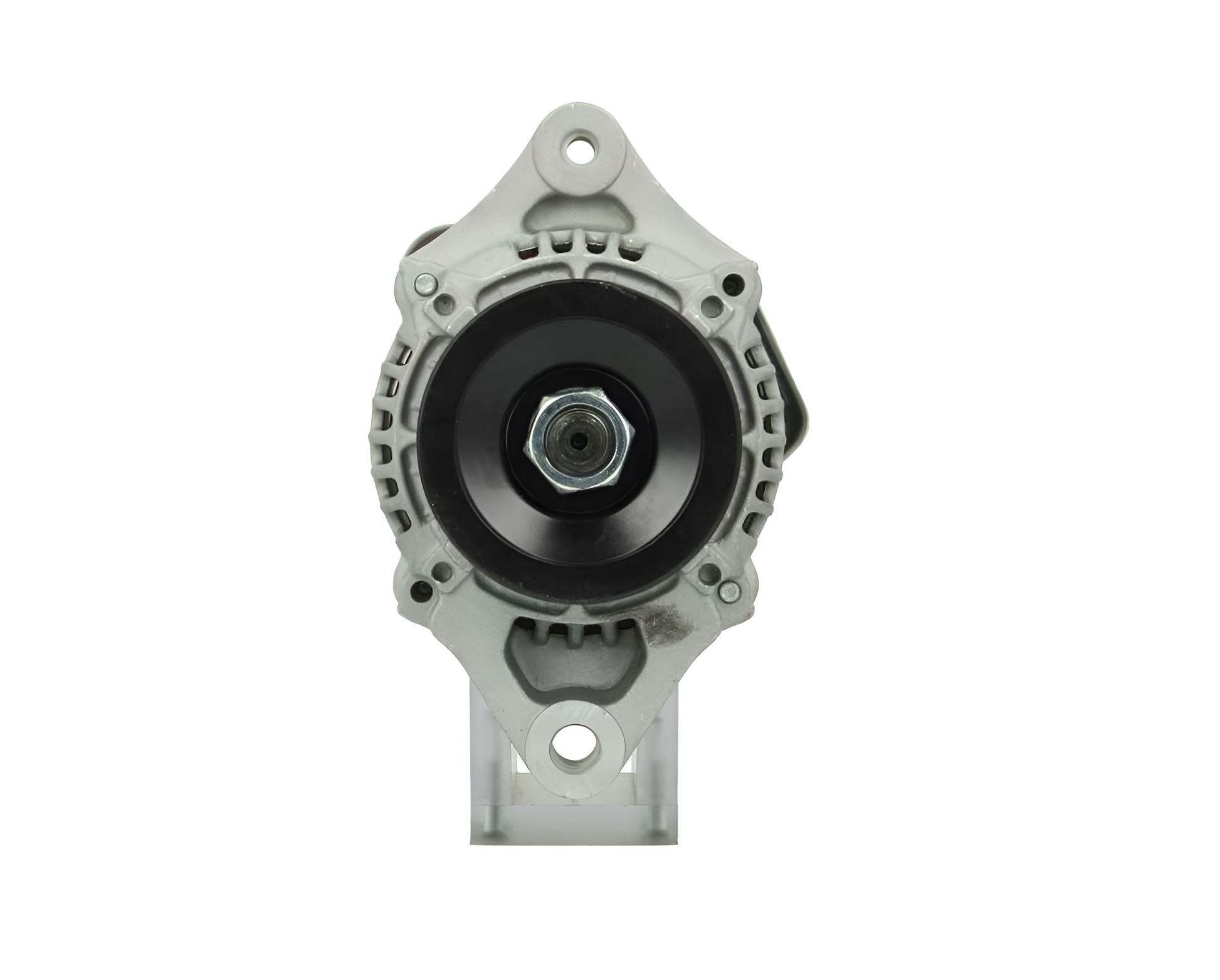

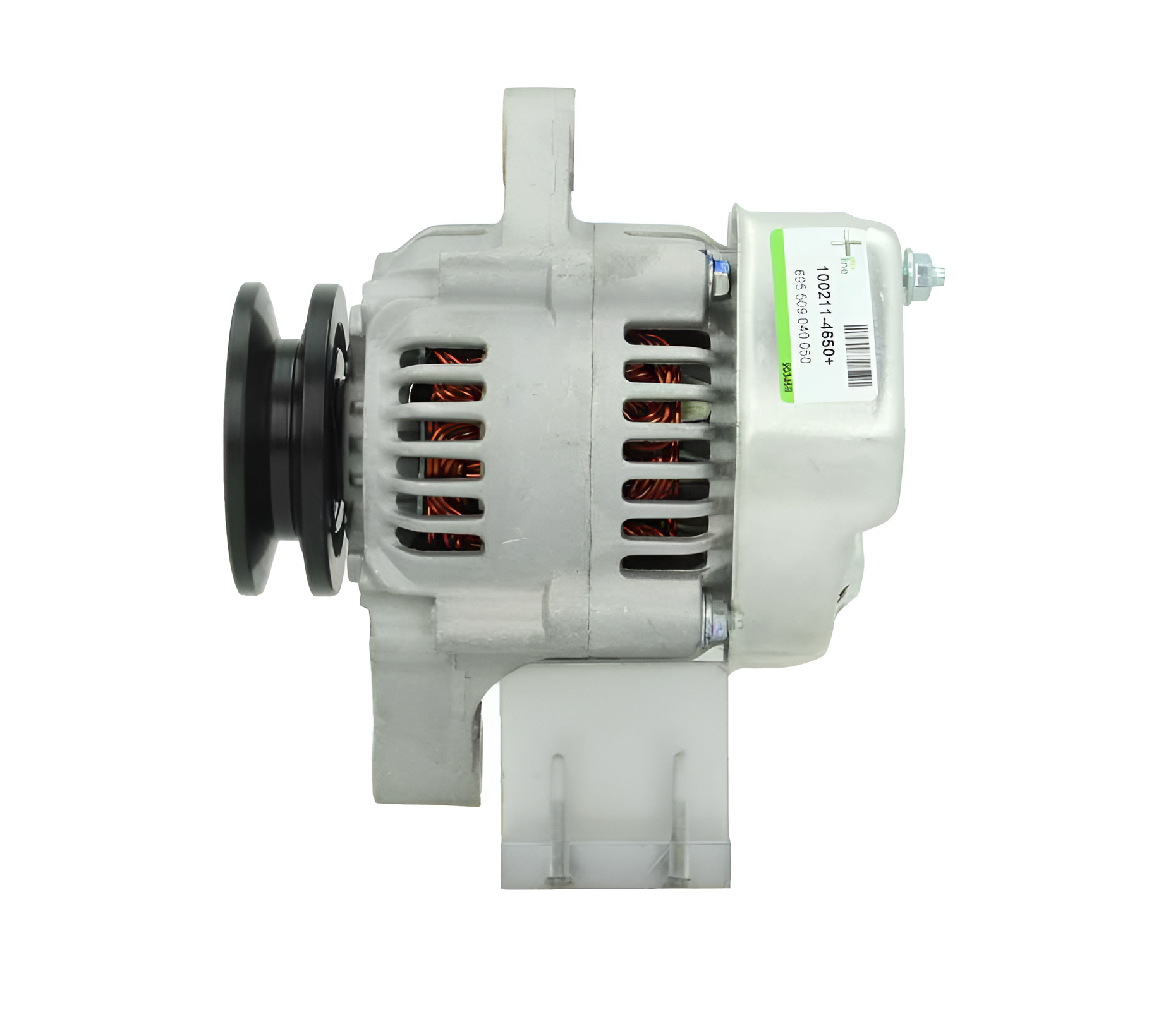

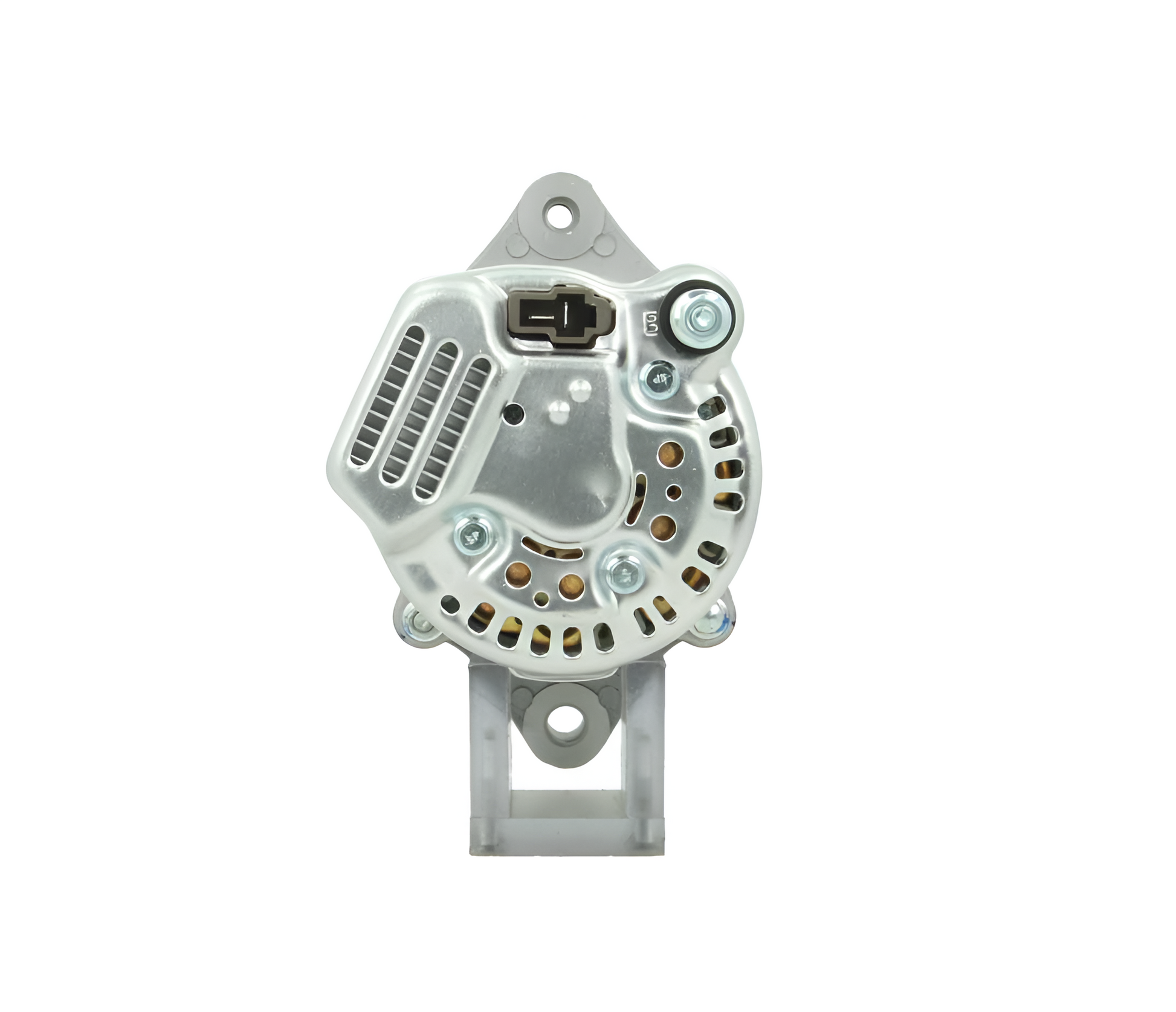

New Alternator 12v 40AMP Fits: Daihatsu, Kubota 113921 / ALT30423

New Alternator 12v 40AMP Fits: Daihatsu, Kubota 113921 / ALT30423

113921

ALT30423

Electrical specifications

• Voltage 12
• Amp 40

Physical specifications

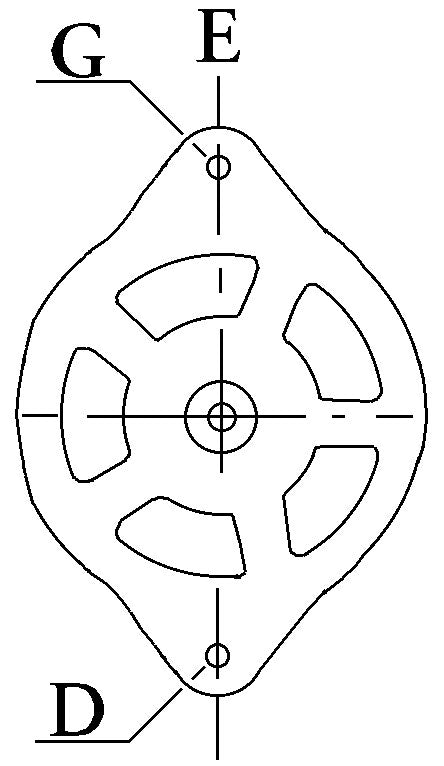

• D Bracket hole 10.30
• G Belt. adj. bracket hole M8

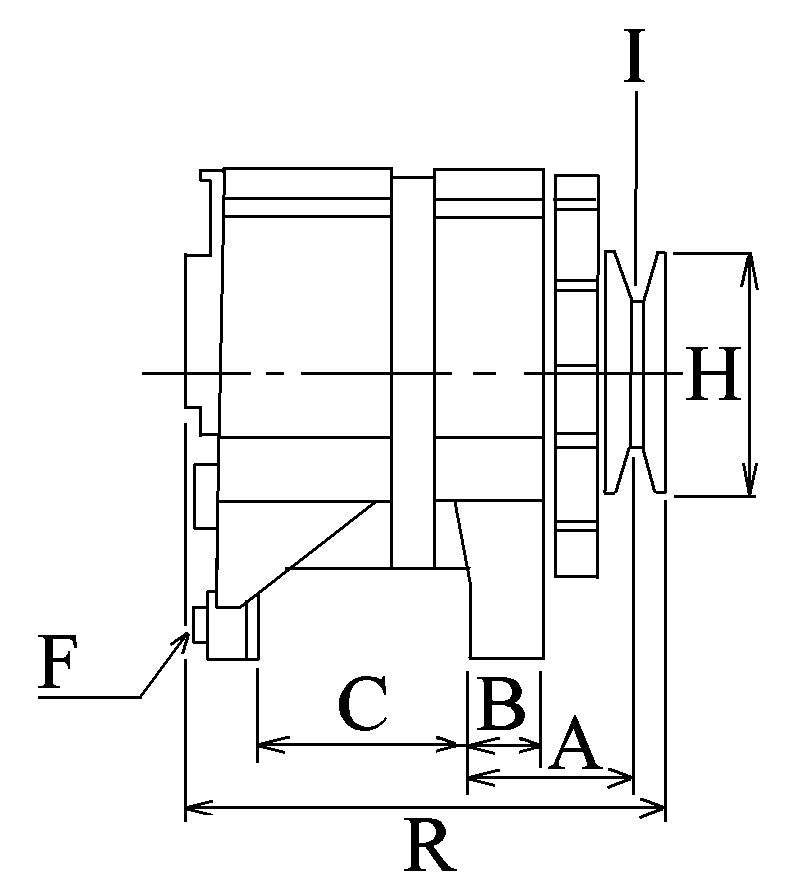

• B Width/holder arm 24.00
• E Belt. adj. brackethole pos. 60
• H Pulley dia. 68.00
• A Pulley dist. 43.50
• i Grooves/pulley 1

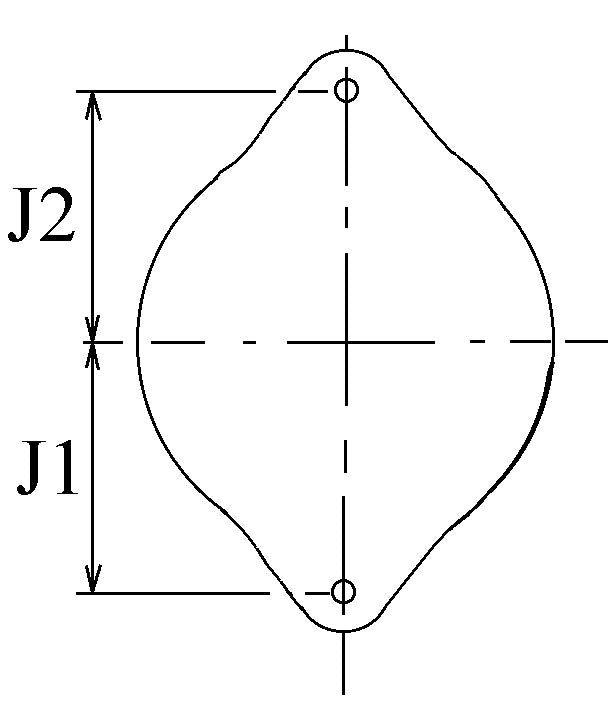

• j Radius 70.00
• j Radius 67.50
• k B+ position M6
• n Rotation CR

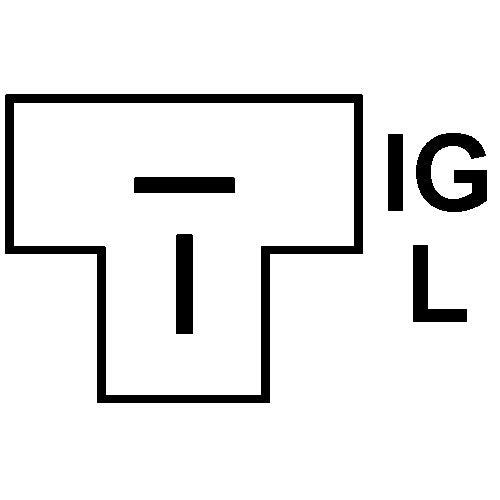

• o Regulator plug PL10
• R Total length mm 159.00

Further information

• Blower IF
• Pulley P

Replacing

• 1002114650    Denso

• 1002114770    Denso

• 1002114771    Denso

• 1012111221    Denso

• 1012111400    Denso

• 101211148    Denso

• 1012111480    Denso

• 1012111481    Denso

• 1012111482    Denso

• 1012113911    Denso

• 11209706    Mahle

• 113921    HC-Cargo

• 12199N    WAI

• 1247801ND    WAI

• 14693106    Dixie

• 1588164202    Kubota

• 1609064011    Kubota

• 1623124011    Kubota

• 1670564011    Kubota

• 1670564012    Kubota

• 1679164011    Kubota

• 1679164013    Kubota

• 20201205    AES

• 3407075600    Kubota

• 3407075601    Kubota

• 3407075602    Kubota

• 5H73042500    Kubota

• 5H73042502    Kubota

• 5H73042503    Kubota

• 6643664011    Kubota

• 6683144    Bobcat

• 695509040    PSH

• 72542526    Mahle

• 90295492    Wilson

• 90295492N    Wilson

• 9760218465    Denso

• A8855    Dixie

• AAG5186    Mahle

• AIA141    ATK

• AIA142    ATK

• ALT30423    Wood Auto

• ALT30424    Wood Auto

• ALT5300    Unipoint

• F032113921    HC-Cargo

• IA9541    Mahle

• LRA01560    Lucas

• LRA1560    Lucas

• MG1144    Mahle

• RNL1012111480    RNL

• T106015602    Kubota

• T106515602    Kubota

• T185015682    Kubota

• WOOALT30423    Wood Auto

• WOOALT30424    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
