New Alternator 12v 40AMP Fits: Hyster, Yale, Mitsubishi etc. 111495 / ALT28001

New Alternator 12v 40AMP Fits: Hyster, Yale, Mitsubishi etc. 111495 / ALT28001

111495

ALT28001

Electrical specifications

• Voltage 12
• Amp 40
• Terminal W

Physical specifications

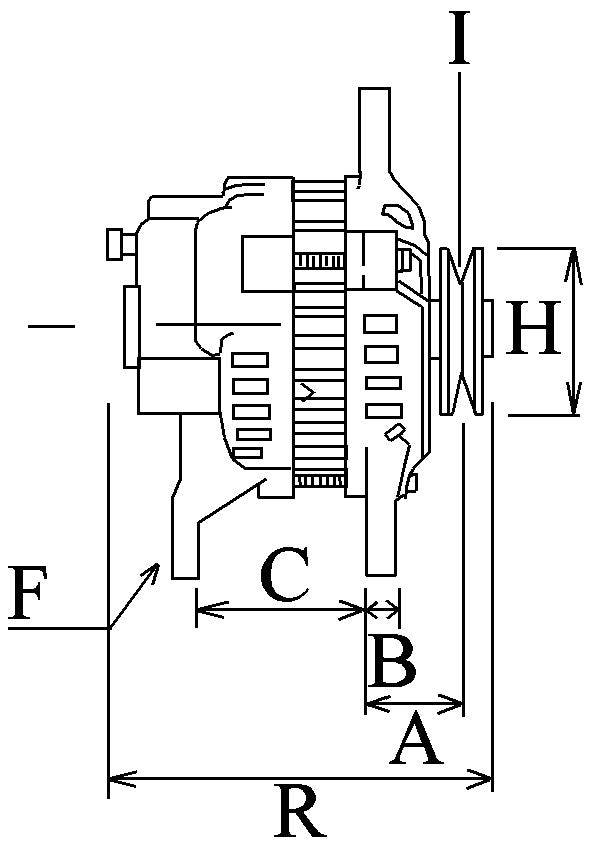

• A    Pulley dist. - 42.00

• B    Width/holder arm - 13.00

• C    Mount. bracket dist. - 81.50

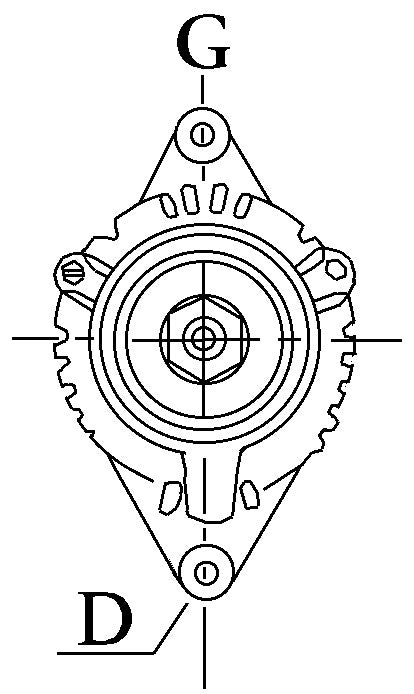

• D    Bracket hole - 10.00

• E    Belt. adj. brackethole pos. - 60

• G    Belt. adj. bracket hole 1 - M8

• H    Pulley dia. - 74.00

• I    Grooves/pulley - 1

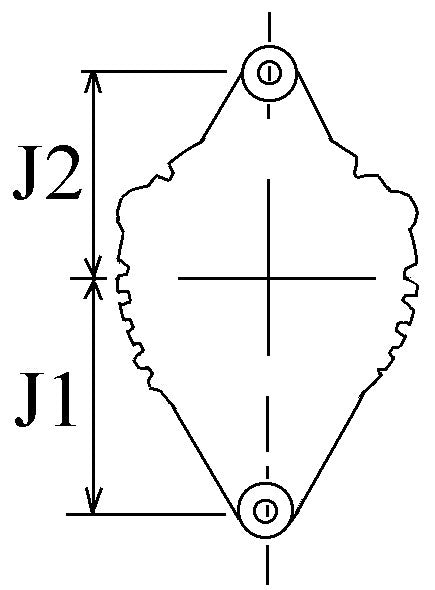

• J    Radius - 77.00

• J    Radius 2 - 77.00

• K    B+  M6

• N    Rotation - CW

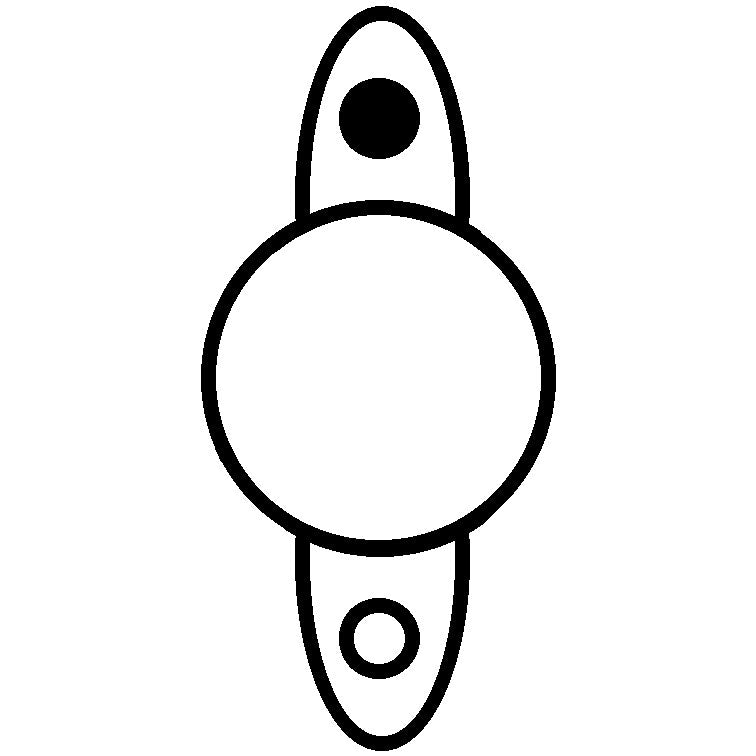

• O    Plug no.  PL09

• R    Total length mm - 161.00

Additional information

• Pulley - P
• Regulator type - IR
• Prod. info - BN
• Servicing - Hyster, Sumitomo, Yale

Replacing

• 0059133580    Toyota

• 005913358081    Toyota

• 005915597381    Toyota

• 0986UR0381    Bosch Exchange

• 111495    HC-Cargo

• 1196001MI    WAI

• 12138N    WAI

• 12138R    WAI

• 1361853    Hyster

• 1450928    Hyster

• 150014504    YALE

• 20140109    Prestolite

• 3068342    Hyster

• 3114961    Hyster

• 3123908    Hyster

• 440090004    YALE

• 580000990    YALE

• 645501040    PSH

• 7000215    Clark

• 800045600    YALE

• 901948801    YALE

• 90273189    Wilson

• 90273189N    Wilson

• 930065    Delco Remy

• A007T03277    Mitsubishi

• A007T03277A    Mitsubishi

• A7T03277    Mitsubishi

• A7T03277A    Mitsubishi

• AL30277    John Deere

• AL5009X    Bosch (USA)

• ALT10012    Wood Auto

• ALT28001    Wood Auto

• ALT28002    Wood Auto

• AMA413    ATK

• AMA443    ATK

• DRA0065    Delco Remy

• F032111495    HC-Cargo

• LRA02043    Lucas

• LRA2043    Lucas

• MITA7T03277    Wood Auto

• RNLA7T03277    RNL

• S5SN18300    Mazda

• S5SN18300A    Mazda

• TRA255    TWA

• WOOALT10012    Wood Auto

• WOOALT28001    Wood Auto

• WOOALT28002    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
