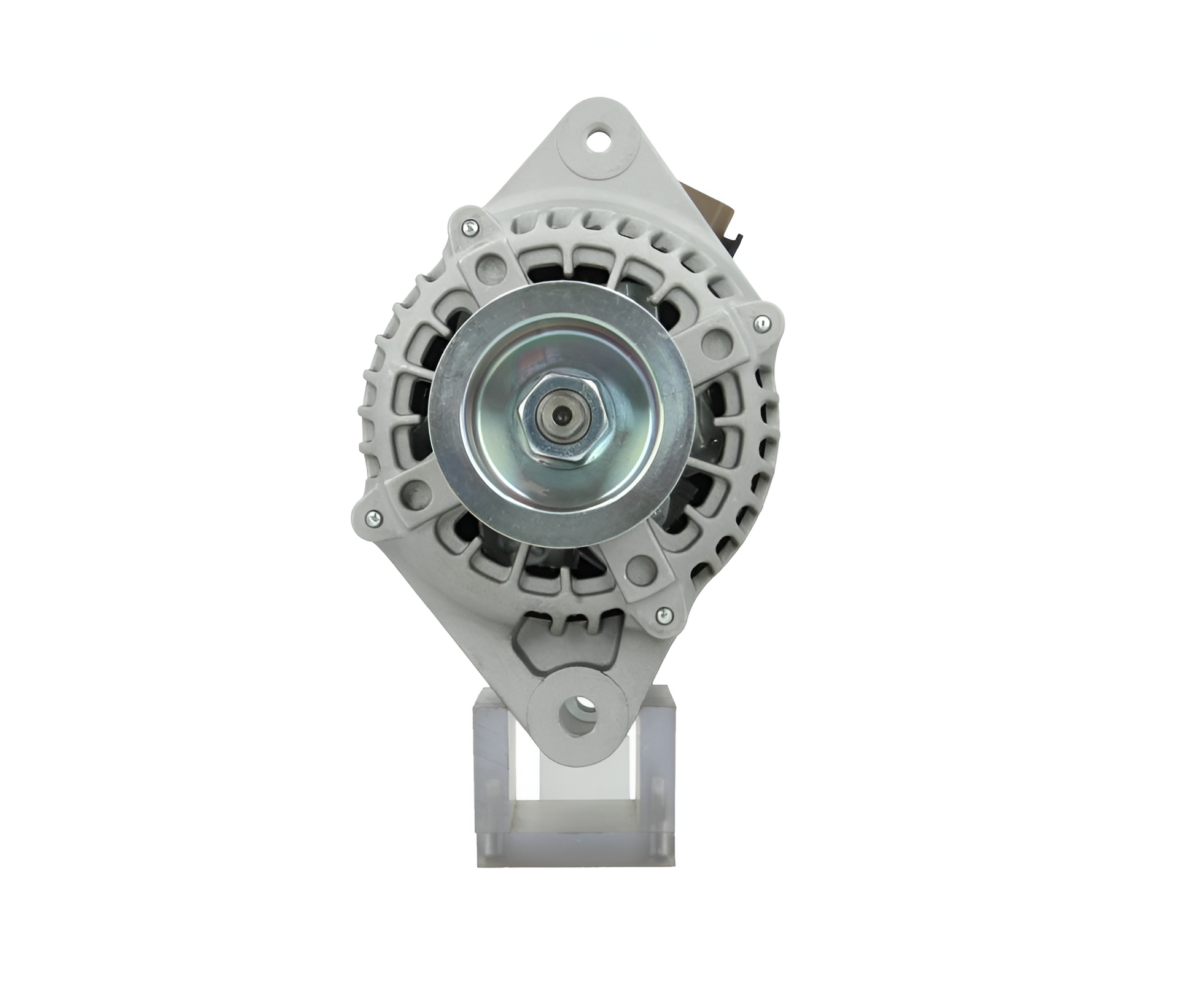

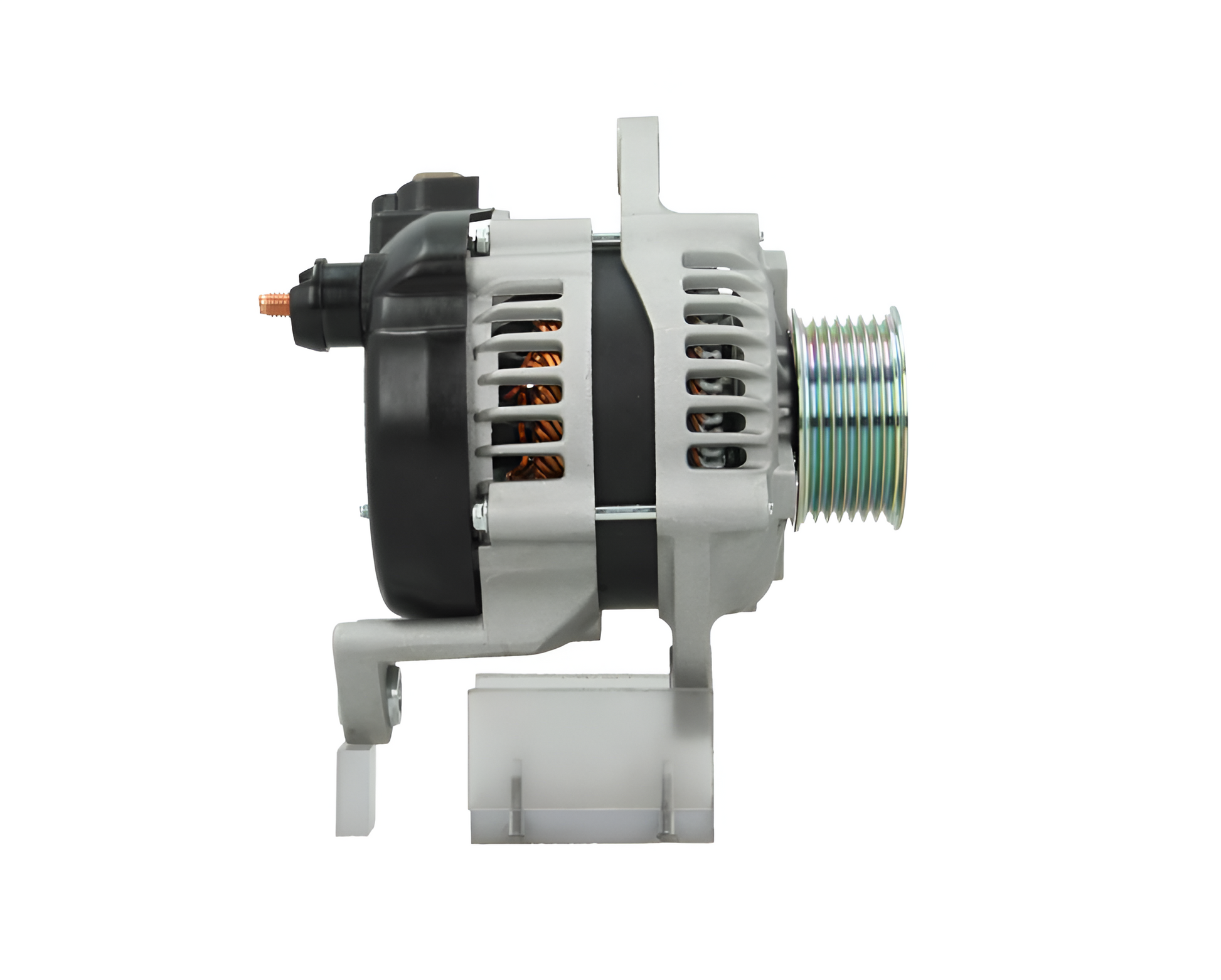

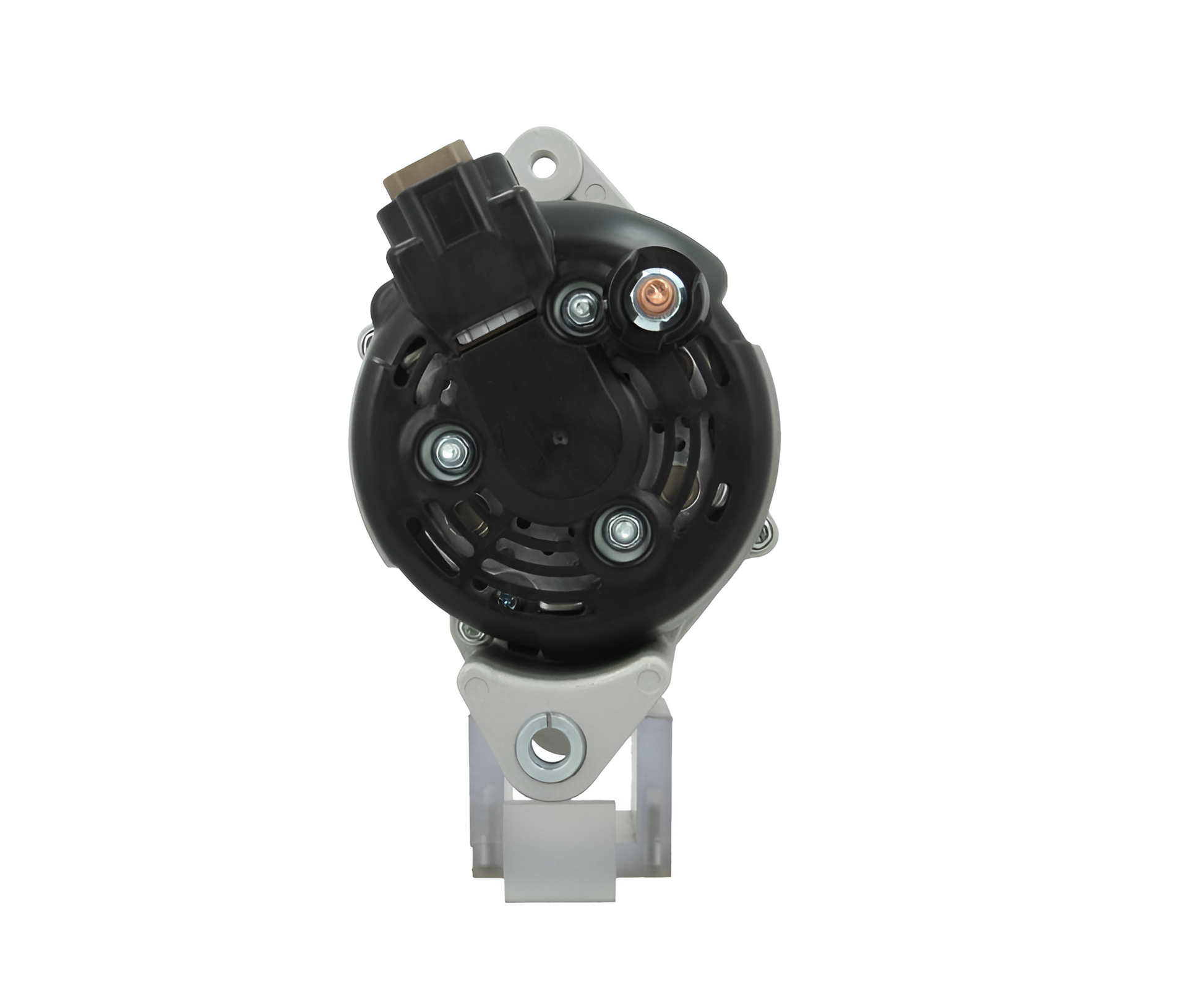

New Alternator 12v 80AMP Fits: Isuzu 115683 / ALT32371
115683
ALT32371
Electrical specifications
- Voltage 12
- Amp 80
- Terminal W

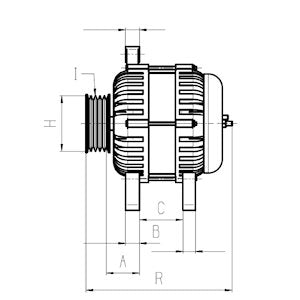

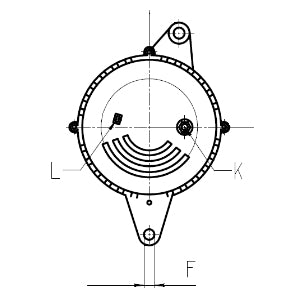

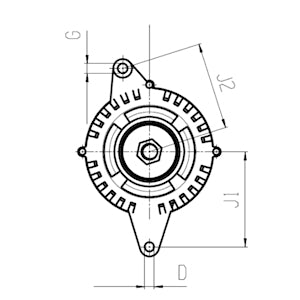

Physical specifications
- A Pulley dist. 43.00
- B Width/holder arm 13.00
- C Mount. bracket dist. 80.00
- D Bracket hole 10.20
- E Belt. adj. brackethole pos. 60
- G Belt. adj. bracket hole 1 M8
- H Pulley dia. 62.50
- I Grooves/pulley 7
- J Radius 80.50
- J Radius 2 80.50
- K B+ M8
- L D+ Size Plug
- N Rotation CW

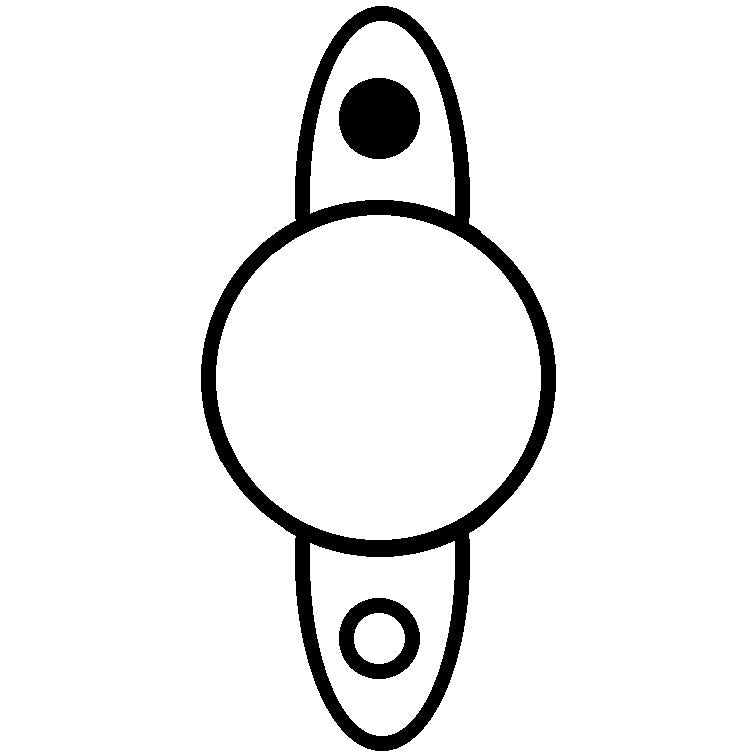

- O Plug no. PL100
- R Total length mm 185.00
Additional information
- Pulley SP
- Regulator type IR
- Prod. info BN
Replacing
- 1042109030 Denso
- 1042109031 Denso
- 135573080 PSH
- 21241N WAI
- 8973697161 Isuzu
- 8981965850 Isuzu
- 8982290710 Isuzu
- 8982290711 Isuzu
- A6152 Isuzu
- LRA03597 Lucas
- LRA3597 Lucas
- RNL1042109031 RNL
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
