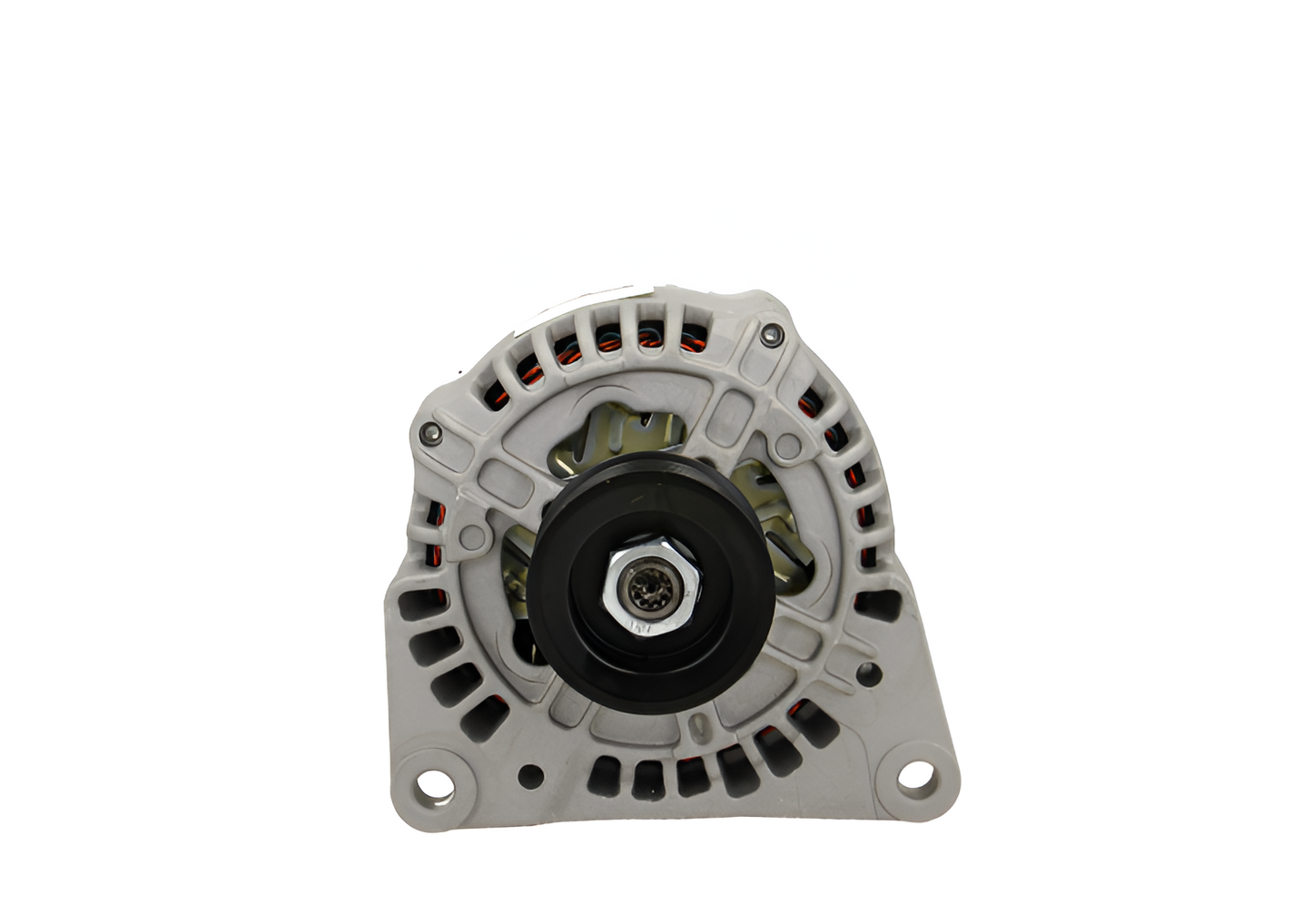

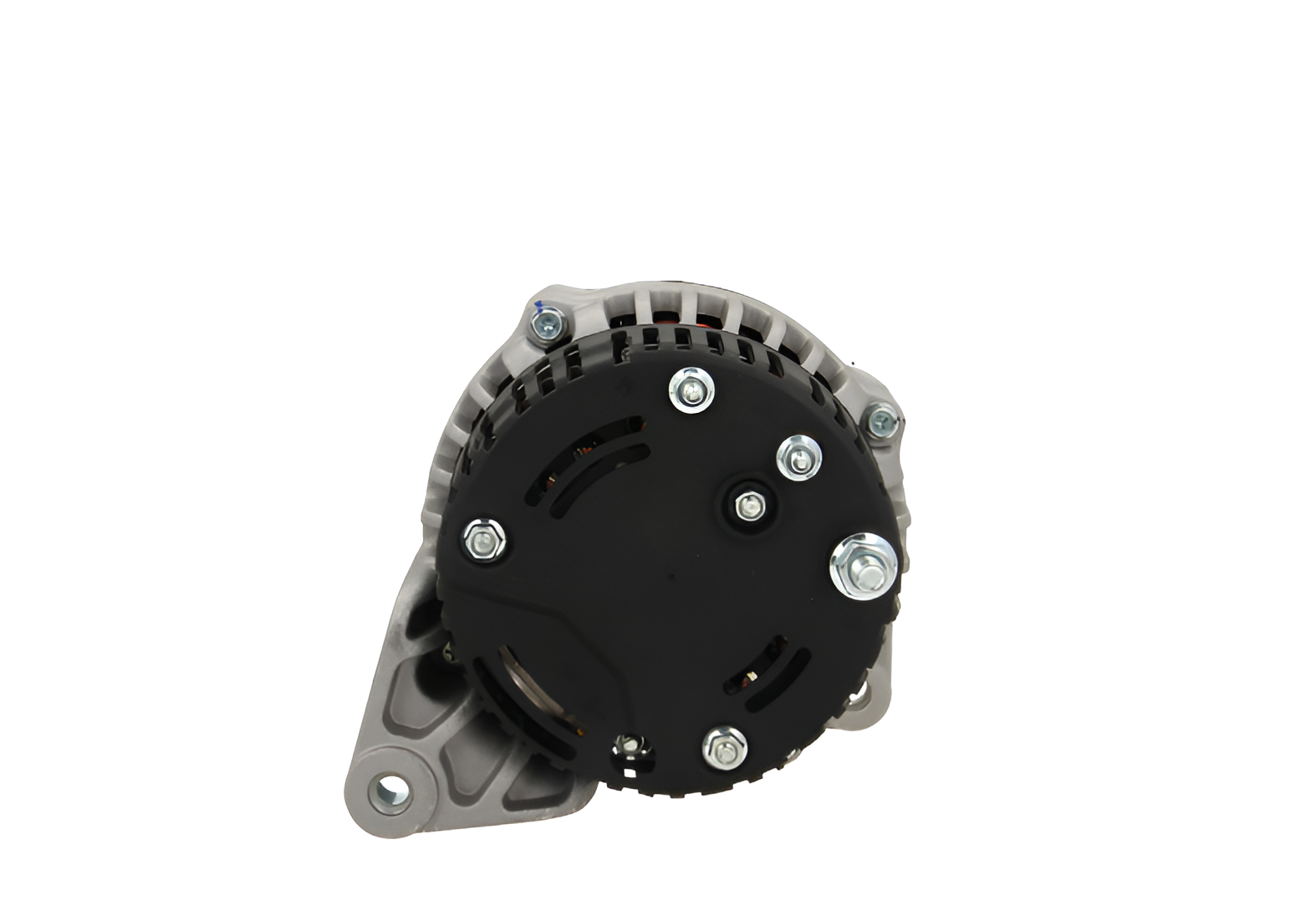

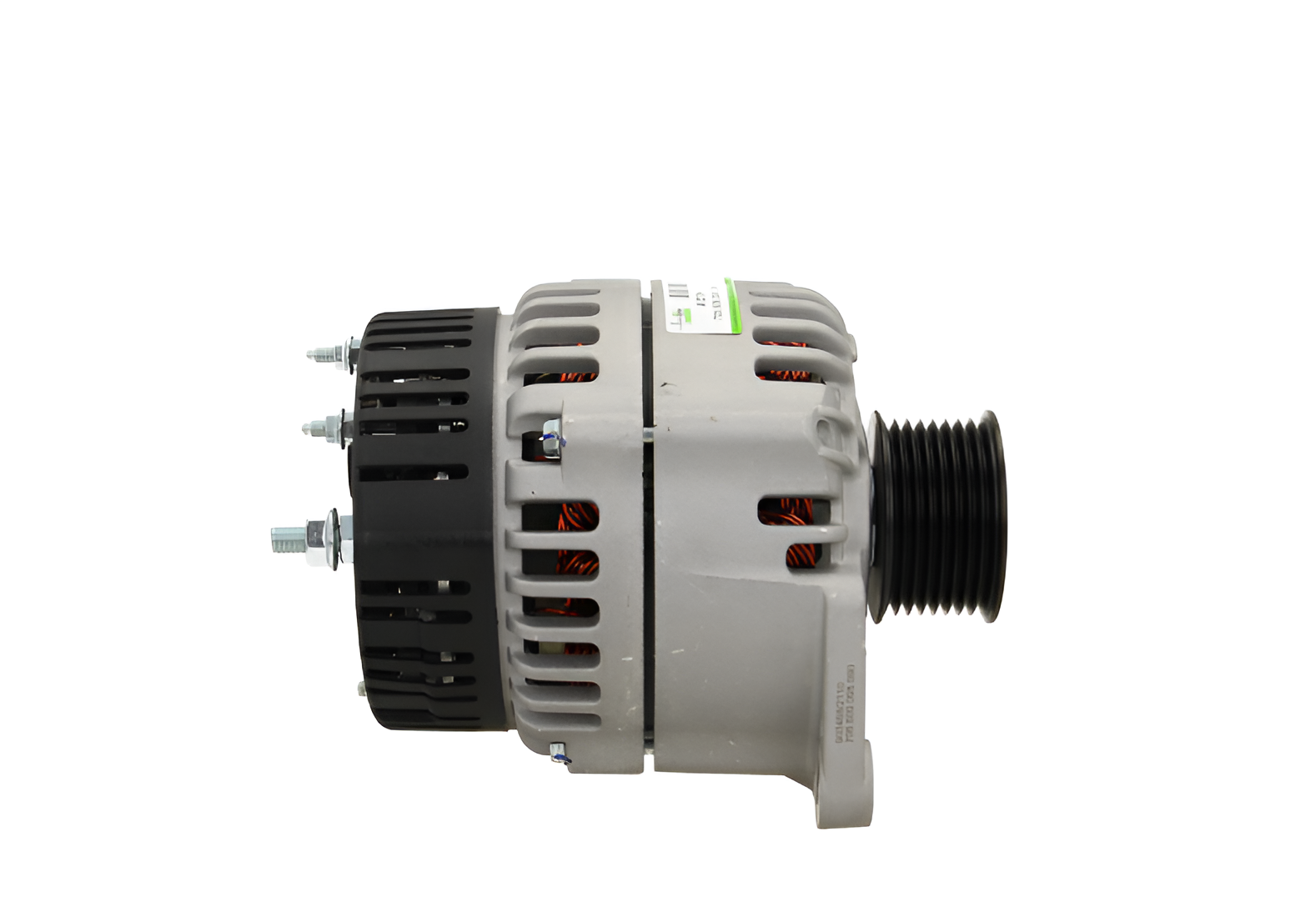

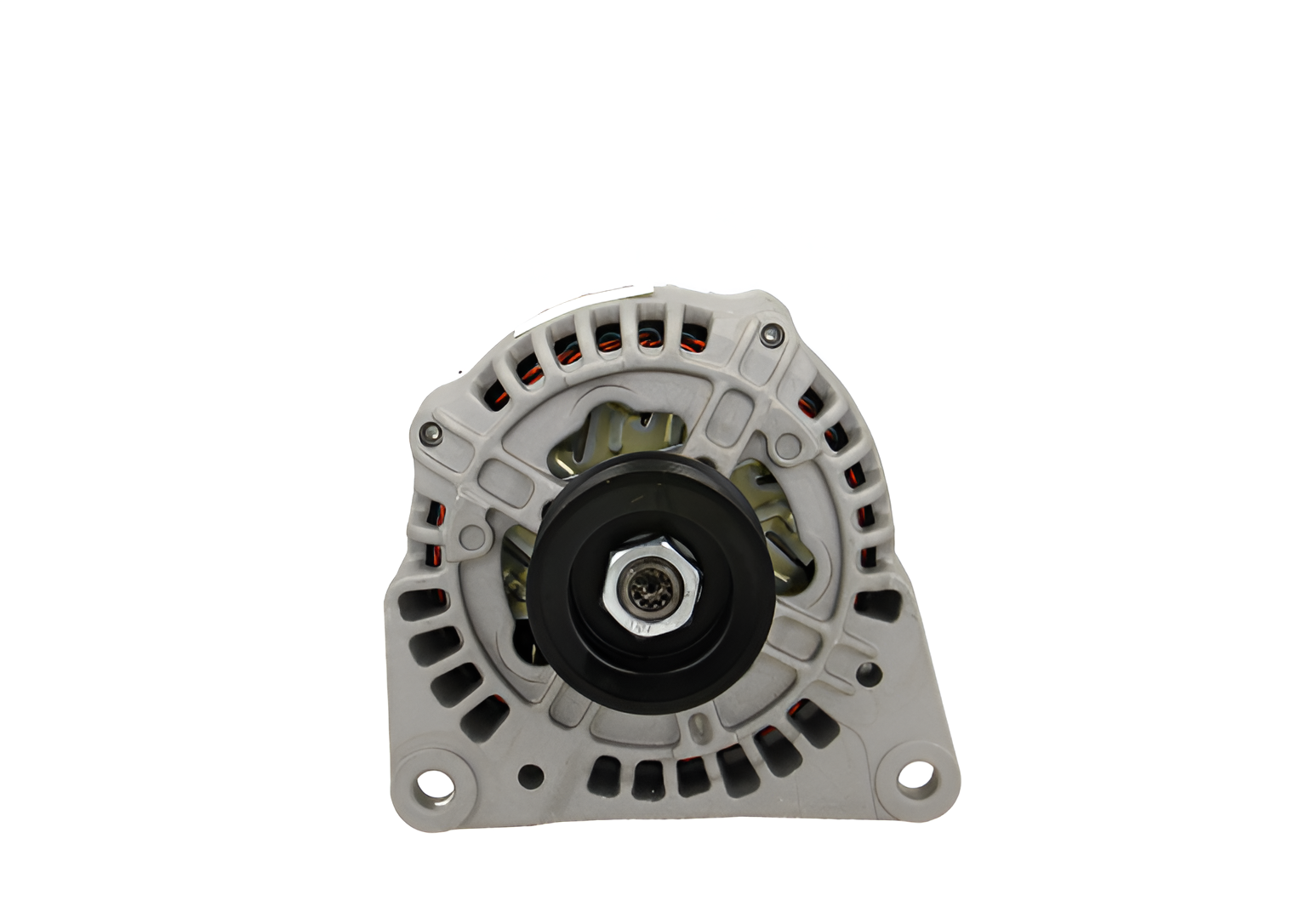

New Alternator 12v 95AMP Fits: Case, JCB, Yale, Hyster, John Deere, Hyundai 116456 / ALT20648
116456
ALT20648
Electrical specifications
- Voltage 12
- Amp 95

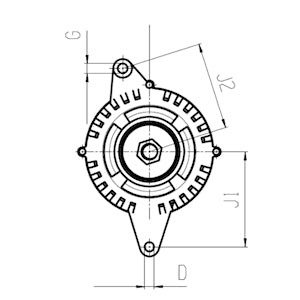

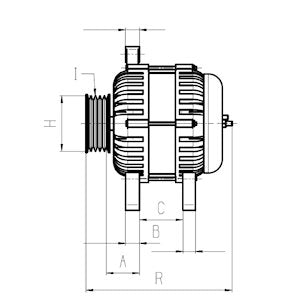

Physical specifications
- A Pulley dist. 30.50
- B Width/holder arm 14.00
- C Mount. bracket dist. 80.70
- D Bracket hole 10.20
- E Belt. adj. brackethole pos. 47
- G Belt. adj. bracket hole 1 10.20
- H Pulley dia. 56.20
- I Grooves/pulley 8
- J Radius 93.50
- J Radius 2 93.50
- L D+ Size M5
- N Rotation CW
- Q W plug type M5
- R Total length mm 197.00
Additional information
- Pulley SP
- Fan IF
- Prod. info BN
Replacing
- 11203440 Mahle
- 11203812 Mahle
- 11204115 Mahle
- 114772 HC-Cargo
- 116456 HC-Cargo
- 21441N WAI
- 32008610 JCB
- 705509095 PSH
- 72735073 Mahle
- AAK5583 Mahle
- AAK5758 Mahle
- AAK5807 Mahle
- ALT20648 Wood Auto
- DRA0823 Delco Remy
- F032116456 HC-Cargo
- IA1212 Mahle
- LETIA1212 Wood Auto
- LRA03348 Lucas
- LRA3348 Lucas
- MAHMG74 Wood Auto
- MG74 Mahle
- RNL11203812 RNL
- WOOALT20648 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
