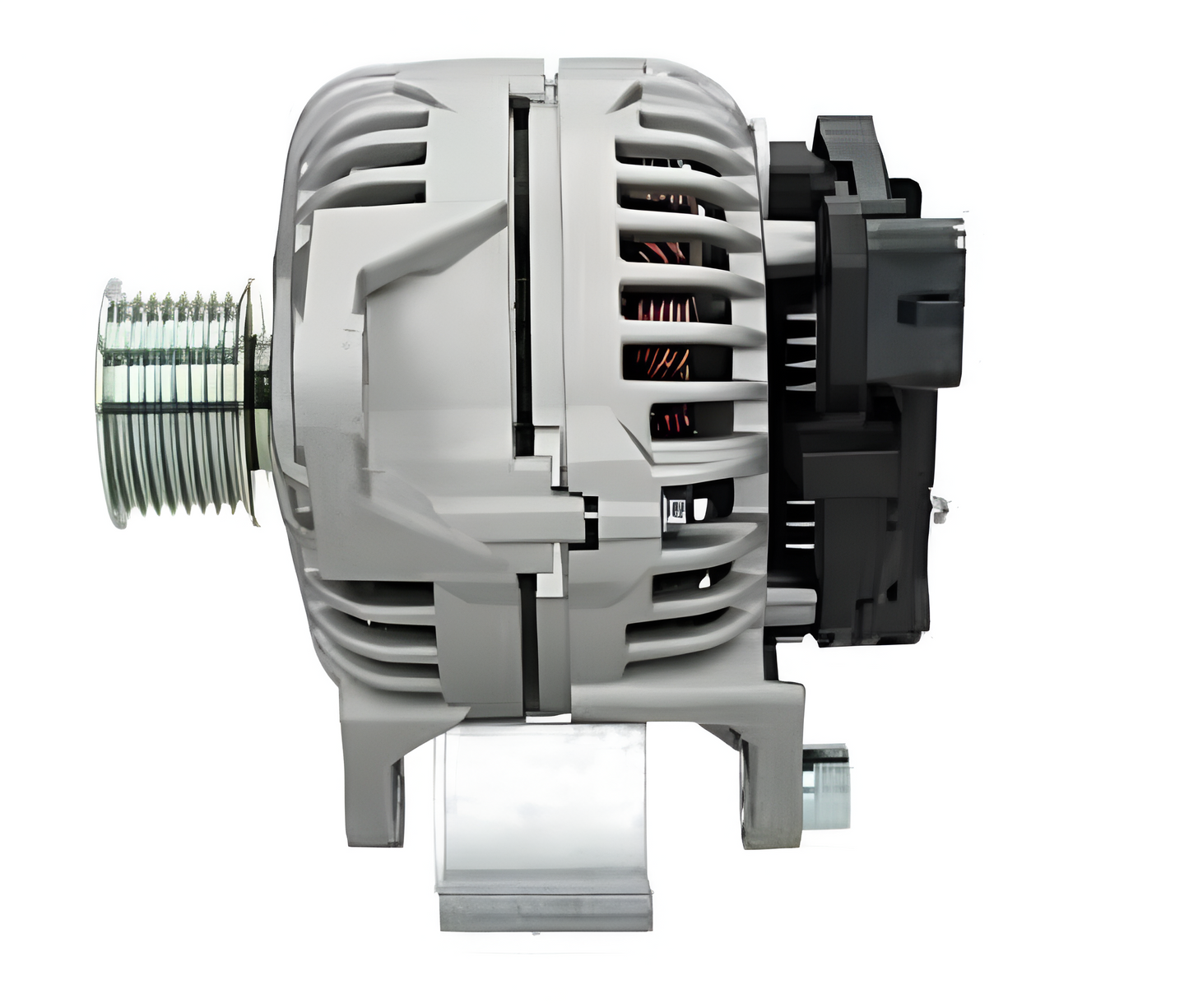

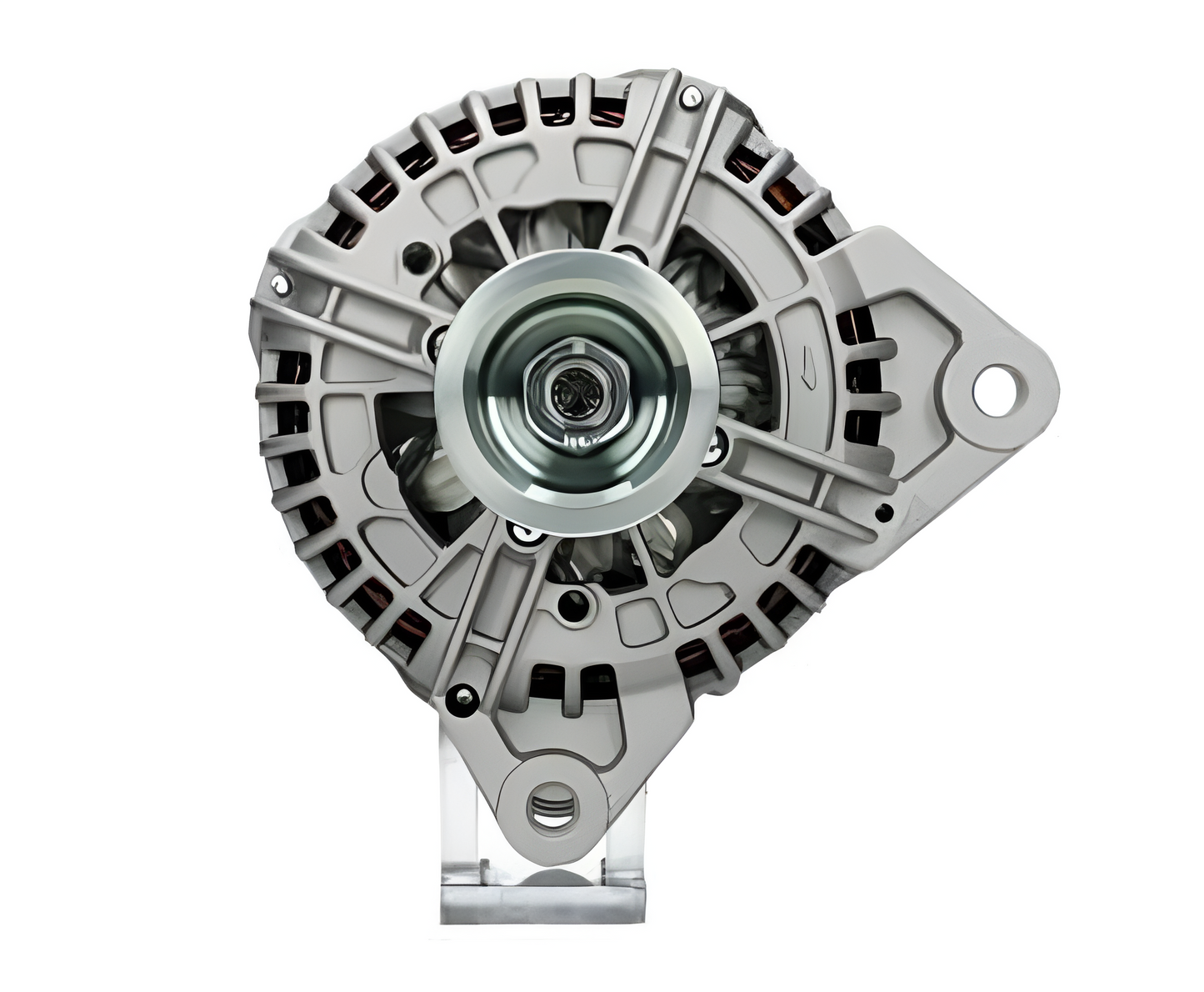

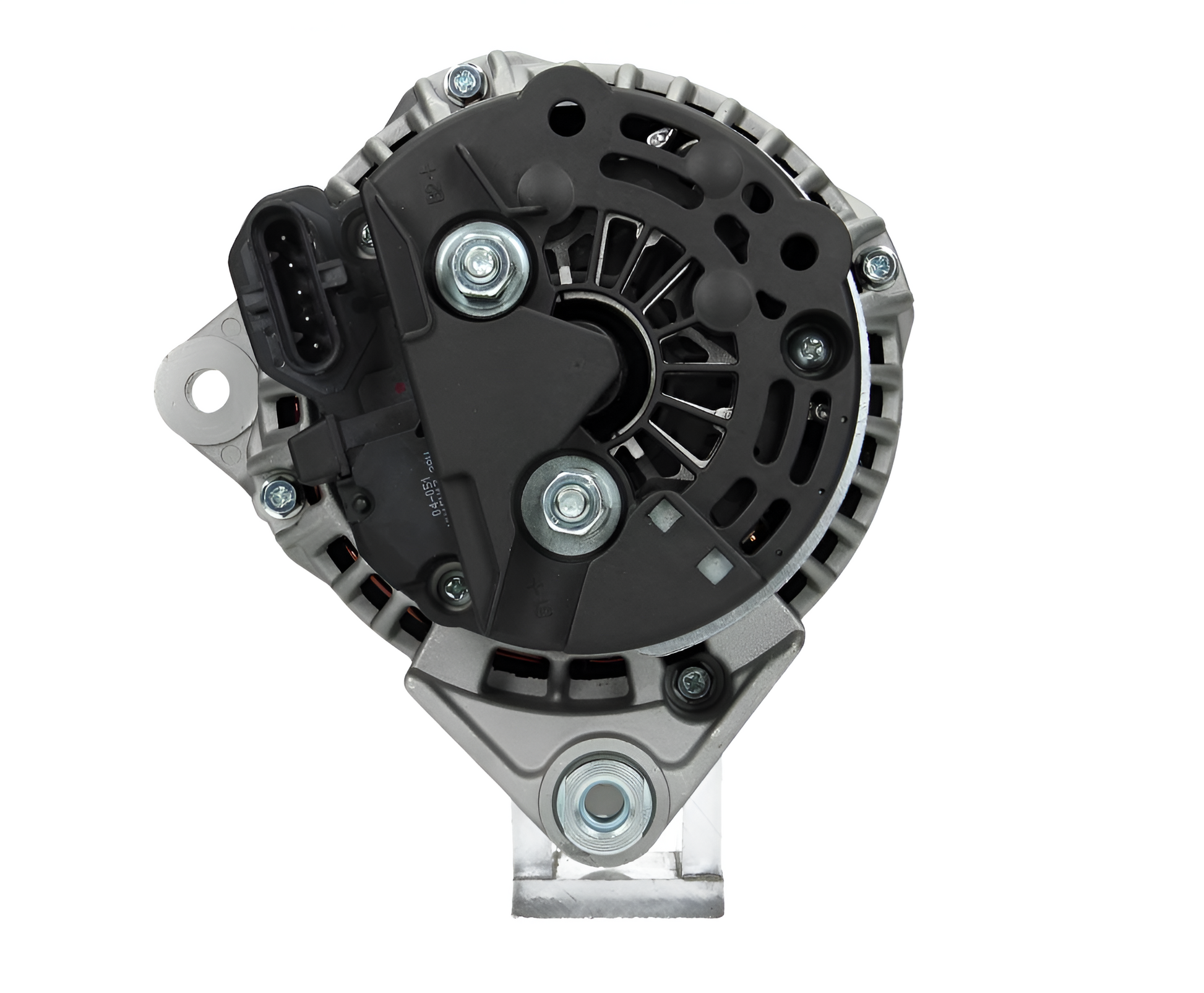

New Alternator 24v 100AMP, DAF 114036 / ALT10301

New Alternator 24v 100AMP, DAF 114036 / ALT10301

114036

ALT10301

Electrical specifications

• Voltage 24
• Amp 100

Physical specifications

• D Bracket hole 10.00
• G Belt. adj. bracket hole 10.00
• B Width/holder arm 14.00
• E Belt. adj. brackethole pos. 14
• C Mount. bracket dist. 80.00
• H Pulley dia. 53.80
• A Pulley dist. 37.00
• i Grooves/pulley 8
• j Radius 94.00
• j Radius 2 94.00
• k B+ position M8
• n Rotation CR
• o Regulator plug PL82
• R Total length mm 194.00
• Further information Blower IF
• Pulley SP
• Regulator type IR

Replacing

• 0124655006    Bosch

• 0124655018    Bosch

• 0124655976    SEG

• 0986081880    Bosch Exchange

• 11209618    Mahle

• 116117    HC-Cargo

• 116118    HC-Cargo

• 12201168    AES

• 12811N    WAI

• 1528594    DAF

• 19092024    Delco Remy

• 1986A00516    Bosch

• 1986A00967    Bosch

• 21201003    AES

• 72446644    Mahle

• 906502100    PSH

• AAN5407    Mahle

• AELD075    Leyland

• ALT10301    Wood Auto

• ALT20052    Wood Auto

• ALT2119    Unipoint

• BOS0124655006    Wood Auto

• BOS1986A00516    Wood Auto

• DRB0004    Delco Remy

• DRB0004X    Delco Remy

• F032116118    HC-Cargo

• IA9466    Mahle

• LEA0859    Lucas

• LRA03417    Lucas

• LRA3417    Lucas

• MAHMG811    Wood Auto

• MG811    Mahle

• RNL655006    RNL

• RNL655006OER    RNL

• SEG0124655018    Wood Auto

• WOOALT10301    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
