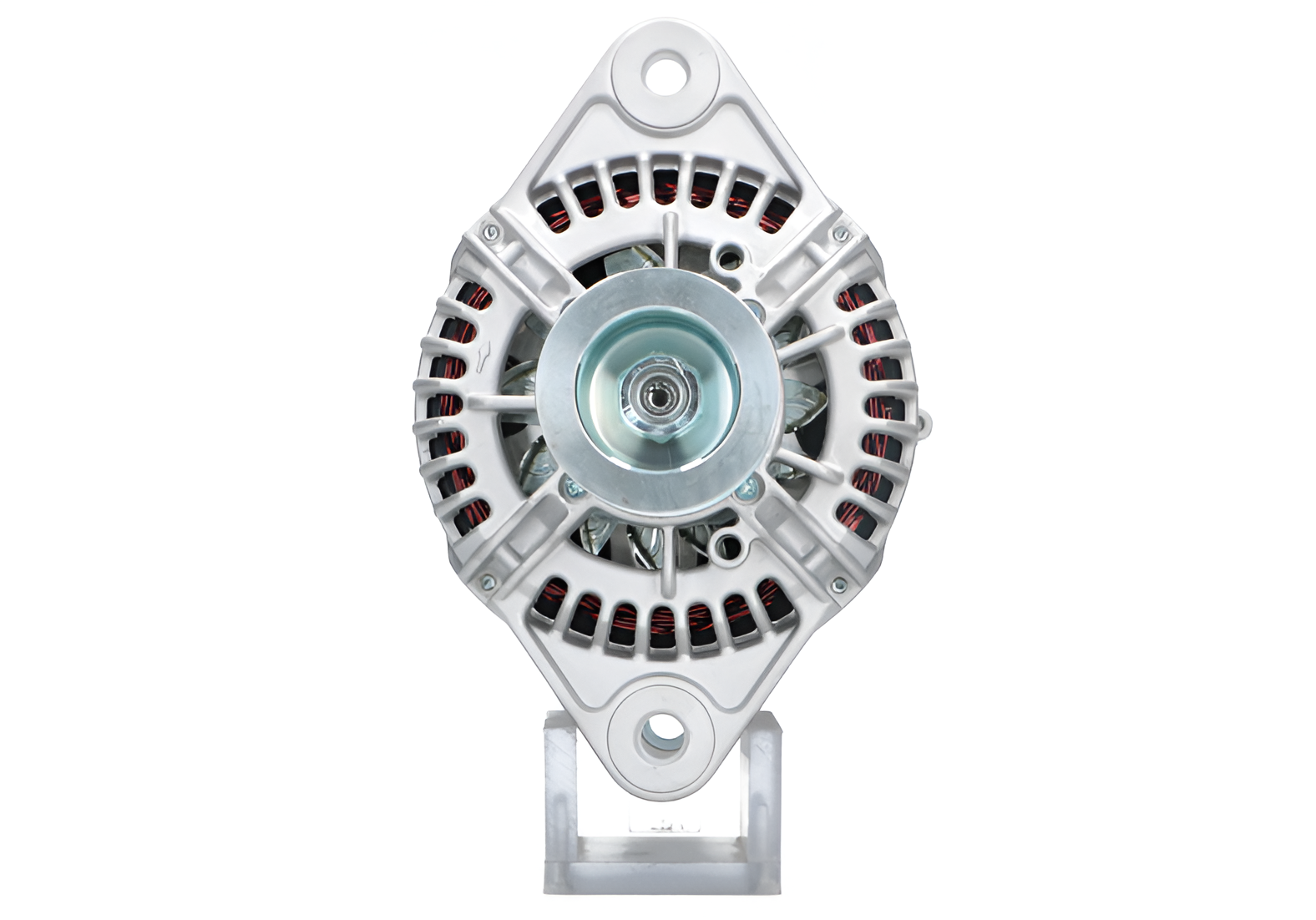

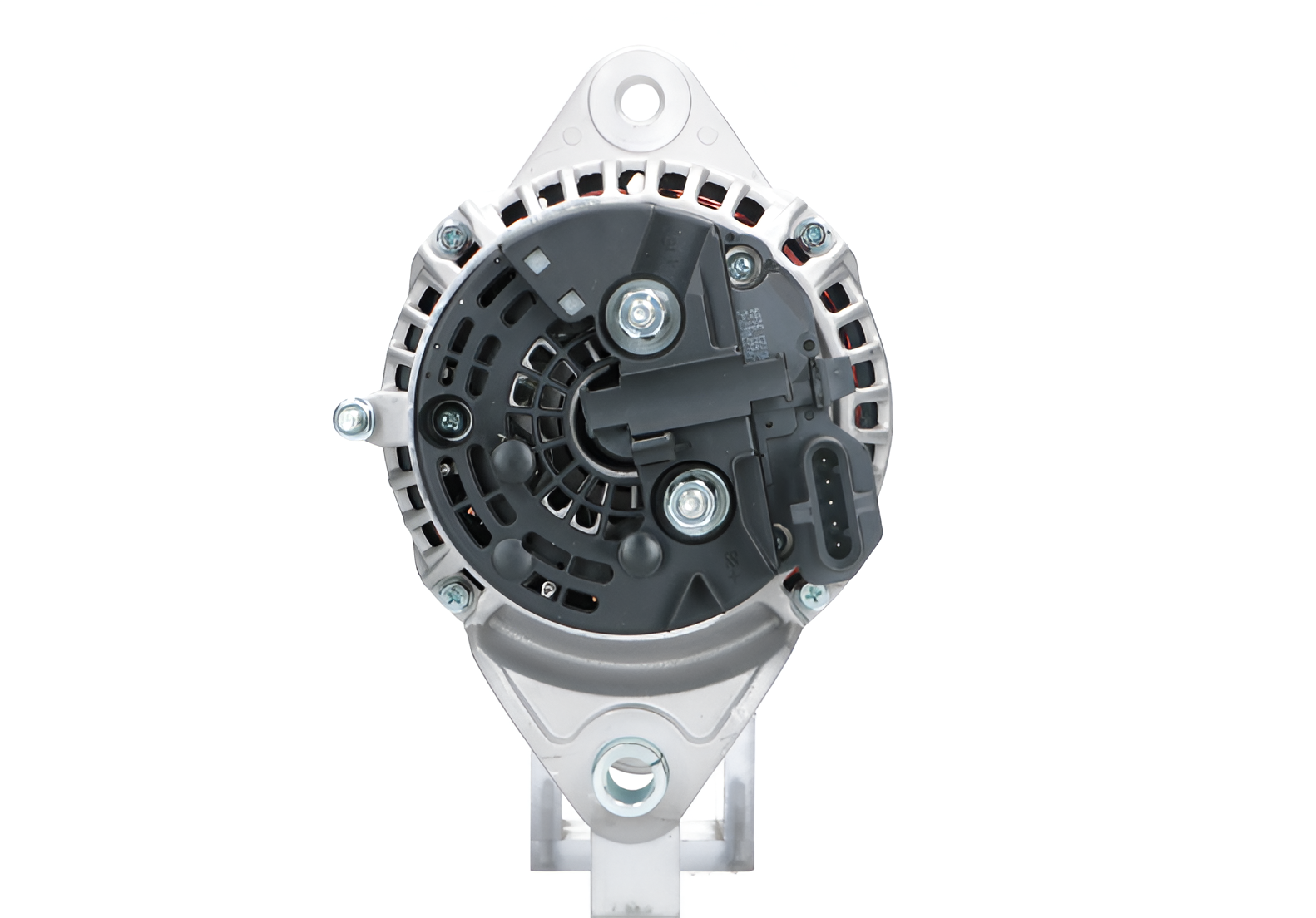

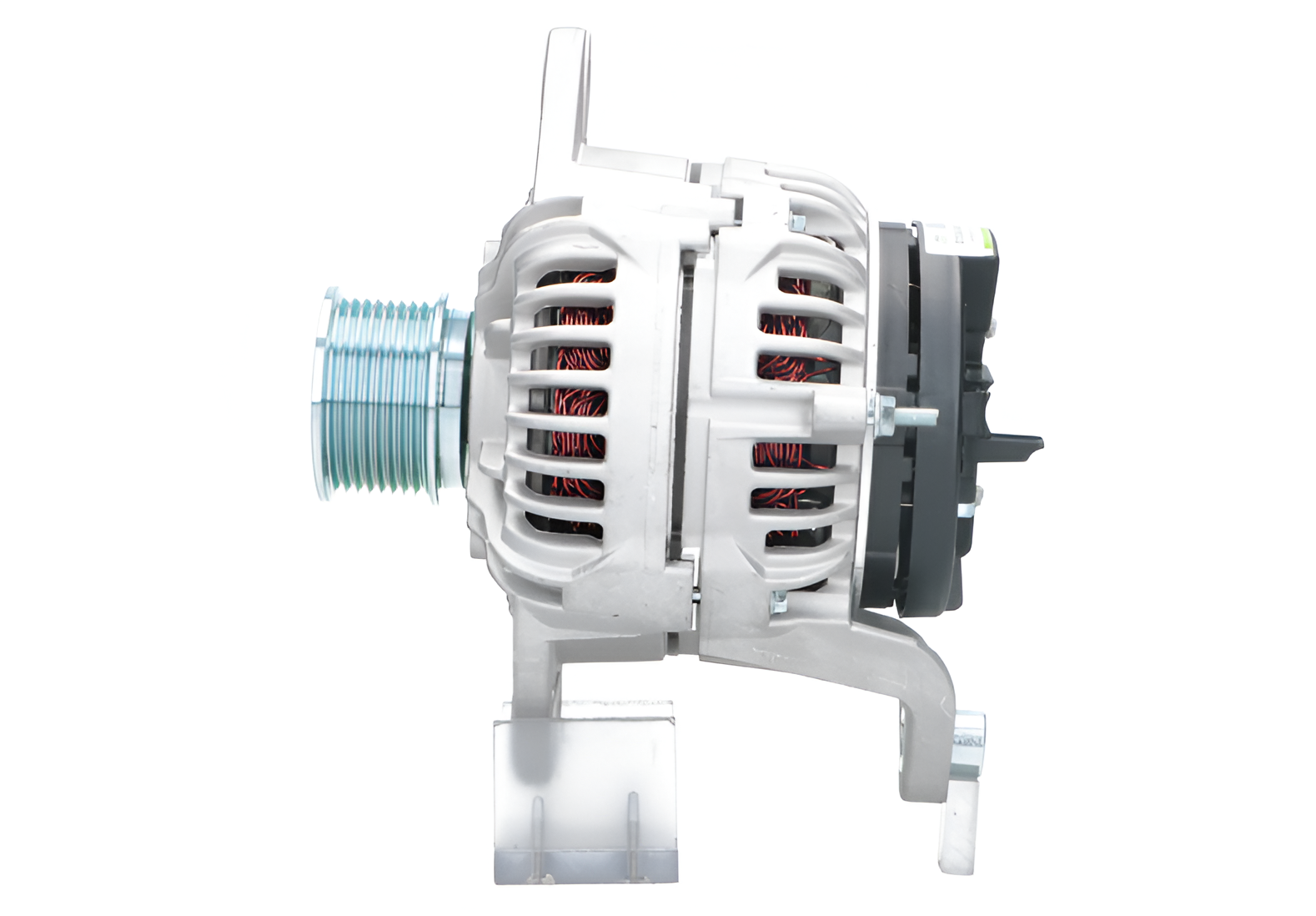

New Alternator 24v 110AMP Fits: Renault, Volvo, 5pin 12.8d 114212 / ALT10303

New Alternator 24v 110AMP Fits: Renault, Volvo, 5pin 12.8d 114212 / ALT10303

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 1 left

Product Type:ALT10303

Product Indentifier:7436204465469

Regular price

£208.76 £173.97 ex VAT

Regular price £202.10 Sale price £173.97 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

New Alternator 24v 110AMP Fits: Renault, Volvo, 5pin 12.8d 114212 / ALT10303

114212

ALT10303

Electrical specifications

  • Voltage 24
  • Amp 110

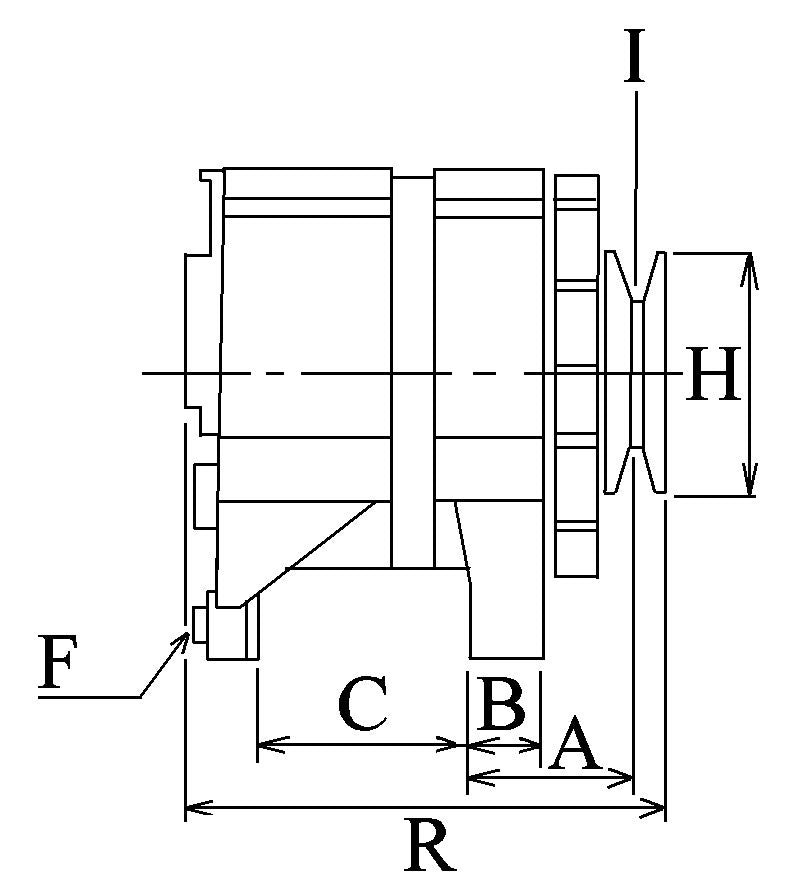

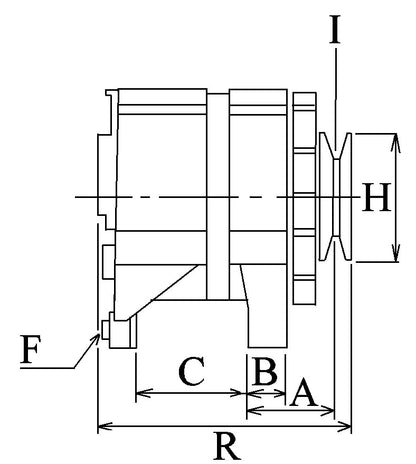

Physical specifications

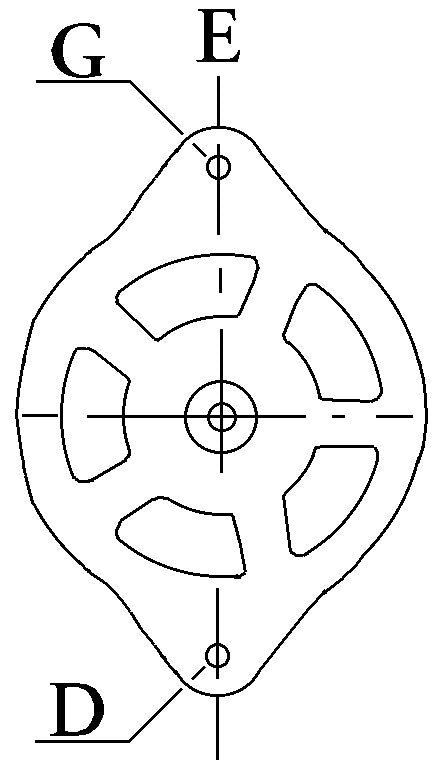

  • D Bracket hole 12.00
  • G Belt. adj. bracket hole 10.40
  • B Width/holder arm 13.50
  • E Belt. adj. brackethole pos. 2
  • C Mount. bracket dist. 106.00

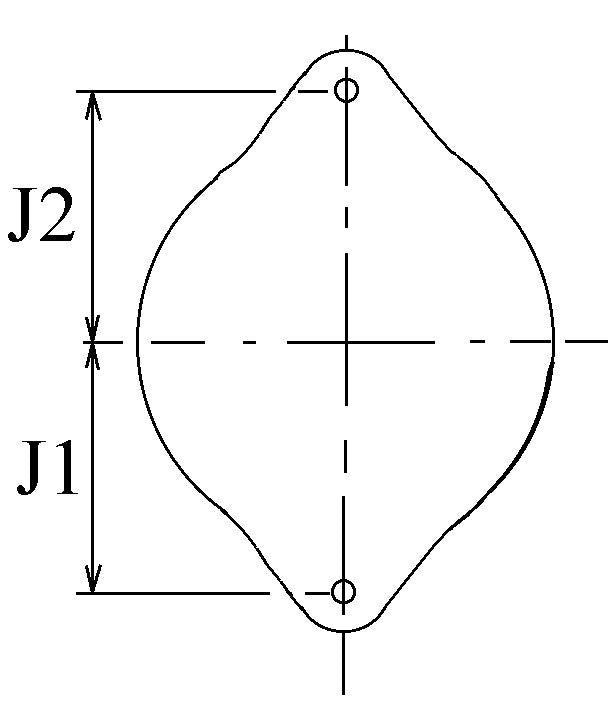

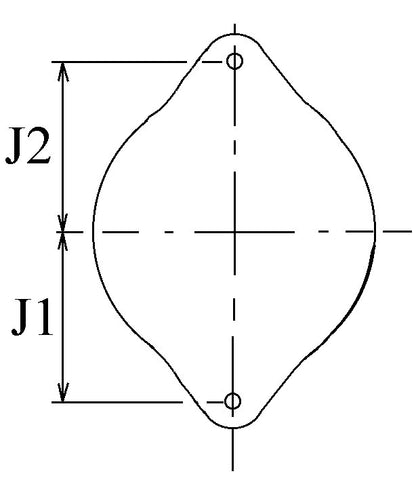

  • J Radius 99.50
  • J Radius 99.50
  • K B+ position M8
  • N Rotation CR

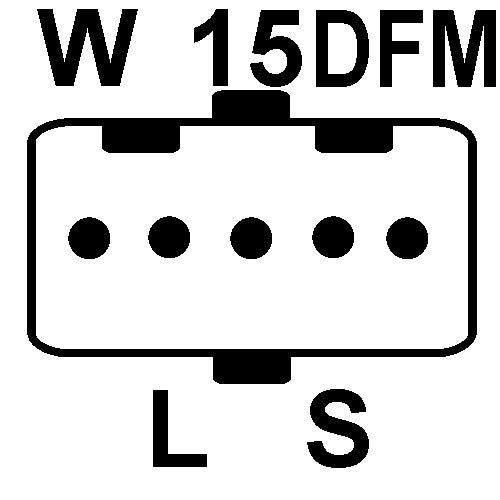

  • O Regulator plug PL82
  • R Total length mm 201.80

Further information

  • Blower IF
  • Pulley w/o

Replacing

  • 0124655008    Bosch
  • 0124655092    Bosch
  • 0124655499    Bosch
  • 0124655833    Bosch
  • 063536550080    Magneti Marelli
  • 0910378    DAF
  • 0986049360    Bosch Exchange
  • 11209620    Mahle
  • 114212    HC-Cargo
  • 12201151    AES
  • 124655008    Volvo
  • 1305701BO    WAI
  • 17204335    Volvo
  • 19092000    Delco Remy
  • 19092022    Delco Remy
  • 1986A01033    Bosch
  • 20409240    Renault
  • 2084935    Volvo
  • 20849351    Volvo
  • 21201013    AES
  • 21429786    Volvo
  • 23877N    WAI
  • 3803640    Volvo
  • 444232    Valeo
  • 72446709    Mahle
  • 7420409228    Renault
  • 7420849351    Volvo
  • 7421429786    Volvo
  • 816501110    PSH
  • 85000419    Volvo
  • 85000628    Volvo
  • 85000629    Volvo
  • 85020820    Volvo
  • 85021343    Volvo
  • 860804    Prestolite
  • 860804AM    Prestolite
  • 860804GB    Prestolite
  • AAN5409    Mahle
  • ALT10303    Wood Auto
  • ALT2117    Unipoint
  • ALT2117A    Unipoint
  • ALT41042    Wood Auto
  • BOS0124655008    Wood Auto
  • BOS0124655499    Wood Auto
  • BOS1986A01033    Wood Auto
  • BX4629    Bosch (USA)
  • BX4744    Bosch (USA)
  • BX4935    Bosch (USA)
  • BX4936    Bosch (USA)
  • CA1883IR    HC-Parts
  • DRB0002    Delco Remy
  • DRB0002N    Delco Remy
  • DRB0002X    Delco Remy
  • F032114212    HC-Cargo
  • F042301130    Bosch
  • F042301174    Bosch
  • F042301175    Bosch
  • HCA1883IR    HC-Parts
  • IA9468    Mahle
  • LEA0691    Lucas
  • LRA02877    Lucas
  • LRA2877    Lucas
  • MAN2032    Magneti Marelli
  • MG1129    Mahle
  • MG802    Mahle
  • PRE860804    Wood Auto
  • PRE860804GB    Wood Auto
  • RNL655008    RNL
  • RNL655008NR    RNL
  • RNL655008OER    RNL
  • RNL655008P    RNL
  • SEG0124655499    Wood Auto
  • SEG0124655833    Wood Auto
  • UNIALT2117A    Wood Auto
  • WOOALT10303    Wood Auto

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

      * All products come with 12 months warranty unless otherwise stated.
      * Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **

Volvo Truck FH series
