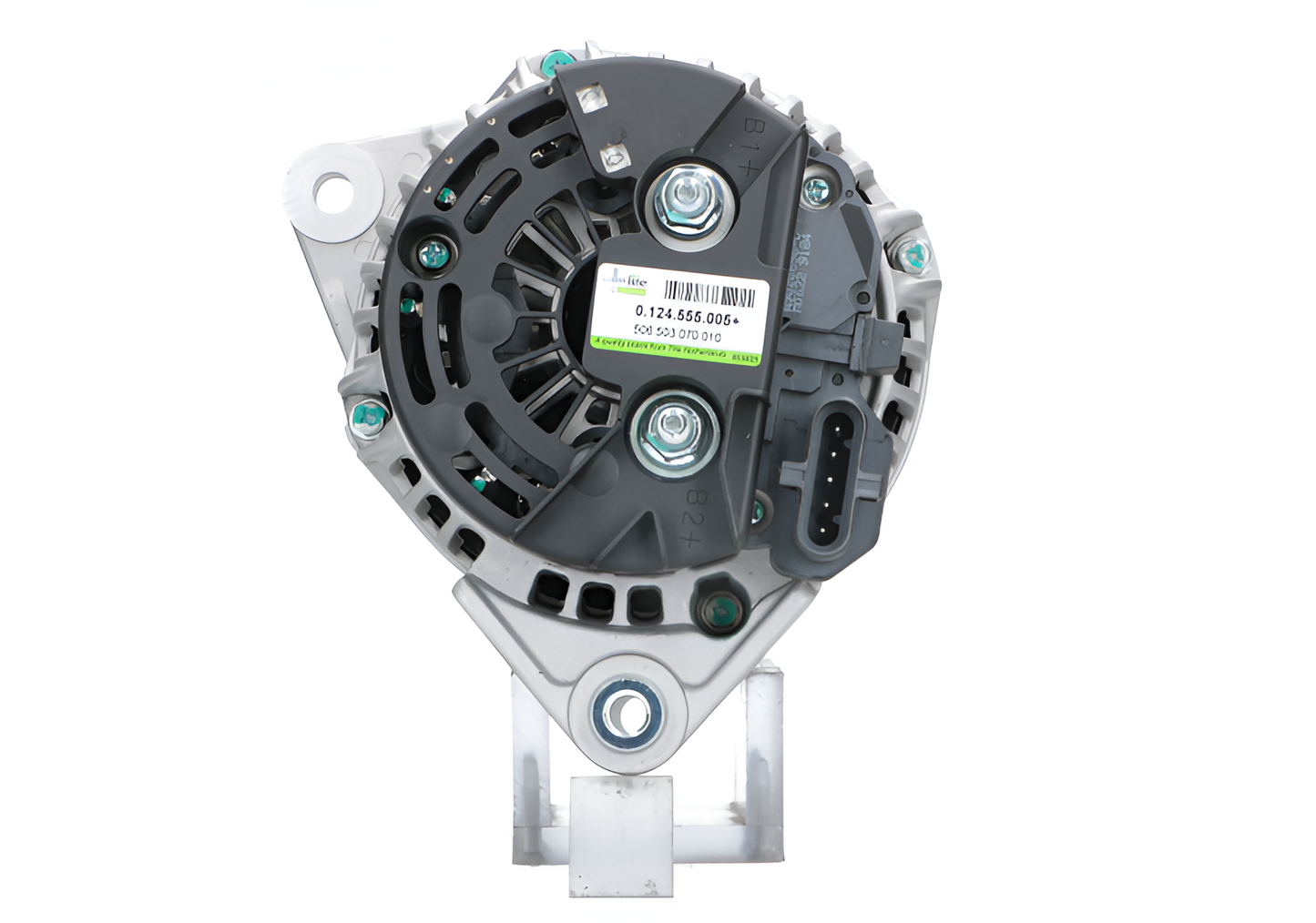

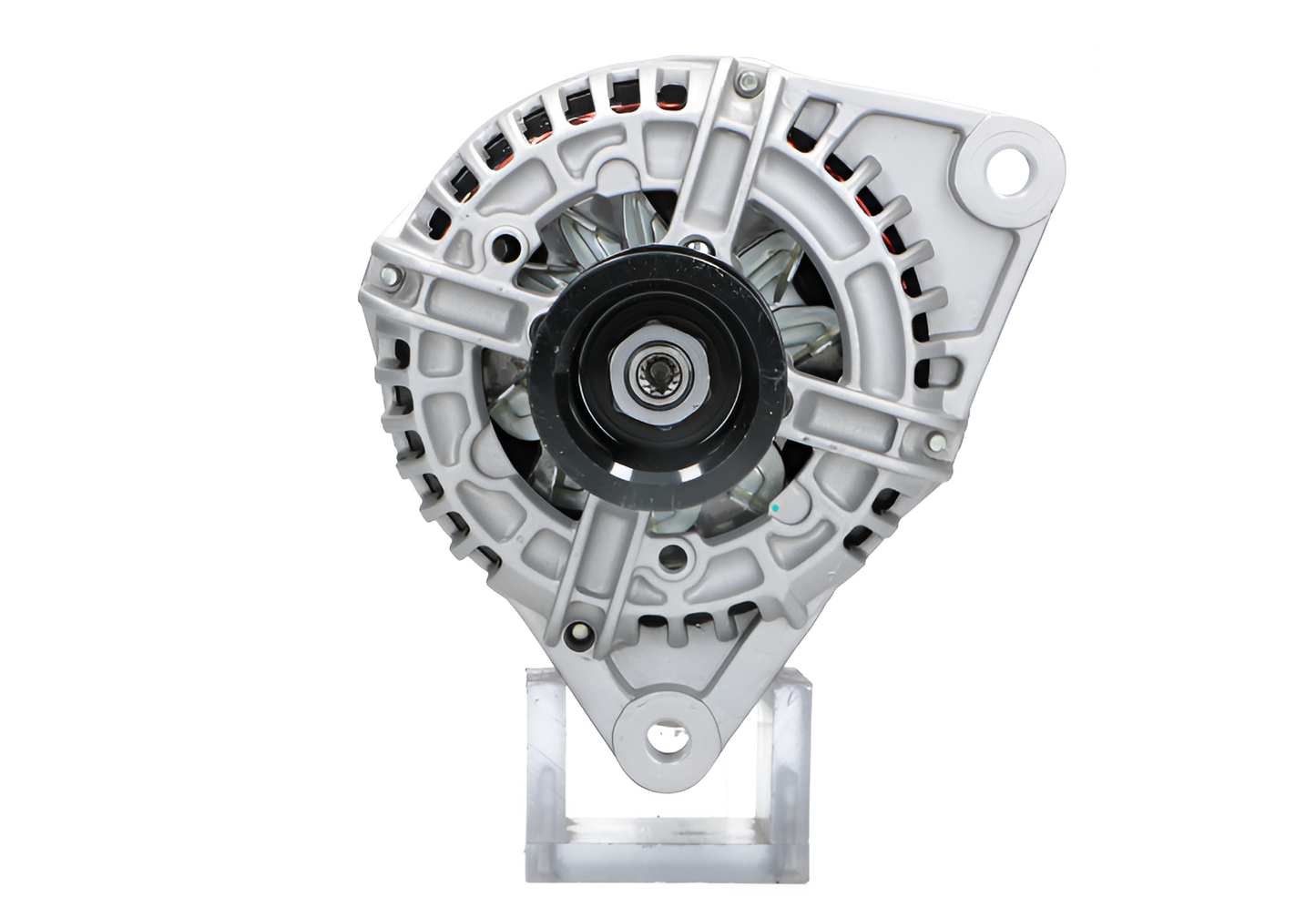

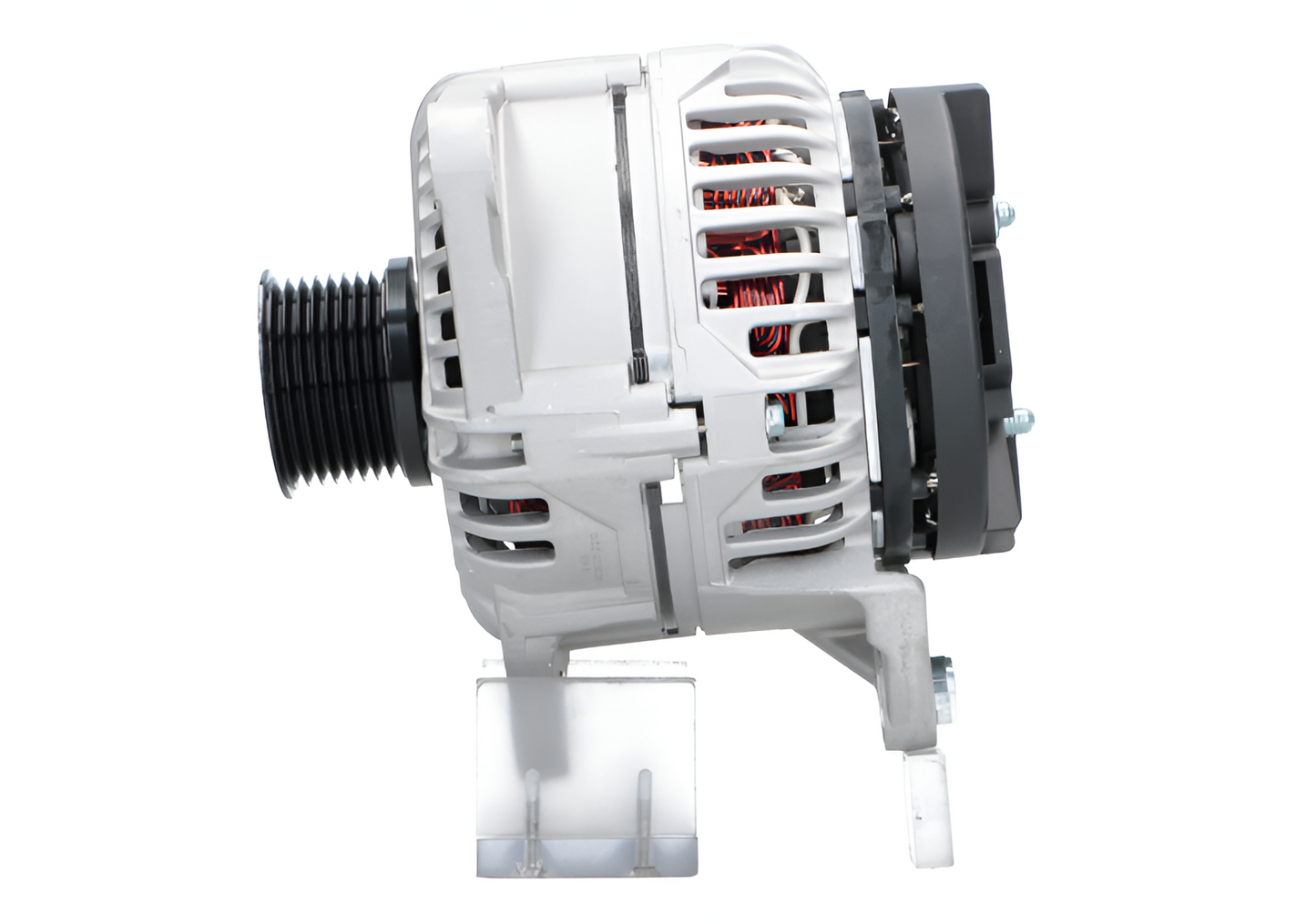

New Alternator 24v 70AMP Fits: Iveco Lorry Truck 113188 / ALT20038
113188
ALT20038
Electrical specifications
- Voltage 24
- Amp 70
- Terminal W
Physical specifications

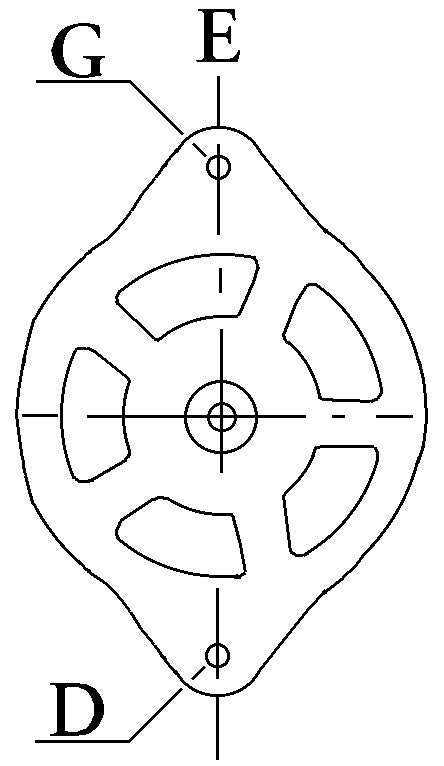

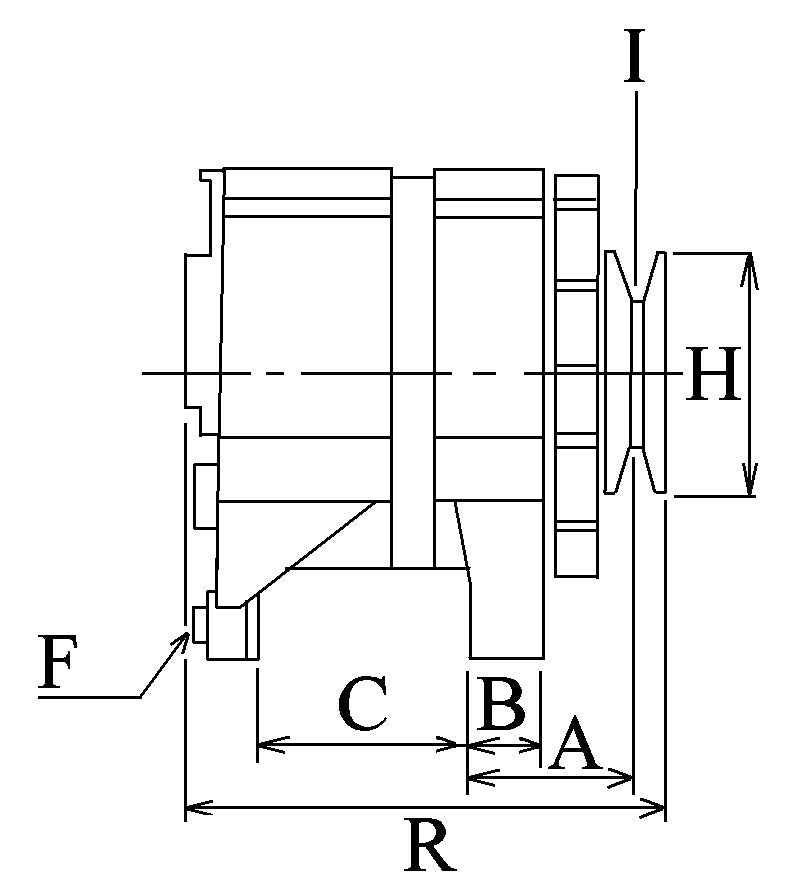

- D Bracket hole 10.50
- G Belt. adj. bracket hole 10.90
- B Width/holder arm 14.10
- E Belt. adj. brackethole pos. 10
- C Mount. bracket dist. 80.90
- H Pulley dia. 55.00
- A Pulley dist. 36.50
- i Grooves/pulley 8

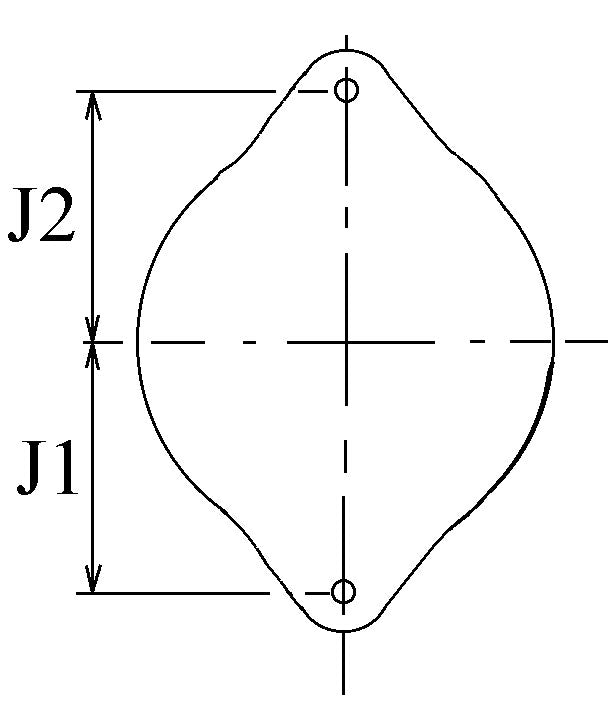

- j Radius 94.00
- j Radius 94.00
- k B+ position M8
- n Rotation CR

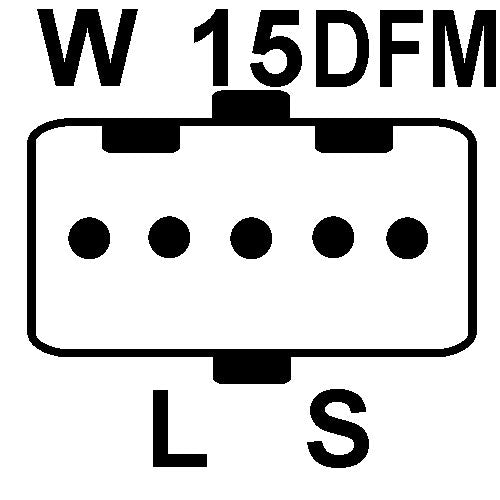

- o Regulator plug PL82
- R Total length mm 194.00
Further information
- Blower IF
- Pulley SP
Replacing
- 0124555005 Bosch
- 0124555033 Bosch
- 0124555061 Bosch
- 0124555110 Bosch
- 063535550050 Magneti Marelli
- 063730030010 Magneti Marelli
- 063731699010 Magneti Marelli
- 0986045160 Bosch Exchange
- 11209602 Mahle
- 113188 HC-Cargo
- 115484 HC-Cargo
- 12201378 AES
- 12591N WAI
- 12591R WAI
- 1290301BO WAI
- 19092034 Delco Remy
- 1986A00512 Bosch
- 1986A00914 Bosch
- 2432708 Scania
- 2995976 Fiat Group
- 42498713 Iveco
- 4892318 Case
- 506503070 PSH
- 63535550 Magneti Marelli
- 72445481 Mahle
- 860810 Prestolite
- 860810GB Prestolite
- 861280 Prestolite
- 861280GB Prestolite
- AAN5391 Mahle
- ALT10606 Wood Auto
- ALT20038 Wood Auto
- BOS0124555005 Wood Auto
- BOS0124555110 Wood Auto
- BOS1986A00512 Wood Auto
- BOS1986A00914 Wood Auto
- CA1699 HC-Parts
- CA1699IR HC-Parts
- DRB5160 Delco Remy
- DRB5160X Delco Remy
- F032113188 HC-Cargo
- F042A01127 Bosch
- HCA1699IR HC-Parts
- IA9450 Mahle
- LEA0712 Lucas
- LRA02535 Lucas
- LRA2535 Lucas
- MAHMG812 Wood Auto
- MG812 Mahle
- MQA030 Magneti Marelli
- MQA1699 Magneti Marelli
- PRE860810GB Wood Auto
- RNL4516 RNL
- RNL4516NR RNL
- RNL4516OER RNL
- SEG0124555033 Wood Auto
- SEG0124555061 Wood Auto
- WOOALT20038 Wood Auto
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
