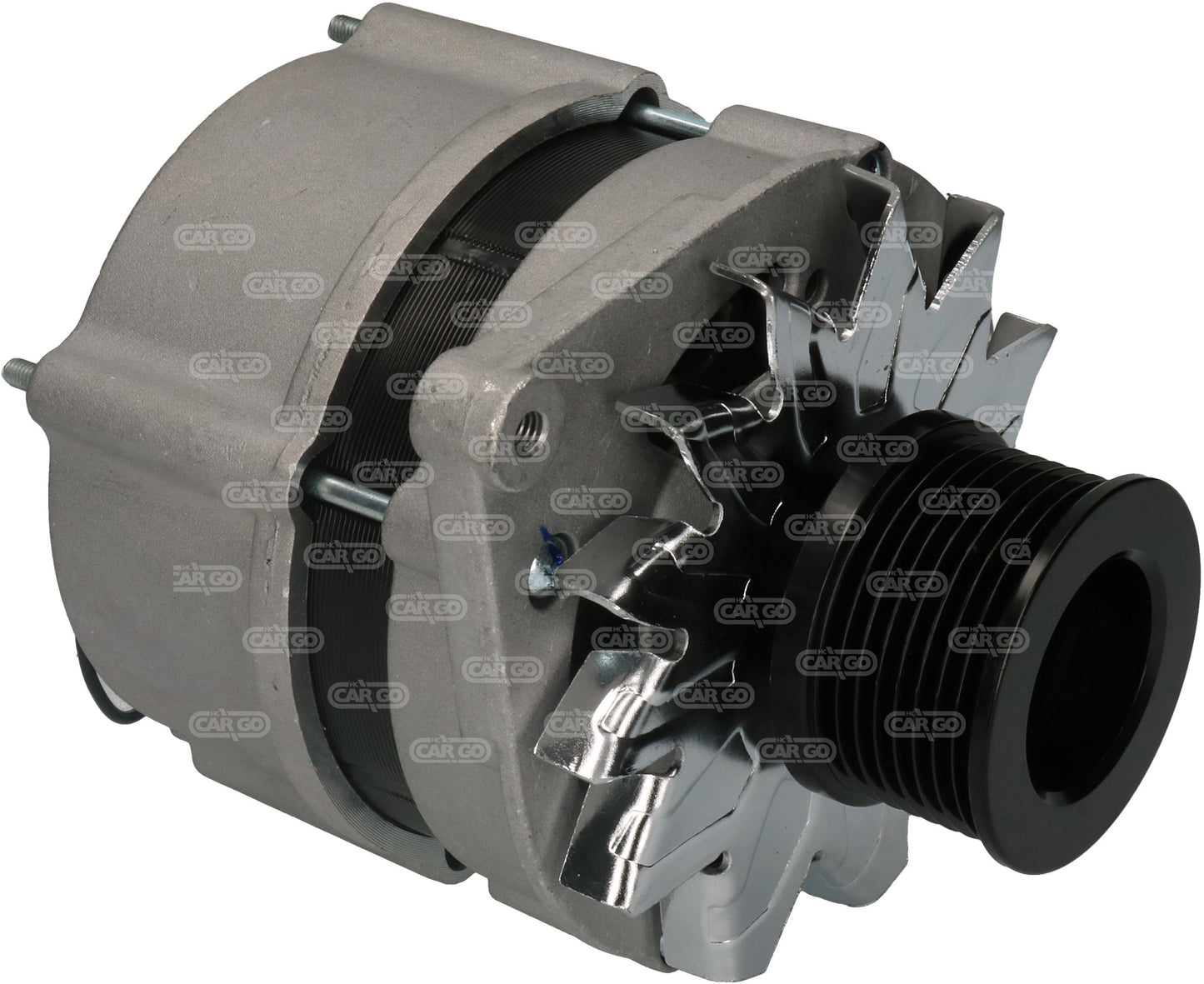

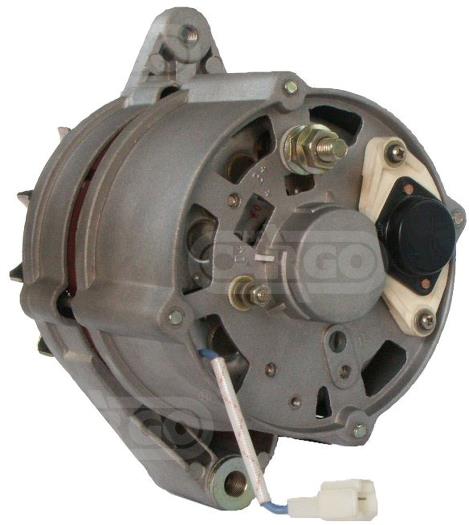

New Alternator to Replace John Deere and Case Tractors 65amp Cargo
111888
Details and description
- John Deere Alternator
- Case Alternator
- Voltage 14, Amp 65, Terminal W, Bracket hole 10.40, Belt. adj. bracket hole M8, Width/holder arm 50.60, Belt. adj. brackethole pos. 60, Pulley dia. 60.00, Pulley dist. 81.00, Grooves/pulley 8, Radius 86.00, Radius86.00, B+ position M8, Rotation CR, Regulator plug PL_NA, Blower EF, Pulley SP, Total length mm 192.00
Electrical specifications
- Voltage 14
- Amp 65
- Terminal W

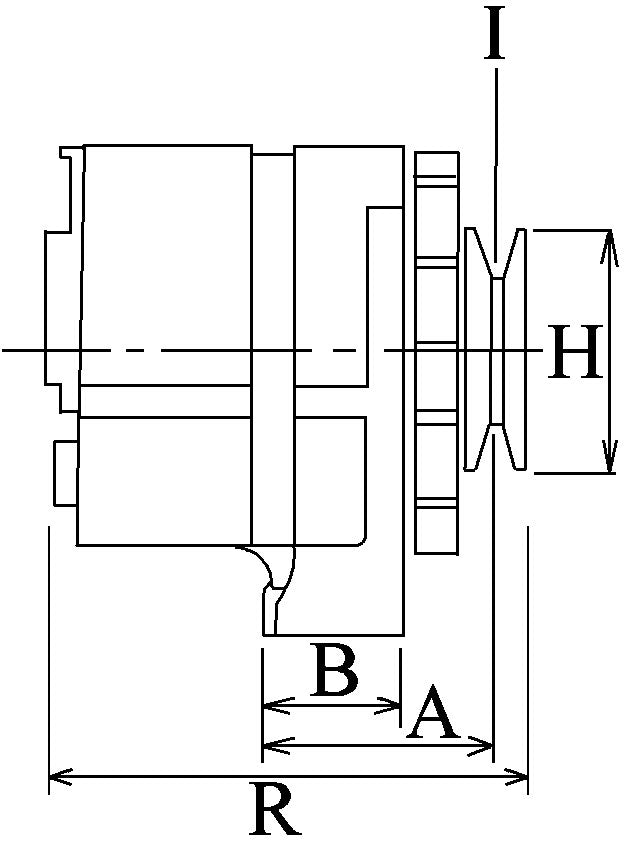

Physical specifications

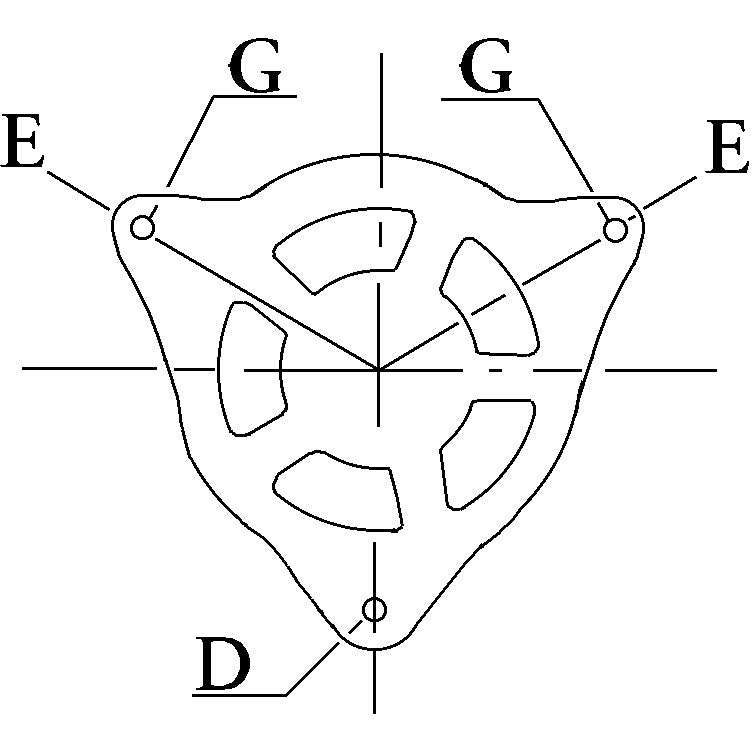

- D Bracket hole 10.40
- G Belt. adj. bracket hole M8
- B Width/holder arm 50.60
- E Belt. adj. brackethole pos. 60
- H Pulley dia. 60.00
- A Pulley dist. 81.00
- i Grooves/pulley 8

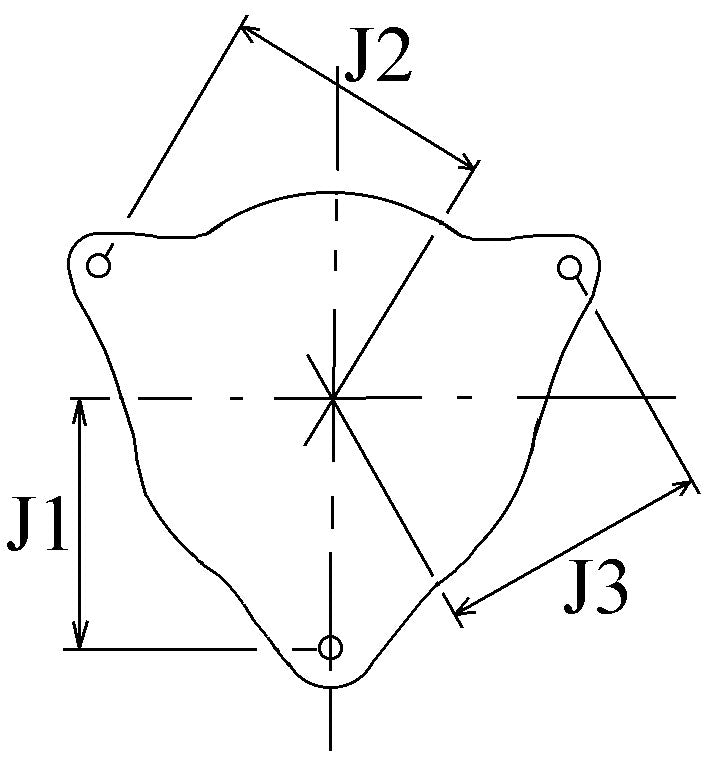

- j Radius 86.00
- j Radius 86.00
- k B+ position M8
- n Rotation CR
- o Regulator plug PL_NA
- R Total length mm 192.00
Further information
- Blower EF
- Pulley SP
Replacing
- 0120488205 BOSCH
- 0120488293 BOSCH
- 0120489475 BOSCH
- 11.201.595 ISKRA
- 11.201.935 ISKRA
- 3920679 CUMMINS
- 3e7285 CATERPILLAR
- 9515170 MAGNETON (PAL/SKODA)
- A181873 INTERNATIONAL HARV.
- A187873 CASE
- aak1363 ISKRA
- AAK3330 ISKRA
- AT173624 JOHN DEERE
- F005A00023 BOSCH
- RE509106 JOHN DEERE
- SE501387 JOHN DEERE
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT ALTERNATOR FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
