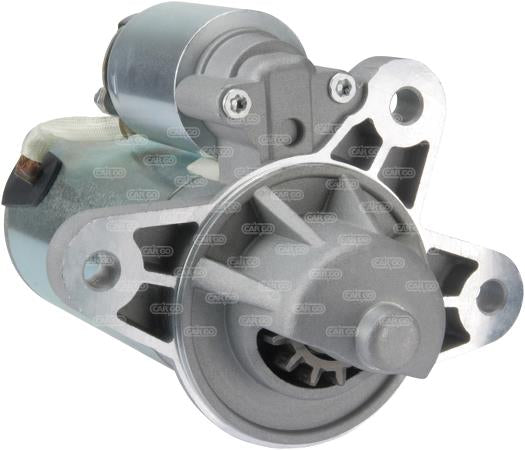

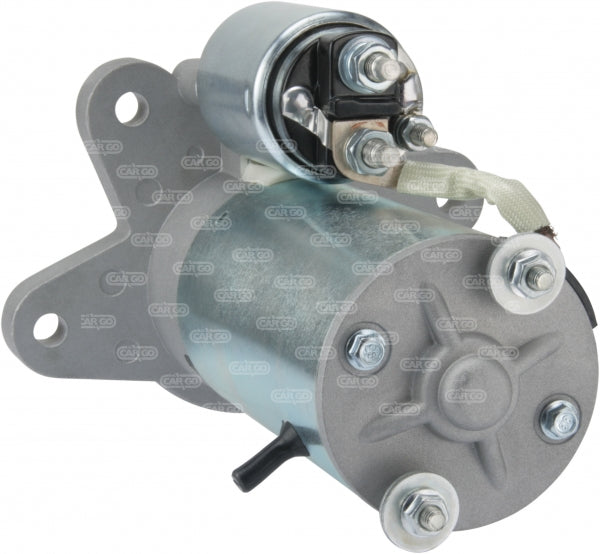

New Starter 12v to fit Old Ford Transit LDV Convoy 2.5D Cargo 112251

New Starter 12v to fit Old Ford Transit LDV Convoy 2.5D Cargo 112251

112251

Details and description

Voltage 12, kW 2.3, Mount. flange 91.90, Drive dist. 20.50, Dist./back 200.00, Dist./front 58.50, No. of teeth13, B+ M8, Gear type GR, Dist. mm 76.00, Dist. 2 145.00, Dist. 3 117.00, Rotation CR, No./mount. holes 3 (0), Drive type Steel, Total length mm 258.00, Oil sealed No, Waterproof No

Electrical specifications

• Voltage 12
• kW 2.3

Physical specifications

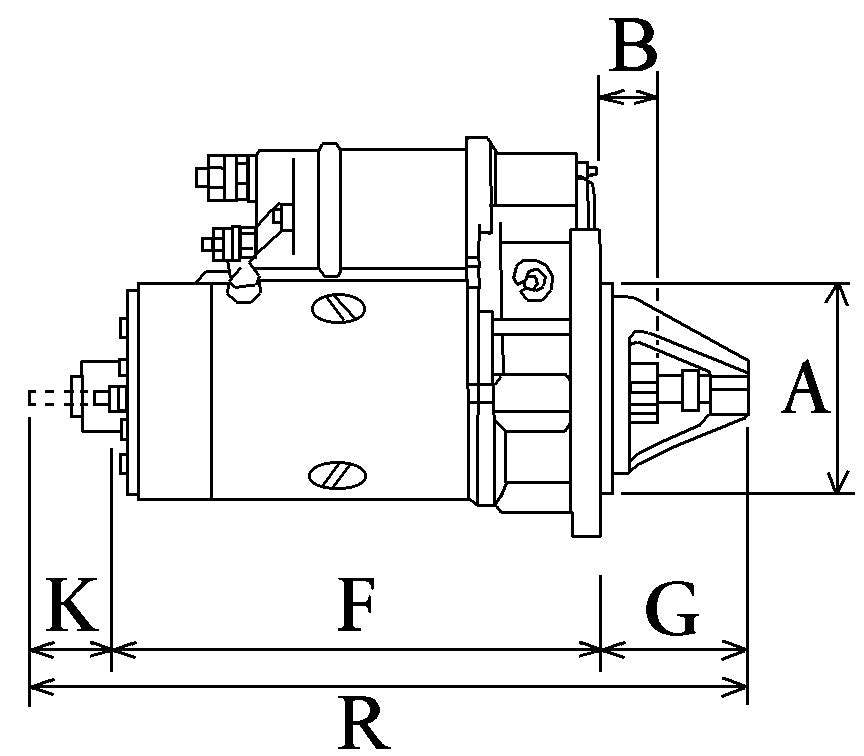

• A Mount. flange 91.90
• B Drive dist. 20.50
• F Dist./back 200.00
• G Dist./front 58.50
• H No. of teeth 13
• I B+ M8
• N Gear type GR

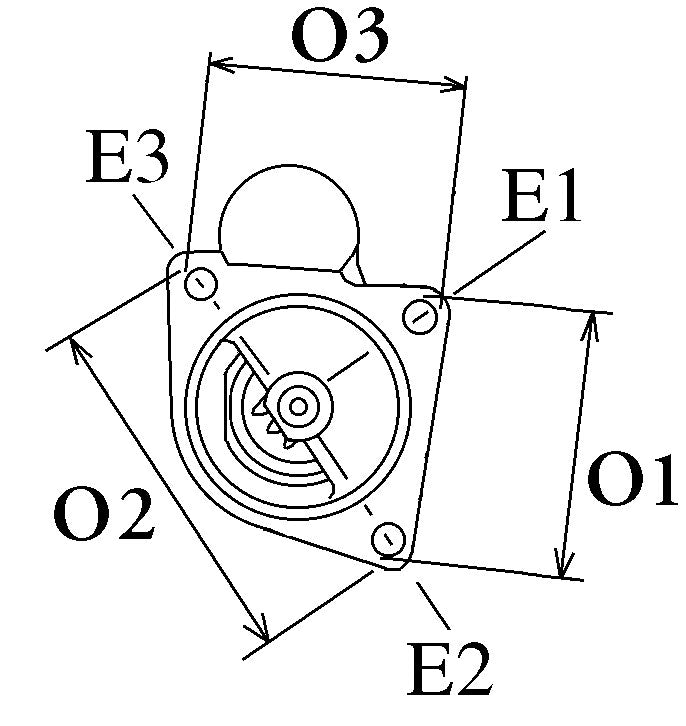

• O Dist. mm 76.00
• O Dist. 2 145.00
• O Dist. 3 117.00
• P Rotation CR
• R Total length mm 258.00

Further information

• No./mount. holes 3 (0)
• Drive type Steel
• Oil sealed No
• Waterproof No

Replacing

REMY (DELCO)

• cer3087
• 112161
• 00e091

FORD

• 1008823
• 1024508
• 1027928
• 1059179
• 1073108
• 1093471
• 1105310
• 1596530
• 1653209
• 5026497
• 6039198
• 6071805
• 6160440
• 6996767
• 755f11000bb
• 795F11000AA
• 795f11000ca
• 835f11000aa
• 835F11000AB
• 835f11000ac
• 835f11000bb
• 835FX11000B
• 835fx11000bb
• 884f11000aa
• 97vb11000aa
• 97vb11000ab
• 97VB11000AC
• 98VB11000AA
• 98VB11000AB
• 98VB11000AB1A
• 98vb11000b1a
• 98vb11000b3a
• 98vb11000b3b
• 98VB11000BA
• 98VB11000BBB
• 98VB11000BC
• R835F11000AC
• R835F11000BB
• r835x11000ac
• r98vb11000b1a

VOLVO

• 1626195

VISTEON

• 20-100-01011

ISKRA

• AZE4101
• AZE4562
• 11.139.331
• 11.139.410

VALEO

• D7R70

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
