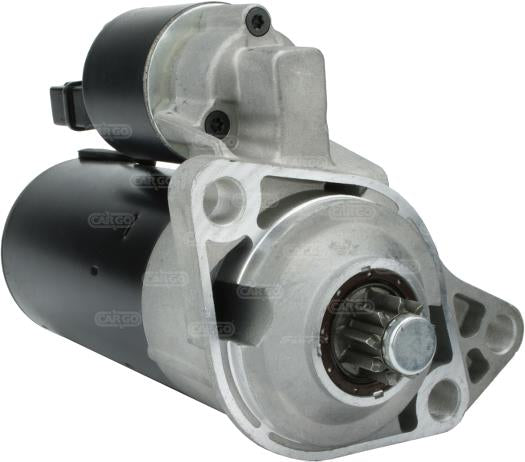

New Starter 12v to fit VAG Audi Seat Skoda VW Ford Mercedes 112286
Details and description
Voltage 12, kW 1.7, Mount. flange 76.10, Drive dist. 32.00, Dist./back 184.00, Dist./front...
Details and description
Voltage 12, kW 1.7, Mount. flange 76.10, Drive dist. 32.00, Dist./back 184.00, Dist./front 36.50, No. of teeth9,11, B+ M8, Gear type GR, Dist. mm 32.50, Dist. 2 111.50, Dist. 3 123.00, Rotation ACR, No./mount. holes 3 (0), Drive type Steel, Total length mm 236.00, Oil sealed No, Waterproof No
Electrical specifications
Voltage 12
kW 1.7

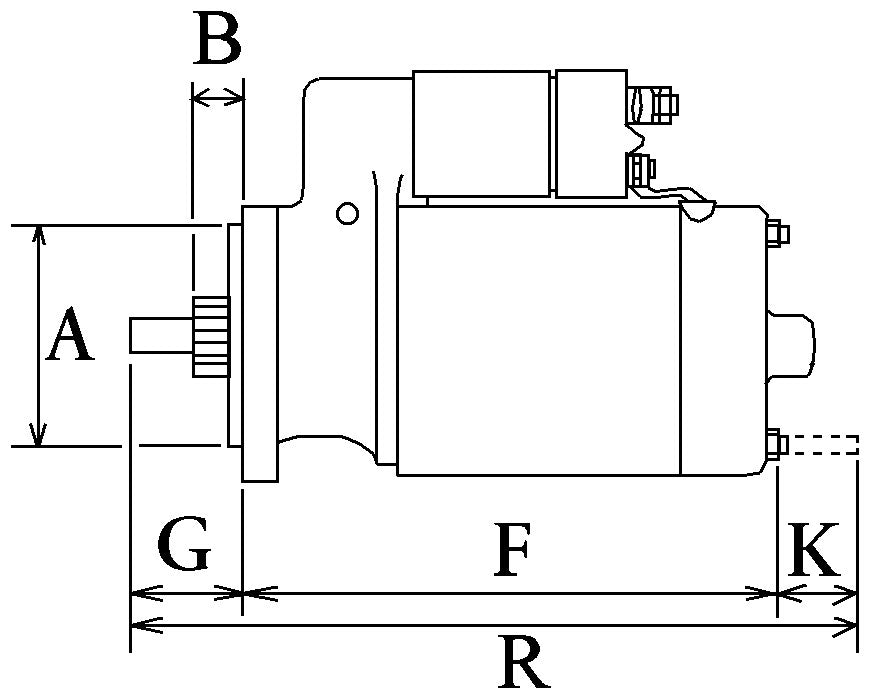

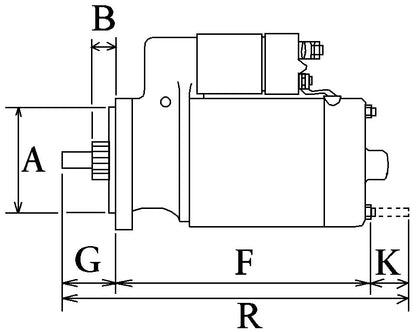

Physical specifications
A Mount. flange 76.10
B Drive dist. 32.00
F Dist./back 184.00
G Dist./front 36.50
H No. of teeth 9,11
I B+ M8
N Gear type GR

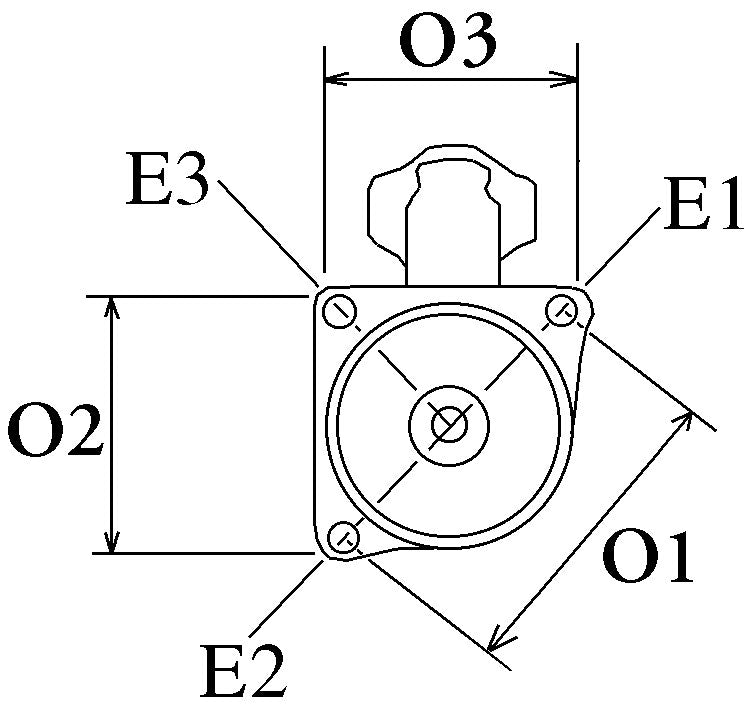

O Dist. mm 32.50
O Dist. 2 111.50
O Dist. 3 123.00
P Rotation ACR
R Total length mm 236.00
Further information
No./mount. holes 3 (0)
Drive type Steel
Oil sealed No
Waterproof No
Replacing
BOSCH
0001110076
0001110077
0001110098
0001110099
0001124003
0001124004
0001125005
0001125006
0001125014
0001125035
0001125036
MERCEDES BENZ
A0041518701
0041518701
VOLKSWAGEN
020911023b
020911023d
020911023DX
020911023p
020911023PX
020911023r
020911024A
068911023t
068911023TX
FORD
1032666
1M2111000AA
95vw11000eb
95vw11000ec
97vw11000ba
97vw11000bb
ISKRA
aze2537
AZE2626
11.130.723
11.131.057
MAGNETON (PAL/SKODA)
443115141395
9141395
9141396
915109E
VALEO
D7RS129
d7rs29
Fits
VW Starter Motor
Volkswagen Starter Motor
Seat Starter Motor
Skoda Starter Motor
Ford Starter Motor
AUdi Starter Motor
Mercedes-Benz Starter Motor
Mercedes Starter Motor
Merc Starter Motor
VAG Starter Motor
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
