On Off Mini Round Rocker Switch 12V Green Led Aircon Symbol Cargo 182880

ON OFF Rocker Switch 12V Green LED Mini Round Aircon symbol CARGO 182880

This is a genuine new Hc-Cargo product.

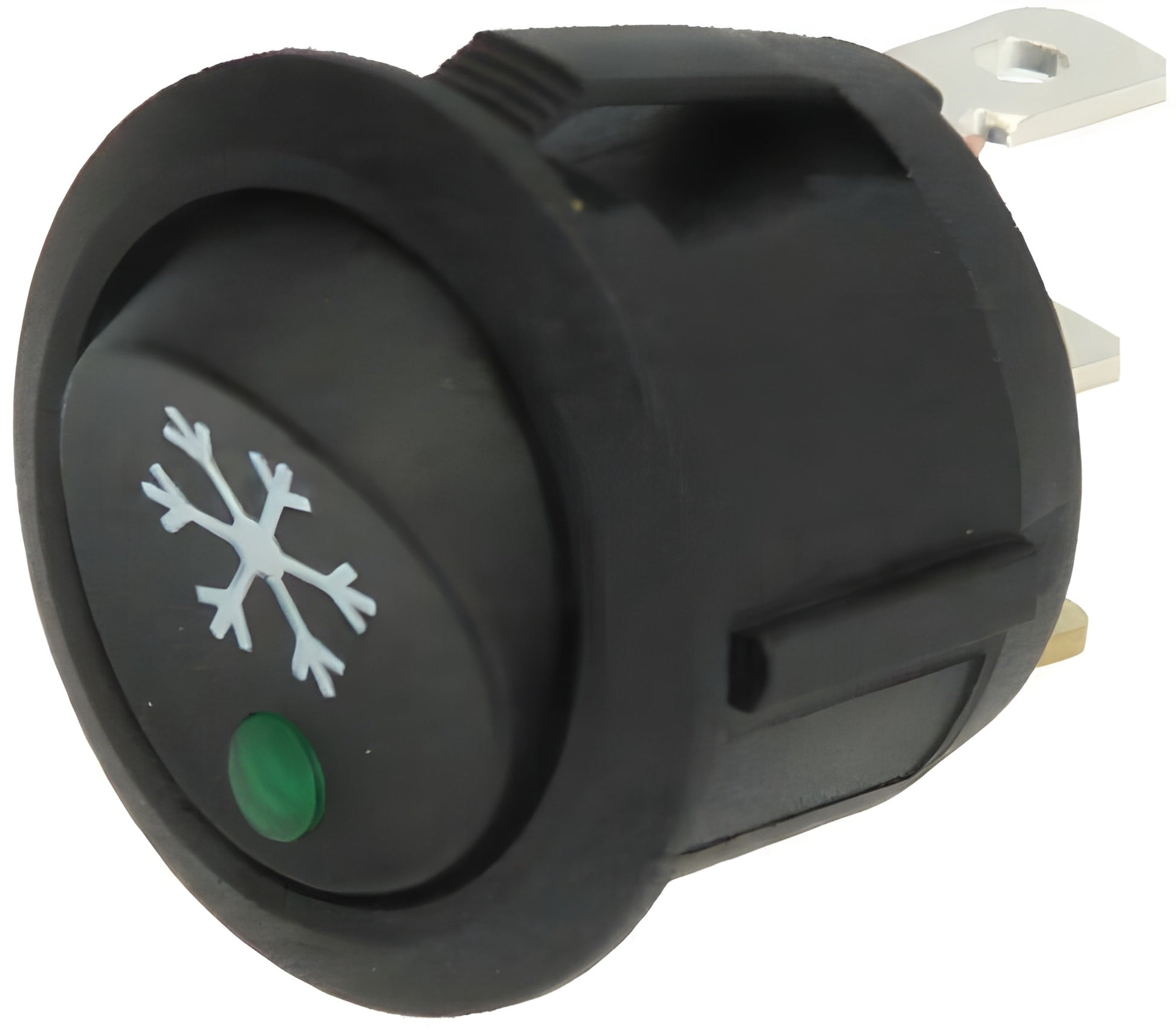

ROUND ROCKER SWITCH WITH AIRCON SYMBOL AND LED

12V

182880

Easy setup

• 20mm hole is required and the switch will sit in nicely

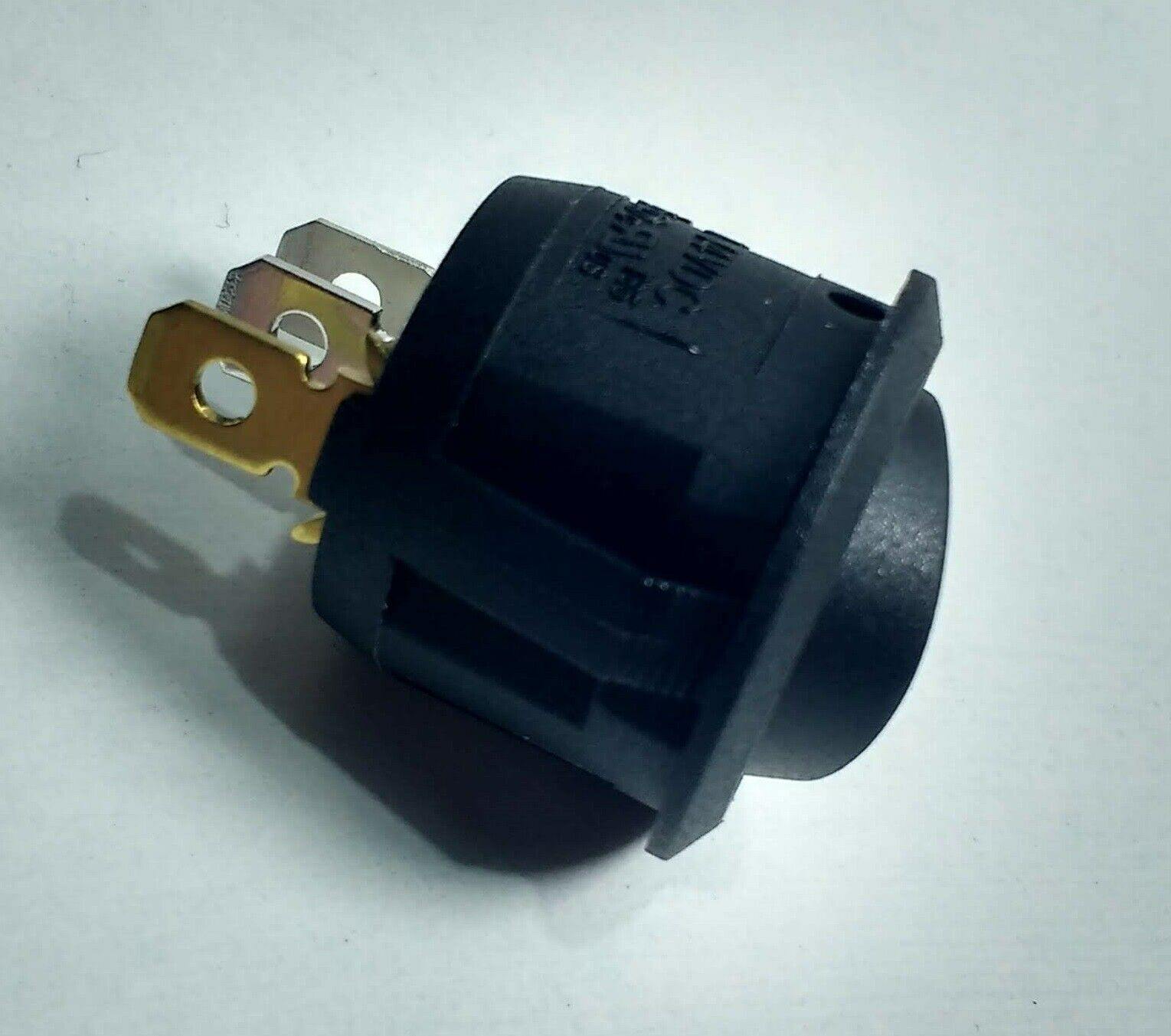

• The switch comes with a keyhole slot to prevent unwanted rotation
• Green LED will light up when the switch is turned on

Electrical specifications

• Voltage 12
• Amp 20

Physical specifications

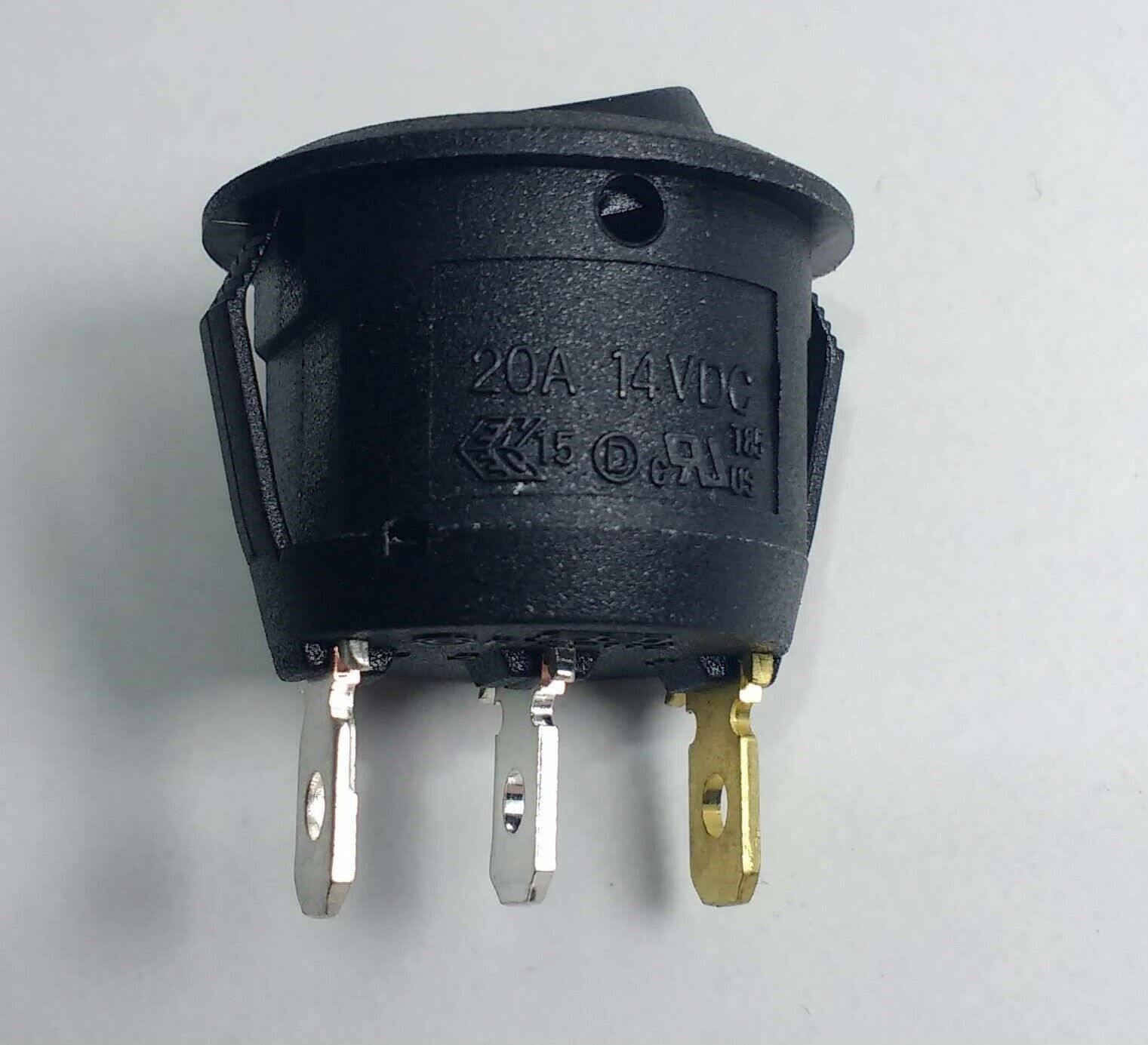

• Type/terminal Flat
• Terminals 3
• Switch combinations On/Off
• Button colour Green
• Button symbol Air condition
• Illuminated Yes
• Mount. hole size mm 20
• Bulb type LED

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).

ANOTHER QUALITY PART FROM HC-CARGO
