On Off On Rocker Switch 12V Mini Rectangle Square Car Dash Robinson
K425

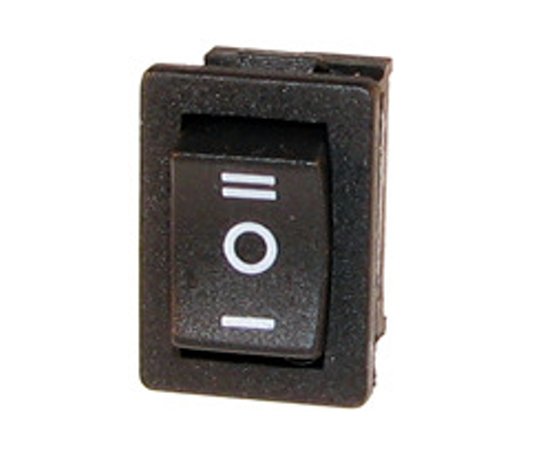

This is a black On/Off/On miniature rocker switch with a 3-pole design and a rocker marked with "I", "0", and "II". It is designed to fit a 13mm x 18.5mm slot and is rated for 12V DC. The switch's contacts have an SPST configuration and are made of polyamide.

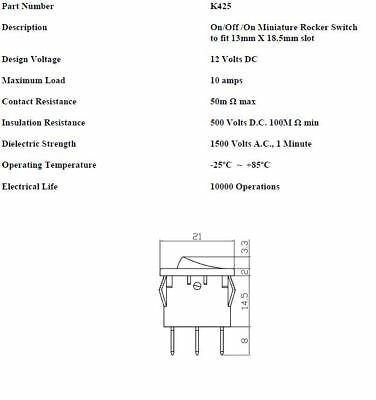

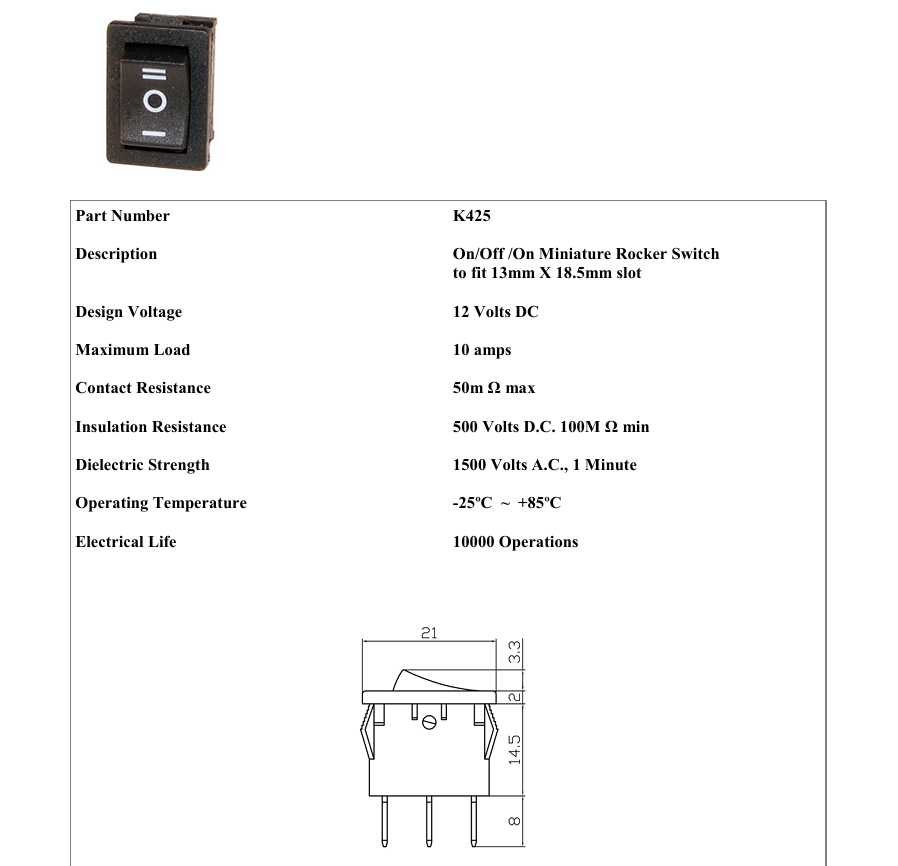

Physical specifications:
- Switching method: ON-OFF-ON
- Contacts configuration: SPST
- Pole no.: 3
- Design Voltage: 12 Volts DC
- Maximum Load: 10 amps
- DC contacts rating: 15A / 12V
- AC contacts rating: 6A / 250V
- Actuator colour: black
- Leads: 4.8 x 0.8 mm connectors
- Contact Resistance: 50m Ω max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C., 1 Minute
- Operating Temperature: -25°C ~ +85°C
- Electrical Life: 10,000 Operations and 6000 cycles
- Flammability rating: UL94V-2

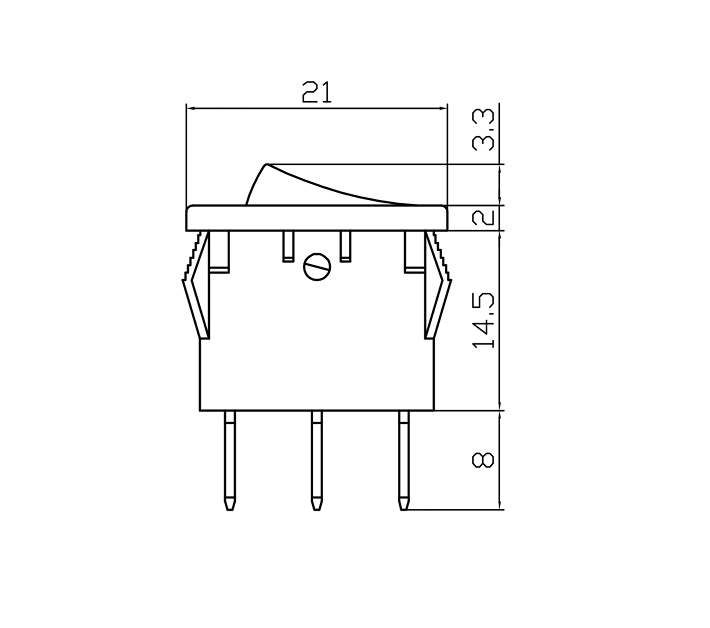

Dimensions:
- Assembly cutout: 13mm wide x 18.5mm hole is required
ANOTHER QUALITY PODUCT FROM ROBINSON
