On Off On Toggle Switch Flick Deluxe Lever 12V 20A Robinson
K805

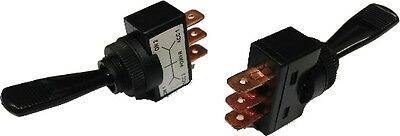

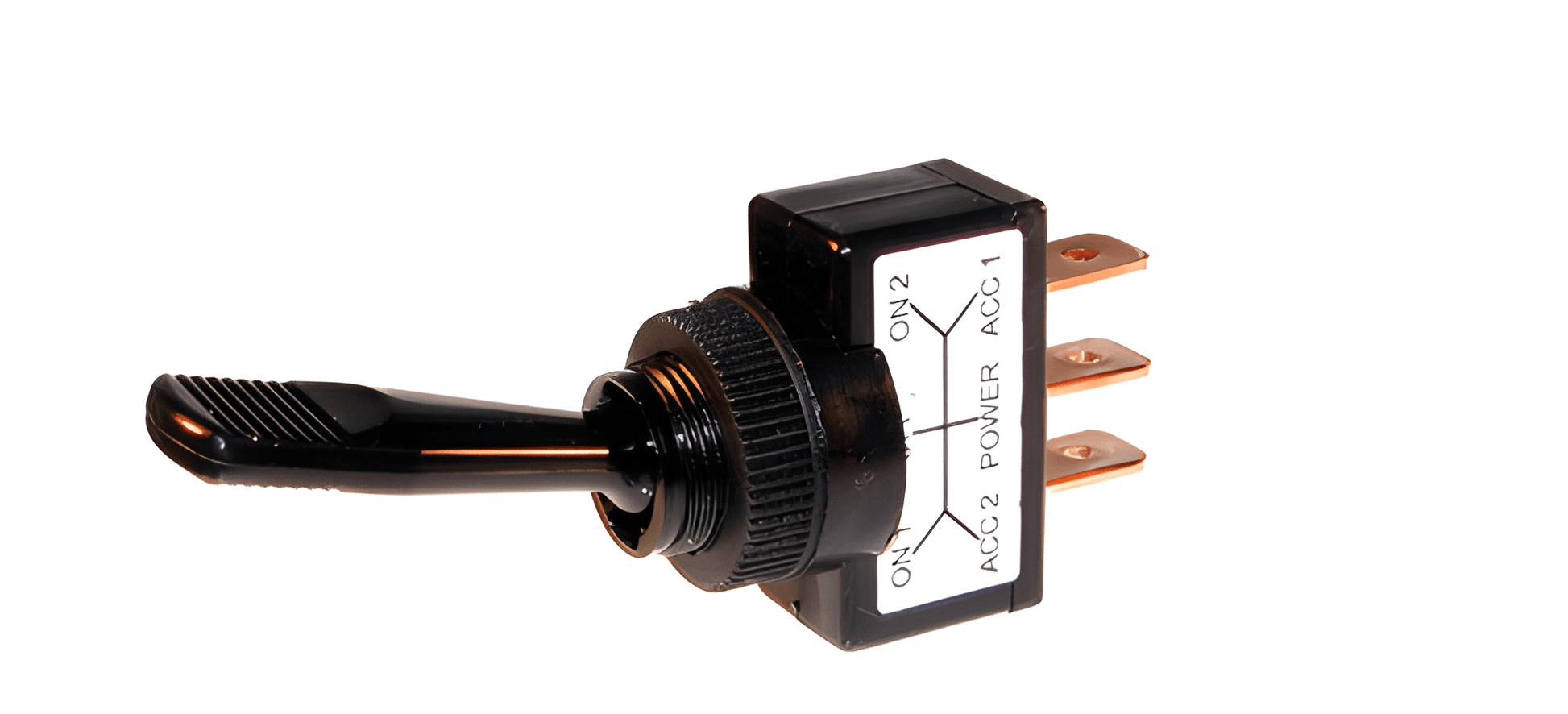

This is an On/Off/On Toggle Switch designed for automotive applications. It features copper contacts, Lucar terminals, and fits a 12.5mm round mounting hole. Rated at 20A @ 12V, it is suitable for multi-function auxiliary circuits. Dimensions are approximate.
Key Features:
- Switching Method: On/Off/On
- Contacts: Copper contacts for reliable conductivity
- Terminals: Lucar push-on terminals
- Mounting: Fits a 12.5mm round hole

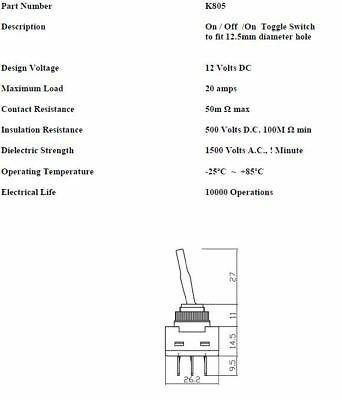

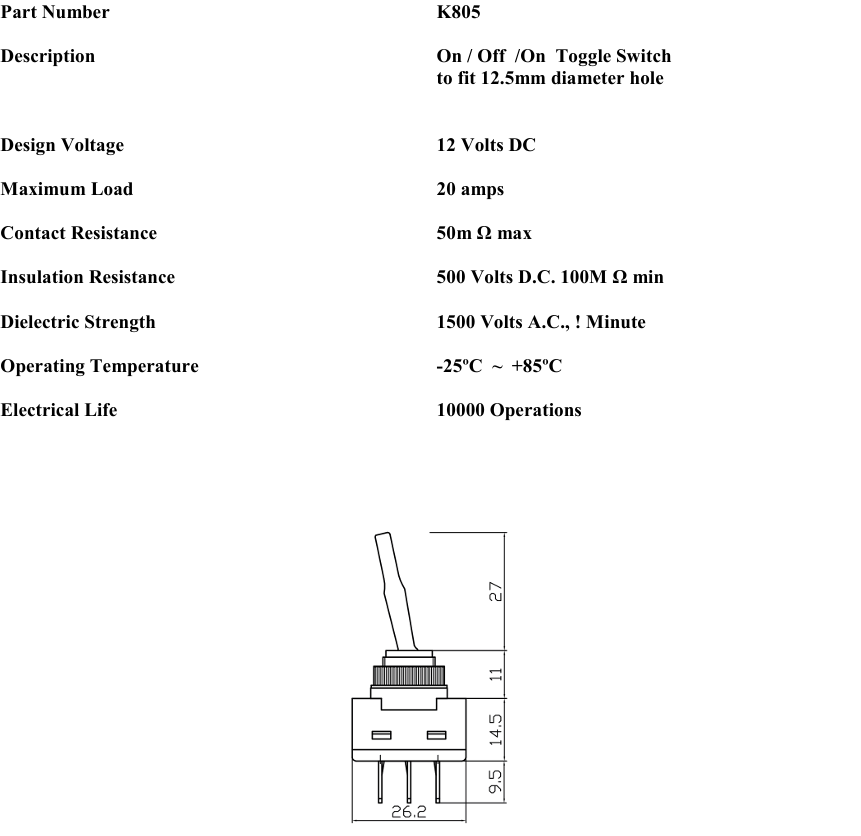

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 20A
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
