On Off On Toggle Switch Flick Flip Mini Miniature Car Dash Light Robinson
K870

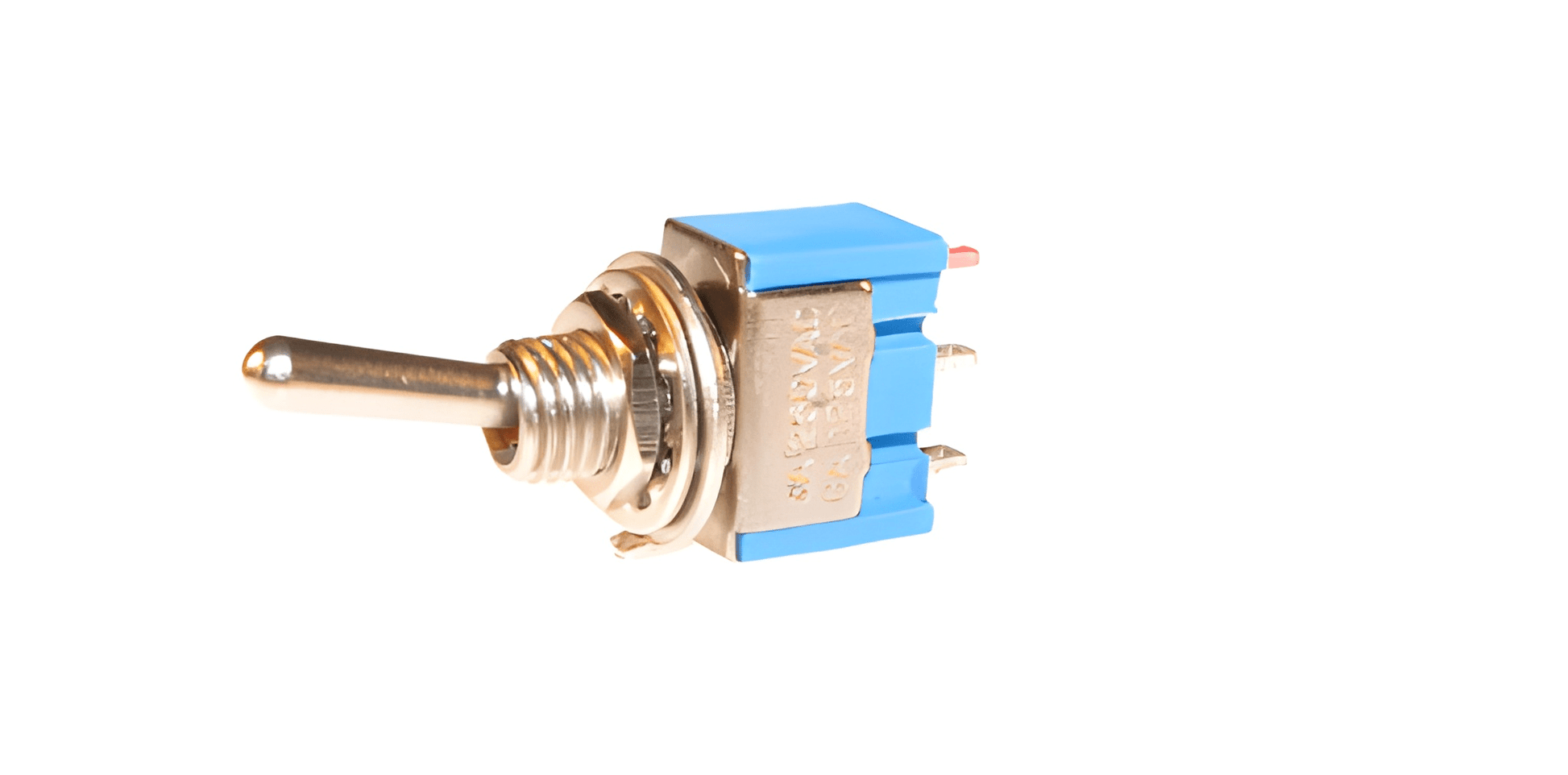

This is a 12V On/Off/On Mini Toggle Switch from the K870 series. It features solder terminals, fits a 6mm round mounting hole, and is rated at 6A @ 12V. Compact in size, it is suitable for small-scale automotive circuits and low-voltage applications.
Key Features:
- Switching Method: On/Off/On
- Connection: Solder terminals
- Mounting: Fits a 6mm round hole
- Pin Configuration: 3 pins, 4mm (0.16") spacing

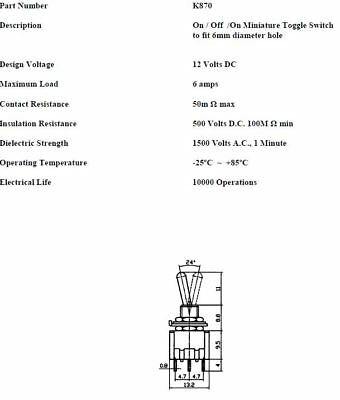

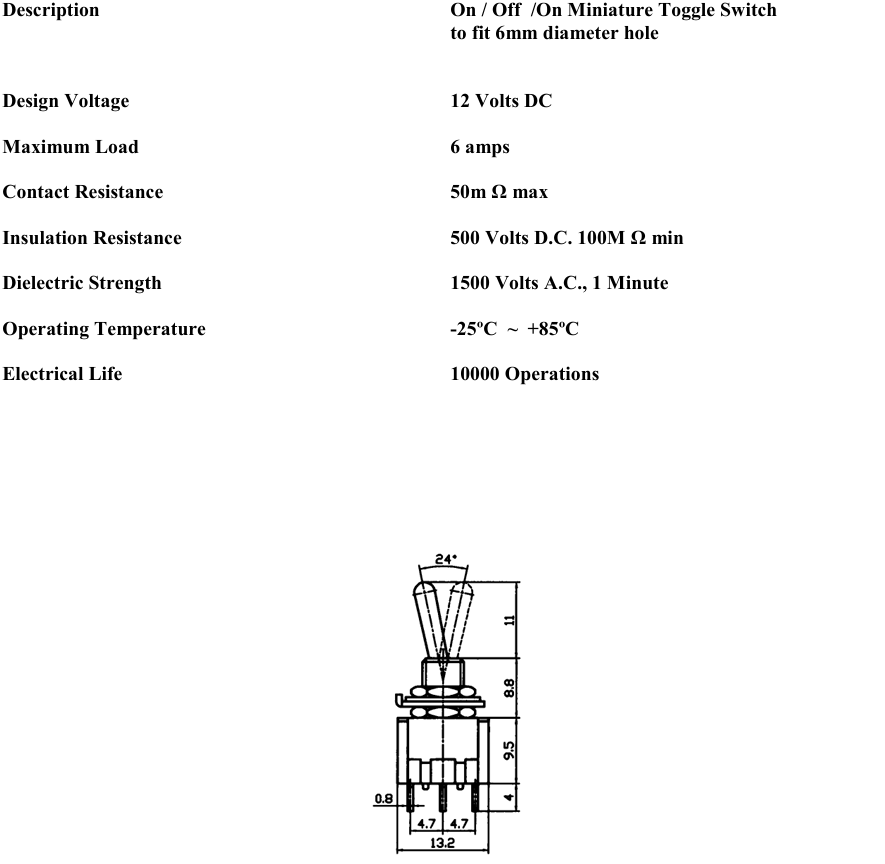

Technical Specifications:
- Voltage: 12V DC
- Maximum Load: 6A
- Maximum Voltage: 3A @ 250V AC, 6A @ 125V AC
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
