On Off On Toggle Switch Flip Flick Car Dash Duck Bill Spst Light Robinson
K886

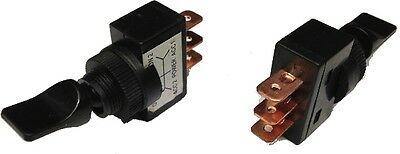

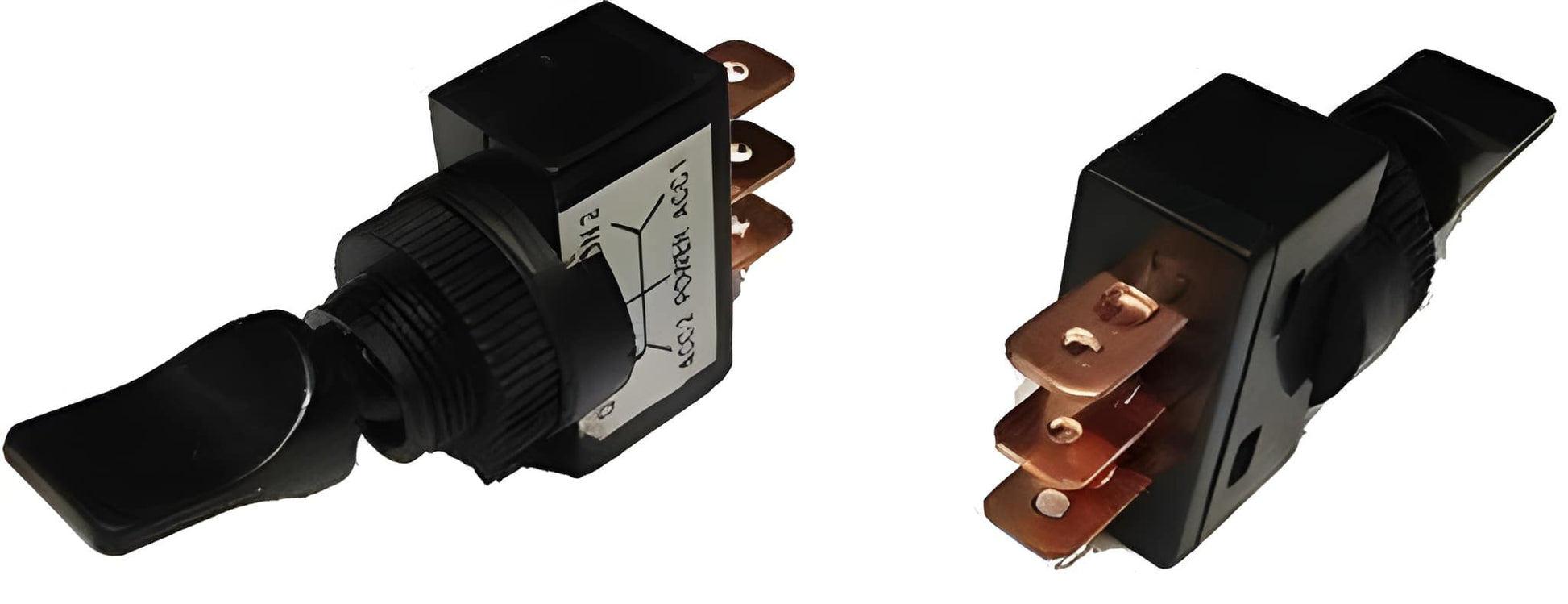

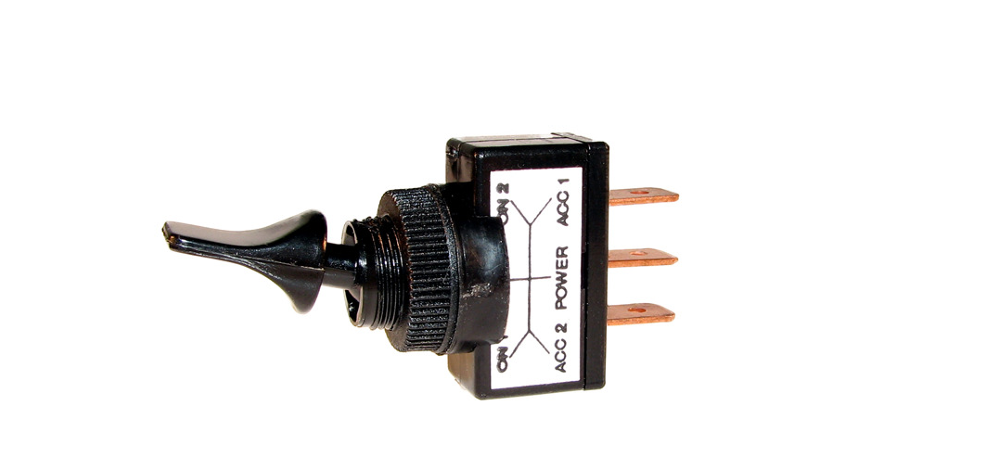

This is an On/Off/On Duck Bill Toggle Switch designed for automotive applications. It features a black actuator and body, fits a 12mm round mounting hole, and is rated at 20A @ 12V, making it suitable for a wide range of auxiliary circuits.
Key Features:
- Switching Method: On/Off/On
- Actuator Colour: Black
- Body Colour: Black
- DC Contact Rating: 20A @ 12V
- Mounting: Fits a 12mm round hole
- Ideal for automotive aftermarket and auxiliary installations

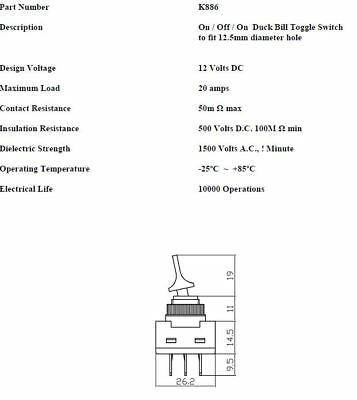

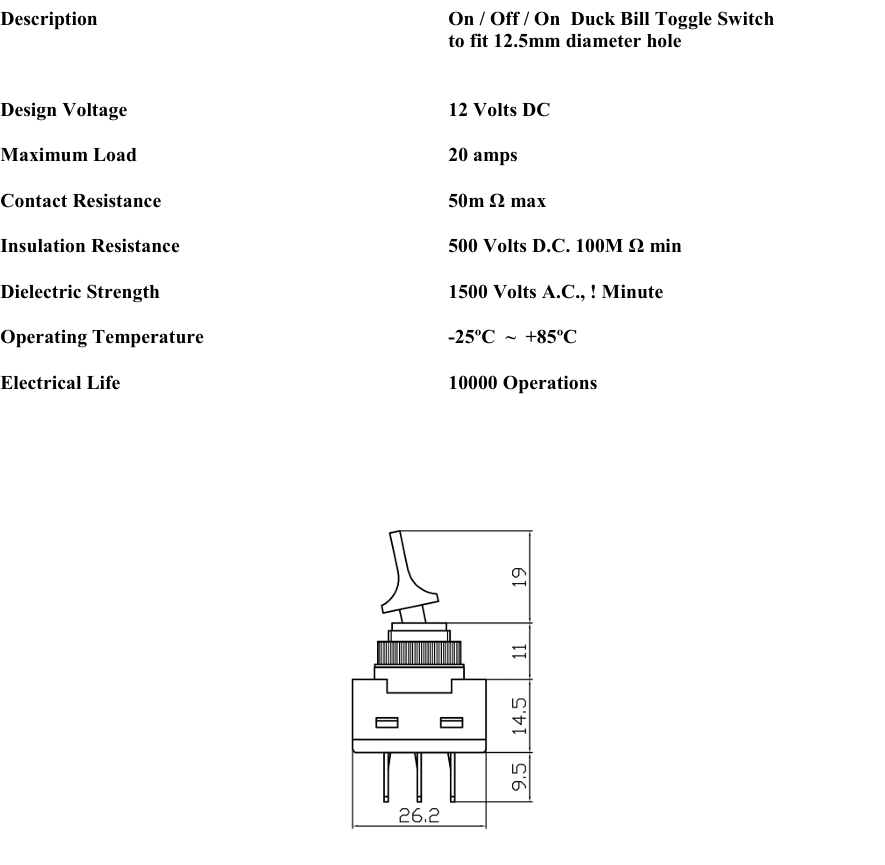

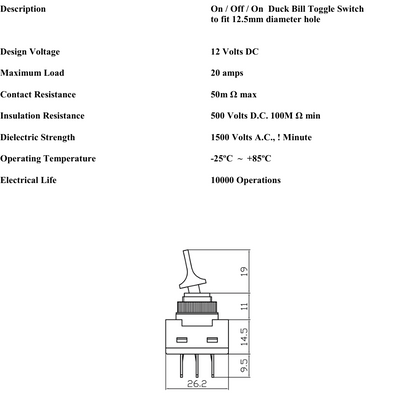

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 20A
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
