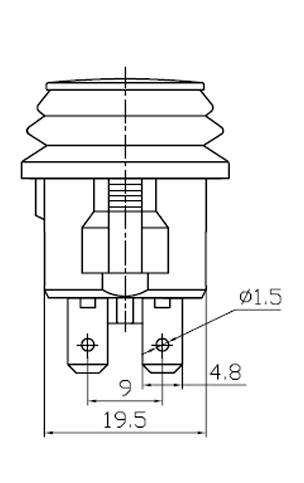

  • dimensions diagram for On Off Push Switch Amber Latching Illuminated 12V Splashproof Seal Robinson K481 - Mid-Ulster Rotating Electrics Ltd
  • dimensions diagram for On Off Push Switch Amber Latching Illuminated 12V Splashproof Seal Robinson K481 - Mid-Ulster Rotating Electrics Ltd
  • dimensions diagram for On Off Push Switch Amber Latching Illuminated 12V Splashproof Seal Robinson K481 - Mid-Ulster Rotating Electrics Ltd
1 5

On Off Push Switch Latching 12V Green Illuminated Splashproof Seal Robinson K483

On Off Push Switch Latching 12V Green Illuminated Splashproof Seal Robinson K483

Vendor:Robinson

Availability: 23 in stock

Product Type:K483

Product Indentifier:731084218585

Ā£4.06 inc VAT Ā£3.38 ex VAT
Ā£4.54 Ā£4.06 inc VAT Ā£3.38 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

On Off Push Switch Latching 12V Green Illuminated Splashproof Seal

K483

This is an On/Off push-push style switch designed to fit a 20mm round hole. It is rated for 12 Volts and has a maximum amperage of 20 amps.

Physical specifications:

  • Design Voltage: 12 Volts
  • Colour: Green
  • Maximum Amperage: 20 amps
  • Contact Resistance: 50m max
  • Insulation Resistance: 500 Volts D.C. 100M min
  • Dielectric Strength: 1500 Volts A.C. 1 Minute
  • Operating Temperature: to
  • Electrical Life: 10,000 Operations
  • Mounting Hole Diameter: Ƙ20mm
  • Terminals: 4.8mm approx.Ā

Another Quality Product From Robinson
