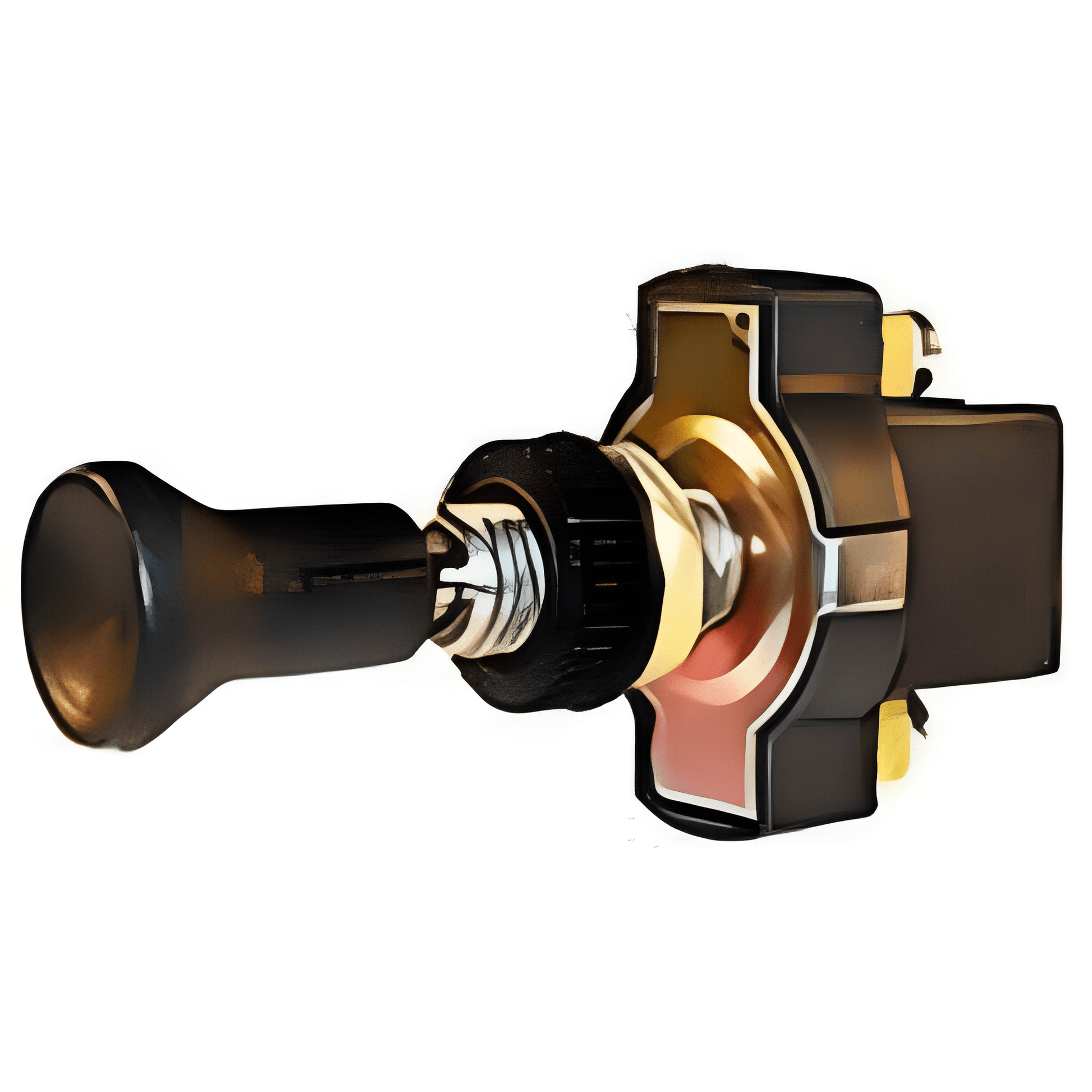

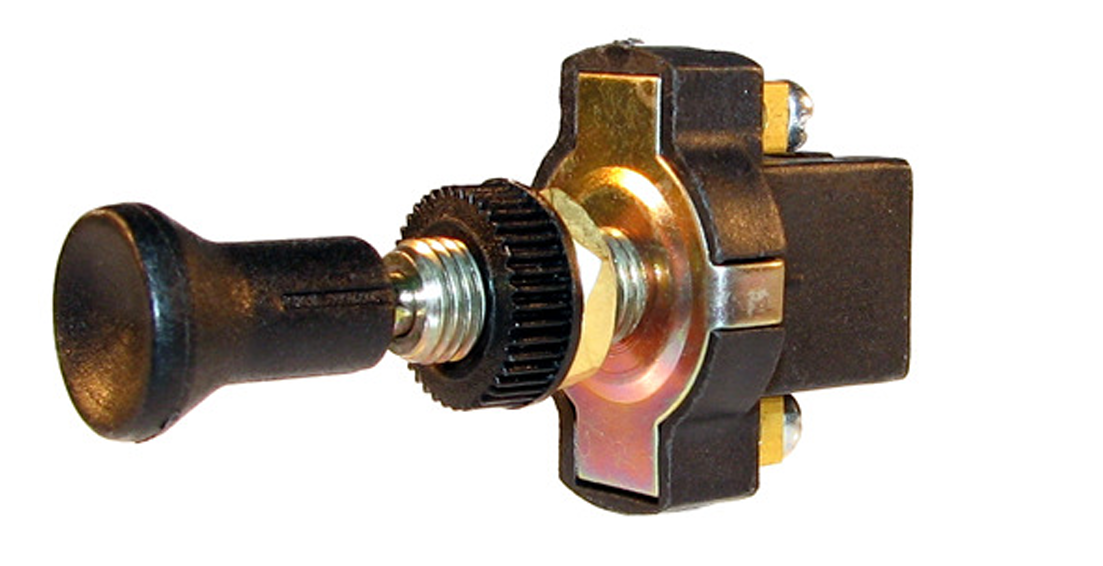

On Off Push/Pull Switch Long Stalk 12V 24V With Screw Terminals Robinson
K459

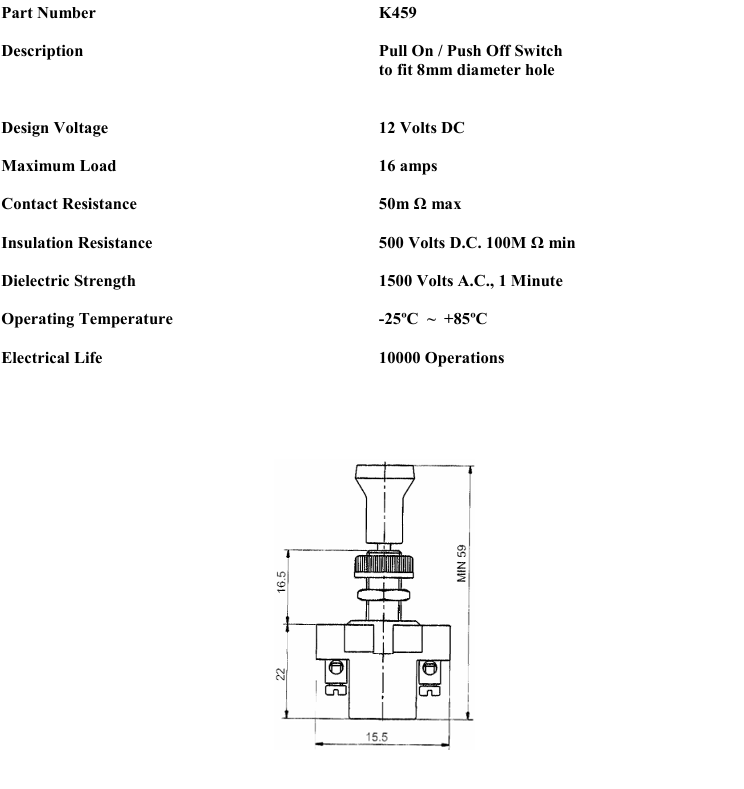

Physical specifications:
- Switching method: Pull On/Push Off
- Design Voltage: 12V DC and 24V
- Maximum Load: 16A @ 12V and 8A @ 24V
- Terminals: Screw terminals
- Contact Resistance: 50m Ω max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C., 1 Minute
- Operating Temperature: -25°C ~ +85°C
- Electrical Life: 10,000 Operations

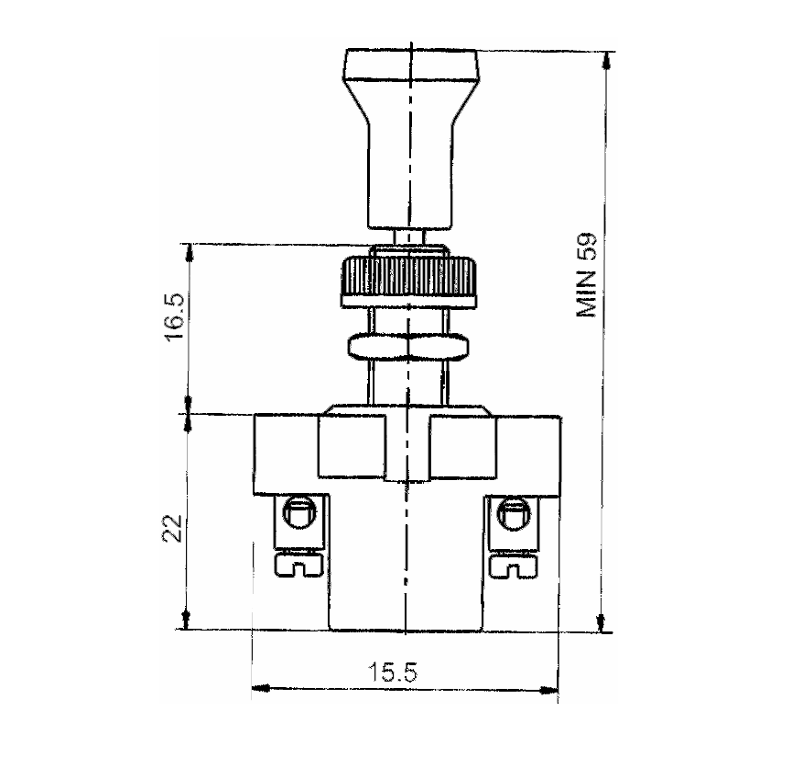

Dimensions:
- Assembly cutout: Fits 8mm hole
- Minimum Length: 59.0mm
- Maximum Length: 65.5mm
