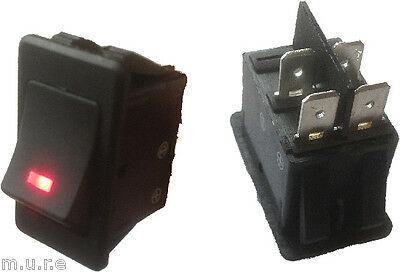

On Off Rocker Switch 12V Red Led Rectangle Square Robinson
K614
This is an On/Off LED illuminated rocker switch that fits a 20mm x 34.5mm slot and is designed for easy setup. The red LED lights up when the switch is turned on.
Product Specifications:
- Switching Type: On-Off
- Design Voltage: 12 Volts DC
- Maximum Amperage: 20 amps
- Poles: 4
- Connection Type: Blade terminal 6.3 x 0.8 mm
- Design: Front Plate Mounting
- Contact Resistance: 50m max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C. 1 Minute
- Operating Temperature: to
- Electrical Life: 10,000 Operations
- RoHS: Compliant
- Housing: Black
- Rocker: Black
- LED: 12V DC, built-in, red illumination

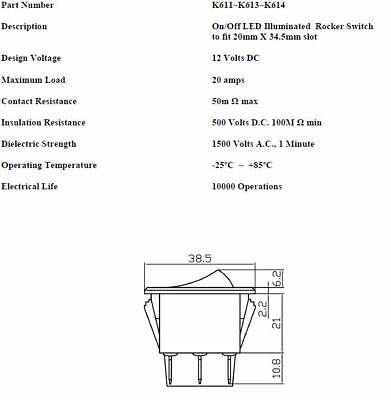

Dimensions:
- Assembly Cutout: 34.7mm x 20mm
- Overall Dimensions: 39mm (L) x 23mm (W) x 35mm (H)
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
