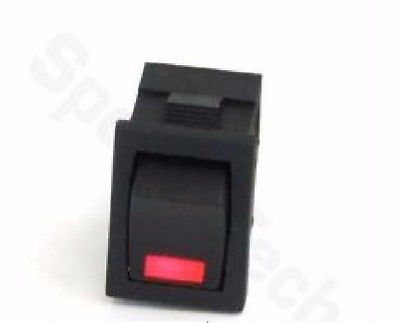

ON/OFF RECTANGLE ROCKER SWITCH RED LED
1047R
K704
Easy setup
- 13mm wide x 18.5mm hole is required and the switch will sit in nicely.
- Red LED will light up when the switch is turned on.
- 2 pole design (On/Off), 3rd poles with LED to be connected to earth
- 3 Lucar Terminals
- + into switch
- + out of switch
- Earth

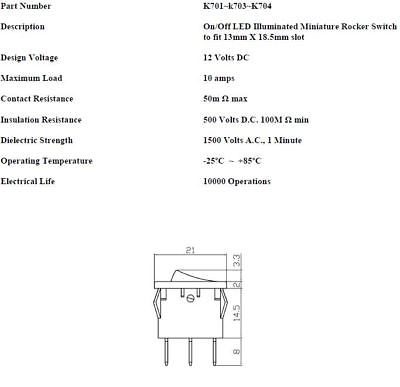

Further Details
- Note 1 On/off rocker switch
- Note 2 |Red
- Note 3 12v, 10A
- Pack Quantity 1
- Availability Immediate
- Switch type: ROCKER
- Switching method: ON-OFF
- Contacts: configuration SPST
- AC contacts rating: A / 250 V
- Actuator colour: black
- Max. contact resistance: 50mΩ
- Leads: 4.8 x 0.8 mm connectors
- Flammability rating: UL94V-2
- Illumination: LED
- Electrical life: 6000cycles
- Button marking: blank
- DC contacts rating: 10 A / 12 V
- Body material: polyamide
- Backlight colour: Red
