On Off Rocker Switch Amber Led Rectangle Square 12V Robinson K611

On Off Rocker Switch Amber Led Rectangle Square 12V Robinson K611

Vendor:Robinson

Availability: Low stock: 7 left

Product Type:k611

Product Indentifier:731084218837

Regular price

£4.75 £3.96 ex VAT

Regular price £4.55 Sale price £3.96 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

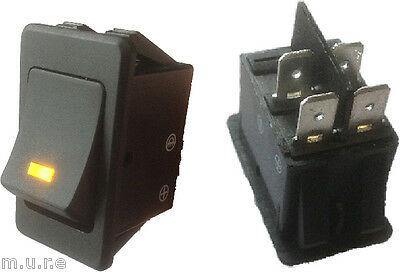

ON OFF ROCKER SWITCH AMBER LED RECTANGLE SQUARE 12V ROBINSON K611

12V 20 Amp On/Off Rectangular Rocker Switch Amber LED

K611

Easy setup

  • 20mm x 34.5mm hole is required and the switch will sit in nicely
  • Amber LED Will Light up when the switch is turned on
  • 20A @ 12V
  • Double Pole

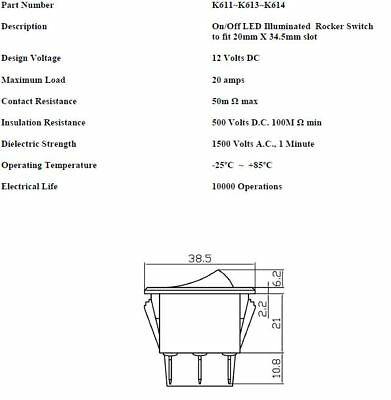

Technical data

  • Switching type on-off
  • Connection type Blade terminal 6.3 x 0.8 mm
  • Rated voltage 12VDC
  • Pole no. 4
  • Rated current 20A
  • Dimensions L x W x H 39 x 23 x 35mm
  • Assembly cutout 34.7 x 20 mm
  • Design front plate mounting
  • Illumination Amber
  • Housing black
  • Rocker black
  • Description LED 12v Built-in
  • LED 12 VDC
  • RoHS RoHs compliant


What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
