On Off Rocker Switch Amber Led Rectangle Square 12V Robinson K701

On Off Rocker Switch Amber Led Rectangle Square 12V Robinson

K701

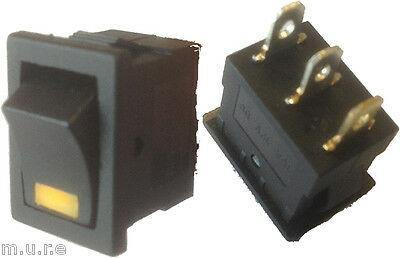

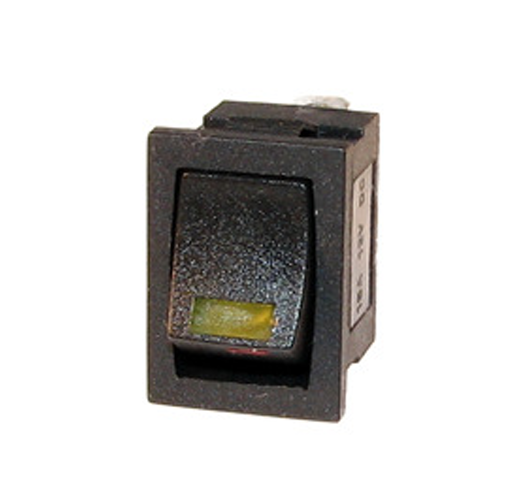

This is an On/Off LED illuminated miniature rocker switch designed to fit a $13\text{mm}\times 18.5\text{mm}$ slot. The switch has an amber backlight, with the LED lighting up when the switch is turned on. The K701 part specifically denotes the amber illumination.

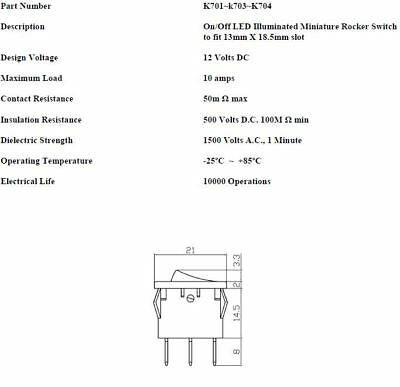

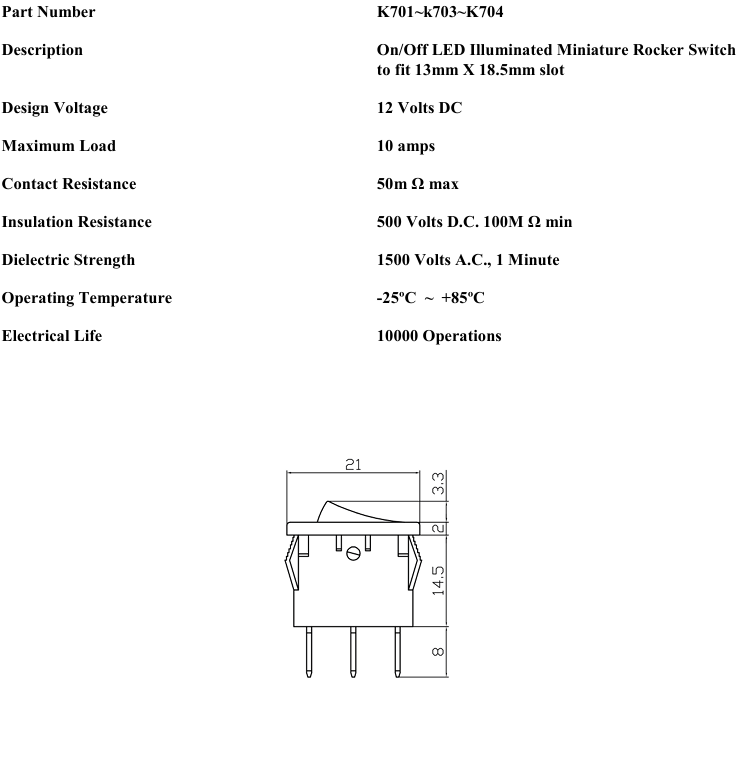

Product Specifications:

• Voltage: 12 Volts DC
• DC Contacts Rating (Maximum Load): 10A / 12V
• Switching Method: ON-OFF
• Switch Type: Rocker
• Colour: Black with Amber LED
• Terminals: 3 Lucar Terminals (used for positive input, positive output, and Earth)
• Leads/Connectors: 4.8 x 0.8 mm connectors
• Contact Resistance: 50m max
• Insulation Resistance: 500 Volts D.C. 100M  min
• Dielectric Strength: 1500 Volts A.C. 1 Minute
• Operating Temperature: −25C ∼ +85C
• Electrical Life: 10,000 Operations
• Body Material: Polyamide
• Flammability Rating: UL94V-2

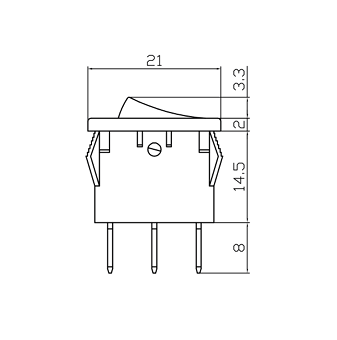

• Mounting Hole: $13\text{mm}\times 18.5\text{mm}$

ANOTHER QUALITY PRODCT FROM ROBINSON
