On Off Rocker Switch Blue Round Circular 12V 24V Illuminated Mure SW.1BLUE

On Off Rocker Switch Blue Round Circular 12V 24V Illuminated Mure SW.1BLUE


Availability: 94 in stock

Product Type:SW.1BLUE

Product Indentifier:7436204071004

Regular price

£3.40 £2.83 ex VAT

Regular price £3.26 Sale price £2.83 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

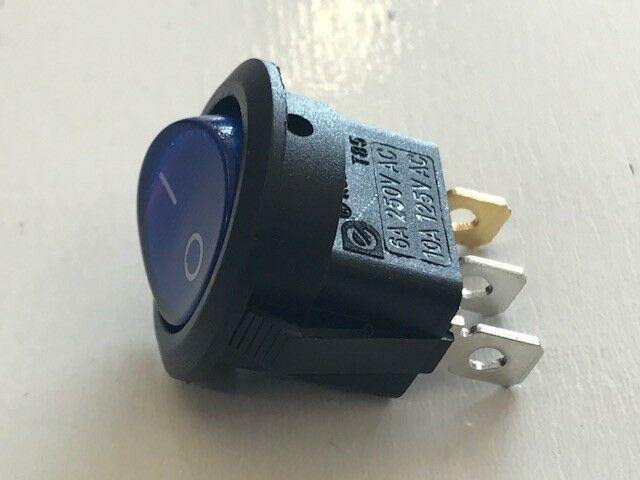

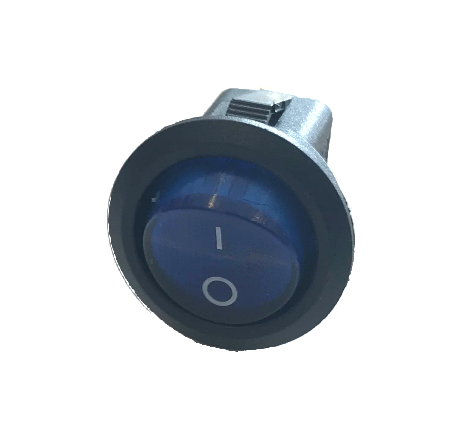

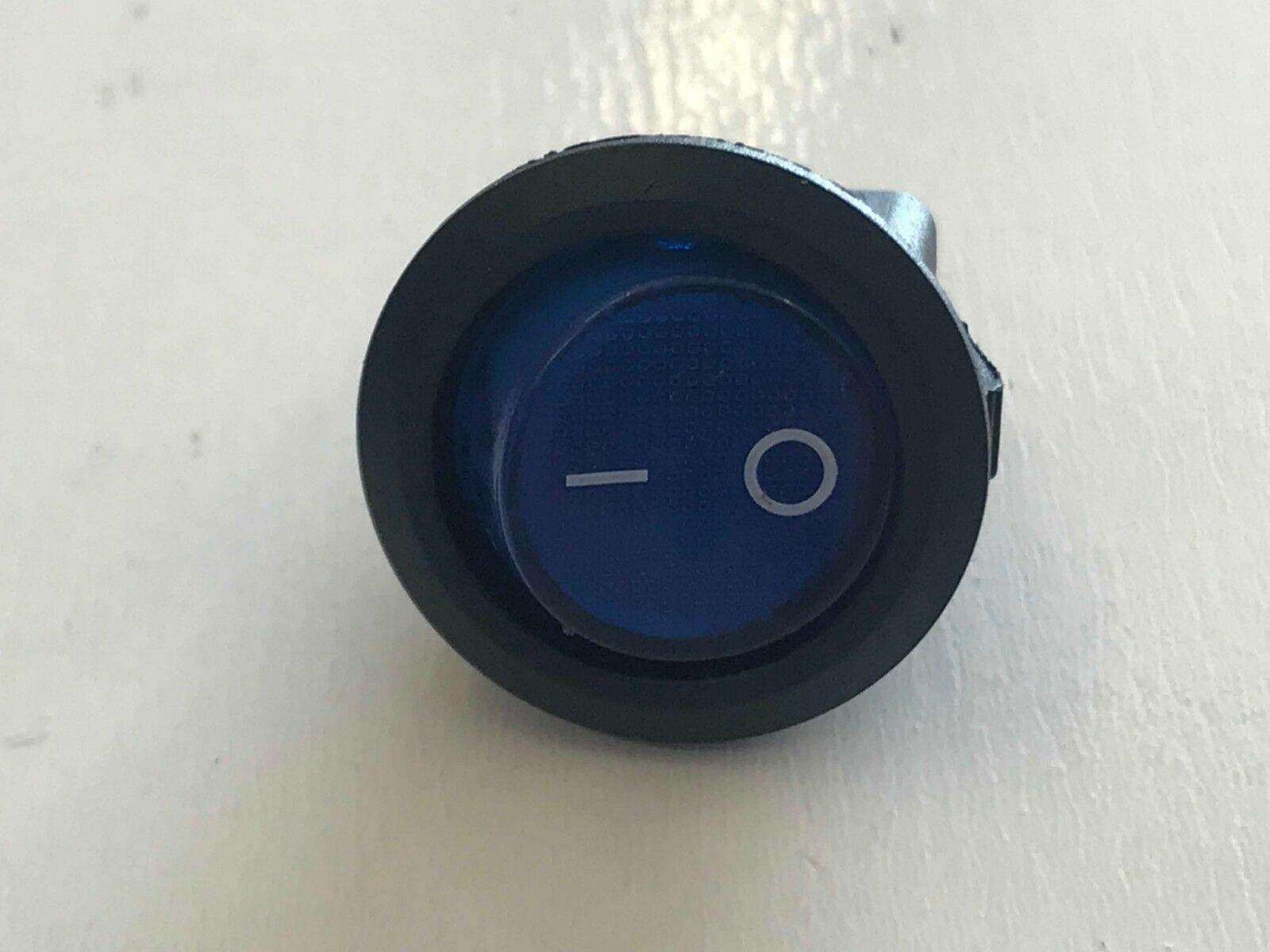

Blue On/Off Round Rocker Switch 12v / 24v Fits 20mm hole



  • Easy setup. 20mm" hole is required and the switch will sit in nicely
  • The switch comes with a keyhole slot to prevent unwanted rotation

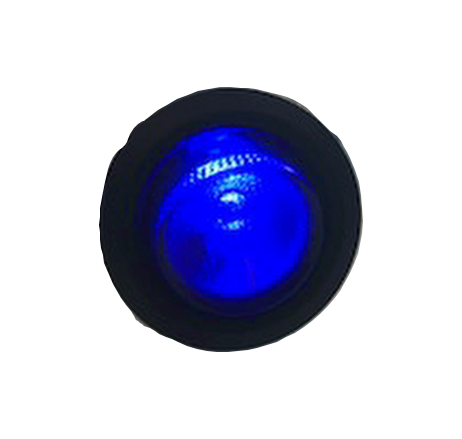

  • Blue face will light up when the switch is turned on
  • 2 pole design (On/Off) , 3rd poles with LED to be connected to earth

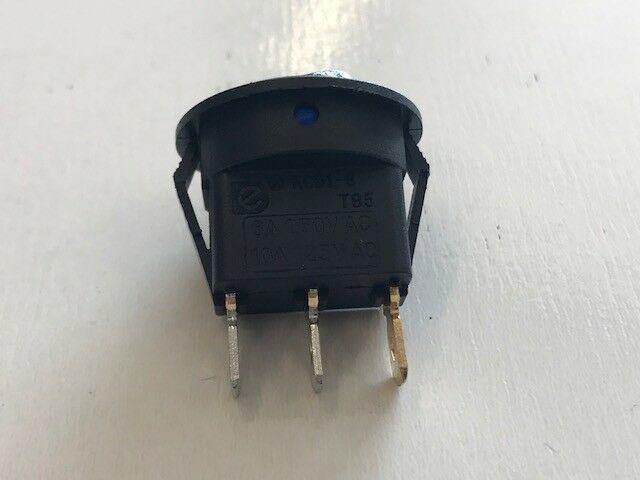

  • 3 x  4.8mm Lucar Terminals
  • + into switch
  • + out of switch
  • Earth
  • Note 1 On/off round mini rocker switch
  • Note 2 Blue
  • Note 3 12v 20A / 24v 10A

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
