On Off Rocker Switch Mini Rectangle Square 12V Car Dash
K420

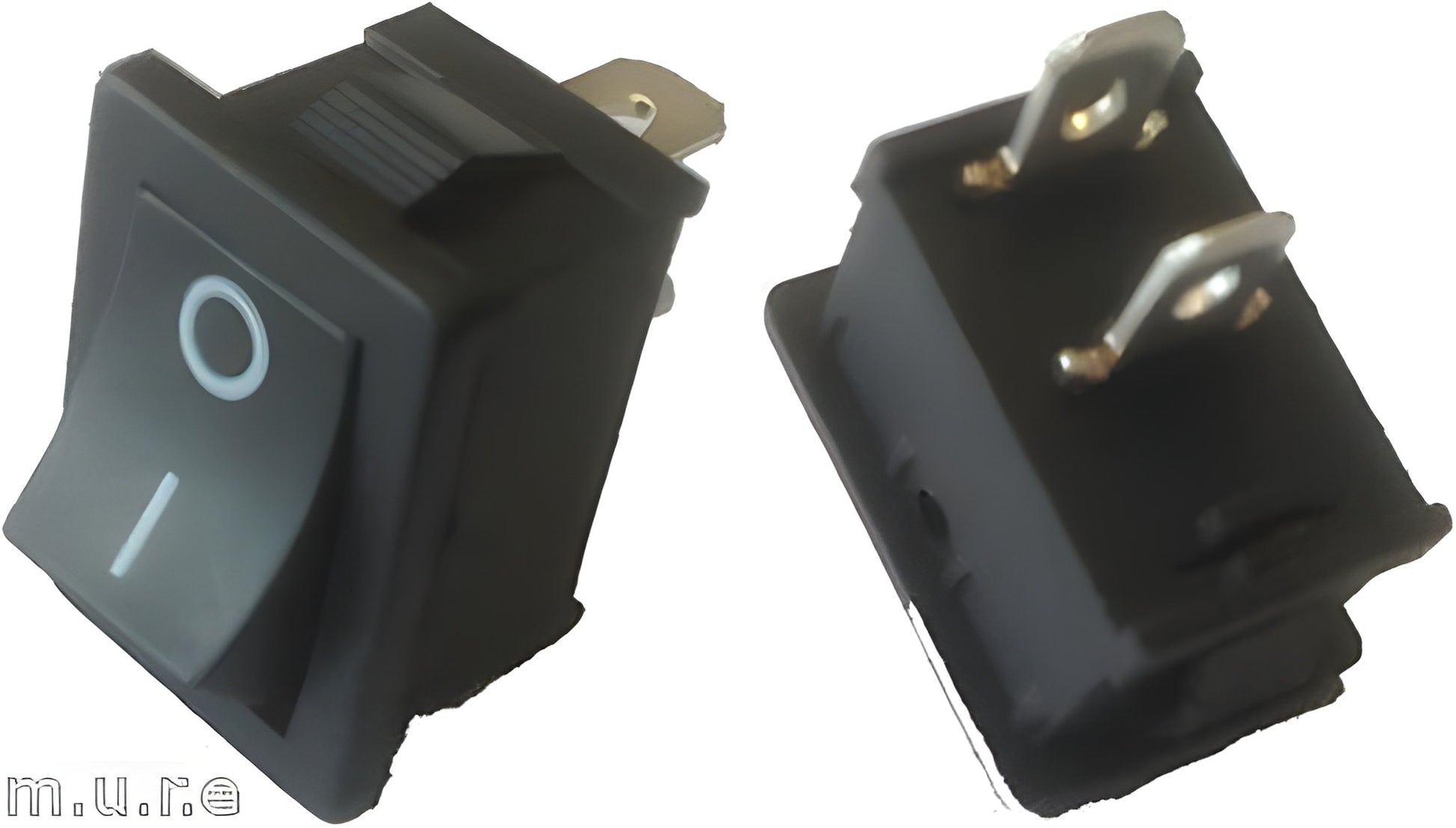

This is a black On/Off miniature rocker switch with a 2-pole, single pole single throw (SPST) design. It is designed to fit a 13mm x 18.5mm slot and has a rocker marked with "I" and "0".

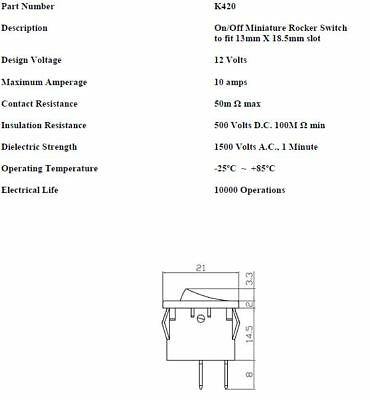

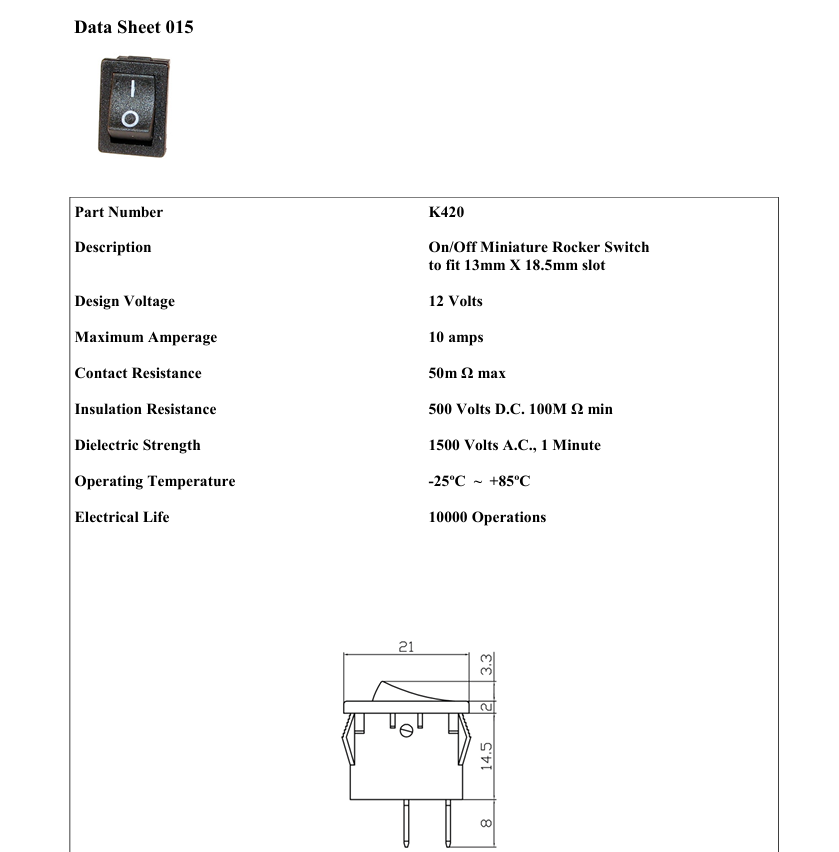

Physical specifications:
- Switching method: ON-OFF
- Pole no.: 2
- Actuator colour: black
- Button marking: I 0
- Body material: polyamide
- Flammability rating: UL94V-2
- Leads: 4.8 x 0.8 mm connectors
- DC contacts rating: 15A / 12V
- Maximum Amperage: 10 amps
- AC contacts rating: 6A / 250V
- Contact Resistance: 50m Ω max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C., 1 Minute
- Operating Temperature: -25°C ~ +85°C
- Electrical Life: 10,000 Operations

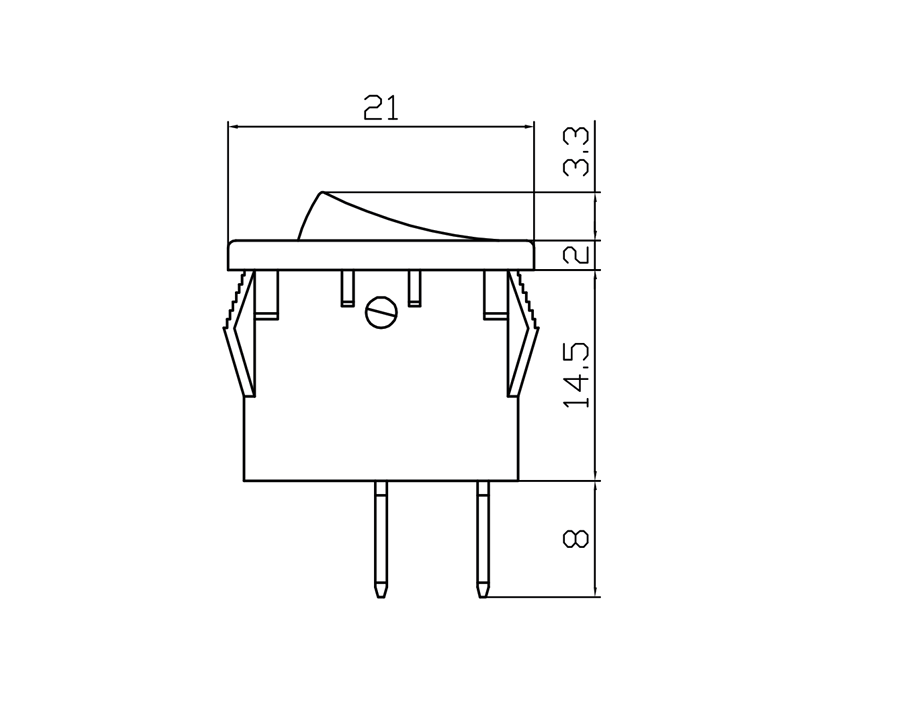

Dimensions:
- Assembly cutout: 13mm wide x 18.5mm long
- Overall: 21mm x 14.5mm
ANOTHER QUALITY PRODUCT FROM ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
