On Off Rocker Switch Mini Rectangle Square 12V Double Pole Car Robinson K710

On Off Rocker Switch Mini Rectangle Square 12V Double Pole Car Robinson

K710

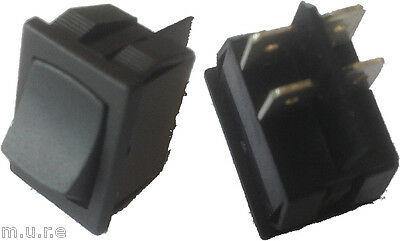

This is a black, double pole rocker switch designed for miniature applications. The switch features a two-pole design with an On/Off switching method.

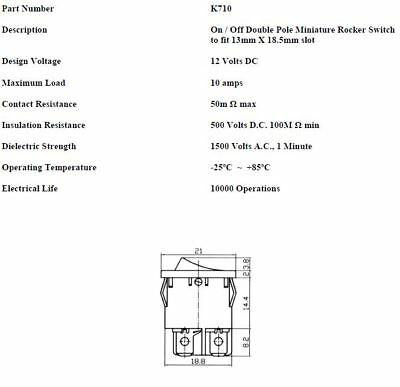

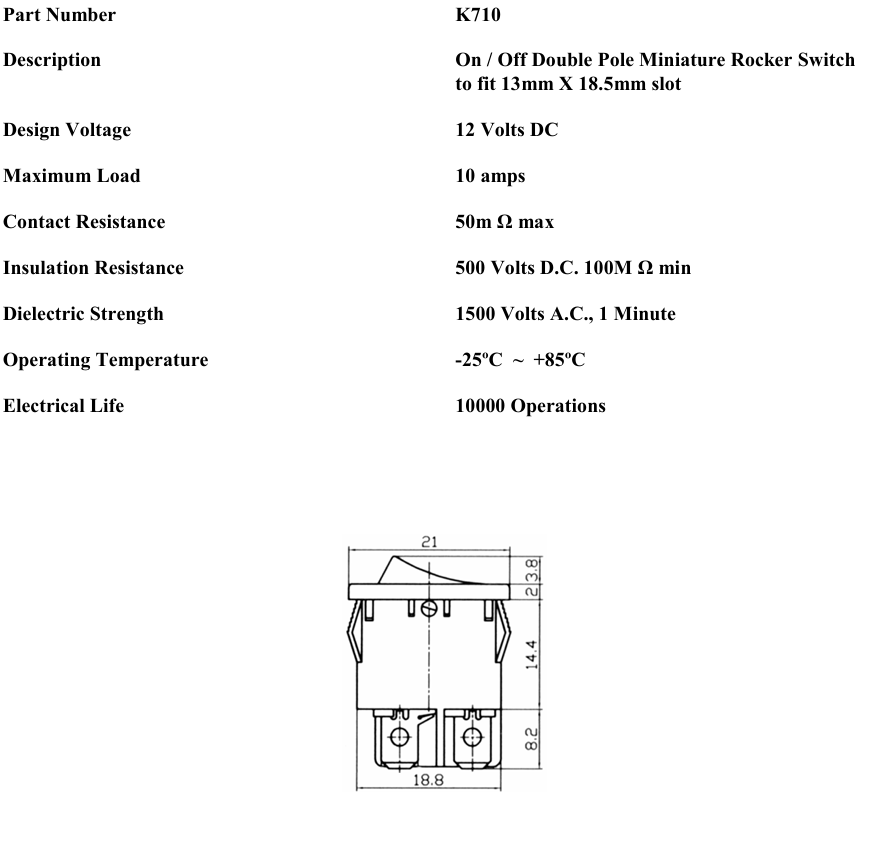

Product Specifications:

• Switching Method: ON-OFF
• Contacts Configuration: DPST (Double Pole Single Throw)
• Design Voltage (DC): $12\text{ Volts DC}$
• Maximum Load (DC): $10\text{ amps}$
• Leads: $4.8\times 0.8\text{mm}$ connectors
• Contact Resistance: $50\text{m}\max$
• Insulation Resistance: $500\text{ Volts D.C. }100\text{M}\min$
• Dielectric Strength: $1500\text{Volts A.C. }1\text{ Minute}$
• Operating Temperature: −25C ∼ +85C
• Electrical Life: $10000\text{ Operations}$
• Body Material: Polyamide
• Flammability Rating: UL94V-2

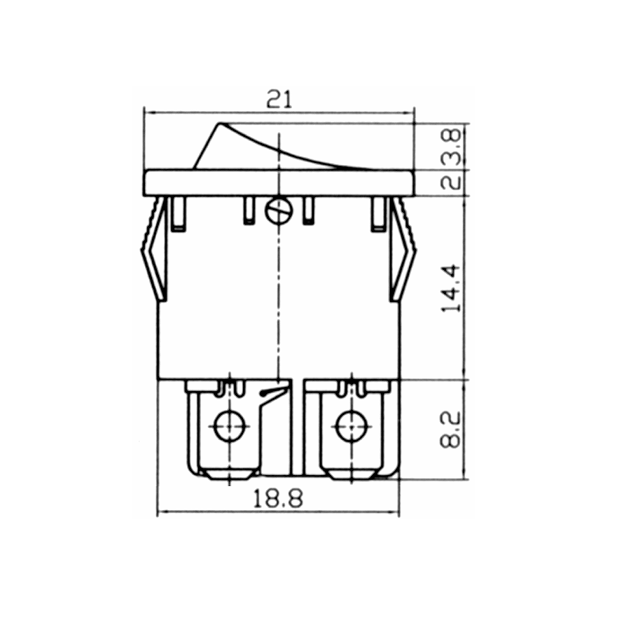

• Mounting Hole: $13\text{mm}\times 18.5\text{mm}$

$\text{ANOTHER QUALITY PRODUCT FROM ROBINSON}$
