On Off Rocker Switch Rectangle Amber 12V 20A
K401

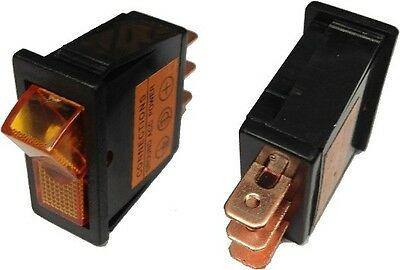

This is an On/Off illuminated rocker switch with an amber rocker and a black housing. It is designed for front plate mounting in a 12mm x 30mm slot.

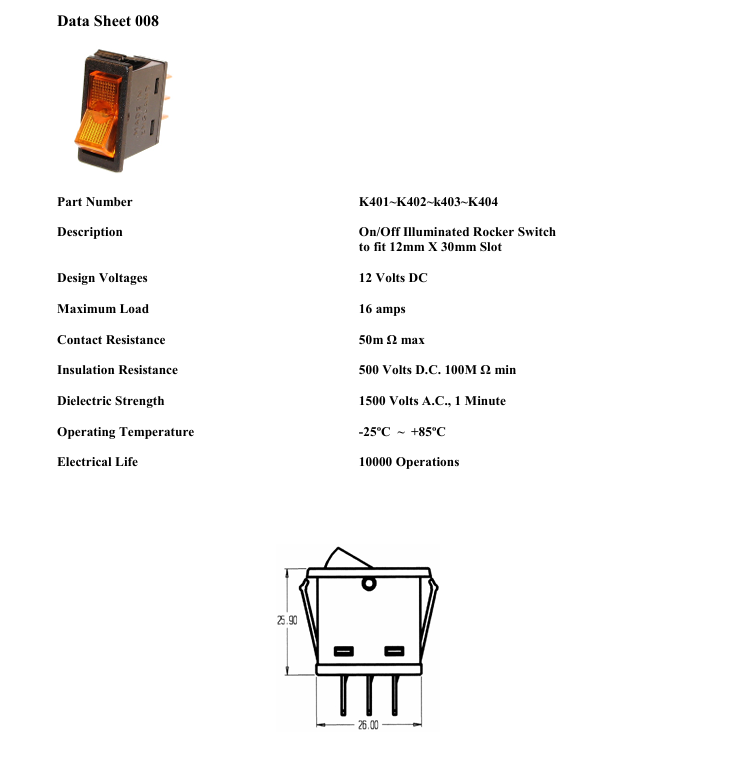

Physical specifications:
- Rated Voltage: 12V DC
- Max Current Load: 16A
- Pole no.: 2
- Switching type: On-off
- Connection type: Blade terminal 6.3 x 0.8 mm
- Illumination: Amber
- Housing: Black
- Rocker: Amber
- Contact Resistance: 50m Ω max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C., 1 Minute
- Operating Temperature: -25°C ~ +85°C
- Electrical Life: 10,000 Operations
- RoHS Compliant: Yes

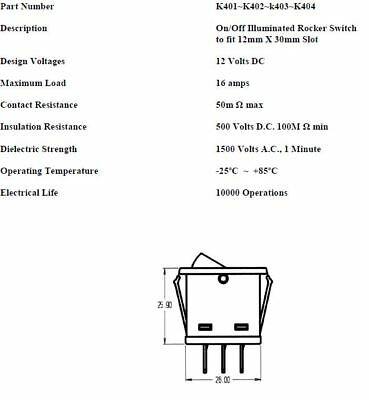

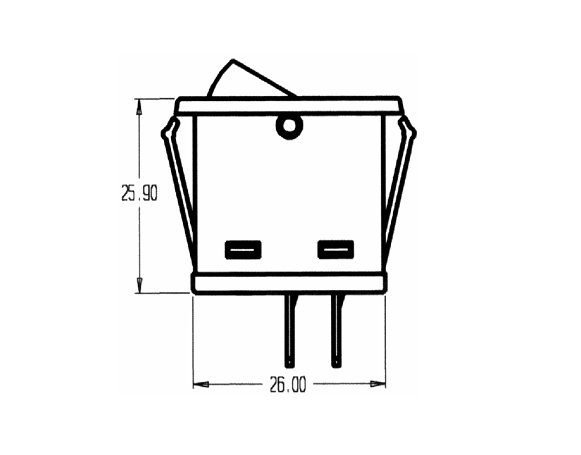

Dimensions:
- Assembly cutout: 12mm x 30mm
- Overall: 25.90mm x 26.00mm
ANOTHER HIGH QUALITY PRODUCT FROM ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
