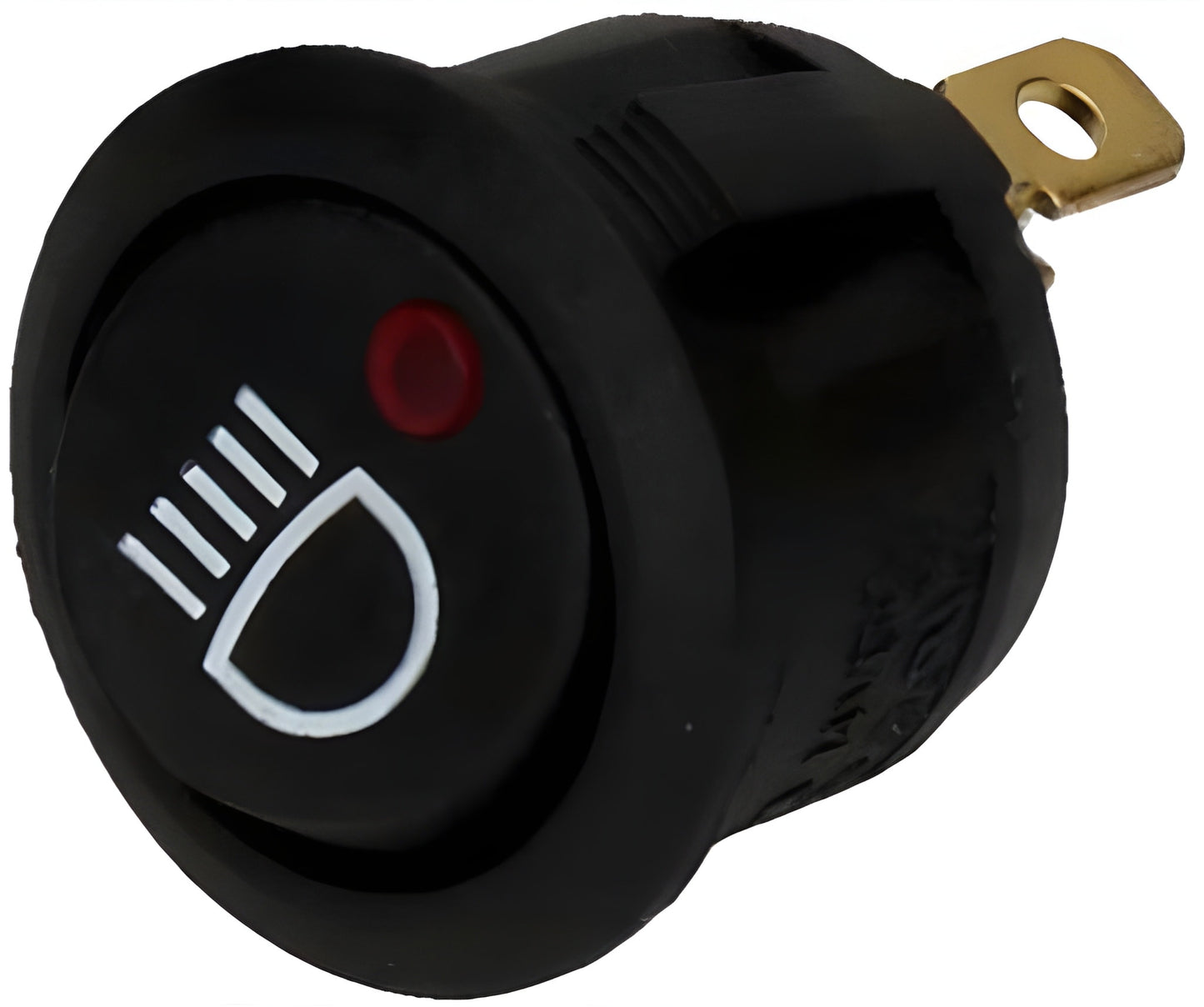

On Off Rocker Switch Round 12V Red Led Illumination Light Work Lamp Cargo 182385

On Off Rocker Switch Round 12V Red Led Illumination Light Work Lamp Cargo 182385

Vendor:Hc-Cargo

Availability: Low stock: 7 left

Product Type:182385

Product Indentifier:7426994749474

Regular price

£5.04 £4.20 ex VAT

Regular price £4.83 Sale price £4.20 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

On Off Rocker Switch Round 12V Red Led Illumination Light Work Lamp Cargo 182385

This is a genuine new Hc-Cargo product.

ROUND ROCKER SWITCH WITH LOADING LIGHT SYMBOL AND RED LED

182385

Easy setup

  • 20mm hole is required and the switch will sit in nicely
  • The switch comes with a keyhole slot to prevent unwanted rotation
  • Red LED will light up when the switch is turned on

Electrical specifications

  • Voltage 12
  • Amp 20

Physical specifications

  • Type/terminal Flat
  • Terminals 3
  • Button colour Red
  • Illuminated Yes
  • Mount. hole size mm 20
  • Bulb type LED
  • Switch combinations On/Off
  • Button symbol Loading Floor Lamp / Work Lamp
  • Terminal Type Spade
  • Terminal Size 4.8mm

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).

ANOTHER QUALITY PART FROM HC-CARGO
