ON OFF ROCKER SWITCH TWIN CIRCUIT DOUBLE POLE RECTANGLE AMBER 12V ROBINSON K631

ON / OFF RECTANGLE ROCKER SWITCH Amber ILLUMINATED

K631

Easy setup

  • 20mm wide x 34.5mm hole is required and the switch will sit in nicely
  • 20A @ 12V
  • Double Pole

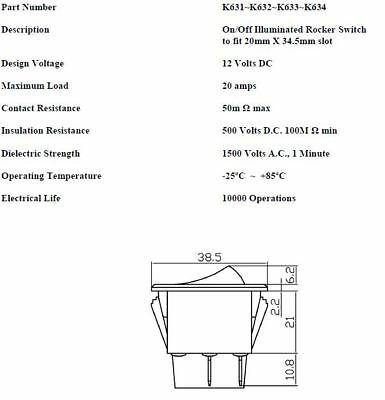

Technical data

  • Switching type on-off
  • Connection type Blade terminal 6.3 x 0.8 mm
  • Rated voltage 12VDC
  • Pole no. 4
  • Rated current 20A
  • Dimensions L x W x H 39 x 23 x 35mm
  • Assembly cutout 34.7 x 20 mm
  • Design front plate mounting
  • Illumination
  • Housing black
  • Rocker Amber
  • Description On/off twin circuit breaker
  • LED 12 VDC
  • RoHS RoHs compliant


What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
