On Off Round Rocker Switch Mini Minature 12V Car Dash Robinson K720

On Off Round Rocker Switch Mini Minature 12V Car Dash

K720

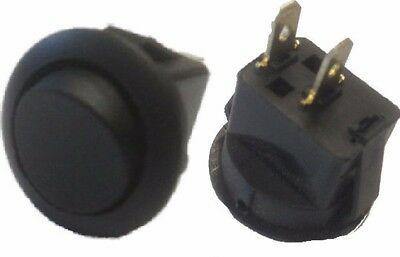

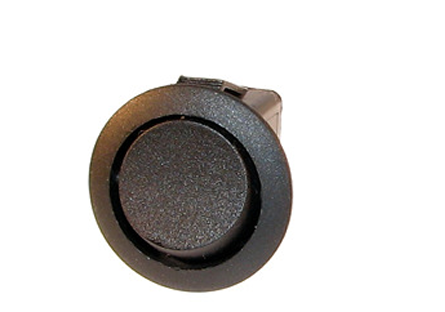

This is an On/Off round miniature rocker switch designed for vehicle and general electrical applications. It requires a $20\text{mm}$ diameter hole for mounting and features a keyhole slot to prevent unwanted rotation.

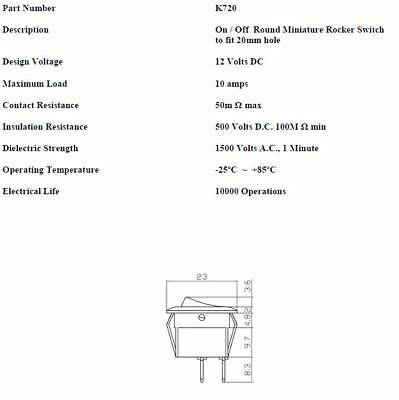

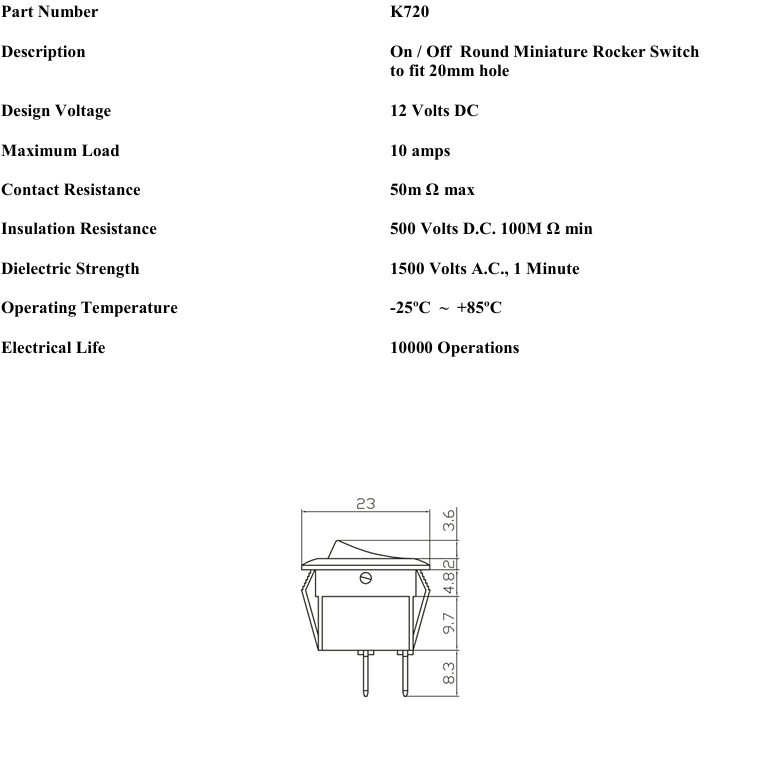

Product Specifications:

• Switching Method: ON-OFF
• Design Voltage (DC): $12\text{ Volts DC}$
• Maximum Load: $10\text{ amps}$
• Terminals: 2 Lucar Terminals
• Max. Contact Resistance: $50\text{m}\max$
• Insulation Resistance: $500\text{ Volts D.C. }100\text{M}\min$
• Dielectric Strength: $1500\text{ Volts A.C., }1\text{ Minute}$
• Operating Temperature: −25C ∼ +85C
• Electrical Life: $10000\text{Operations}$
• Body Material: Polyamide
• Flammability Rating: UL94V-2

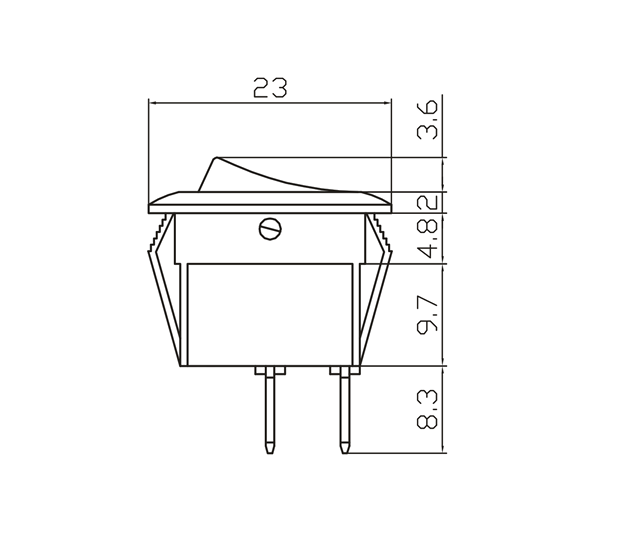

• Mounting Hole: $20\text{mm}$

$\text{ANOTHER QUALITY PRODUCT FROM ROBINSON}$
