On Off Round Rocker Toggle Switch With Amber Led 12V Car Dash Robinson K731

On Off Round Rocker Toggle Switch With Amber Led 12V Car Dash

K731

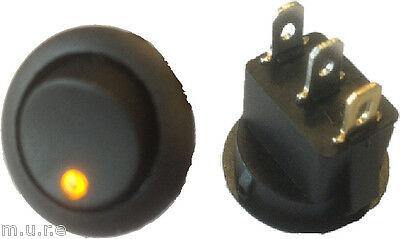

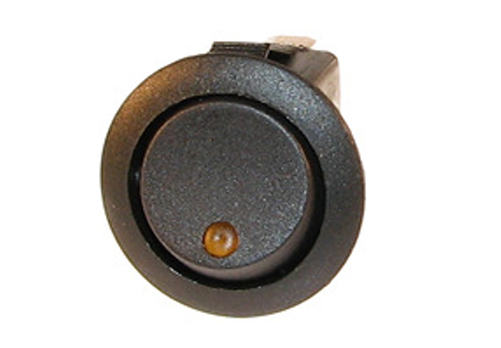

This is a miniature rocker switch in the K731 series that features an Amber LED, which illuminates when the switch is in the 'On' position. It is designed to fit a standard $20\text{mm}$ hole.

Key Features:

• LED Illumination: Amber LED. Illumination requires $12\text{V}$.
• Switching Method: On/Off.
• Mounting: Requires a $20\text{mm}$ hole and includes a keyhole slot to prevent rotation.
• Terminal Configuration: Features 3 Lucar Terminals.

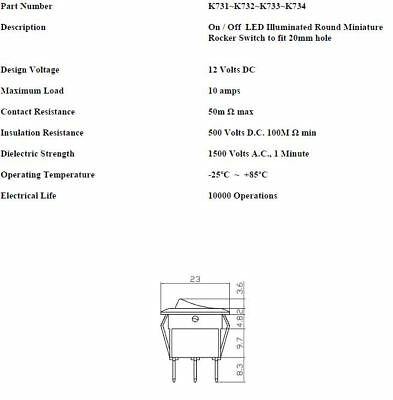

Technical Specifications:

• Design Voltage (DC): $12\text{ Volts DC}$
• Maximum Load: $10\text{amps}$
• Max. Contact Resistance: $50\text{m}\max$
• Insulation Resistance: $500\text{ Volts D.C. }100\text{M}\min$
• Dielectric Strength: $1500\text{Volts A.C. }1\text{ Minute}$
• Operating Temperature: −25C ∼ +85C
• Electrical Life: $10000\text{Operations}$
• Body Material: Polyamide
• Flammability Rating: UL94V-2

ANOTHER QUALITY PRODUCT BY ROBINSON
