On Off Toggle Switch Flick Deluxe Lever 12V 20A Fits 12.5Mm Hole Robinson
K800

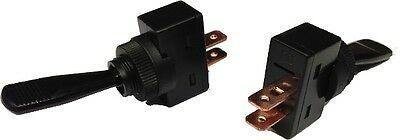

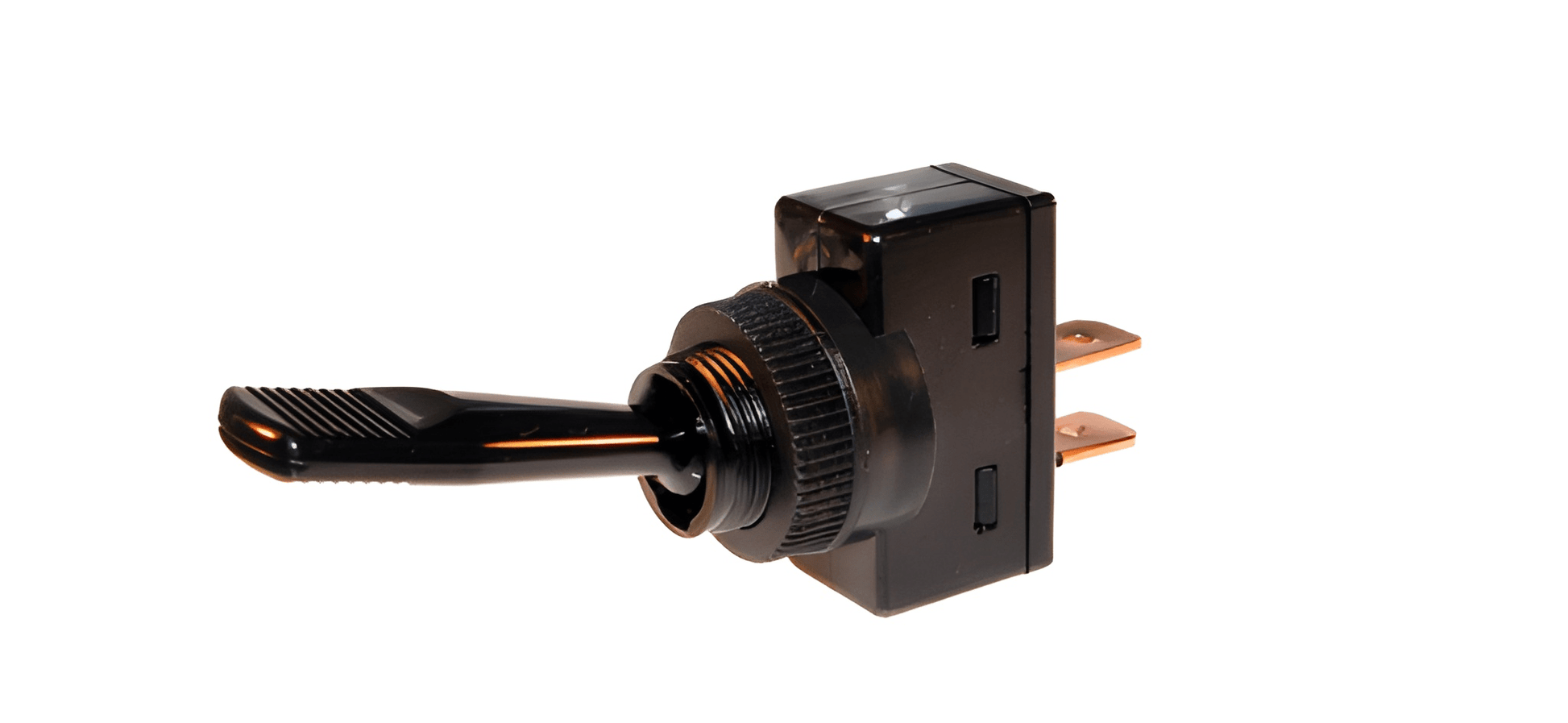

This is an On/Off Toggle Switch designed for automotive applications. It features copper contacts, Lucar terminals, and fits a 12.5mm round mounting hole. With a 20A @ 12V rating, it is suitable for a wide range of auxiliary circuits. Dimensions are approximate.
Key Features:
- Switching Method: On/Off
- Contacts: Copper contacts for reliable conductivity
- Terminals: Lucar push-on terminals
- Mounting: Fits a 12.5mm round hole

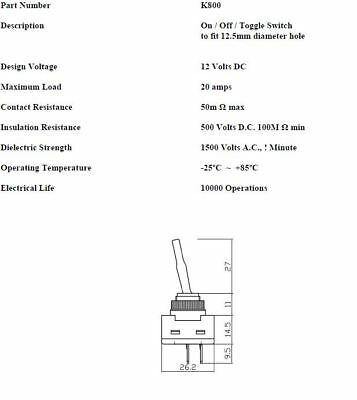

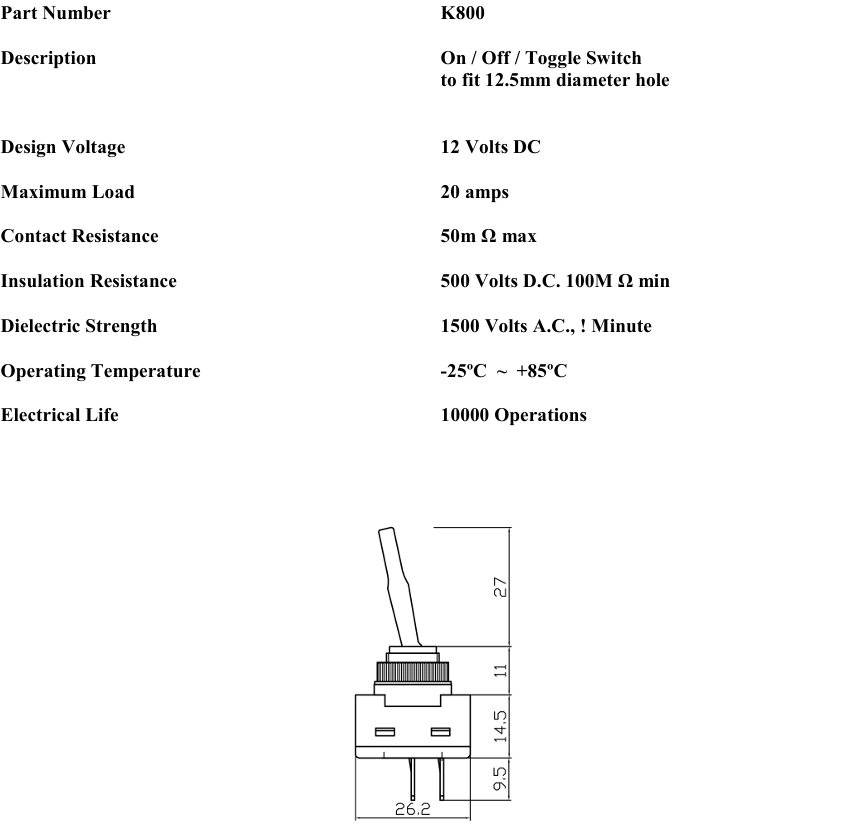

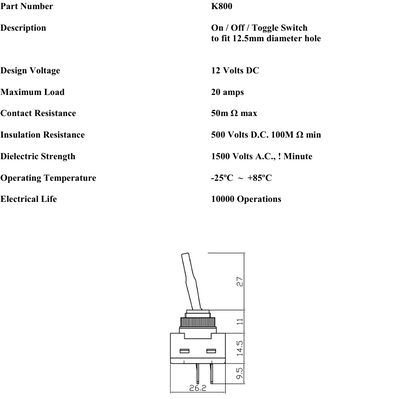

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 20A
- Contact Resistance: 50mΩ max
- Insulation Resistance: 500V DC, 100MΩ min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
