On Off Toggle Switch Flick Light Switch Hd Car Dash 25Amp 12V Robinson
K875

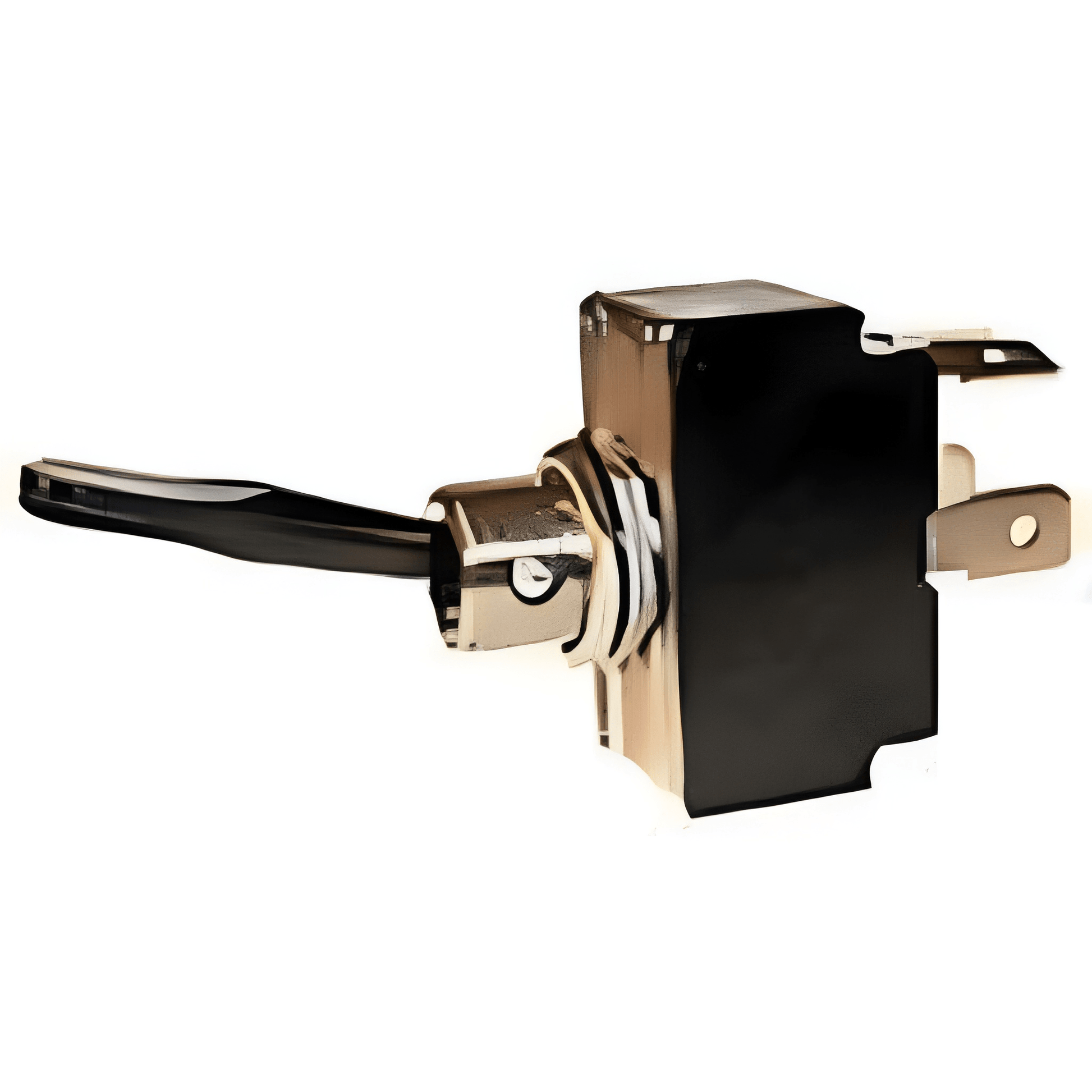

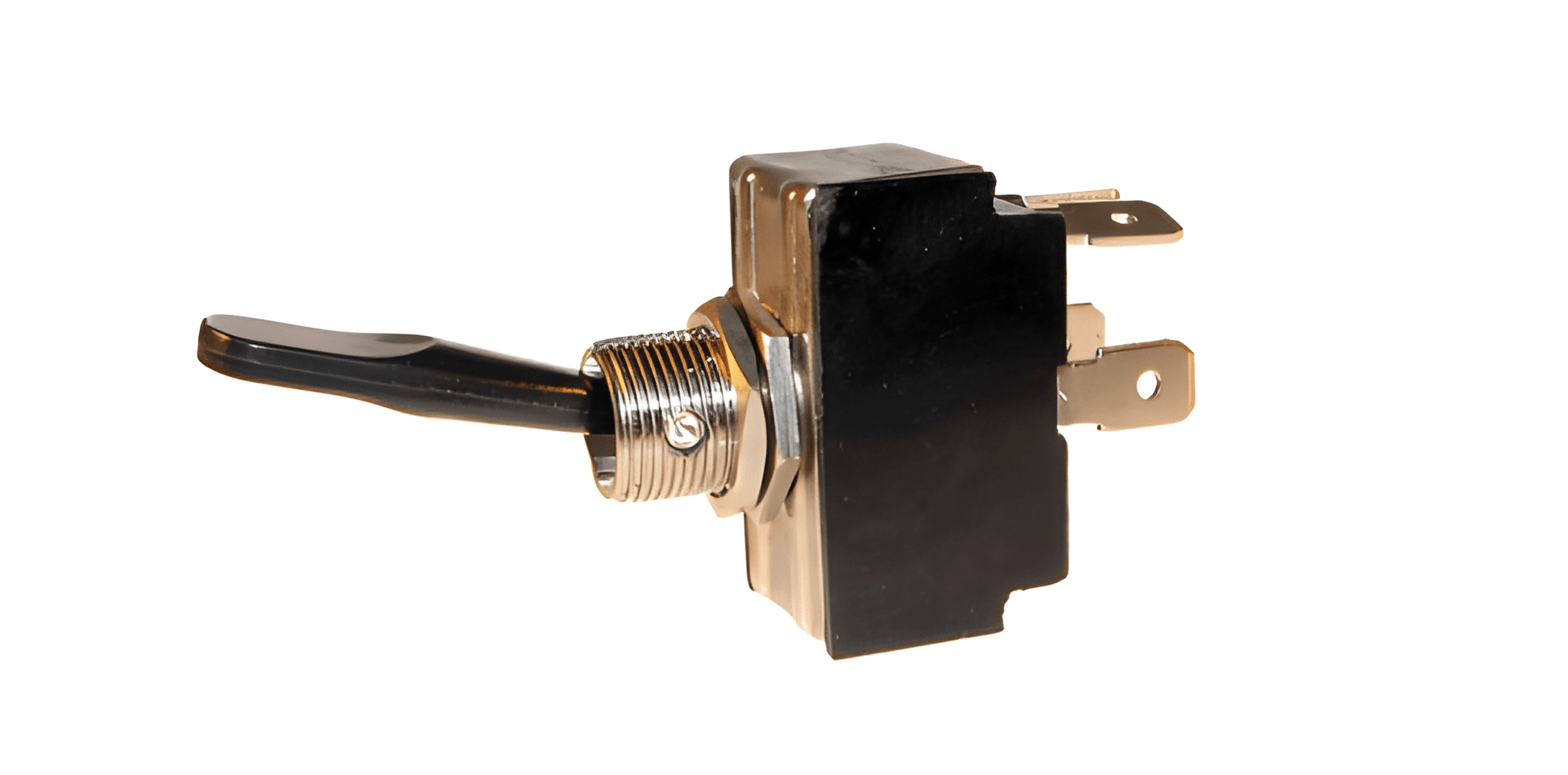

This is a 12V Heavy Duty On/Off Metal Toggle Flick Switch from the K875 series. It is a double-pole switch rated at 25A @ 12V, with 6.3mm Lucar terminals and a 28mm lever. It fits a 12.5mm round mounting hole, making it ideal for high-current automotive applications.
Key Features:
- Switching Method: On/Off
- Polarity: Double pole
- Construction: Heavy duty metal toggle switch
- Terminals: 6.3mm Lucar terminals
- Lever Length: 28mm
- Mounting: Fits a 12.5mm round hole
Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 25A
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
