On Off Toggle Switch Flip Flick Amber 12V 20A Car Dash Light Robinson
K801

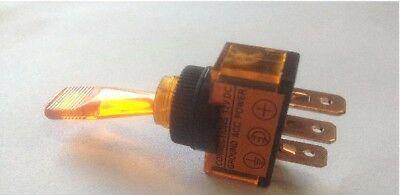

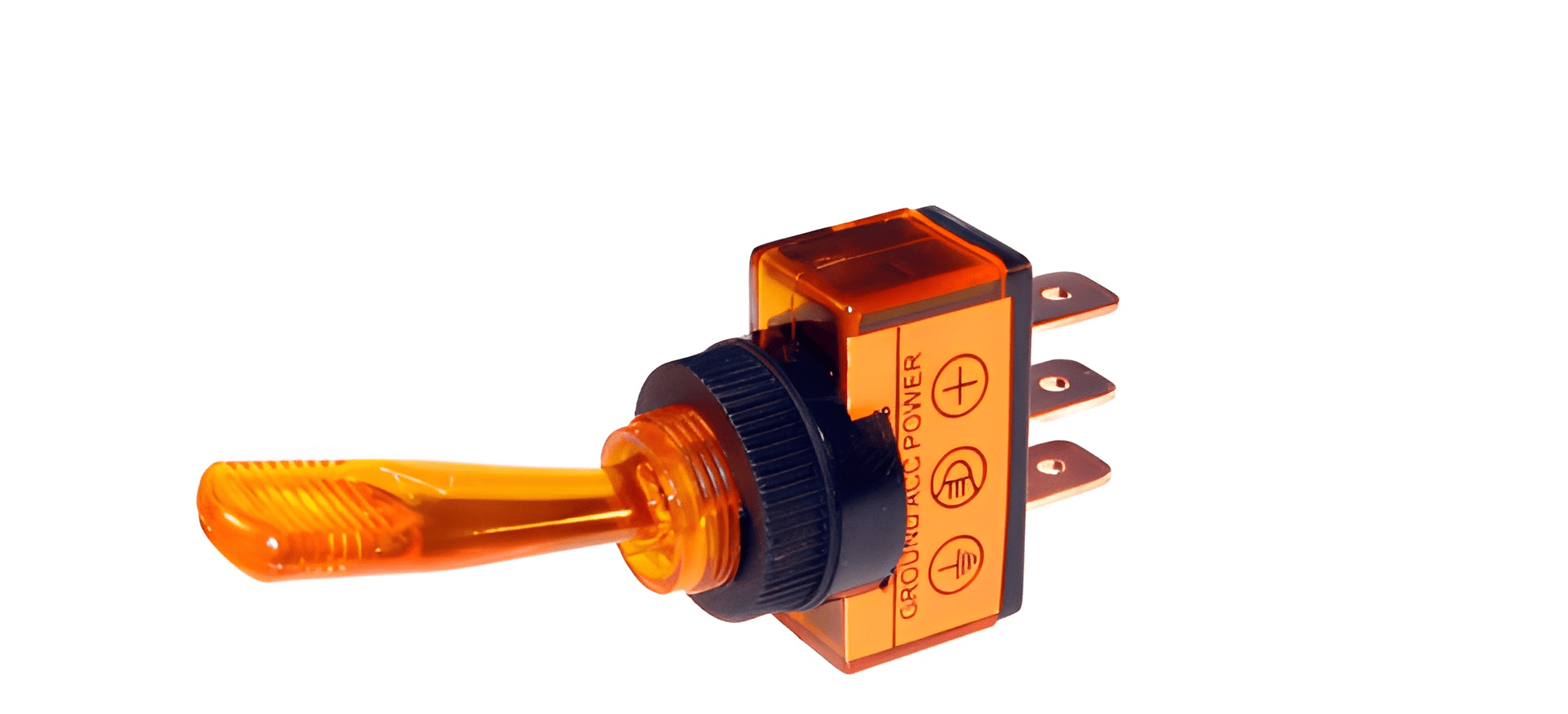

This is a 12V Amber Illuminated On/Off Toggle Flick Switch from the K801 series. It illuminates only at 12V, is rated at 20A @ 12V, and fits a 12.5mm round mounting hole, making it ideal for a wide range of automotive applications.
Key Features:
- LED Illumination: Amber (illuminates only at 12V)
- Switching Method: On/Off
- Mounting: Fits a 12.5mm round hole
- Suitable for automotive auxiliary circuits and aftermarket installations
- Sturdy toggle mechanism for reliable operation

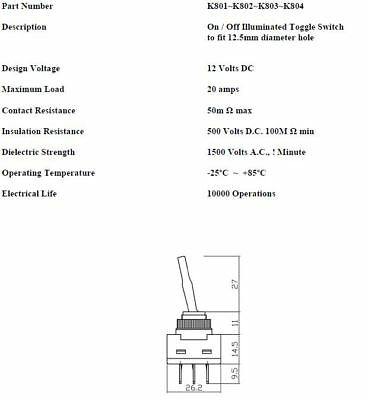

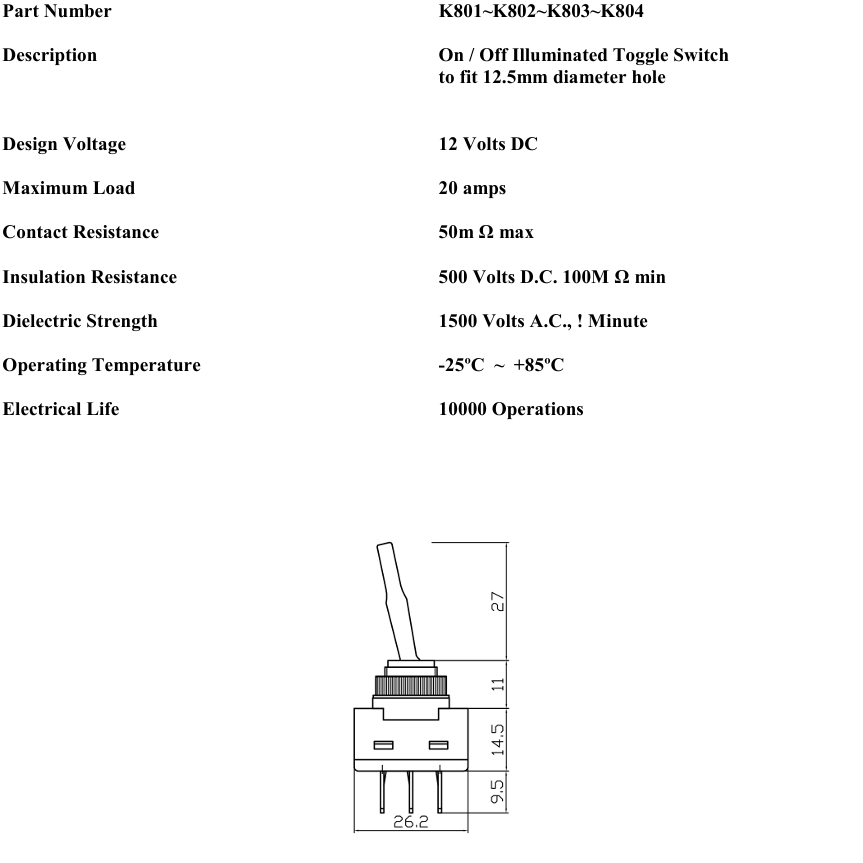

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 20A
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
