On Off Toggle Switch Flip Flick With Red Led Tip 12V 20A 1015R Robinson K894R

On Off Toggle Switch Flip Flick With Red Led Tip 12V 20A Robinson K894R

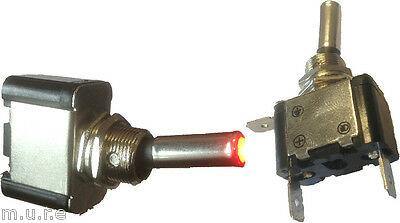

12V On/Off Red LED Toggle Switch

K894R

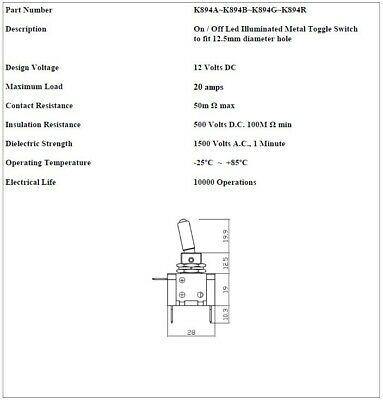

Description

• 3 x 6.3MM LUCAR TERMINALS
• (1 x Earth Terminal, 1 x Power In Terminal & 1 X power out Terminal)
• 12 MM HOLE REQUIRED FOR FITMENT
• SWITCH TYPE: TOGGLE
• CONTACTS CONFIGURATION: SPST
• SWITCHING METHOD: ON-OFF
• DC CONTACTS RATING: 20 A / 12 V
• KNOB HEIGHT: 17.5MM
• BODY DIMENSIONS: 28 X 15 X 19MM
• ILLUMINATED TIP: Red LED

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
