On On Rocker Switch 12V Rectangle Black
K415

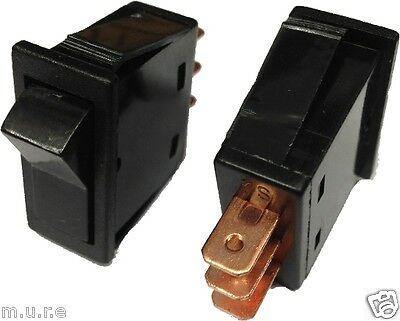

This is a black On/On rocker switch with no illumination, designed for front plate mounting. It is a 2-pole switch that operates on 12V DC and has a maximum amperage of 16A.

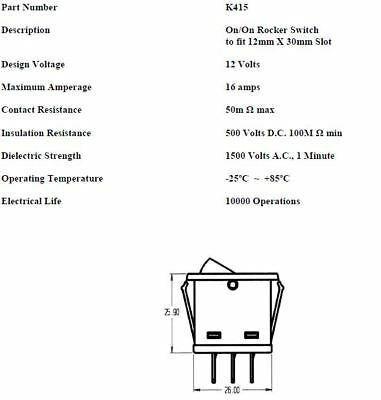

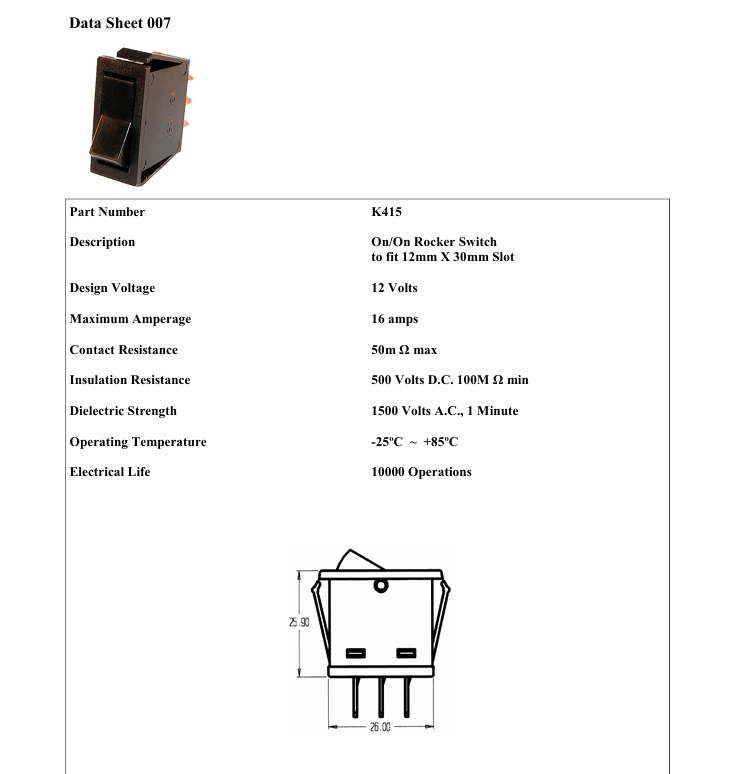

Physical specifications:
- Switching type: On-On
- Design Voltage: 12V DC
- Maximum Amperage: 16 amps
- Pole no.: 2
- Housing: Black
- Rocker: Black
- Illumination: No
- Connection type: Blade terminal 6.3 x 0.8 mm
- Contact Resistance: 50m Ω max
- Insulation Resistance: 500 Volts D.C. 100M Ω min
- Dielectric Strength: 1500 Volts A.C., 1 Minute
- Operating Temperature: -25°C ~ +85°C
- Electrical Life: 10,000 Operations
- RoHS Compliant: Yes

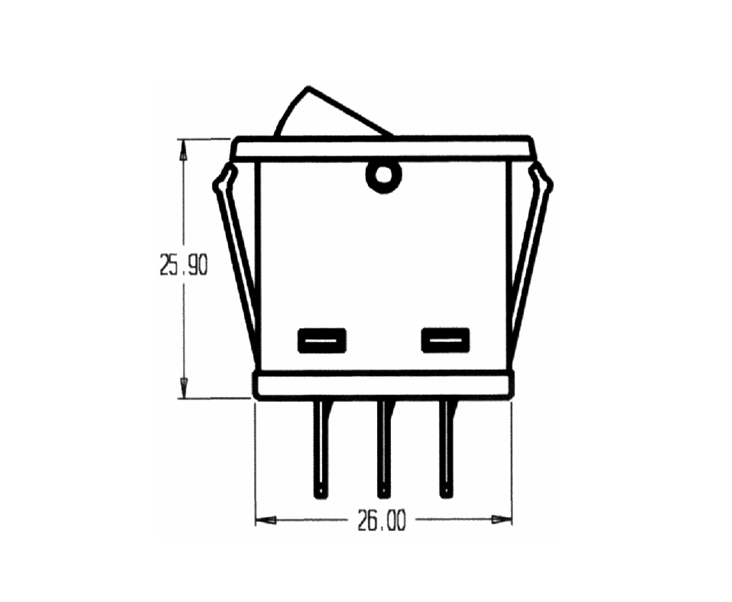

Dimensions:
- Assembly cutout: 12mm x 30mm
- Overall: 25.90mm x 26.00mm
