On On Rocker Switch Mini Minature Round 12V Car Dash Robinson K725

On On Rocker Switch Mini Minature Round 12V Car Dash

K725

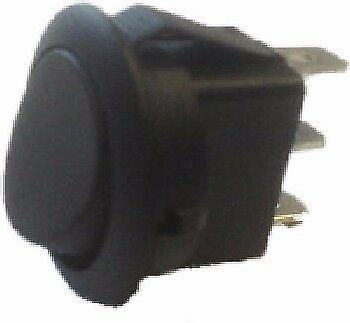

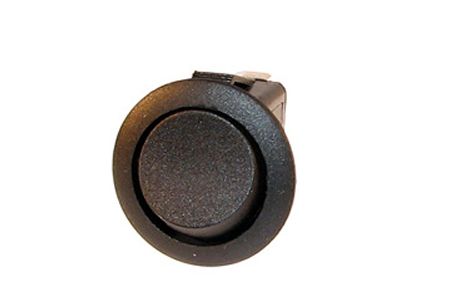

This is a round miniature rocker switch designed with an On/On switching method. It features a two-pole design and includes a keyhole slot to prevent unwanted rotation upon installation.

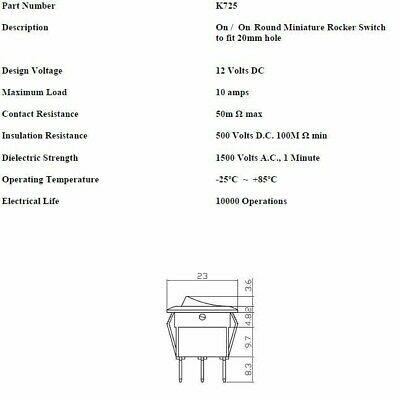

Technical Specifications:

• Switching Method: On/On
• Design Voltage (DC): $12\text{ Volts DC}$
• Maximum Load: $10\text{amps}$
• Max. Contact Resistance: $50\text{m}\max$
• Insulation Resistance: $500\text{ Volts D.C. }100\text{M}\min$
• Dielectric Strength: $1500\text{Volts A.C. }1\text{ Minute}$
• Operating Temperature: −25C ∼ +85C
• Electrical Life: $10000\text{ Operations}$
• Body Material: Polyamide
• Flammability Rating: UL94V-2

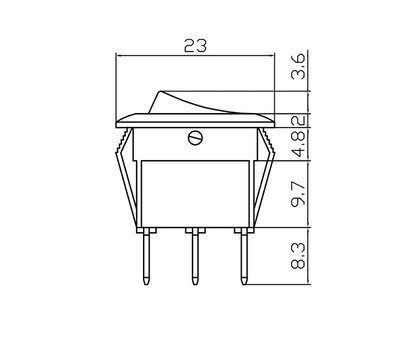

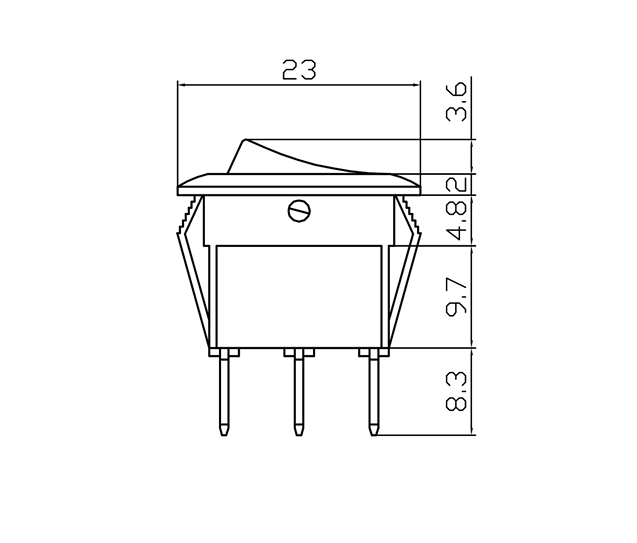

• Mounting Cutout: $20\text{mm}$ hole is required.

ANOTHER HIGH QUALITY PART FROM ROBINSON
