On On Toggle Switch Flick Flip Mini Miniature Car Dash Light Robinson
K871
This is a 12V Mini Metal Toggle Flick Switch from the K871 series. It features solder terminals, fits a 6mm round mounting hole, and is rated at 6A @ 12V. Compact and durable, it is ideal for miniature automotive circuits and low-voltage applications.
Key Features:
- Switching Method: On/On
- Connection: Solder terminals
- Mounting: Fits a 6mm round hole
- Pin Configuration: 3 pins, 4mm (0.16") spacing
- Compact Dimensions: Total height 32mm, Lever height 11mm, Main body height 9.6mm, Width 8mm
- Suitable for miniature automotive and auxiliary circuits

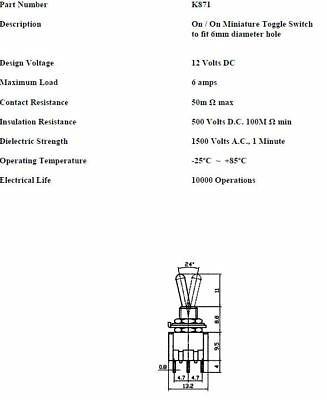

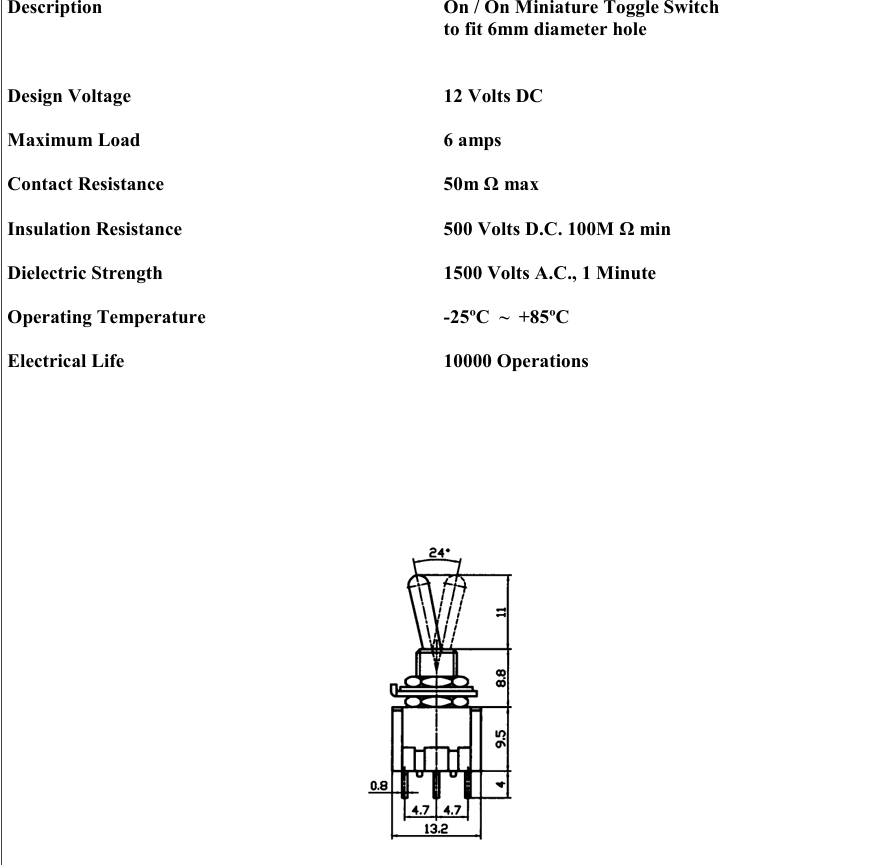

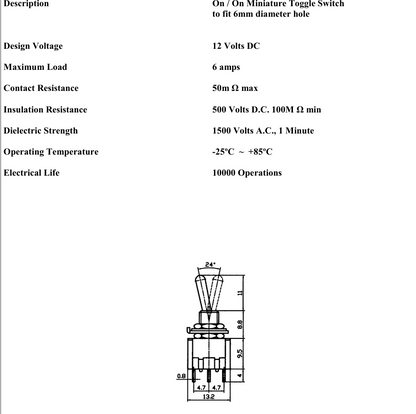

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 6A
- Maximum Voltage: 3A @ 250V AC, 6A @ 125V AC
- Contact Resistance: 50mΩ max
- Insulation Resistance: 500V DC, 100MΩ min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
