On On Toggle Switch Flip Flick Hd Car Dash 12V 25A Robinson
K892

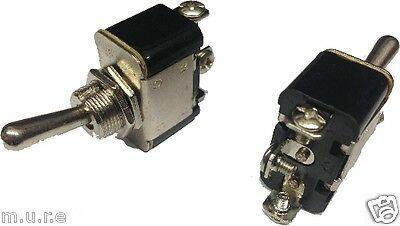

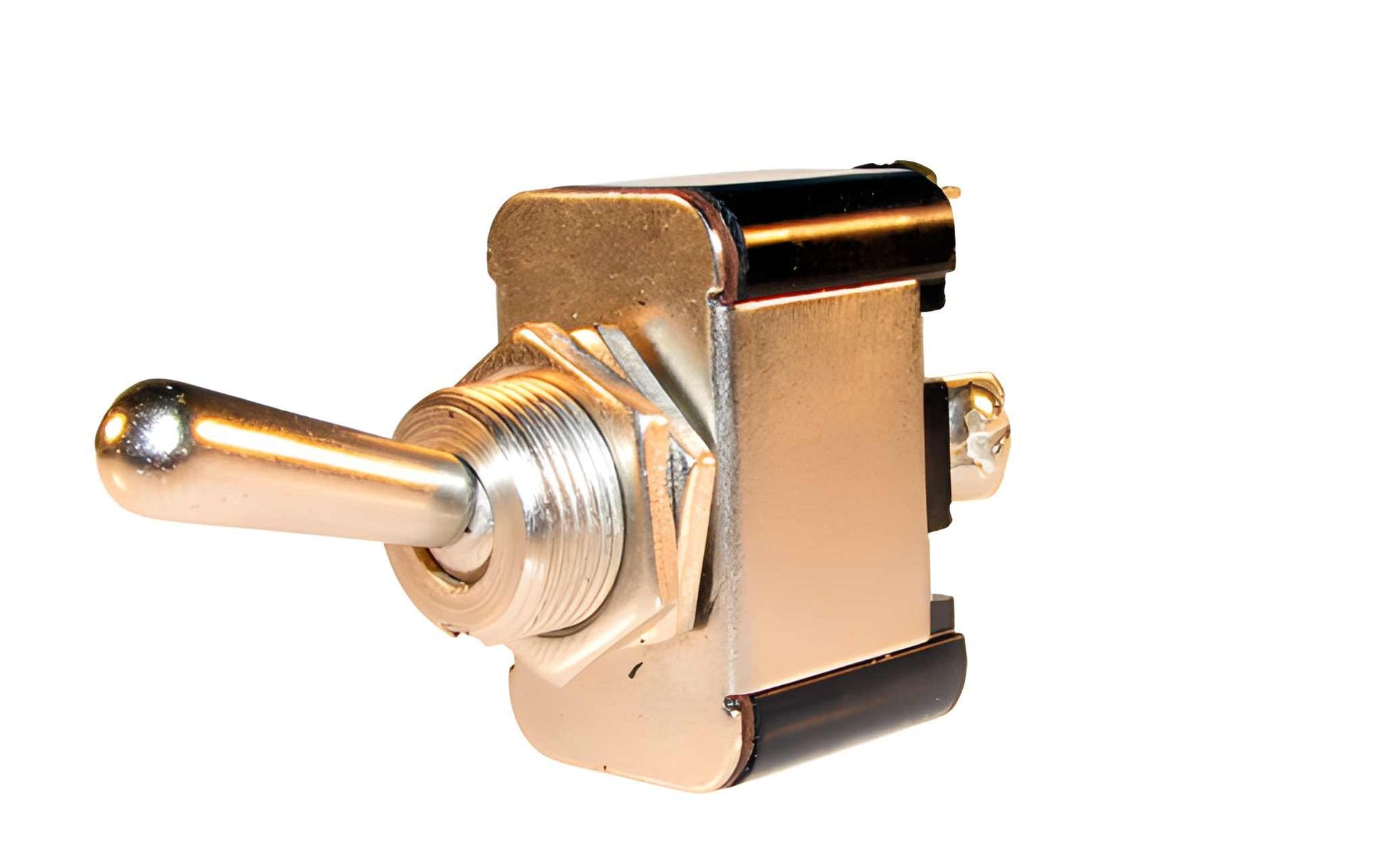

This is an On/On Metal Toggle Switch designed for automotive applications. It features silver contacts, is a double-pole switch with 3 screw terminals, and fits a 12.5mm round mounting hole. Rated at 25A @ 12V, it is ideal for controlling auxiliary circuits in vehicles.
Key Features:
- Switching Method: On/On
- Contacts: Silver contacts
- Polarity: Double pole
- Terminals: 3 screw terminals
- Mounting: Fits a 12.5mm round hole

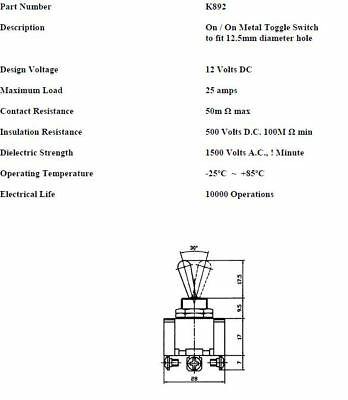

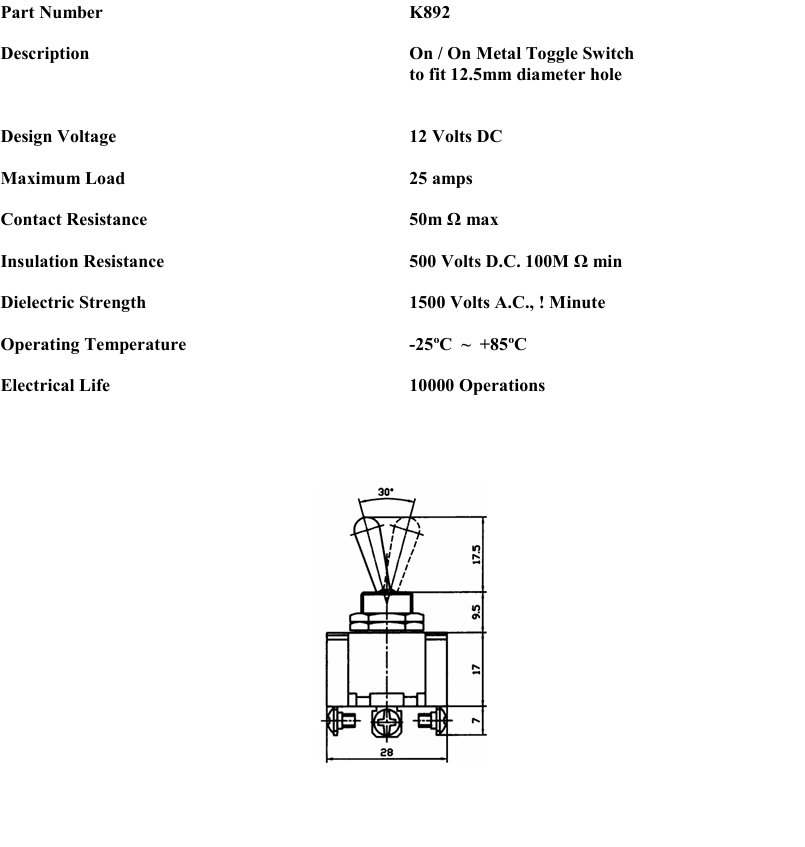

Technical Specifications:
- Design Voltage: 12V DC
- Maximum Load: 25A
- Contact Resistance: 50m max
- Insulation Resistance: 500V DC, 100M min
- Dielectric Strength: 1500V AC, 1 minute
- Operating Temperature: −25°C to +85°C
- Electrical Life: 10,000 operations
ANOTHER QUALITY PRODUCT BY ROBINSON
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
