On/Off Rocker Switch Red Round Waterproof 12V Mure SW.WTR.1Red

On/Off Rocker Switch Red Round Waterproof 12V Mure SW.WTR.1Red

Vendor:M.U.R.E

Availability: 57 in stock

Product Type:SW.WTR.1RED

Product Indentifier:7436204372347

Regular price

£3.73 £3.11 ex VAT

Regular price £3.58 Sale price £3.11 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

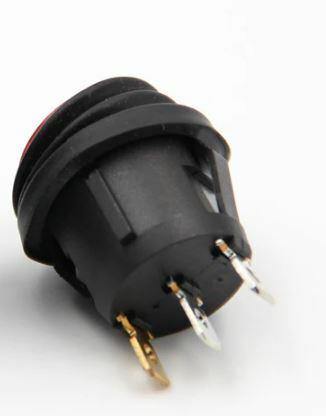

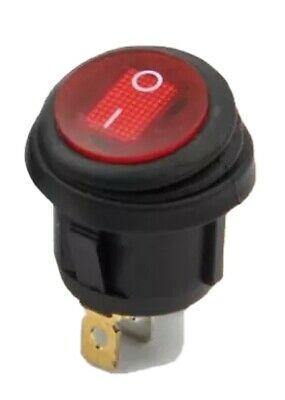

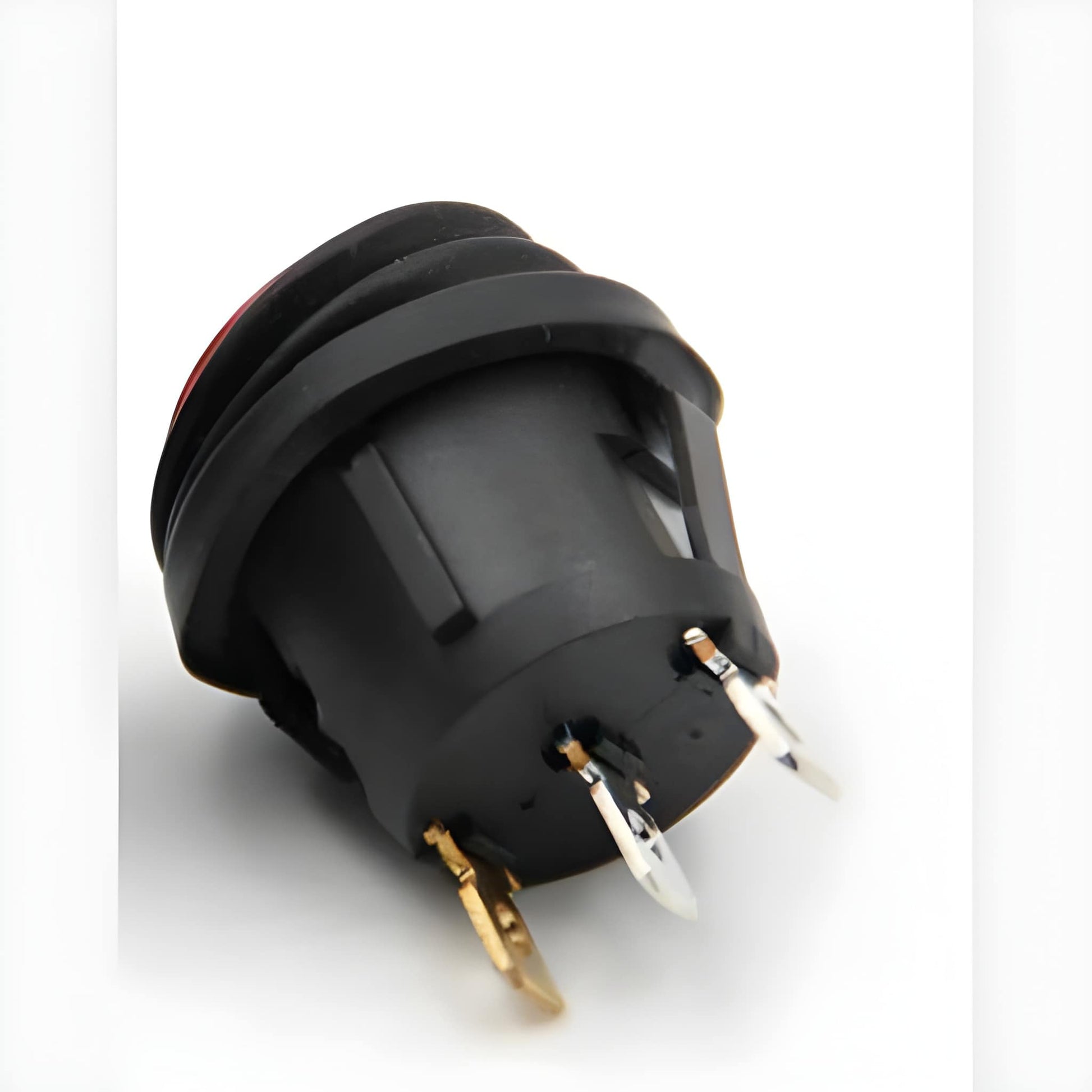

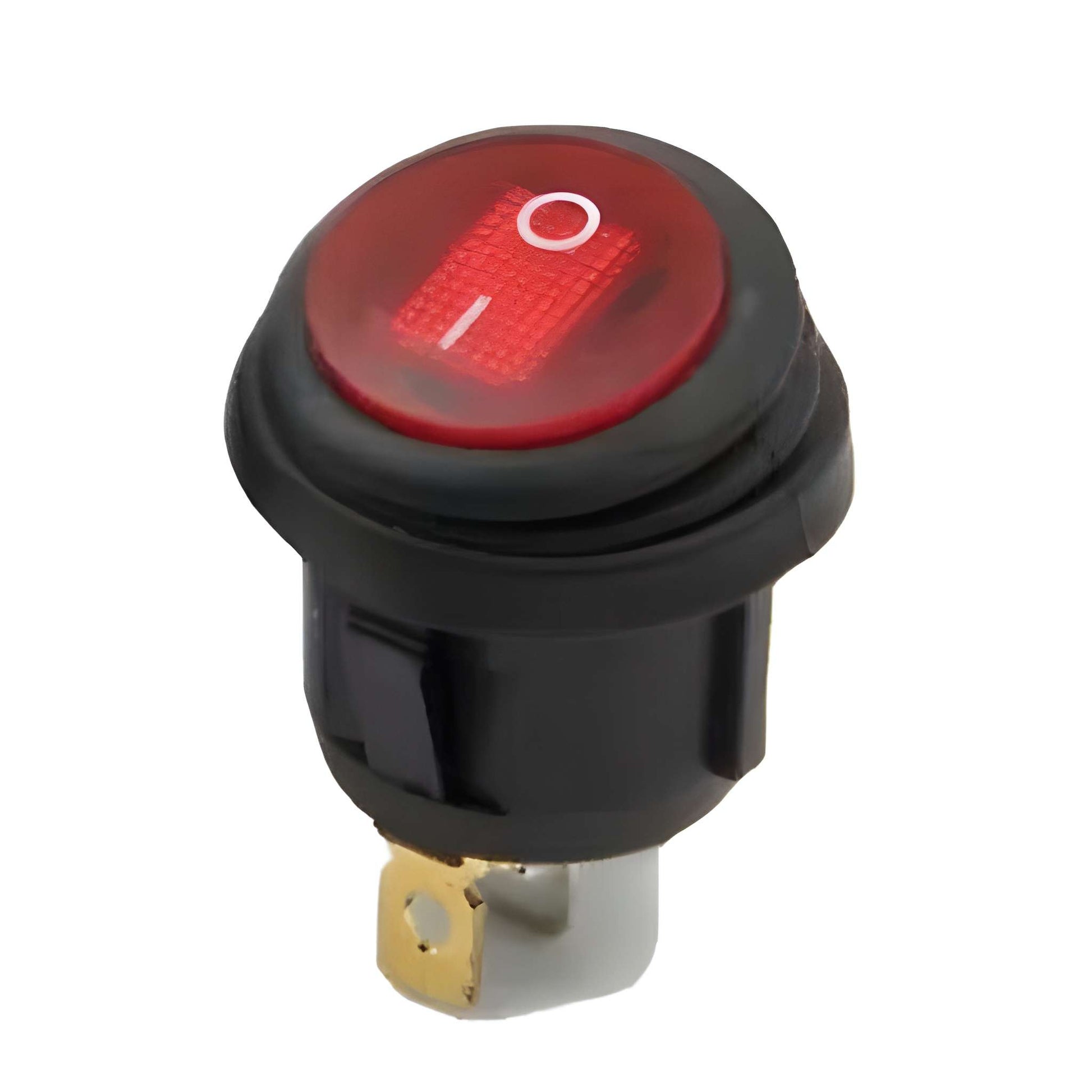

12 Volt Red On/Off Round Waterproof Rocker Switch Fits 20mm Hole

SW.WTR.1RED

Description:

  • Easy setup. All you need is a 20mm hole and the switch will sit in nicely; no more square cut outs.
  • Keyhole slot to prevent unwanted rotation
  • SPST 2 pole design (On/Off) 3rd poles with LED to be connected to earth.
  • Functions: It can be applied as the switches for the additional electronic equipment inside&outside the car.(such as flashing lights,chassis lights,and dome lights)

Configuration:

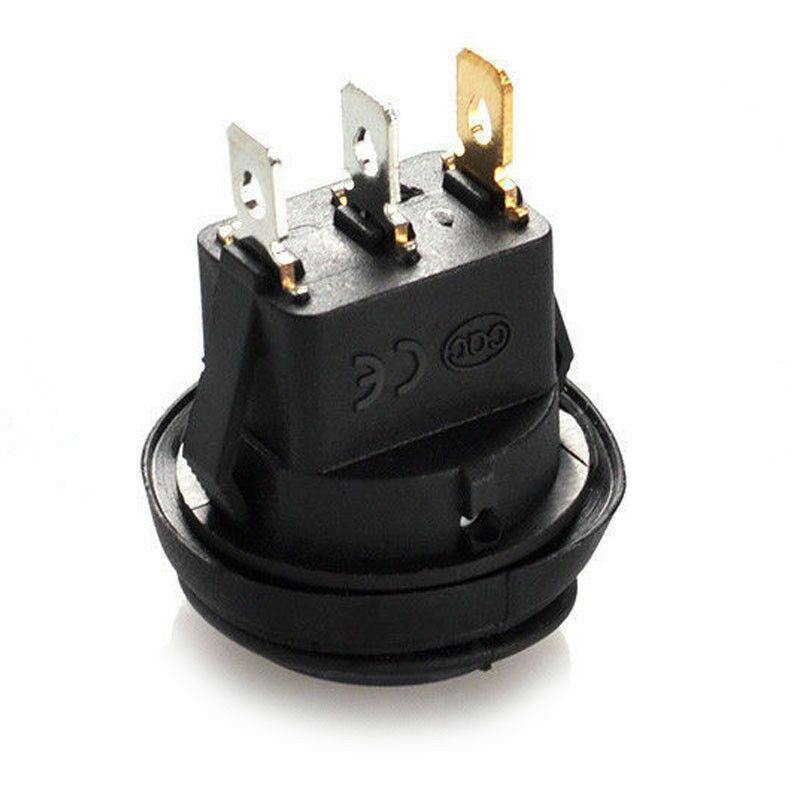

  • 3 x 4.8mm Lucas Terminals (+ into switch / + out of switch / Earth)
  • Note 1 - On/Off round mini rocker switch
  • Note 2 - Red

Specification:

  • Condition: New
  • Colour: Black and Red
  • Material: plastic
  • Light Colour: Red LED light

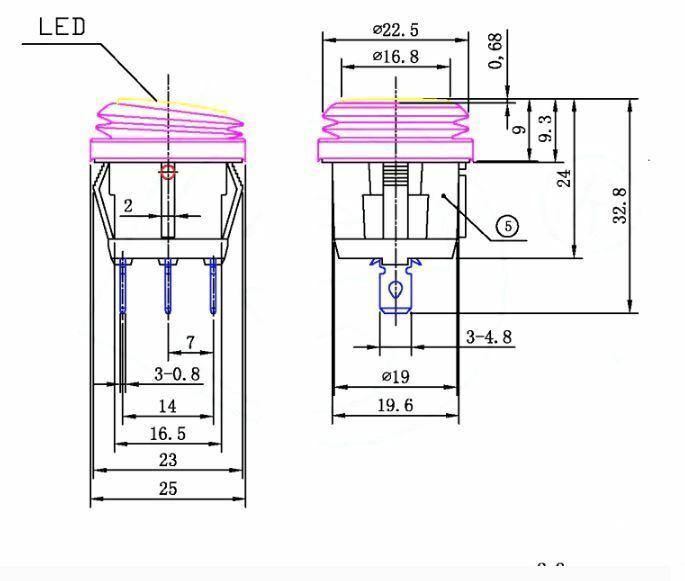

  • Size: 2.3*2.5cm
  • Quantity: 1 pc
  • Rating: DC 12V 20A
  • Type: 3 Pins ON/OFF

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
