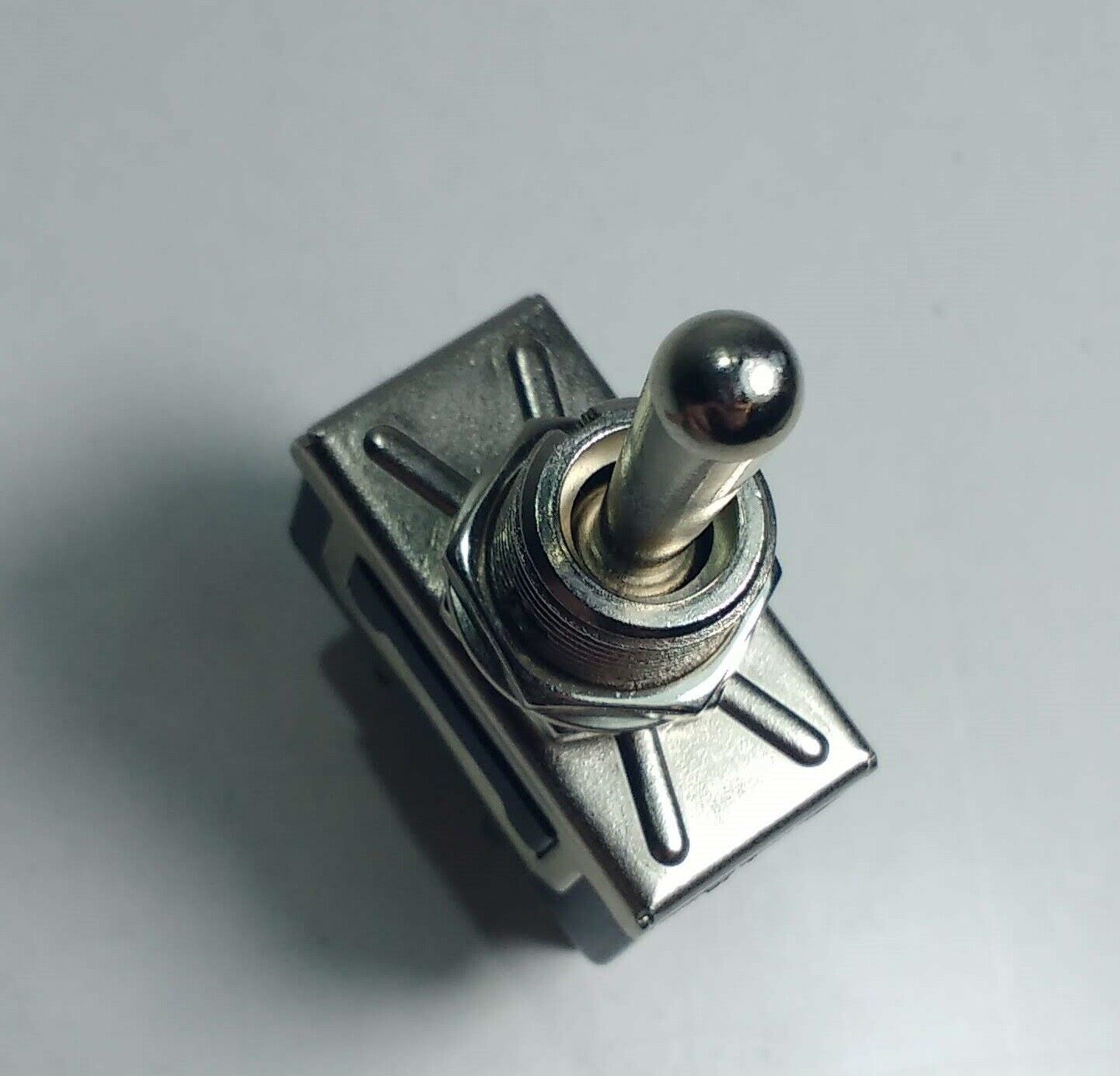

On/Off/On Toggle Switch Flick 3 Spring Loaded Terminals 12V 16A 24V Cargo 180587

On/Off/On Toggle Switch Flick 3 Spring Loaded Terminals 12V 16A 24V Cargo 180587

Vendor:Hc-Cargo

Availability: Low stock: 9 left

Product Type:180587

Product Indentifier:731084218332

Regular price

£5.62 £4.68 ex VAT

Regular price £5.23 Sale price £4.68 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

ON OFF ON METAL TOGGLE FLICK SWITCH, 3 TERMINAL SPRING LOADED MOMENTARY

180587

Electrical specifications

  • Voltage 12 / 24
  • Amp 1: 16
  • Amp 2:  8

Physical specifications

  • Terminals 3
  • Solenoid ( On ) / Off / ( On )
  • Mount. hole size mm 12
  • Arm: Short
  • Material: Metal

THIS SWITCH IS SPRING LOADED SO SITS IN THE CENTRAL OFF POSITION.

THE OTHER POSITIONS ARE MOMENTARY AND WHEN THE SWITCH IS RELEASED IT SPRINGS BACK TO THE CENTRAL OFF POSITION.

6.3MM LUCAR TERMINALS X3

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).

ANOTHER HIGH QUALITY HC CARGO PRODUCT ( A BOSCH GROUP COMPANY )
