Push To Make Switch 19mm Metal Push Button 12V 24V Momentary 16A MURE K589

Vendor:M.U.R.E

Availability: Low stock: 9 left

Product Type:k589

Product Indentifier:731084218769

£8.32 inc VAT £6.93 ex VAT
£8.88 £8.32 inc VAT £6.93 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Push To Make Switch 19mm Metal Push Button 12V 24V Momentary 16A

K589

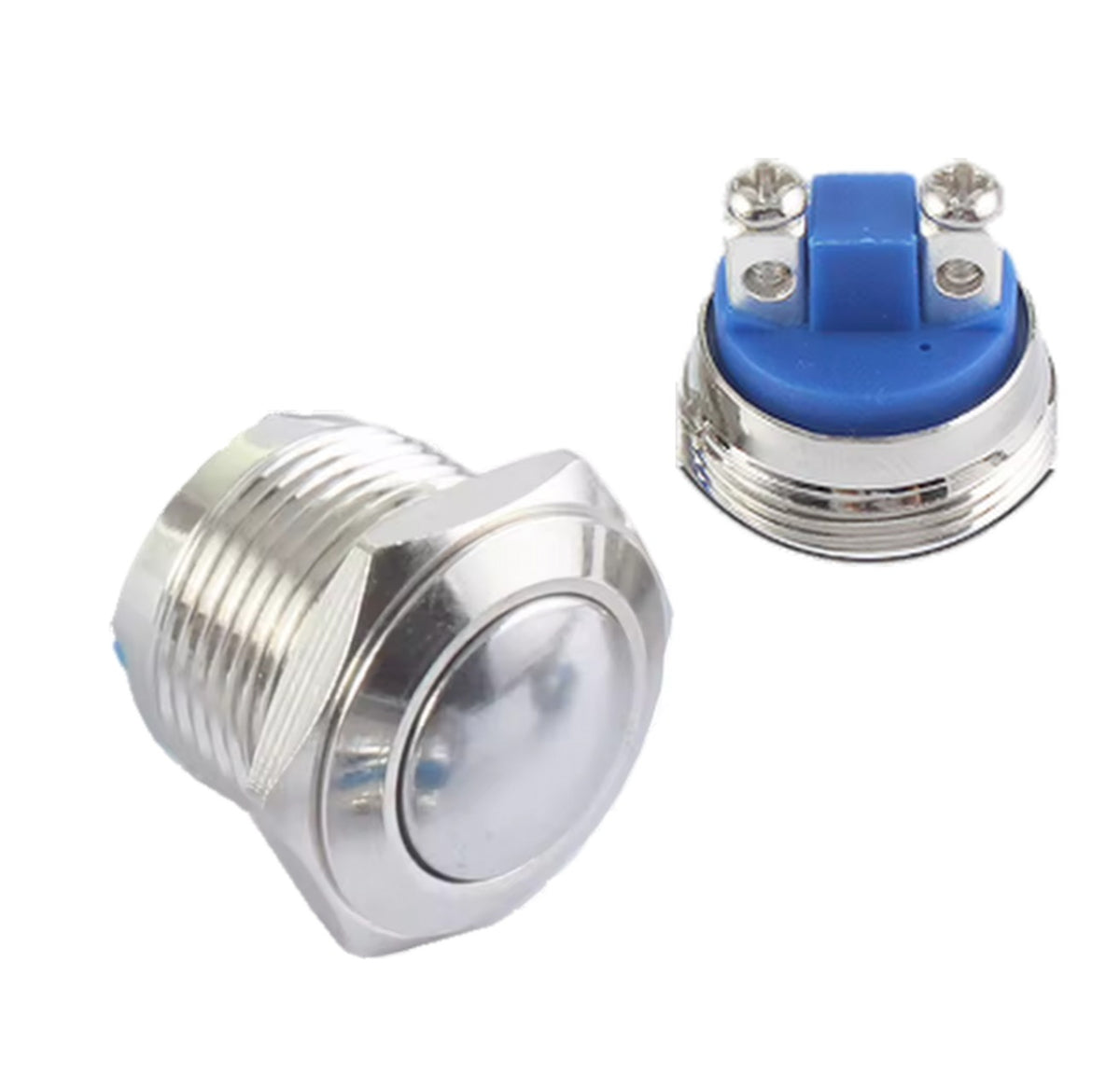

This is a Brass Nickel Plated momentary push button switch designed to fit a 19mm diameter hole. It is rated for 12v or 24v and has a maximum amperage of 16 amps.

We would recommend using a relay for heavy applications or for applications where the button would be depressed for longer periods

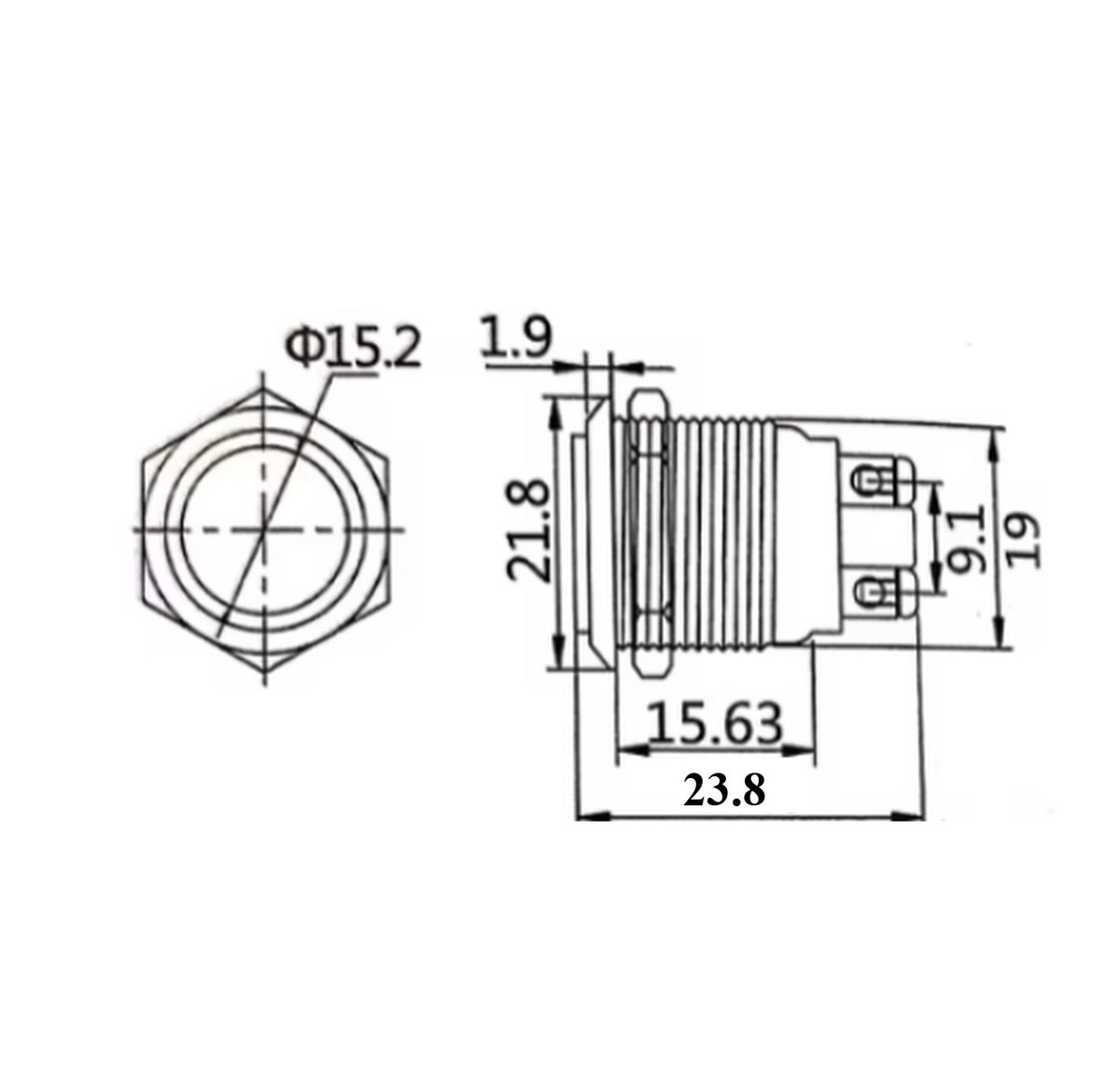

Physical specifications:

  • Design Voltage: 12 Volts / 24 Volts
  • Maximum Amperage: 16 amps
  • Colour: Brass Nickel Plated
  • Mounting Hole Diameter: 19mm
  • Head Diameter: 22mm
  • Overall Length: 23.8mm
  • Wire Connections: 2 x 3mm screw terminals
