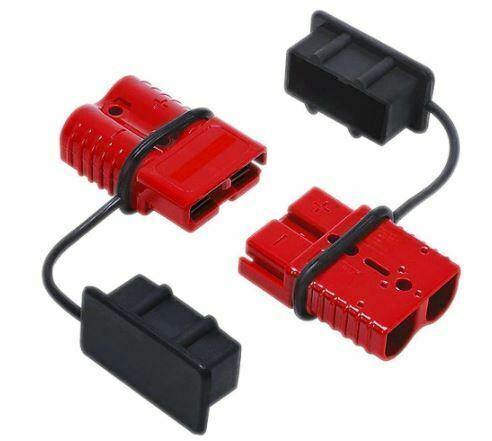

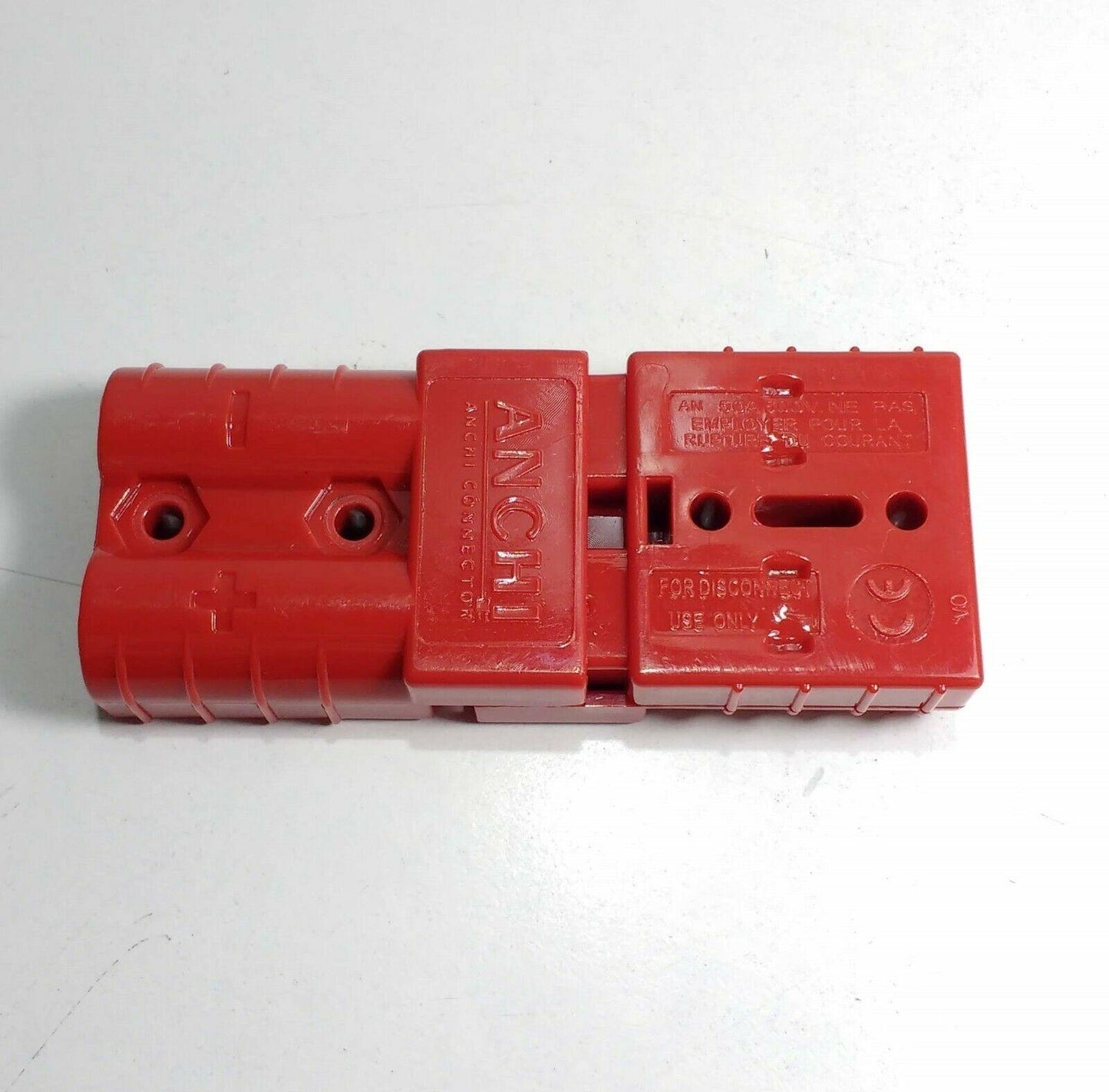

Red Replacing Anderson Connectors 50A 600V Battery Plug & Socket Mure
1 x ANDERSON TYPE CONNECTOR KIT 50 Amp
RAC50
- Battery plug, jump connector for batteries, jump leads, race cars, boats, trucks, forklifts etc.
- This kit is for a Pair of Anderson Type connectors with two #2/0 AWG crimp contacts. Anderson connectors will only mate with connectors of the same size and colour.
This series of connector provides a secure quick disconnect for power distribution systems.
The 50 amp connector is often used in battery and / or inverter connection systems.
- Housing Color: Red
- AWG 2/0
- Current Rating (Amperes):50
- Voltage Ratings (Volts):600
PLEASE NOTE: THE PART OF THE TERMINAL WHERE THE CABLE IS TO BE INSERTED, MEASURES APPROX. 5.3mm DIA
Electrical specifications
- Voltage 600
- Amp 50
Physical specifications
- Model CB50
- Temp - Min °C -40
- Temp - Max °C +125
- Material Polycarbonate
- Colour Red
- Mount. Solder/crimp
- Resistant to acid Yes
- Solvent Yes
- Hydrocarbons Yes
- Material 2 Electrolytic copper w/ galvanic silver plating
- Cable dim. mm² 16

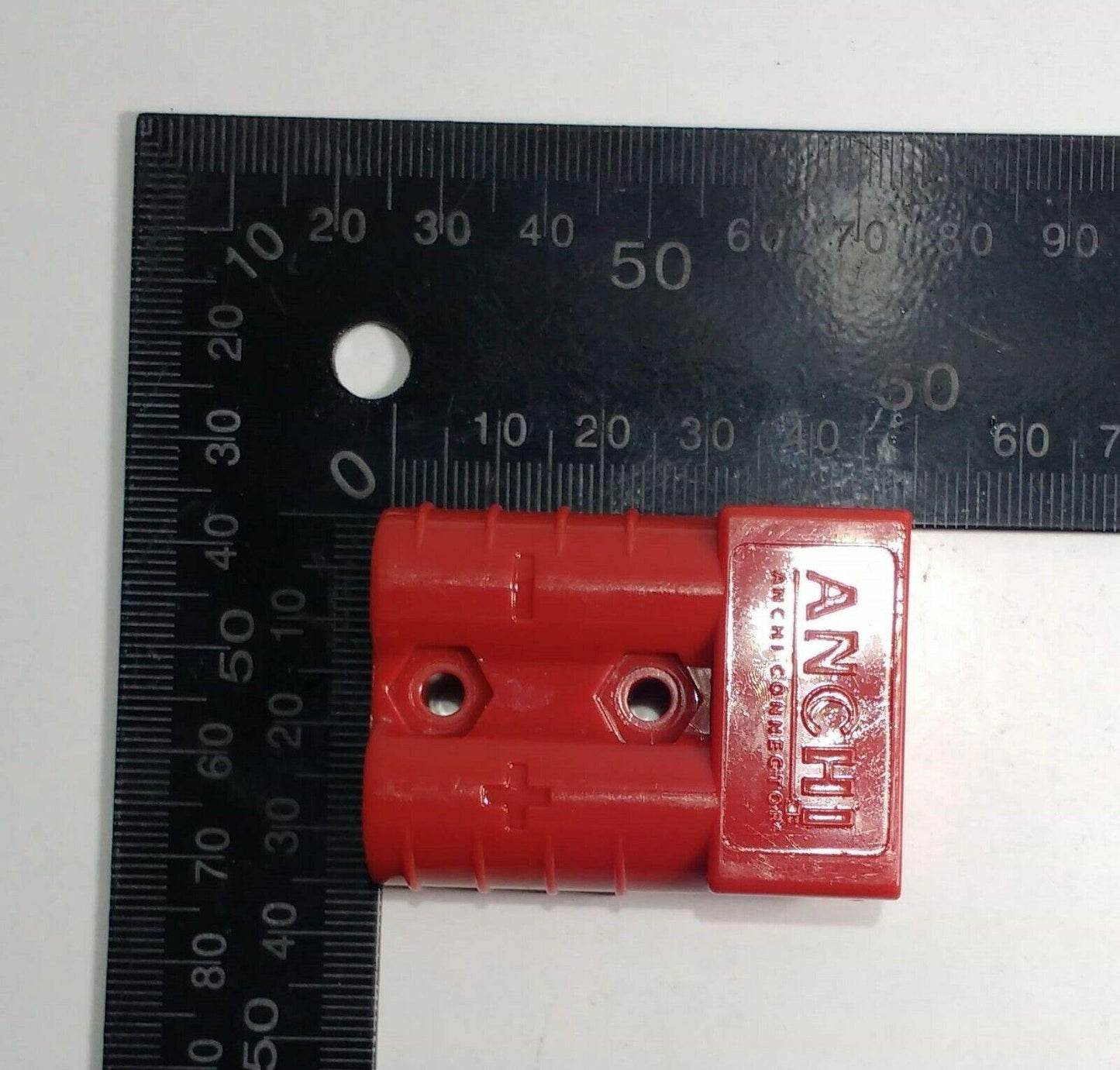

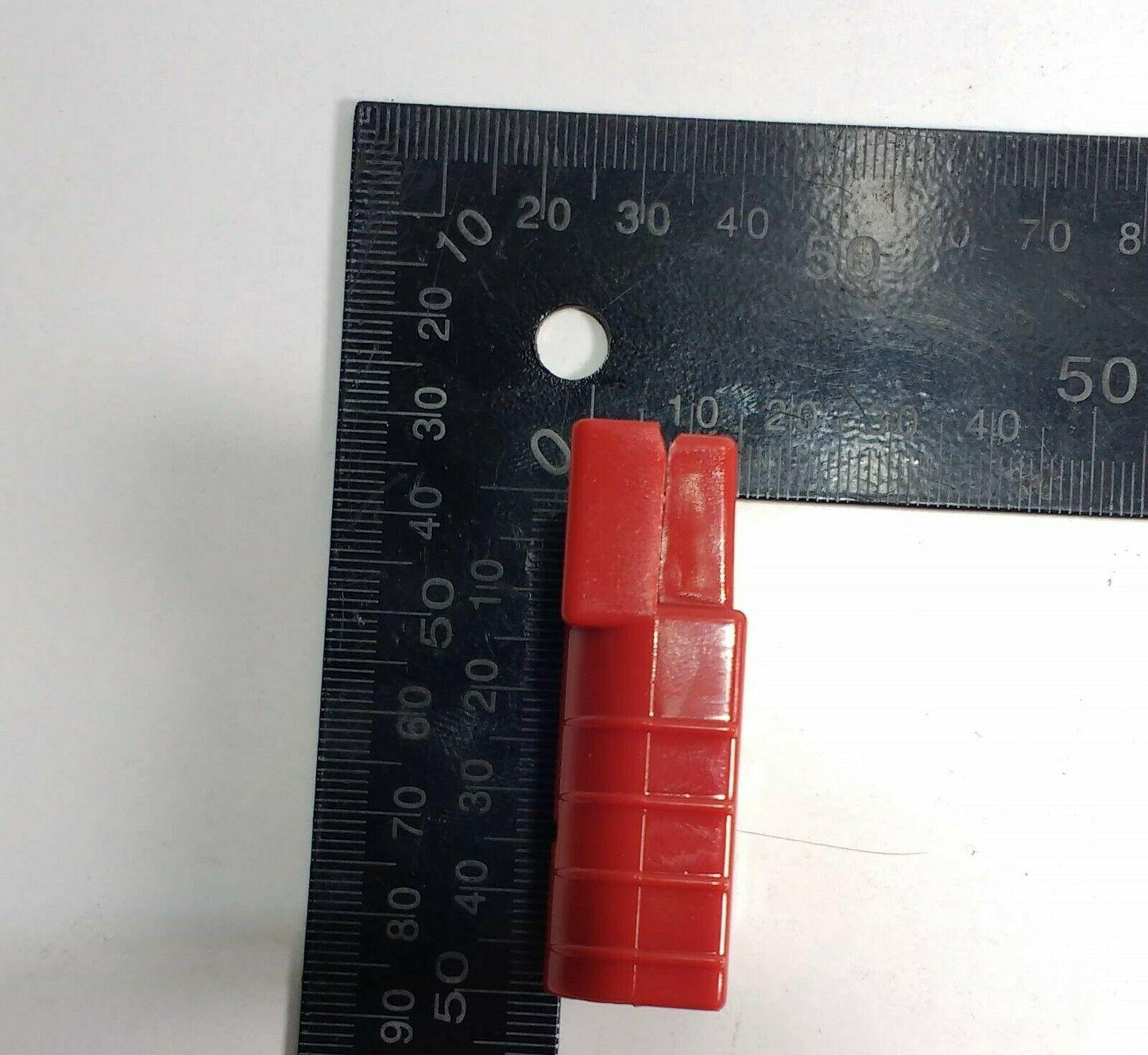

Approx Plug Dimensions (mm)
- 48 X 35 x 16
- Suitable for Cable size
- up to 16 mm²

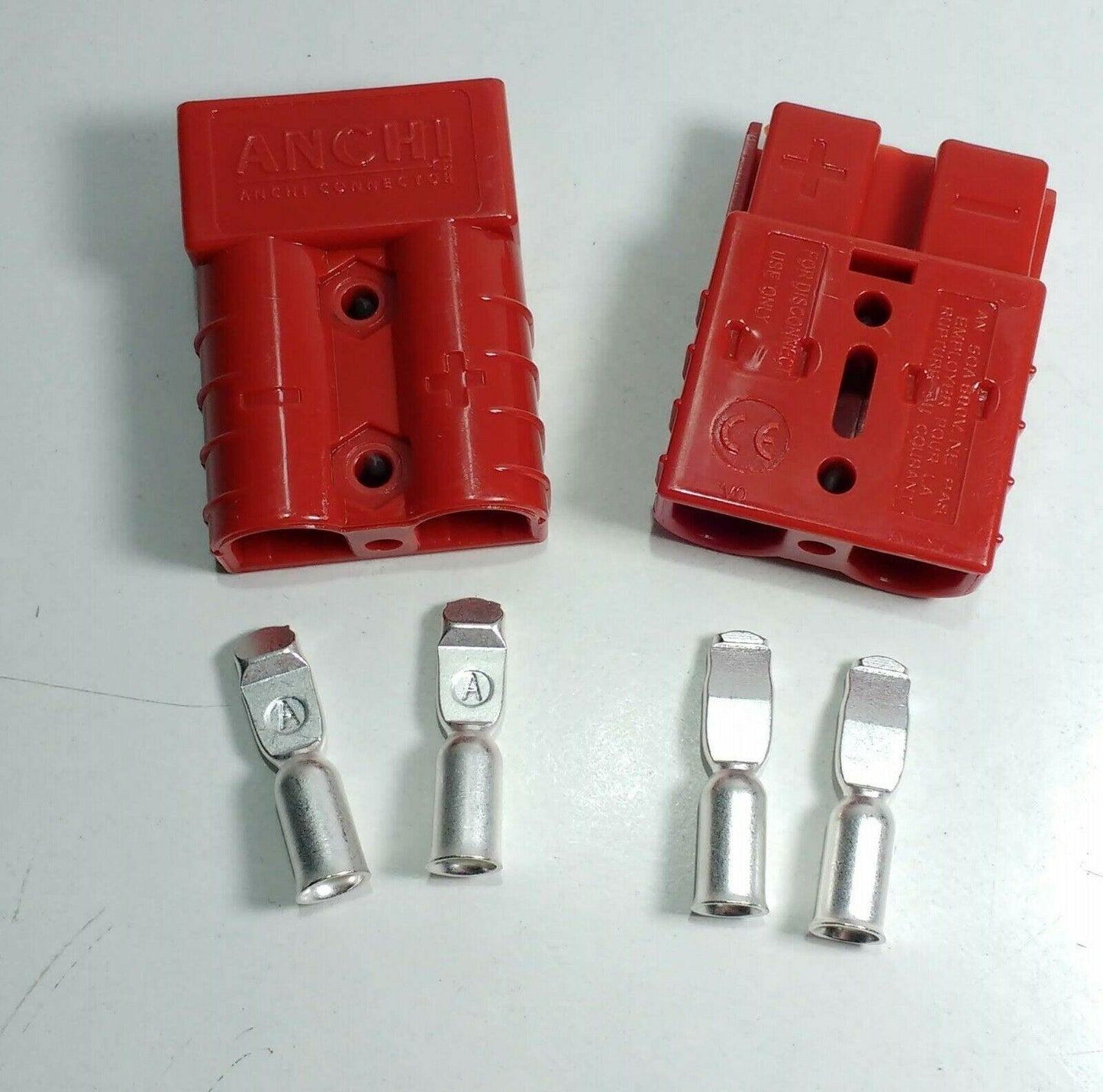

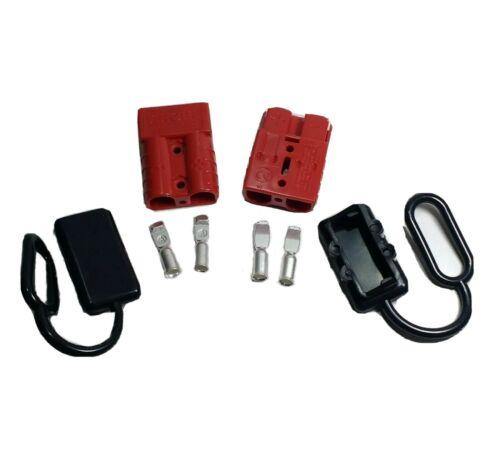

Kit Contains:
- (1) 2 x 50amp Red Housing
- (2) 2 x Sets of two AWG contacts (4)

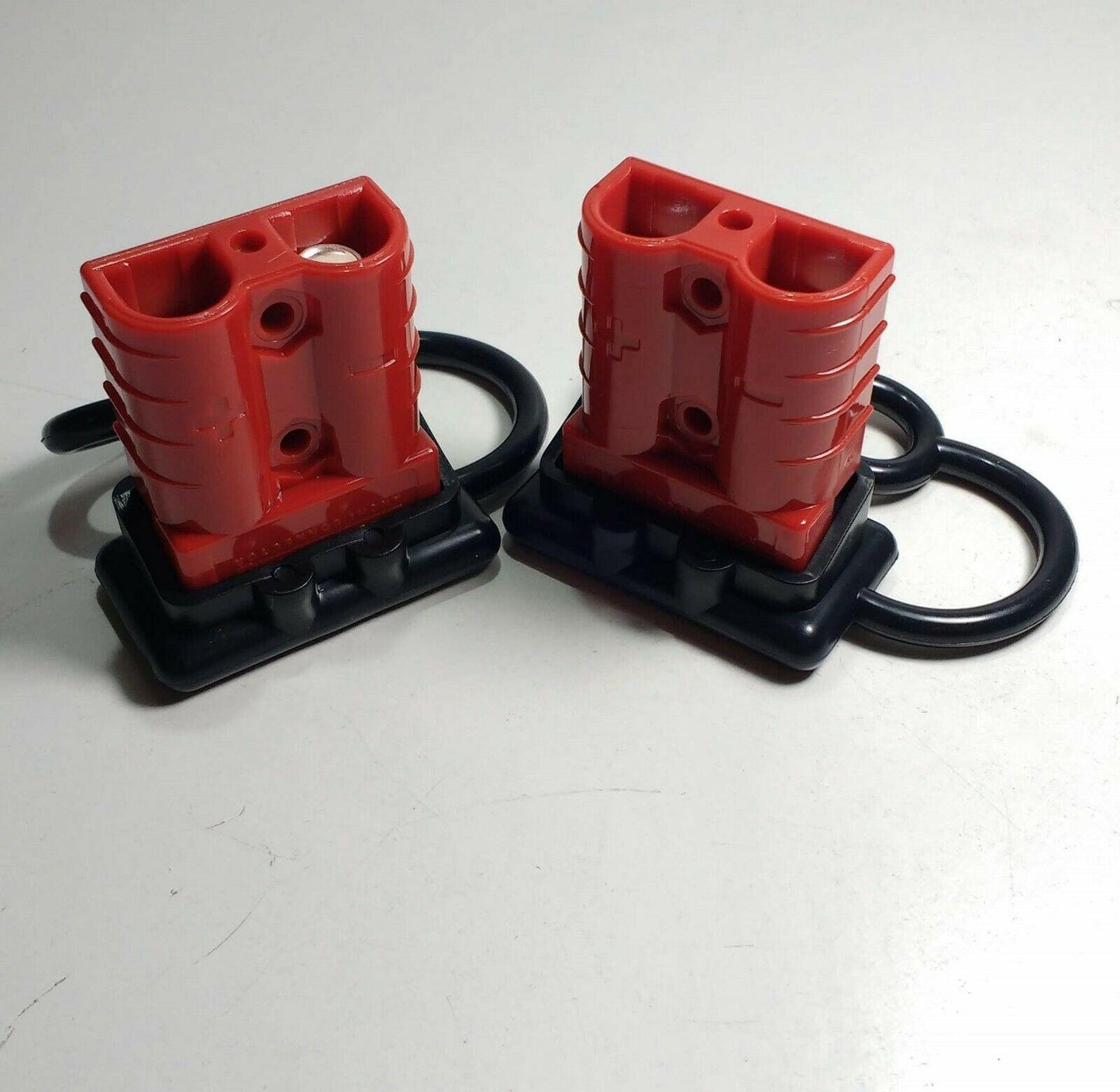

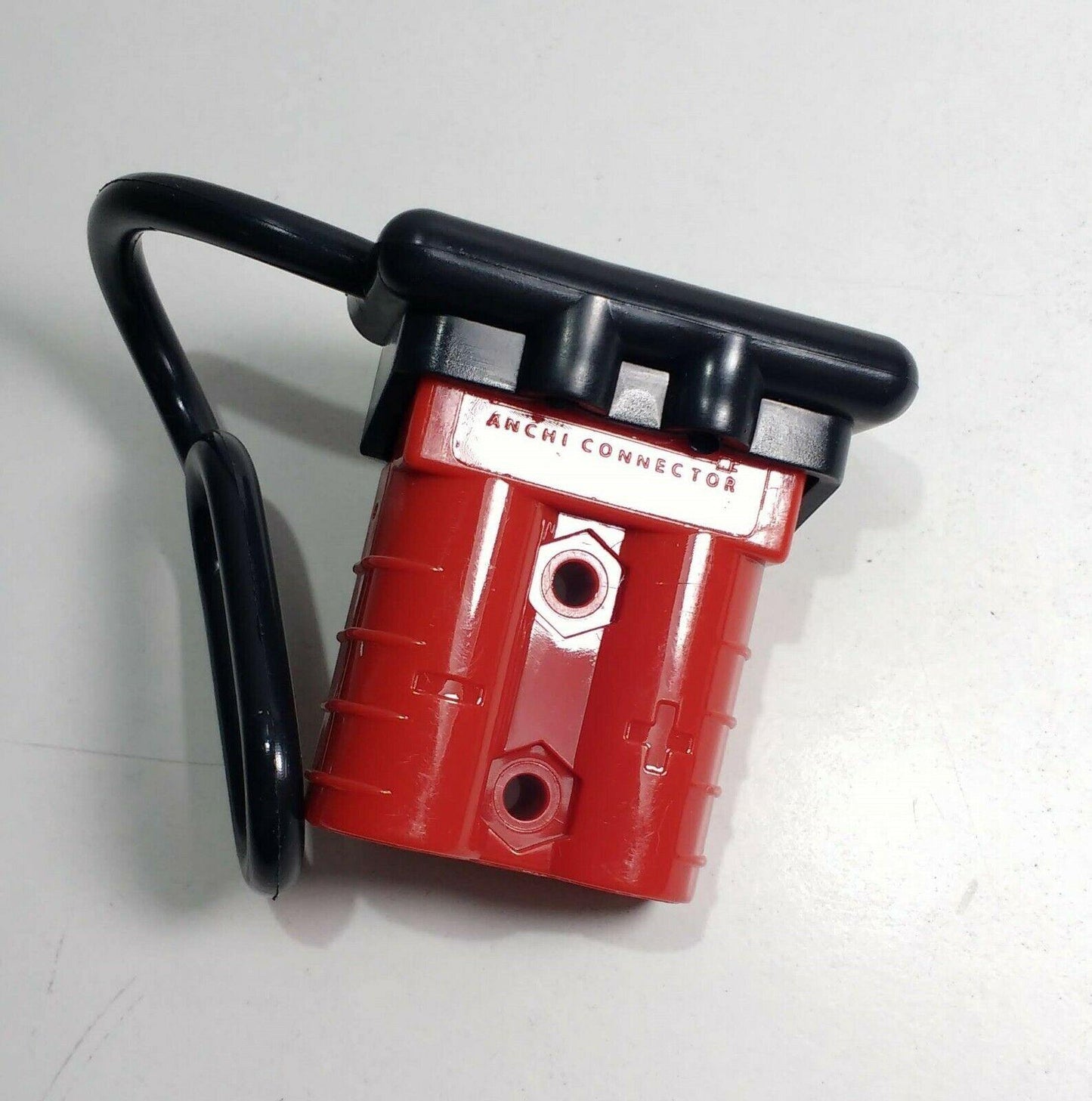

- (3) 2 x Rubber Boots
