Starter Motor 12v 12 Tooth 1.7Kw Fits Mercedes Sprinter, C-Class, Cls Etc. 114305 / STR70369

Starter Motor To Fit Mercedes Cars & Vans 114305 / STR70369

114305

STR70369

Electrical information

• Voltage 12
• Kw 1.7

Physical information

• H No./teeth 12
• P Rotation CW
• N Gear type GR

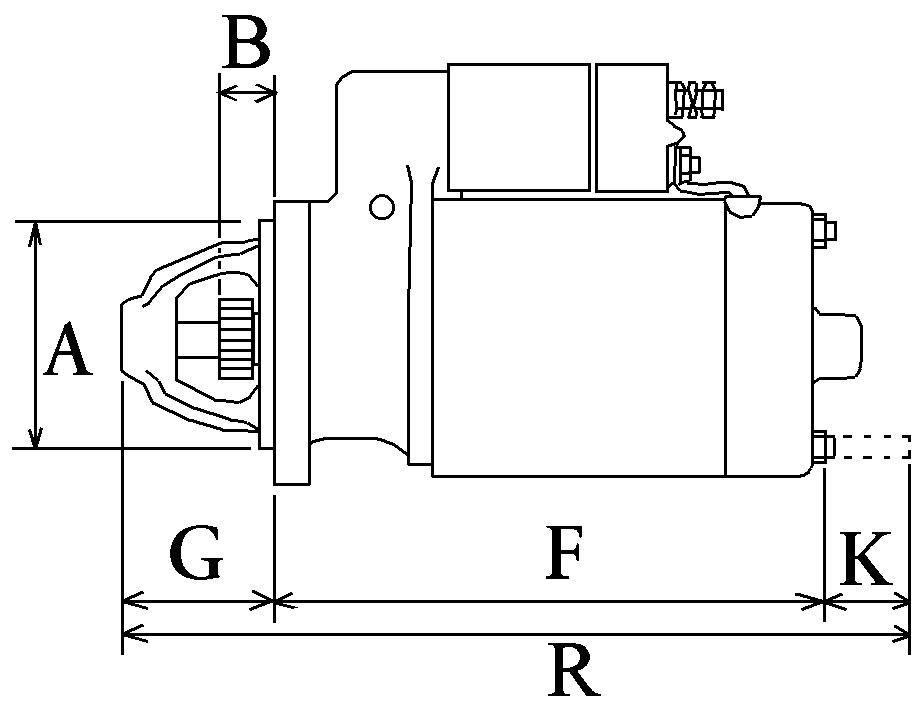

• A Mount. flange 70.00
• I B+ M8
• No./mount. holes 2 (2)
• B Drive dist. 16.00

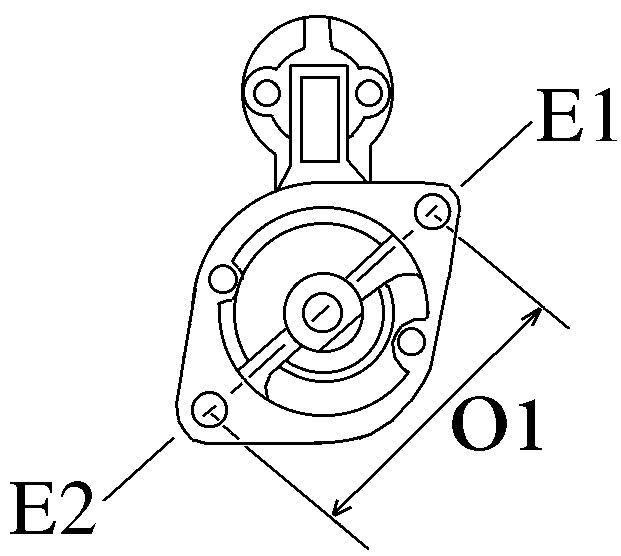

• E Mount. holes M10
• E Mount. hole 2 M10
• F Dist./back 156.00
• G Dist./front 47.00
• M Mount. bracket No
• O Dist. mm 100.13
• R Total length mm 204.00

Replacing

• 0009060126    Mercedes-Benz

• 000906012680    Mercedes-Benz

• 0061514501    Mercedes-Benz

• 006151450180    Mercedes-Benz

• 0399707152    Bosch

• 0986025940    Bosch Exchange

• 114305    HC-Cargo

• 15130057    AES

• 15130078    AES

• 1986S00934    Bosch

• 20130011    AES

• 30219N    WAI

• 4280005510    Denso

• 4280005510RD    RNL

• 4280005511    Denso

• 4280009320    Denso

• 4280805510    Denso

• 4280805511    Denso

• 438383    Valeo

• 458775    Valeo

• 5040102    Meat & Doria

• 550546122    PSH

• 61514501    Mercedes-Benz

• 6519060025    Mercedes-Benz

• 6519060026    Mercedes-Benz

• 651906002680    Mercedes-Benz

• 944280803840    Magneti Marelli

• A0009060126    Mercedes-Benz

• A000906012680    Mercedes-Benz

• A0061514501    Mercedes-Benz

• A006151450180    Mercedes-Benz

• A6519060025    Mercedes-Benz

• A6519060026    Mercedes-Benz

• A651906002680    Mercedes-Benz

• CS1527    HC-Parts

• DENDSN967    Wood Auto

• DRS0628    Delco Remy

• DSN967    Denso

• F032114305    HC-Cargo

• FPST112    FAI

• LES0375    Lucas

• LRS02487    Lucas

• LRS02787    Lucas

• LRS2487    Lucas

• LRS2787    Lucas

• MRS80384    Magneti Marelli

• MS1072    Mahle

• OSM11841    Optimum

• RAS31739    Delco Remy

• RNL4280005510    RNL

• RNL5510    RNL

• ST112    FAI

• STR70369    Wood Auto

• TRS017    TWA

• WOOSTR70369    Wood Auto

• WS31739    Delco Remy

• WURT5B700619    Würtemberg


Fits Vehicles

• MERCEDES-BENZ C-CLASS C 180 CDI (204.000) 2011 - 2143cc, 4cyl, 120HP
• MERCEDES-BENZ C-CLASS C 180 CDI (204.200) 2011 - 2143cc, 4cyl, 120HP
• MERCEDES-BENZ C-CLASS C 200 CDI (204.001) 2011 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ C-CLASS C 200 CDI (204.201) 2010 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ C-CLASS C 220 CDI 2001 - 2008 2148cc, 4cyl, 136HP
• MERCEDES-BENZ C-CLASS C 220 CDI 2007 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ C-CLASS C 220 CDI 2007 - 2148cc, 4cyl, 163HP
• MERCEDES-BENZ C-CLASS C 220 CDI (204.002) 2008 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ C-CLASS C 220 CDI (204.202) 2008 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ C-CLASS C 220 CDI (204.302) 2011 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ C-CLASS C 220 CDI (204.302) 2011 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ C-CLASS C 220 CDI 4-matic (204.084) 2013 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ C-CLASS C 220 CDI 4-matic (204.284) 2013 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ C-CLASS C 250 CDI (204.003) 2008 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ C-CLASS C 250 CDI (204.203) 2009 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ C-CLASS C 250 CDI (204.303) 2011 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ C-CLASS C 250 CDI 4-matic (204.282) 2010 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC (218.301) 2014 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC (218.301) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC (218.901) 2014 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC (218.901) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC / d (218.301) 2014 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ CLS CLS 220 BlueTEC / d (218.901) 2014 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ CLS CLS 220 d (218.301) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ CLS CLS 220 d (218.901) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ CLS CLS 250 BlueTEC / d 4-matic (218.397) 2014 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ CLS CLS 250 BlueTEC / d 4-matic (218.997) 2014 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ CLS CLS 250 CDI / BlueTEC / d (218.303 -
• MERCEDES-BENZ CLS CLS 250 CDI / BlueTEC / d (218.903 -
• MERCEDES-BENZ E-CLASS E 200 CDI / BlueTEC (212.005 -
• MERCEDES-BENZ E-CLASS E 200 CDI / BlueTEC (212.205 -
• MERCEDES-BENZ E-CLASS E 220 BlueTEC (207.301) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ E-CLASS E 220 BlueTEC (207.401) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ E-CLASS E 220 BlueTEC (212.001) 2014 - 2143cc, 4cyl, 177HP
• MERCEDES-BENZ E-CLASS E 220 BlueTEC 4-matic (212.011) 2015 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ E-CLASS E 220 BlueTEC 4-matic (212.211) 2014 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ E-CLASS E 220 CDI 1999 - 2002 2148cc, 4cyl, 136HP
• MERCEDES-BENZ E-CLASS E 220 CDI 2003 - 2008 2149cc, 4cyl, 163HP
• MERCEDES-BENZ E-CLASS E 220 CDI 2009 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ E-CLASS E 220 CDI 2014 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ E-CLASS E 220 CDI (207.302) 2010 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ E-CLASS E 220 CDI (207.402) 2010 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ E-CLASS E 220 CDI (212.202) 2009 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ E-CLASS E 220 CDI / BlueTEC (207.402 -
• MERCEDES-BENZ E-CLASS E 220 CDI / BlueTEC (212.001 -
• MERCEDES-BENZ E-CLASS E 220 CDI / BlueTEC (212.202 -
• MERCEDES-BENZ E-CLASS E 250 CDI (207.303) 2009 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ E-CLASS E 250 CDI / BlueTEC (207.403 -
• MERCEDES-BENZ E-CLASS E 250 CDI / BlueTEC (212.003 -
• MERCEDES-BENZ E-CLASS E 250 CDI / BlueTEC (212.203 -
• MERCEDES-BENZ E-CLASS E 250 CDI / BlueTEC 4-matic (212.082 -
• MERCEDES-BENZ E-CLASS E 250 CDI / BlueTEC 4-matic (212.282 -
• MERCEDES-BENZ GLK-CLASS 200 CDI (204.901) 2010 - 2143cc, 4cyl, 143HP
• MERCEDES-BENZ GLK-CLASS 200 CDI (204.901) 2013 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ GLK-CLASS 220 CDI (204.902) 2008 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ GLK-CLASS 220 CDI (204.902) 2008 - 2143cc, 4cyl, 170HP
• MERCEDES-BENZ GLK-CLASS 220 CDI 4-matic (204.984 -
• MERCEDES-BENZ GLK-CLASS 220 CDI 4-matic (204.984) 2008 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ GLK-CLASS 250 CDI 4-matic (204.982 -
• MERCEDES-BENZ SLK 250 CDI / d (172.403) 2012 - 2143cc, 4cyl, 204HP
• MERCEDES-BENZ SPRINTER 210 CDI (906.111 -
• MERCEDES-BENZ SPRINTER 210 CDI (906.611 -
• MERCEDES-BENZ SPRINTER 210 CDI (906.711 -
• MERCEDES-BENZ SPRINTER 213 CDI (906.111 -
• MERCEDES-BENZ SPRINTER 213 CDI (906.611 -
• MERCEDES-BENZ SPRINTER 213 CDI (906.711 -
• MERCEDES-BENZ SPRINTER 216 (906.713) 2008 - 1796cc, 4cyl, 156HP
• MERCEDES-BENZ SPRINTER 216 CDI (906.111 -
• MERCEDES-BENZ SPRINTER 216 CDI (906.611 -
• MERCEDES-BENZ SPRINTER 216 CDI (906.711 -
• MERCEDES-BENZ SPRINTER 310 CDI (906.131 -
• MERCEDES-BENZ SPRINTER 310 CDI (906.631 -
• MERCEDES-BENZ SPRINTER 310 CDI (906.731 -
• MERCEDES-BENZ SPRINTER 313 CDI (906.131 -
• MERCEDES-BENZ SPRINTER 313 CDI (906.631 -
• MERCEDES-BENZ SPRINTER 313 CDI (906.731 -
• MERCEDES-BENZ SPRINTER 313 CDI 4x4 (906.631 -
• MERCEDES-BENZ SPRINTER 313 CDI 4x4 (906.731 -
• MERCEDES-BENZ SPRINTER 316 CDI (906.131 -
• MERCEDES-BENZ SPRINTER 316 CDI (906.631 -
• MERCEDES-BENZ SPRINTER 316 CDI (906.731 -
• MERCEDES-BENZ SPRINTER 316 CDI 4x4 (906.131 -
• MERCEDES-BENZ SPRINTER 316 CDI 4x4 (906.631 -
• MERCEDES-BENZ SPRINTER 316 CDI 4x4 (906.731 -
• MERCEDES-BENZ SPRINTER 416 CDI (906.153 -
• MERCEDES-BENZ SPRINTER 416 CDI (906.653 -
• MERCEDES-BENZ SPRINTER 510 CDI (906.153 -
• MERCEDES-BENZ SPRINTER 510 CDI (906.653 -
• MERCEDES-BENZ SPRINTER 513 CDI (906.135 -
• MERCEDES-BENZ SPRINTER 513 CDI (906.653 -
• MERCEDES-BENZ SPRINTER 513 CDI 4x4 (906.135 -
• MERCEDES-BENZ SPRINTER 513 CDI 4x4 (906.653 -
• MERCEDES-BENZ SPRINTER 516 CDI (906.153 -
• MERCEDES-BENZ SPRINTER 516 CDI (906.653 -
• MERCEDES-BENZ SPRINTER 516 CDI 4x4 (906.153 -
• MERCEDES-BENZ SPRINTER 516 CDI 4x4 (906.653 -
• MERCEDES-BENZ VIANO CDI 2.0 2003 - 2148cc, 4cyl, 109HP
• MERCEDES-BENZ VIANO CDI 2.0 2005 - 2148cc, 4cyl, 116HP
• MERCEDES-BENZ VIANO CDI 2.0 2010 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ VIANO CDI 2.0 4-matic 2005 - 2148cc, 4cyl, 109HP
• MERCEDES-BENZ VIANO CDI 2.0 4-matic 2006 - 2148cc, 4cyl, 116HP
• MERCEDES-BENZ VIANO CDI 2.0 4-matic 2010 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ VIANO CDI 2.2 2003 - 2148cc, 4cyl, 150HP
• MERCEDES-BENZ VIANO CDI 2.2 2010 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ VIANO CDI 2.2 4-matic 2005 - 2148cc, 4cyl, 150HP
• MERCEDES-BENZ VIANO CDI 2.2 4-matic 2010 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ VITO 110 CDI 2010 - 2143cc, 4cyl, 95HP
• MERCEDES-BENZ VITO 113 CDI 2010 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ VITO 113 CDI 4x4 2010 - 2143cc, 4cyl, 136HP
• MERCEDES-BENZ VITO 116 CDI 2010 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ VITO 116 CDI 4x4 2010 - 2143cc, 4cyl, 163HP
• MERCEDES-BENZ VITO 116 CDI 4x4 2015 - 2143cc, 4cyl, 163HP

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
