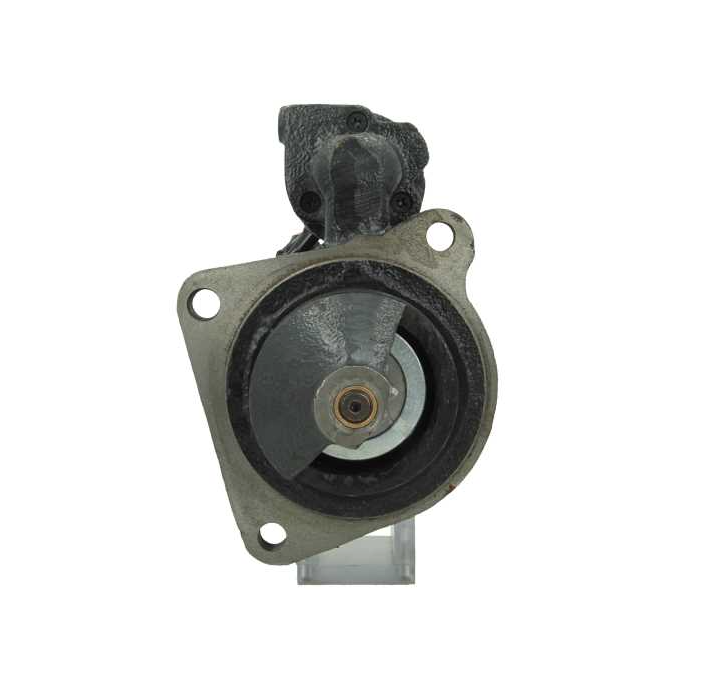

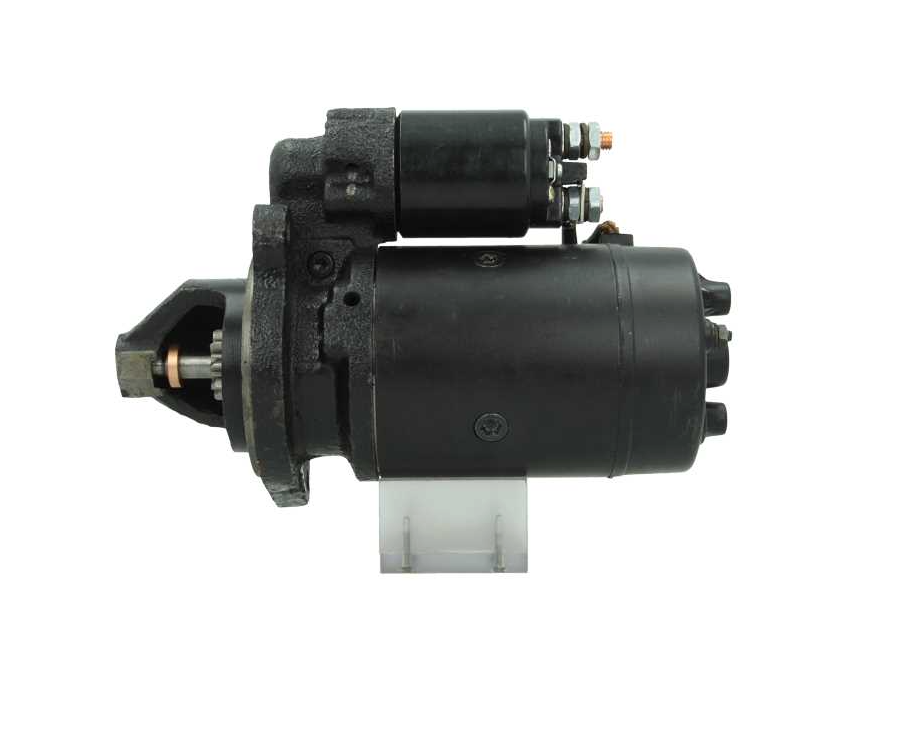

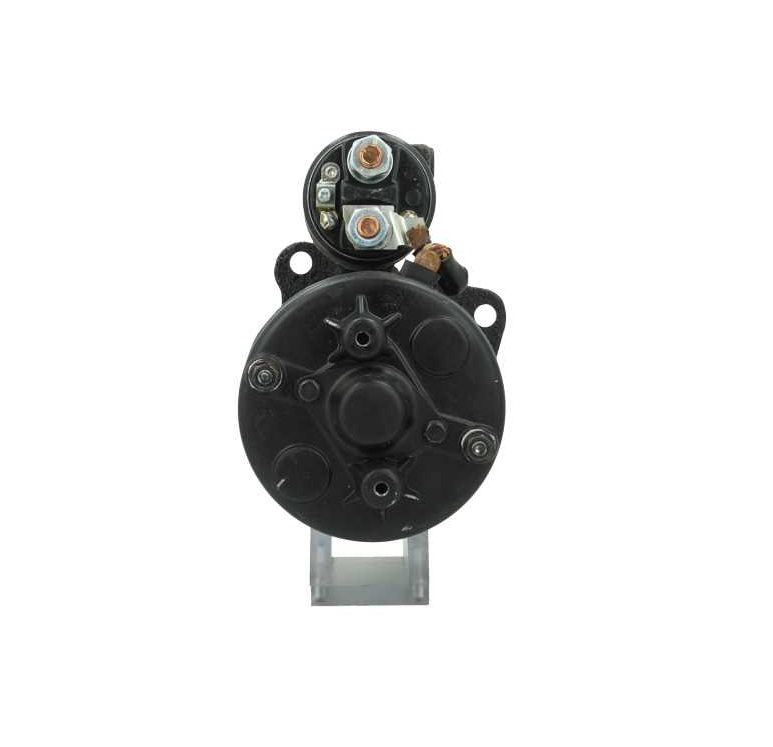

Starter Motor 12v 2.7KW 9 Tooth To Fit Fiat Tractor, New Holland, Iveco Etc. 110813 / STR50110
110813
STR50110
Electrical information
Voltage 12
Kw 2.7
Physical information
H No./teeth 9
P Rotation CW
N Gear type DD

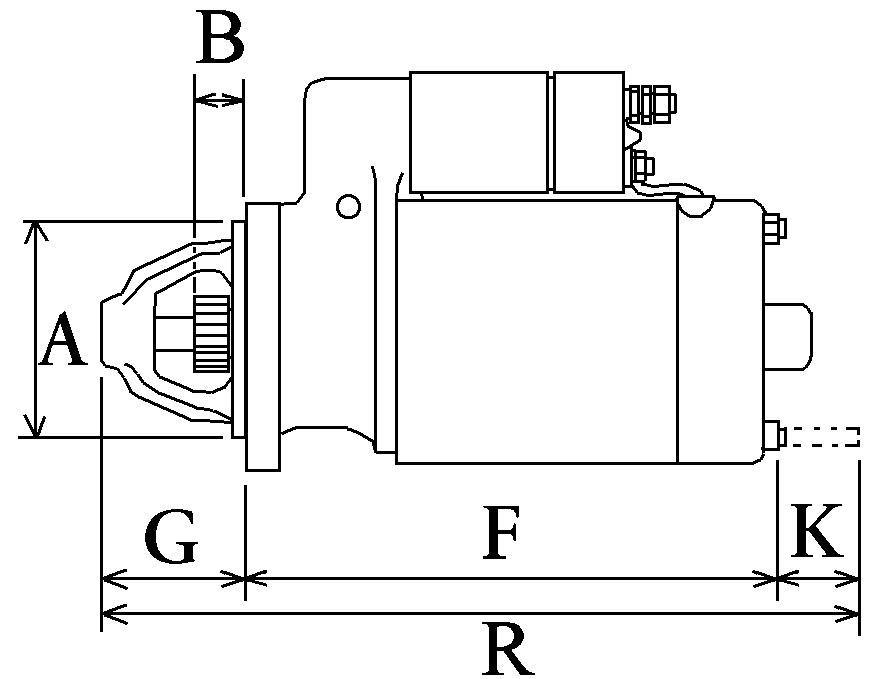

A Mount. flange 110.00
I B+ M10

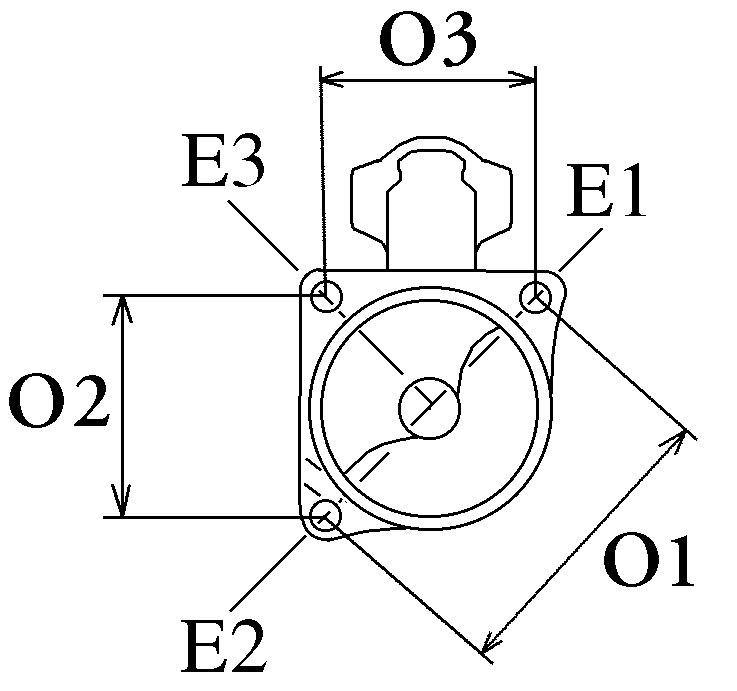

No./mount. holes 3 (0)
B Drive dist. 27.00
E Mount. holes 12.20
E Mount. hole 2 12.20
E Mount. hole 3 12.20
F Dist./back 222.00
G Dist./front 72.00
M Mount. bracket No
O Dist. mm 144.75
O Dist. 2 101.65
O Dist. 3 101.65
R Total length mm 294.00
Catalogue information
Drive type - Steel
Waterproof - No
Oil sealed - No
Replacing
0001362032 Bosch
0001362039 Bosch
0001362322 Bosch
0986012670 Bosch Exchange
0986012671 Bosch Exchange
110813 HC-Cargo
11130203 Mahle
17093N WAI
17093R WAI
18100203 AES
20404081 Prestolite
20500850 Prestolite
26290 Lucas
26390 Lucas
30380319 Magneti Marelli
4169096 Fiat Group
436074 Valeo
4682998 Fiat Group
4710224 Fiat Group
4722682 Fiat Group
4728682 Fiat Group
4739353 Fiat Group
4745929 Fiat Group
4759929 Fiat Group
4807373 Fiat Group
500001093 PSH
500333269 New Holland
5003332699 Renault
500338953 New Holland
5003389533 Renault
6005706617 Claas
63207159 Magneti Marelli
63207161 Magneti Marelli
63217101 Magneti Marelli
63217101010 Magneti Marelli
63217125 Magneti Marelli
63217125010 Magneti Marelli
63217126 Magneti Marelli
63217126010 Magneti Marelli
63224600 Magneti Marelli
63224600010 Magneti Marelli
72736016 Mahle
84224935 Case
91156928 Wilson
91178893 Wilson
91192506 Wilson
91292506 Wilson
9144744 Magneton
943217126 Magneti Marelli
AZJ3453 Mahle
AZJ3538 Mahle
BX362039 Bosch (USA)
C000900060030 Agco
CS572 HC-Parts
CT6005706617 Claas
DRS2670 Delco Remy
F032110813 HC-Cargo
HCS572 HC-Parts
IS0203 Mahle
LES0037 Lucas
LES0223 Lucas
LRS00850 Lucas
LRS00938 Lucas
LRS850 Lucas
LRS938 Lucas
MAHMS388 Wood Auto
MS388 Mahle
MSN227 Magneti Marelli
MT71A Magneti Marelli
MT71AA Magneti Marelli
MT71AB Magneti Marelli
MT71AC Magneti Marelli
RNL1267 RNL
RNL1267B RNL
S0850 Lucas
SM2527 Honda
STR22062 Wood Auto
STR50110 Wood Auto
STR52069 Wood Auto
TS6081 Dixie
WOOSTR50110 Wood Auto
WOOSTR52069 Wood Auto
Fits Applications
Agrifull, AGRICULTURAL
Allis Chalmers, AGRICULTURAL
BENFRA, INDUSTRIALS
Case, FORK LIFT
Case IH, AGRICULTURAL
Fiat, AGRICULTURAL
Fiat, MISCELLANEOUS
Fiat, PASSENGER CARS EU
Fiat-Allis, AGRICULTURAL
Fiat-Allis, INDUSTRIALS
Ford, AGRICULTURAL
Goldoni, AGRICULTURAL
Iveco, MOTOR
Iveco, MARINE
Lister-Petter, INDUSTRIALS
Manitou, FORK LIFT
Manitou, INDUSTRIALS
New Holland, AGRICULTURAL
New Holland, INDUSTRIALS
Terex, INDUSTRIALS
Turk Traktor, AGRICULTURAL
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
* All products come with 12 months warranty unless otherwise stated.
* Please contact us with any issues so we can provide a solution for you.
** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **
Agrifull 40 2.7 / 34 KW
Agrifull 50 2.7 / 38 KW
Agrifull 500 Fiat 2.7 / 42 KW
Agrifull 60 2.9 / 42.KW
Agrifull 80.46 2.6/2.8 37/43.KW
Agrifull 80.56 2.6/2.8 37/43.KW
Fiat Agri 25 2.9
Fiat Agri 30 2.9
Fiat Agri 4 2.6
Fiat Agri 400 2.6
Fiat Agri 45 2.7
Fiat Agri 500 2.6/2.8
Fiat Agri 55 2.7
Fiat Agri 60 2.9
Fiat Agri Bi/Bim 2.8
Fiat Agri Di 12/15 2.6
Fiat Agri Dim20/25 2.6
Fiat Agri Dm12/15 2.6
Fiat Agri R450dt 2.3
